Remove/Install Coolant Feed Line For Right Turbocharger - AR09.41-P-0012MND
Engine 276.8 in model 213, 238
Shown on engine 276.823

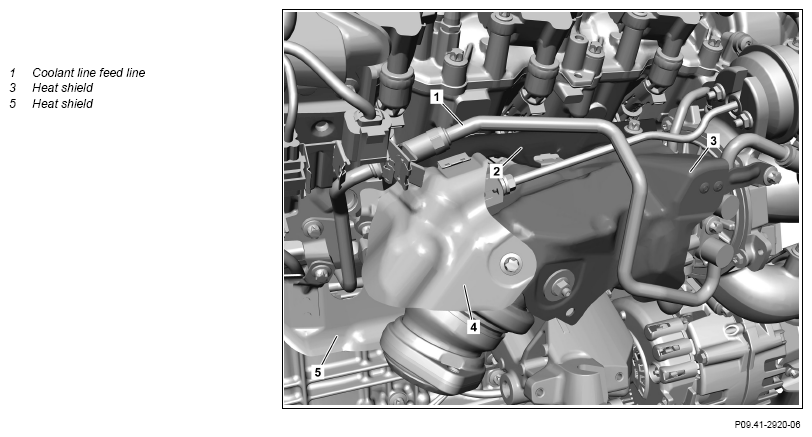

Fig 1: Coolant Feed Line For Right Turbocharger Components Location - Engine 276.8 In Model 213 (Shown On Engine 276.823)
Shown on engine 276.823
| Risk of injury Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove lower front center, center and rear engine compartment paneling | AR61.20-P-1105LWE | |
| 3 | Drain off coolant of engine cooling system | AR20.00-P-1142OLC | |
| 4 | Remove right air filter housing | AR09.10-P-1152MND | |
| 5 | Remove right catalytic converter | Engine 276.823 in model 213, 238 | AR49.10-P-5503MND |
| 6 | Remove inerting system line from heat shield (3) and place to one side | Engine 276.8 in model 213, 238 with code 2U8 (Alternative refrigerant) | AR86.10-P-0419LWE |
| 7 | Remove heat shield (5) | AR15.12-P-2184MND | |
| *BA15.10-P-1002-02B | |||
| 8 | Remove screw/bolt (6) | *BA09.40-P-1008-01W | |
| 9 | Remove screws/bolts (7, 8) | Engine 276.823 in model 213, 238 | |
| *BA09.40-P-1009-01W | |||
| *BA09.40-P-1010-01W | |||
| 10.1 | Remove coolant line feed line (1) on exhaust gas recirculation valve and remove upwards; seal openings with suitable stop plugs | Engine 276.853 in model 213 | AR14.20-P-0003MND |

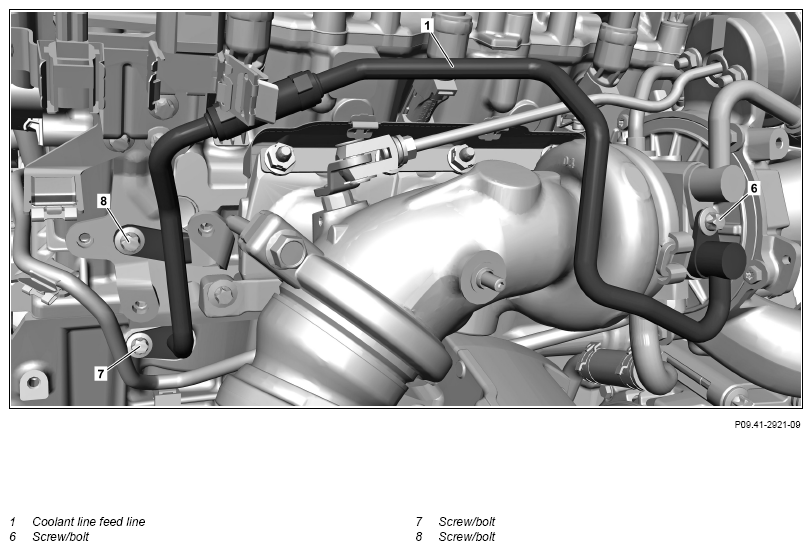

| Fig 3 | |||
| Fig 2 | |||
| 10.2 | Remove coolant line feed line (1) and close off openings using suitable stop plugs | Engine 276.823 in model 213, 238 | |
| Fig 2 | |||
| 11 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out engine test run, checking the engine for leaktightness and proper operation | ||
| 13 | Install upper engine cover | ||
| 14 | Install lower front center, center and rear engine compartment paneling | AR61.20-P-1105LWE |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1008-01W | Bolt, coolant feed/return line to turbocharger | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA09.40-P-1009-01W | Bolt, coolant feed line to crankcase | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 276.8 | ||
|---|---|---|---|---|
| BA09.40-P-1010-01W | Bolt for coolant line attachment | M6 | Nm | 9 |
KNOCK SENSORS
| Number | Designation | Engine 276 | |
|---|---|---|---|
| BA15.10-P-1002-02B | Screw/bolt, heat shield of knock sensor to crankcase/engine support/bracket | Nm | 9 |
