Check Low-Temperature Circuit For Leaktightness - AR09.41-P-1011MND
Engine 276.8 in model 213, 238
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove | |||
| 1 | Unscrew cap on expansion reservoir (1) | ||
| Check | |||
| 2 | Check coolant level and antifreeze content of coolant in low-temperature circuit and correct if necessary | *BF20.00-P-1001-02BA | |

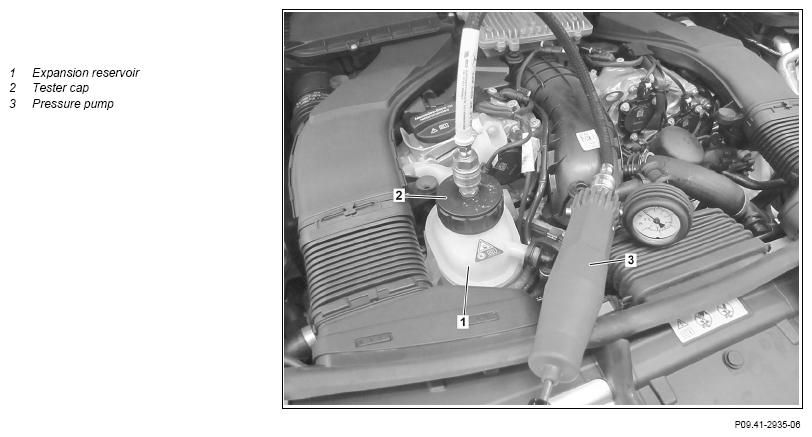

| 3 | Screw tester cap (2) on expansion reservoir (1) | Fig 2 | |
| 4 | Connect pressure pump (3) at tester cap (2) | Fig 1 | |
| 5 | Apply compressed air to low-temperature circuit for 2 minutes at the test pressure | Damage can occur otherwise on the lowtemperature circuit. Engine 276.8 in model 213, 238Test pressure for pressure-testing the engine cooling system |
*BE20.30-P-1005-01A |
| 6 | Perform a visual inspection on the assembly parts carrying coolant | In the event of pressure loss. |
|
| Install | |||
| 7 | Actuate pressure relief button on pressure pump (3) and relieve the pressure | Fig 1 | |
| 8 | Unscrew tester cap (2) at the expansion reservoir (1) | Fig 2 | |
| Check | |||
| 9 | Check coolant level and antifreeze content Coolant | If necessary. |
*BF20.00-P-1001-02BA |
| 10 | Screw cap onto expansion reservoir (1) |
RADIATOR OR EXPANSION RESERVOIR CAP
| Number | Designation | 1-stage cover latch | 2-stage cover latch | ||
|---|---|---|---|---|---|
| BE20.30-P-1005-01A | Test pressure for pressure-testing the engine cooling system | Overpressure | bar | 1, 4 | 1, 4 |
COOLING SYSTEM
| Number | Designation | Engine 276 in model 213 | Engine 276 in model 238 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02BA | Cooling system | Workshop replacement amount | Main circuit | L | ≈12, 0 | ≈12, 0 |
| Low-temperature circuit | L | ≈3, 5 | ≈2, 8 | |||
| Antifreeze/water | Up to -37°C | % | 50/50 | 50/50 | ||
| As of -38°C | % | 55/45 | 55/45 | |||
| Specifications for Operating Fluids, sheet | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Specifications for Operating Fluids, sheet | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
