Function Schematic For Heat Management - PE20.00-P-2502-97E

Engine 256 in model 167

Engine 264 in Model 213, 238, 257 as of model year 2021

Code: Designation: Position:
1 Vehicle speed, signal 23G
1 Vehicle speed, signal 19C
1 Vehicle speed, signal 31G
10 Throttle valve actuator motor, actuation 12A
11 Coolant temperature sensor, signal 7A
12 Fan motor, specified rpm request 27A
13 Coolant thermostat heating element, actuation 12C
14 Transmission control, signal 10F
15 Wheel speed, signal 22C
16 Accelerator pedal sensor, signal 17J
17 Circuit 87, status 7B
18 Engine running, signal 10H
18 Engine running, signal 17H
18 Engine running, signal 12F
19 Fan motor, status 24A
2 Instrument cluster, message 35G
2 Instrument cluster, message 22F
2 Instrument cluster, message 17G
2 Instrument cluster, message 10G
2 Instrument cluster, message 40G
2 Instrument cluster, message 28G
20 Fan motor, request 19D
20 Fan motor, request 21J
21 Low-temperature circuit switchover valve, actuation 27E
22 Low-temperature circuit temperature sensor, signal 17K
23 Low temperature circuit circulation pump 1, request 27C
24 Low temperature circuit circulation pump2, actuation 27C
3 Air conditioning, status 19C
3 Air conditioning, status 21H
4 Outside temperature, signal 19C
4 Outside temperature, signal 21J
7 Engine load, signal 7F
7 Engine load, signal 7D
8 Engine speed, signal 7G
9 Fuel injectors, actuation 12D
A26/17 Head unit 36H
A40/16 Head unit/instrument cluster display cluster 42H
B11/4 Coolant temperature sensor 3A
B11/6 Low-temperature coolant circuit 1 temperature sensor 3L
B11/7 Low-temperature coolant circuit2 temperature sensor 3L
B28/11 Pressure sensor downstream of air filter 3E
B28/26 Pressure and temperature sensor upstream of throttle valve 3F
B28/27 Pressure and temperature sensor downstream of throttle valve 3F
B37 Accelerator pedal sensor 3J
B70 Crankshaft Hall sensor 3G
CAN B Interior CAN 20J
CAN C1 Drive train CAN 14H
CAN C1 Drive train CAN 14G
CAN C1 Drive train CAN 11F
CAN HMI User interface CAN 26G
Code 580 Air conditioning 18K
Code 581 Automatic air conditioning 18K
Code B01 48V technology 31D
Code B01 48V technology 28E
Code ME05 HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) 28C
Ethernet Ethernet 33G
F152/3 Engine compartment fuse and relay module 3C
F152/3kN Circuit 87M relay 3C
Flex E Chassis FlexRay 21C
Flex E Chassis FlexRay 21F
Flex E Chassis FlexRay 19E
HSVL High-speed video link 38G
LIN C3 Drivetrain LIN 25E
LIN C3 Drivetrain LIN 25D
LIN C3 Drivetrain LIN 25B
M16/6 Throttle valve actuator 15A
M4/7 Fan motor 30B
M43/6 Low-temperature circuit coolant pump 1 32D
M43/7 Low temperature circuit circulation pump2 32D
N127 Drivetrain control unit 22B
N133/1 Instrument cluster control unit 29H
N22/1 Climate control, control unit 22K
N3/10 ME-SFI [ME] control unit 8D
N30/4 Electronic Stability Program control unit 22E
N73 Electronic ignition switch control unit 22G
R48 Coolant thermostat heating element 15C
Y3/8 Fully integrated transmission control controller unit 15F
Y73/1 Low-temperature circuit switchover valve 32F
Y76/1 Cylinder 1 fuel injector 15D
Y76/2 Cylinder2 fuel injector 15D
Y76/3 Cylinder 3 fuel injector 15E
Y76/4 Cylinder 4 fuel injector 15E
Y76/5 Cylinder 5 fuel injector 15E
Y76/6 Cylinder 6 fuel injector 15E

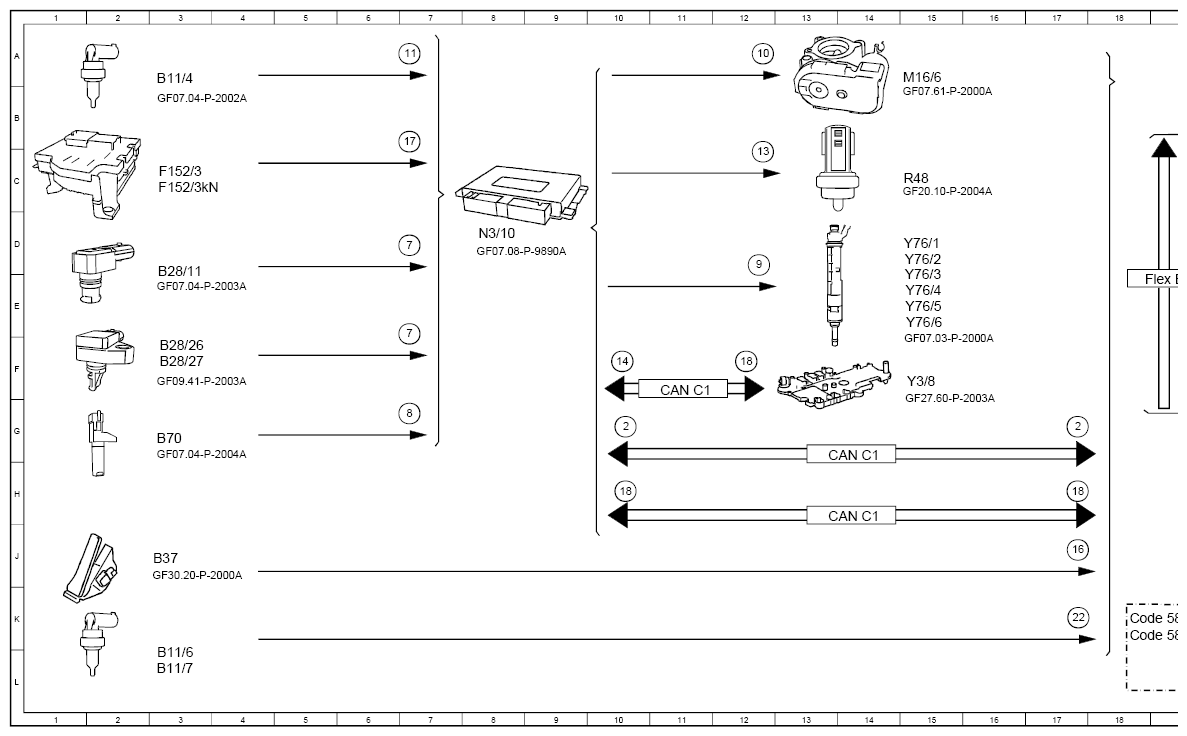

G13770947Courtesy of MERCEDES-BENZ USA

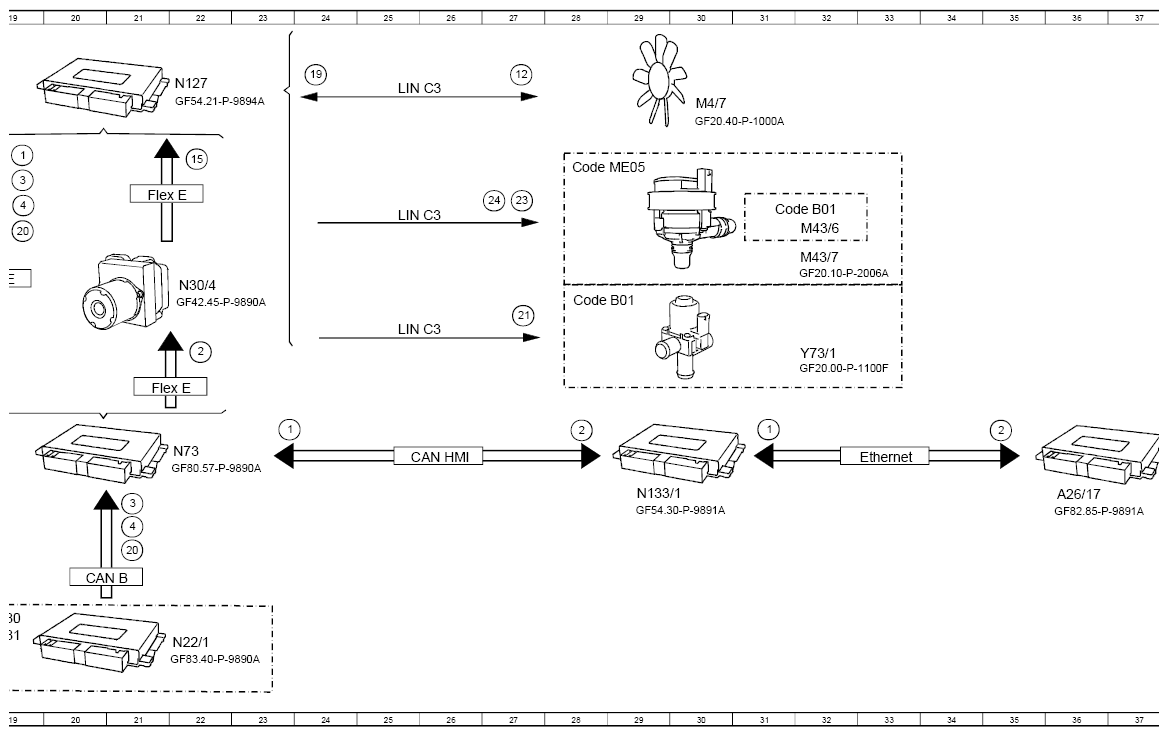

G13770948Courtesy of MERCEDES-BENZ USA
G13770949Courtesy of MERCEDES-BENZ USA
