Remove/Install Radiator - AR20.20-P-3865MRH
Engine 264 in Model 213, 238, 257
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove fan unit. | Engine 264 in Model 257 | AR20.40-P-5050MRH |
| Engine 264 in Model 213, 238 | AR20.40-P-5050OLA | ||
| 2 | Drain off coolant. | Engine 264 in Model 213, 238 | AR20.00-P-1142MRH |
| Engine 264 in Model 257 | AR20.00-P-1142MSB | ||

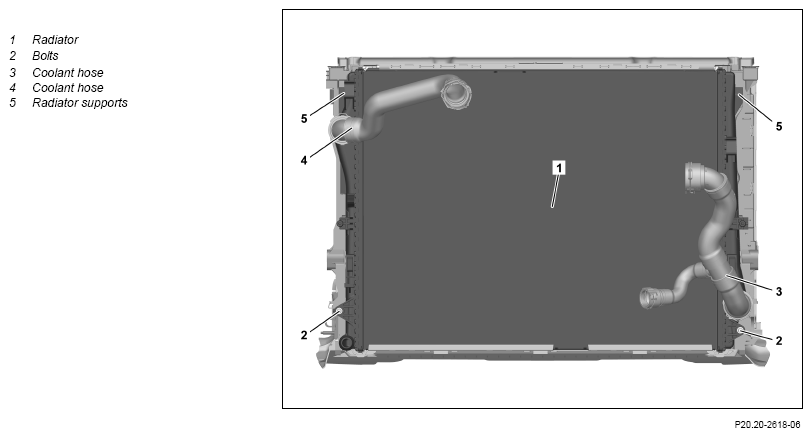

| 3 | Remove coolant hose (3) from cooler (1). | AR20.20-P-7441-01RQ | |
| 4 | Remove coolant hose (4) from cooler (1). | AR20.20-P-7441-01RQ | |
| 5 | Remove screws (2). | ||
| 6 | Pull the lower radiator (1) towards the rear. When doing so, pull the radiator mounts (5) out of the radiator supports and remove the radiator (1). | ||
| 7 | Install in the reverse order. |
