(Remove/Install Radiator - AR20.20-P-3865OLA)
Model 238 with Engine 274.9, 642, 654
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Remove/install | |||
| 1 | Remove fan unit | AR20.40-P-5050OLA | |
| 2 | Drain off coolant | AR20.00-P-1142OLC | |
| 3 | Remove coolant hoses (2) on cooler (1) and close openings with suitable protective covers | AR20.20-P-7441-01RQ | |

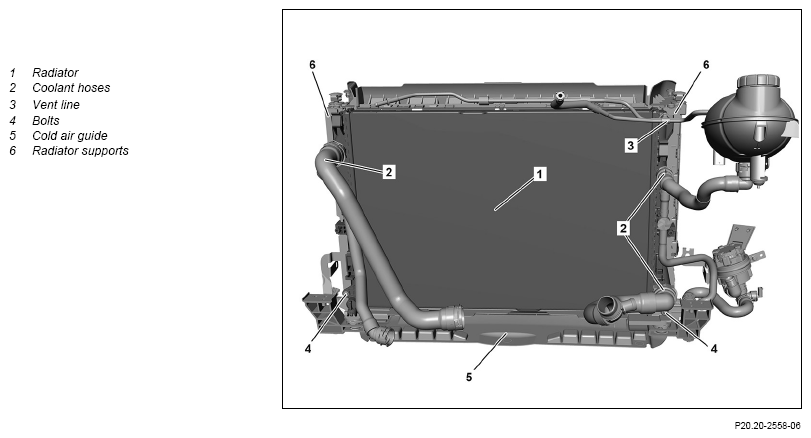

| Fig 1 | |||
| 4 | Unclip cold air guide (5) on cooler (1) | ||
| 5 | Remove screws/bolts (4) | ||
| 6 | Pull the cooler (1) downwards to the rear, pull out above on the radiator supports (6) and remove cooler (1) downwards | ||
| 7 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run, checking the engine cooling system for proper operation and leaktightness | ||
| 9 | Install center and front sections of lower engine compartment paneling | AR61.20-P-1105LWE |
