Remove/Install Fan Unit - AR20.40-P-5050MSA
Engine 256.9 in Model 213, 238, 257, 290
Shown on Model 257
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min.2 m). | ||

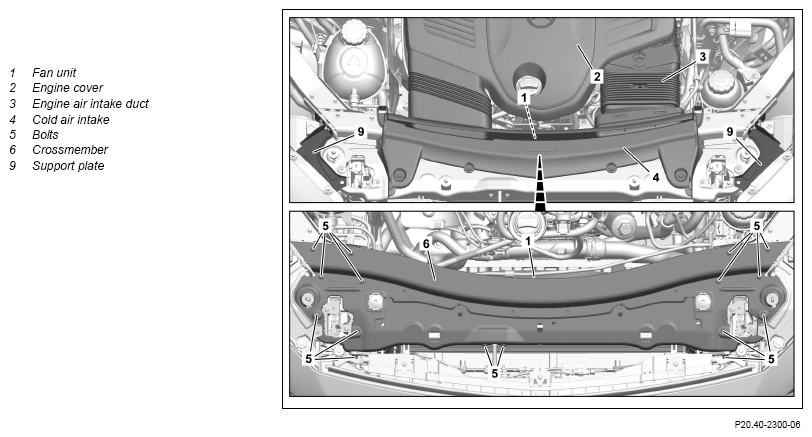

| 2 | Remove upper engine cover (2). | AR01.10-P-2405MSA | |
| 3 | Remove engine air intake duct (3). | ||
| 4 | Remove cold air intake (4). | ||
| 5 | Drill out rivets of supporting plates (9). | Engine 256.9 in Model 257 |
|
| 6 | Remove supporting plates (9). | *BA00.10-P-1002-04A | |
| 7 | Remove screws (5) and remove/crossmember (6). | *BA62.30-P-1008-01H | |
| *BA00.10-P-1002-04A | |||
| *BA00.10-P-1004-04A | |||
| 8 | Release and disconnect electrical connector from fan unit (1). | ||
| 9 | Drain off coolant. | AR20.00-P-1142MSA | |

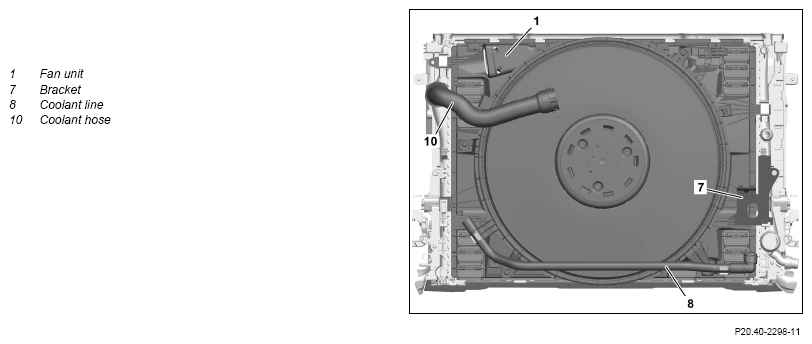

| 10 | Unclip bracket (7) from fan unit (1) and radiator and place to one side. | ||
| 11 | Unclip coolant line (8) from fan unit (1). | ||
| 12 | Remove upper cold air guide from fan unit (1). | ||
| 13 | Remove bleed line from cooler and seal openings with suitable stop plugs. | Fig 3 | |
| 14 | Remove coolant hose (10) from cooler and seal openings with protective covers. | AR20.20-P-7441-01RQ | |
| Fig 2 | |||
| 15 | Remove fan unit (1). | ||
| 16 | Install in the reverse order. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6x1 | Nm | 9 | 13 |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1004-04A | M8x1 | Nm | 23 | 33 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 213 | Model 238 | |
|---|---|---|---|---|
| BA62.30-P-1008-01H | Bolt, lock striker to cross member/front-module carrier | Nm | 10 | 10 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 257 | Model 290 | |
|---|---|---|---|---|
| BA62.30-P-1008-01H | Bolt, lock striker to cross member/front-module carrier | Nm | 10 | 10 |
