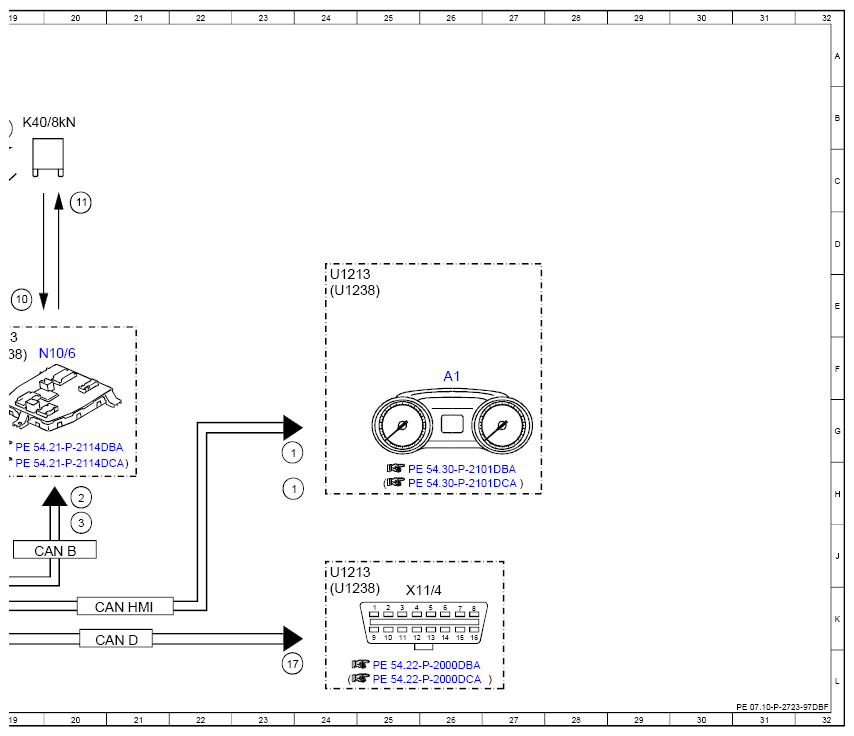

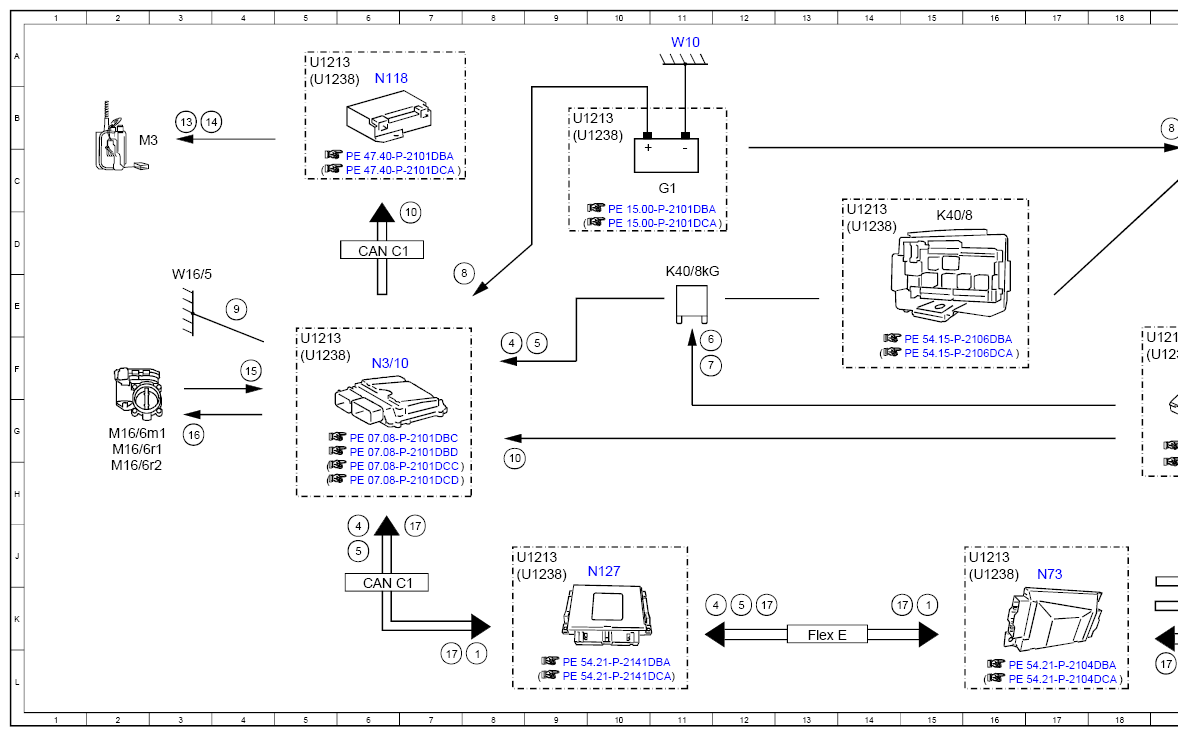

Electrical Function Schematic For Ignition - PE07.10-P-2723-97DBF
Engine 276.8 in model 213, 238
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Instrument cluster, request | 15K |
| 1 | Instrument cluster, request | 23H |
| 1 | Instrument cluster, request | 8L |
| 1 | Instrument cluster, request | 23G |
| 10 | Circuit 87, status | 8G |
| 10 | Circuit 87, status | 7D |
| 10 | Circuit 87, status | 19E |
| 11 | Combustion engine circuit 87 relay, actuation | 20C |
| 13 | Fuel pump, actuation OFF | 3B |
| 14 | Fuel pump, actuation | 3B |
| 15 | Throttle valve position, signal | 4F |
| 16 | Throttle valve actuator motor, actuation | 26K |
| 17 | Engine management diagnosis, communication | 14K |
| 17 | Engine management diagnosis, communication | 7L |
| 17 | Engine management diagnosis, communication | 12K |
| 17 | Engine management diagnosis, communication | 7J |
| 17 | Engine management diagnosis, communication | 19L |
| 17 | Engine management diagnosis, communication | 23L |
| 2 | Circuit 15, request ON | 20H |
| 3 | Circuit 15, request OFF | 20J |
| 4 | Circuit 15, status ON | 6J |
| 4 | Circuit 15, status ON | 12K |
| 4 | Circuit 15, status ON | 8F |
| 5 | Circuit 15, status OFF | 6J |
| 5 | Circuit 15, status OFF | 12K |
| 5 | Circuit 15, status OFF | 9F |
| 6 | Circuit 15 relay, actuation | 11F |
| 7 | Circuit 15 relay, actuation OFF | 11F |
| 8 | Circuit 30, status | 8E |
| 8 | Circuit 30, status | 19B |
| 9 | Circuit 31, status | 4E |
| A1 | Instrument cluster | 26F |
| CAN B | Interior CAN | 20J |
| CAN C1 | Drive train CAN | 6D |
| CAN C1 | Drive train CAN | 6K |
| CAN D | Diagnostic CAN | 21K |
| CAN HMI | User interface CAN | 21K |
| Flex E | Chassis FlexRay | 13K |
| G1 | On-board electrical system battery | 11C |
| K40/8 | Engine fuse and relay module | 15D |
| K40/8kG | Engine compartment terminal 15 relay | 11E |
| K40/8kN | Circuit 87M relay | 19B |
| M16/6m1 | Throttle valve actuator motor | 2G |
| M16/6r1 | Actual value potentiometer 1 | 2G |
| M16/6r2 | Actual value potentiometer 2 | 2H |
| M3 | Fuel pump (FP) | 2B |
| N10/6 | Front SAM control unit | 20F |
| N118 | Fuel pump control unit | 6A |
| N127 | Drivetrain control unit | 10J |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N73 | Electronic ignition switch control unit | 17J |
| U1213 | Valid for model 213 | 5A |
| U1213 | Valid for model 213 | 9B |
| U1213 | Valid for model 213 | 14D |
| U1213 | Valid for model 213 | 5F |
| U1213 | Valid for model 213 | 8J |
| U1213 | Valid for model 213 | 18F |
| U1213 | Valid for model 213 | 16J |
| U1213 | Valid for model 213 | 24E |
| U1213 | Valid for model 213 | 24J |
| U1238 | Valid for model 238 | 5A |
| U1238 | Valid for model 238 | 9B |
| U1238 | Valid for model 238 | 14D |
| U1238 | Valid for model 238 | 5F |
| U1238 | Valid for model 238 | 8J |
| U1238 | Valid for model 238 | 18F |
| U1238 | Valid for model 238 | 16J |
| U1238 | Valid for model 238 | 24E |
| U1238 | Valid for model 238 | 24K |
| W10 | Battery ground point | 11A |
| W16/5 | Left major assembly compartment electronics ground point | 3E |
| X11/4 | Diagnostic connector | 25K |
