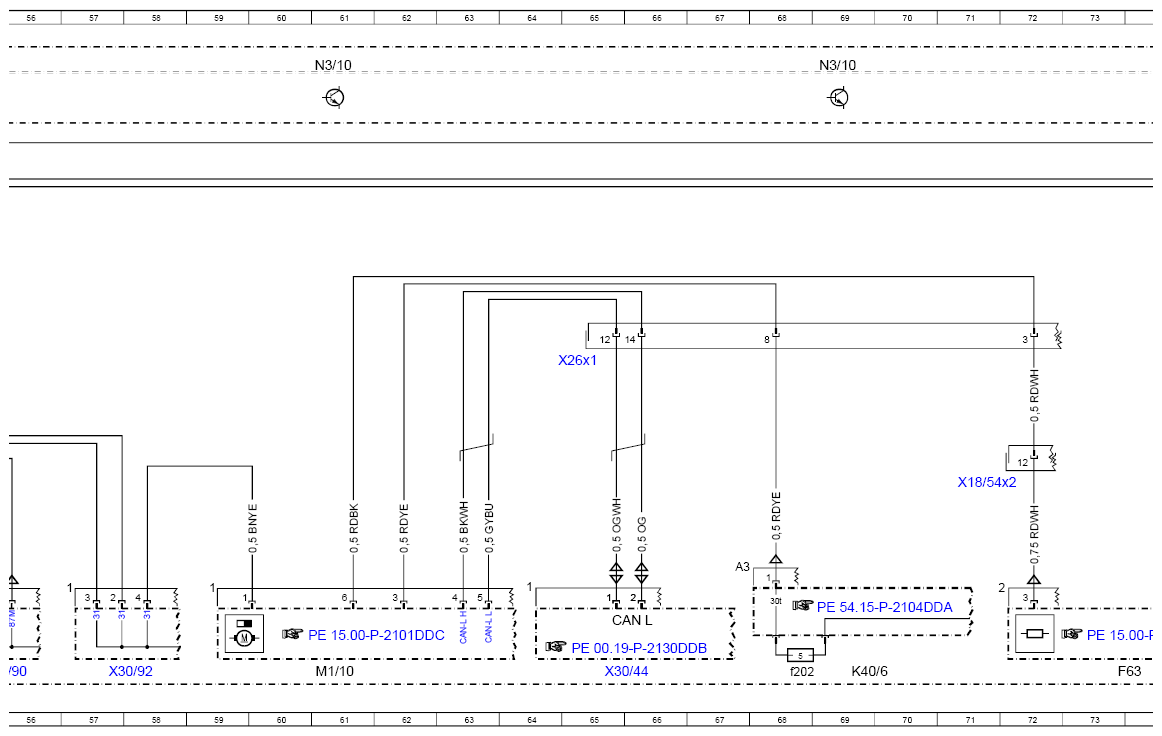

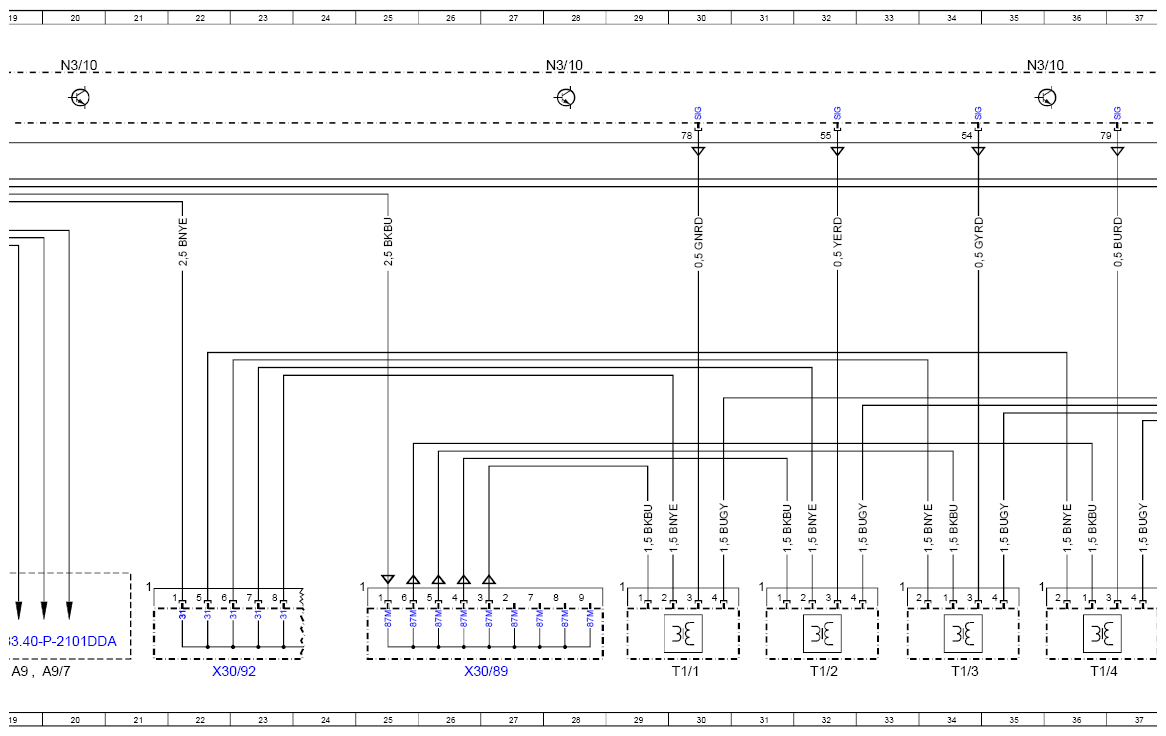

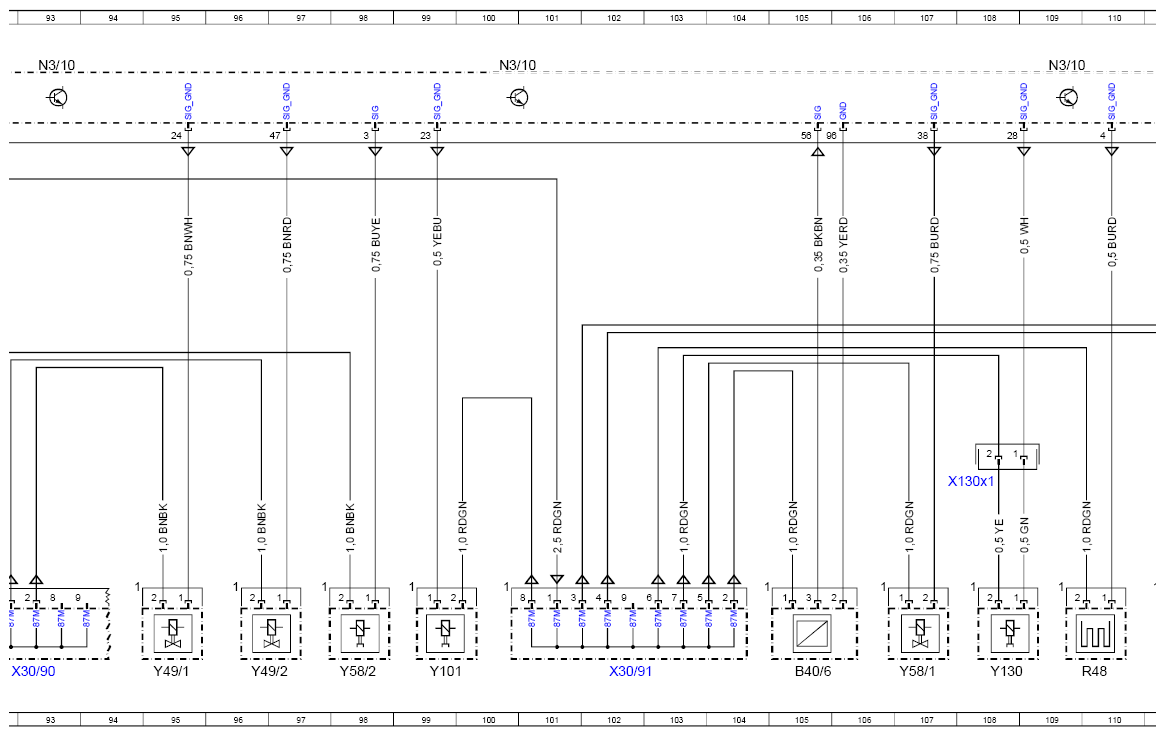

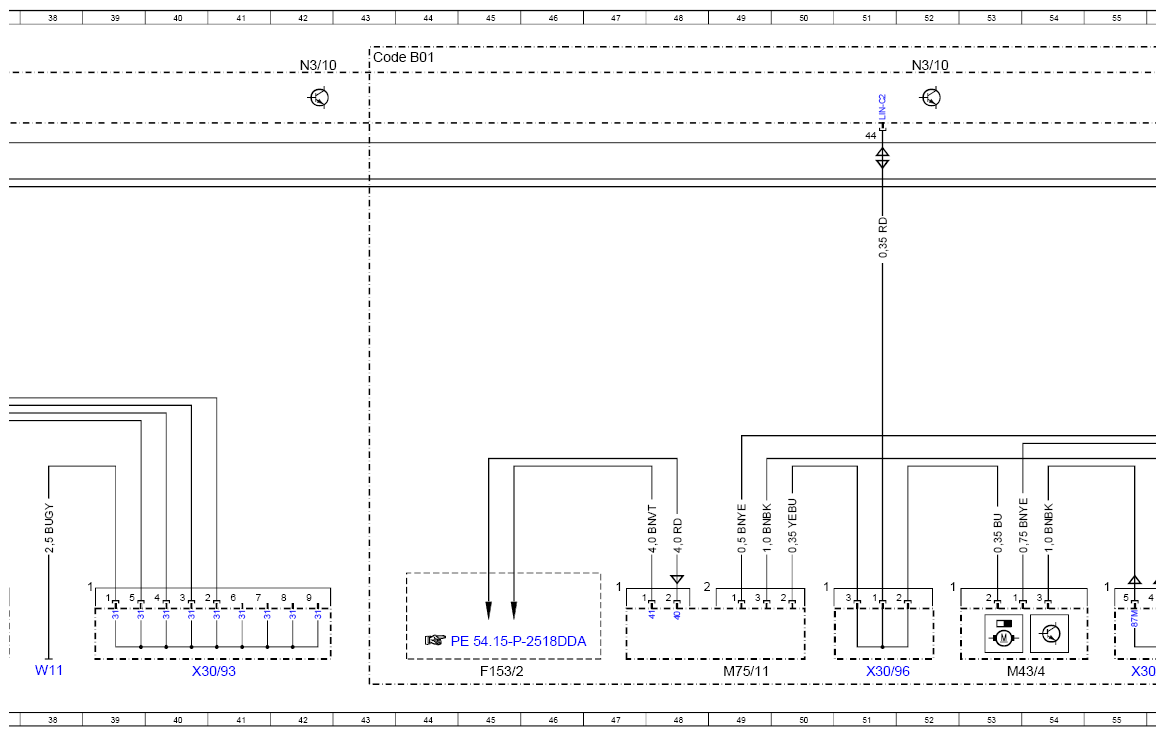

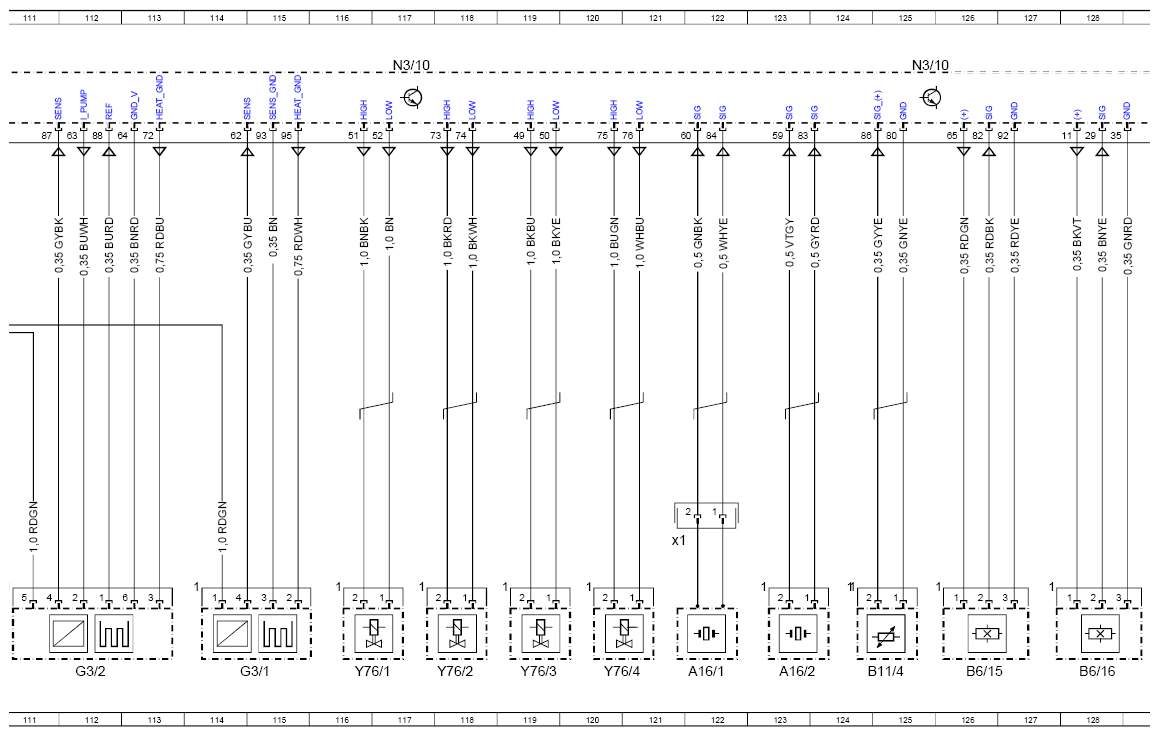

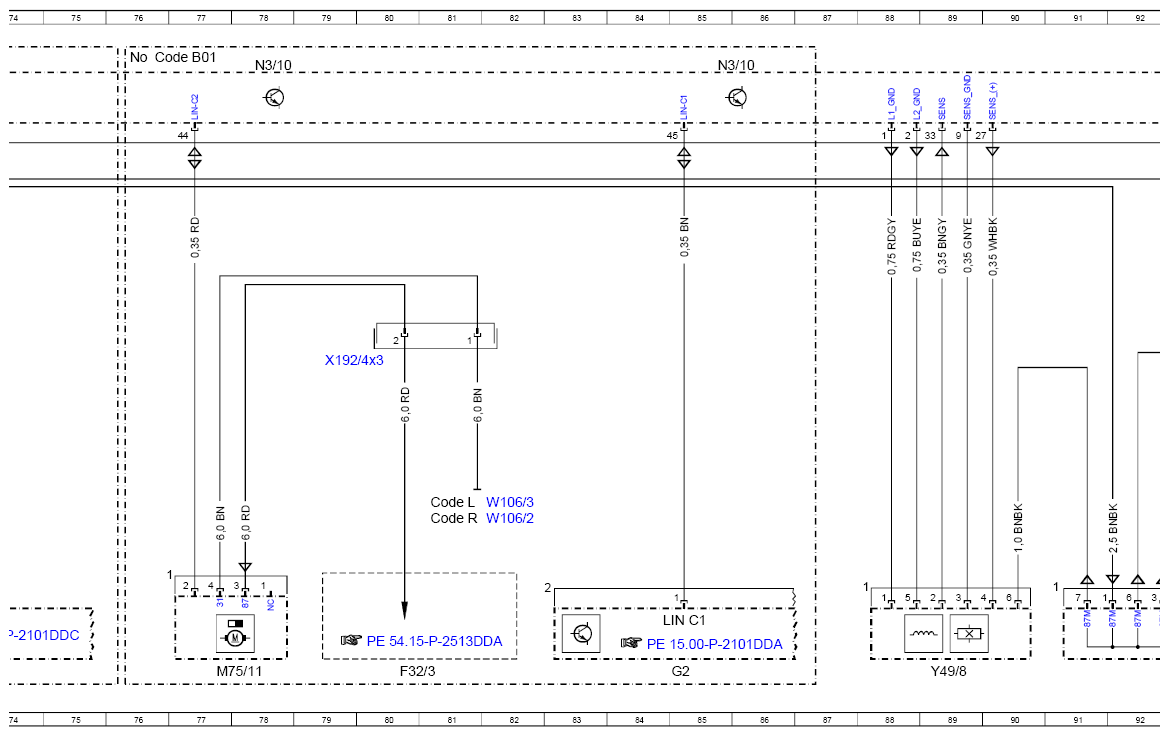

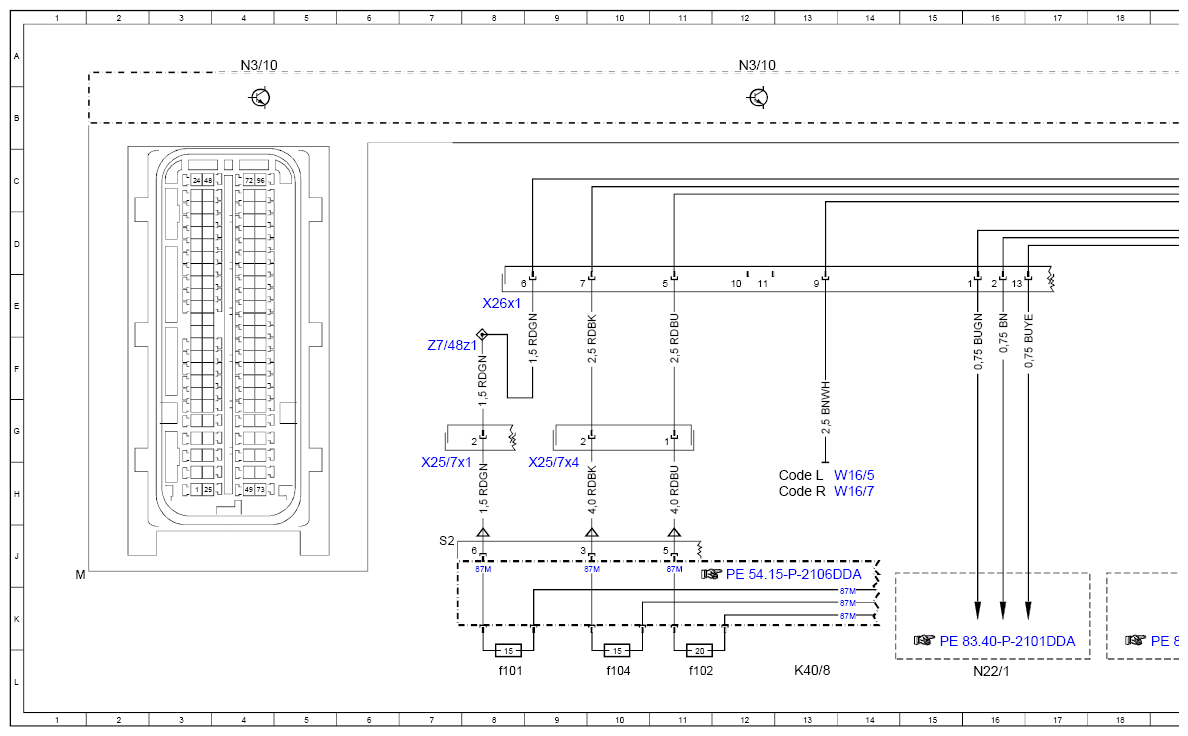

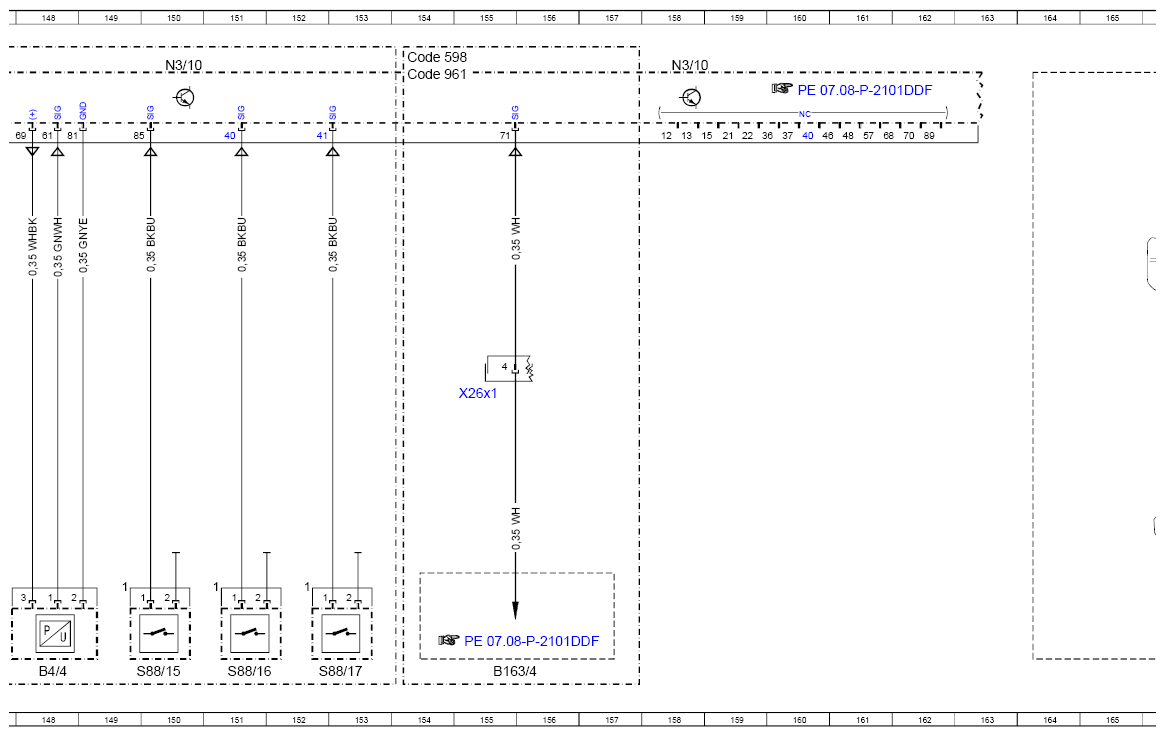

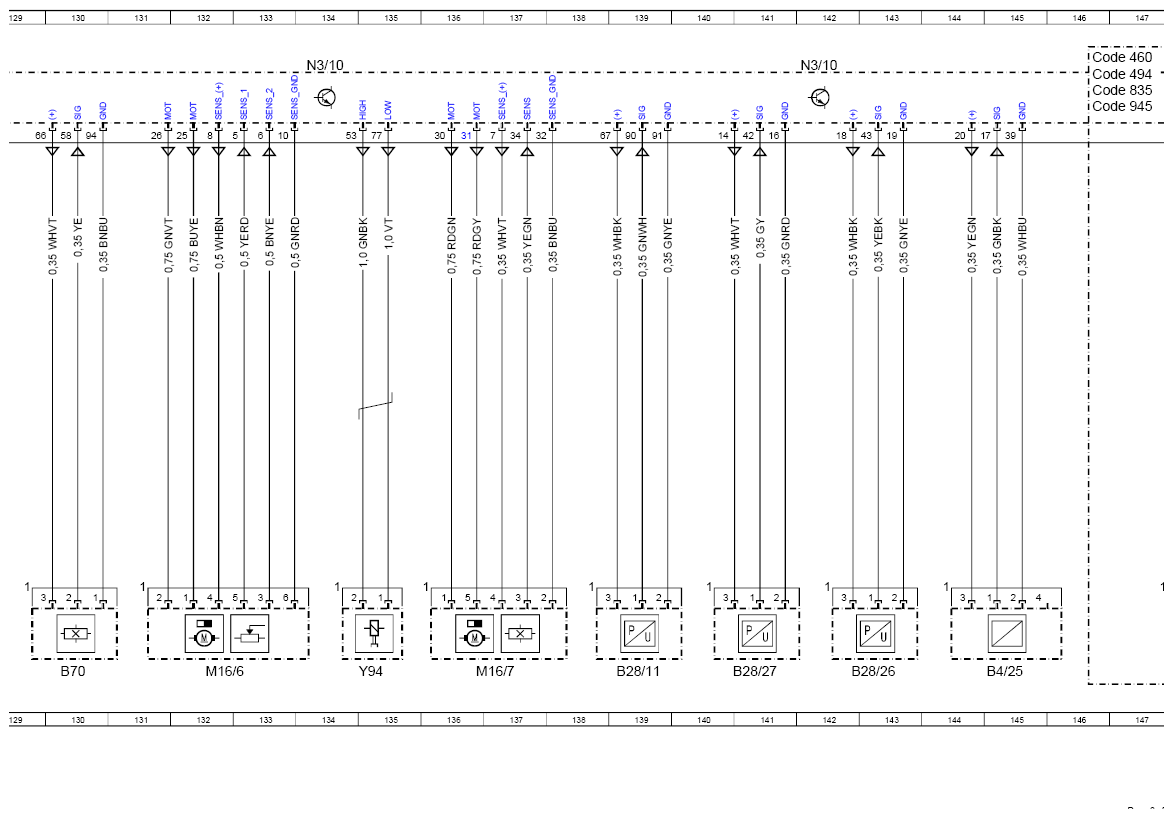

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97DDE
Engine 264.9 in model 213 as of model year 2021 Control unit N3/10, engine connector
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 189L |
| A16/1 | Knock sensor 1 | 122L |
| A16/1x1 | Knock sensor electrical connector 1 | 121J |
| A16/2 | Knock sensor 2 | 123L |
| A9 | Refrigerant compressor | 19L |
| A9/7 | Refrigerant compressor with magnetic clutch | 20L |
| B11/4 | Coolant temperature sensor | 125L |
| B163/4 | Exhaust temperature sensor | 155L |
| B28/11 | Pressure sensor downstream of air filter | 139L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 143L |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 141L |
| B4/25 | Fuel pressure and temperature sensor | 145L |
| B4/4 | Purging pressure sensor | 148L |
| B40/6 | Engine oil fill level sensor | 105L |
| B6/15 | Intake camshaft Hall sensor | 126L |
| B6/16 | Exhaust camshaft Hall sensor | 128L |
| B70 | Crankshaft Hall sensor | 130L |
| CAN L | Hybrid CAN | 65K |
| Code 460 | Canada version | 146A |
| Code 494 | USA version | 146A |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 154A |
| Code 835 | Additional parts for South Korea vehicles | 146B |
| Code 945 | China Stage 6 exhaust treatment | 146B |
| Code 961 | Exhaust system with OPF, Generation 2.0 | 154A |
| Code B01 | 48V technology | 43A |
| Code B01 | 48V technology | 76A |
| Code L | LEFT-HAND DRIVE | 13H |
| Code L | LEFT-HAND DRIVE | 81H |
| Code R | RIGHT-HAND DRIVE | 13H |
| Code R | RIGHT-HAND DRIVE | 81H |
| F153/2 | Engine compartment 48V fuse box | 45L |
| F32/3 | Engine compartment prefuse box | 80L |
| F63 | Pyrofuse | 73L |
| G2 | Alternator | 85L |
| G3/1 | Oxygen sensor downstream of catalytic converter | 114L |
| G3/2 | Oxygen sensor upstream of catalytic converter | 112L |
| K40/6 | Driver-side fuse and relay module | 69L |
| K40/6f202 | Fuse 202 | 68L |
| K40/8 | Engine fuse and relay module | 13L |
| K40/8f101 | Fuse 101 | 8L |
| K40/8f102 | Fuse 102 | 11L |
| K40/8f104 | Fuse 104 | 10L |
| LIN | C1 Drive train LIN | 85K |
| M1/10 | Starter-alternator | 61L |
| M16/6 | Throttle valve actuator | 132L |
| M16/7 | Boost pressure control flap actuator | 137L |
| M43/4 | Starter-alternator coolant pump | 53L |
| M75/11 | Electric coolant pump | 49L |
| M75/11 | Electric coolant pump | 77L |
| N22/1 | Climate control, control unit | 16L |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 35A |

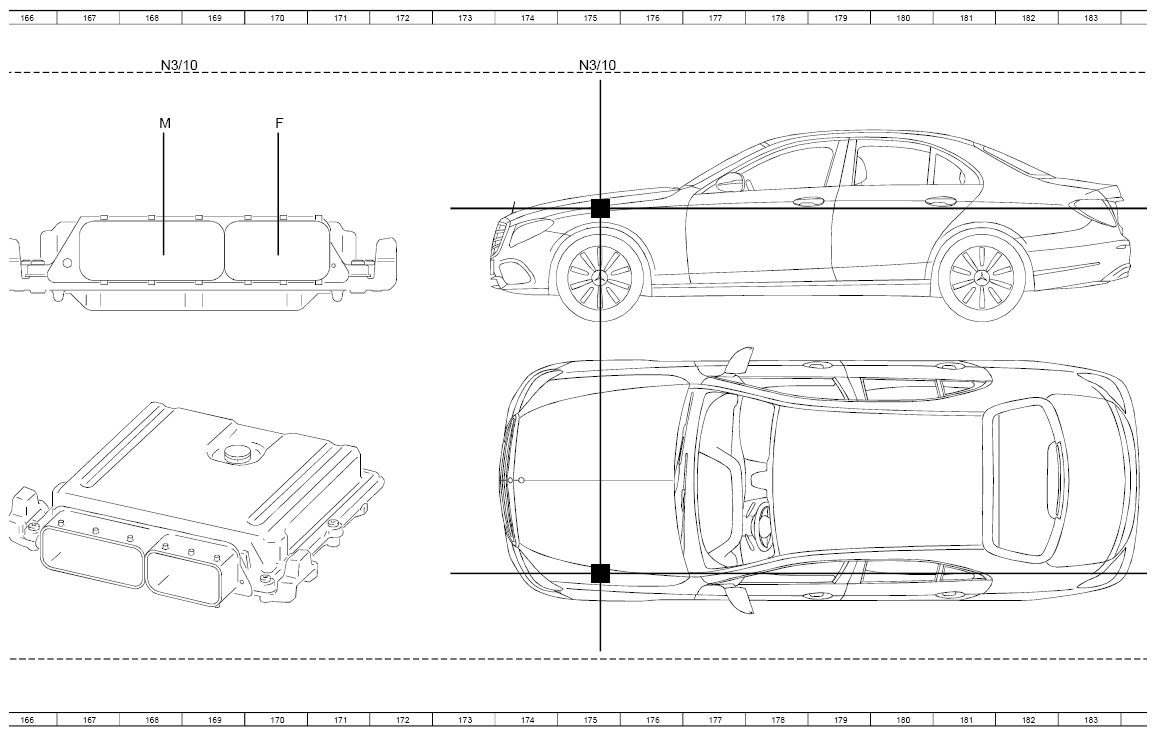

| N3/10 | ME-SFI [ME] control unit | 175A |
| N3/10 | ME-SFI [ME] control unit | 42A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 61A |
| N3/10 | ME-SFI [ME] control unit | 69A |
| N3/10 | ME-SFI [ME] control unit | 78A |
| N3/10 | ME-SFI [ME] control unit | 85A |
| N3/10 | ME-SFI [ME] control unit | 93A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 109A |
| N3/10 | ME-SFI [ME] control unit | 117A |
| N3/10 | ME-SFI [ME] control unit | 125A |
| N3/10 | ME-SFI [ME] control unit | 134A |
| N3/10 | ME-SFI [ME] control unit | 142A |
| N3/10 | ME-SFI [ME] control unit | 150A |
| N3/10 | ME-SFI [ME] control unit | 158A |
| N3/10 | ME-SFI [ME] control unit | 168A |
| R48 | Coolant thermostat heating element | 110L |
| S88/15 | Vent line contact switch 1 | 150L |
| S88/16 | Vent line contact switch 2 | 151L |
| S88/17 | Vent line contact switch 3 | 153L |
| T1/1 | Cylinder 1 ignition coil | 30L |
| T1/2 | Cylinder 2 ignition coil | 32L |
| T1/3 | Cylinder 3 ignition coil | 34L |
| T1/4 | Cylinder 4 ignition coil | 36L |
| W106/2 | 48 V on-board electrical system battery ground point, left | 82H |
| W106/3 | 48 V on-board electrical system battery ground point, right | 82H |
| W11 | Combustion engine ground point | 38L |
| W16/5 | Left major assembly compartment electronics ground point | 13H |
| W16/7 | Right major assembly compartment electronics ground point | 13H |
| X130x1 | Engine oil pump valve electrical connector | 108H |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 71H |
| X192/4x3 | 48 V electric coolant pump electrical connector 3 | 79F |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 7H |
| X25/7x4 | Engine compartment/interior wiring harness electrical connector 4 | 9H |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 8E |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 65F |
| X26x1 | Engine wiring harness/engine compartment electrical connector | 155F |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 65L |
| X30/89 | Power supply potential distributor 1 | 26L |
| X30/90 | Power supply potential distributor 2 | 55L |
| X30/90 | Power supply potential distributor 2 | 93L |
| X30/91 | Power supply potential distributor 3 | 102L |
| X30/92 | Circuit 31 potential distributor 1 | 22L |
| X30/92 | Circuit 31 potential distributor 1 | 57L |
| X30/93 | Circuit 31 potential distributor 2 | 40L |
| X30/96 | Engine LIN (LIN C2) potential distributor | 51L |
| Y101 | Divert air switchover valve | 99L |
| Y130 | Engine oil pump valve | 108L |
| Y49/1 | Intake camshaft solenoid | 95L |
| Y49/2 | Left exhaust camshaft solenoid | 96L |
| Y49/8 | Intake camshaft valve lift switching actuator | 89L |
| Y58/1 | Purge control valve | 107L |
| Y58/2 | Partial load operation crankcase ventilation valve | 98L |
| Y76/1 | Cylinder 1 fuel injector | 116L |
| Y76/2 | Cylinder 2 fuel injector | 118L |
| Y76/3 | Cylinder 3 fuel injector | 119L |
| Y76/4 | Cylinder 4 fuel injector | 120L |
| Y94 | Quantity control valve | 135L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 7F |
