Remove/Install Circulation Pumps For Low-Temperature Circuit - AR09.41-P-6927MNE
Engine 177 in model 213
| Remove/install | |||
| 1 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNE | |
| 2 | Remove lower front fender liner and press to side | AR88.10-P-1300LWE | |

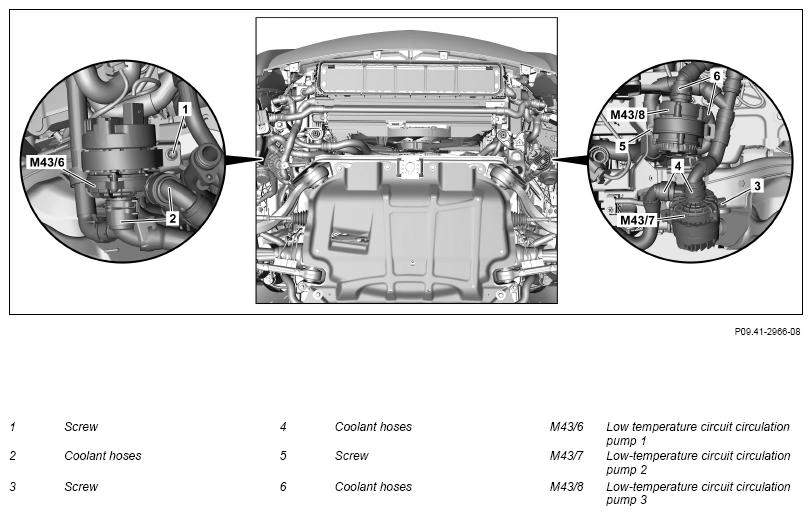

| 3 | Remove coolant hose (2) at low-temperature circuit circulation pump 1 (M43/6) | AR20.20-P-7441-01RQ | |
| 4 | Release and disconnect electrical connection at low-temperature circuit circulation pump 1 (M43/6) | ||
| 5 | Remove screw (1) and remove low temperature circuit circulation pump 1 (M43/6) | ||
| 6 | Release and disconnect electrical connection at low-temperature circuit circulation pump 2 (M43/7) | ||
| 7 | Remove coolant hose (4) at low-temperature circuit circulation pump 2 (M43/7) | AR20.20-P-7441-01RQ | |
| 8 | Remove screw (3) and remove low temperature circuit circulation pump 2 (M43/7) | ||
| 9 | Release and disconnect electrical connection at low-temperature circuit circulation pump 3 (M43/8) | ||
| 10 | Remove coolant hose (6) at low-temperature circuit circulation pump 3 (M43/8) | AR20.20-P-7441-01RQ | |
| 11 | Remove screw (5) and remove low temperature circuit circulation pump 3 (M43/8) | ||
| 12 | Install in the reverse order |
