Remove/Install Circulation Pump For Low-Temperature Water Circuit - AR09.41-P-6925OLC
Engine 274, 654 in model 213, 238

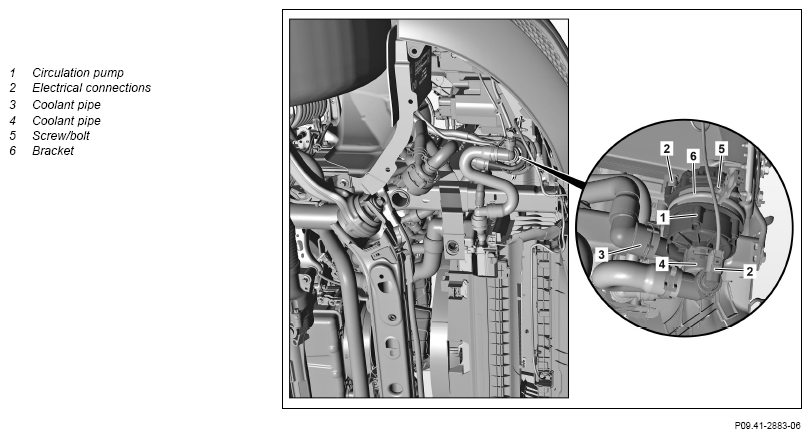

Fig 1: Circulation Pump For Low-Temperature Water Circuit Components Location - Engine 274, 654 In Model 213
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142OLC | |
| 2 | Release and disconnect electrical connections (2) | ||
| 3 | Detach coolant pipes (3, 4) at circulation pump (1) and catch escaping coolant in a suitable container | AR20.20-P-7441-01RQ | |
| 4 | Remove screw/bolt (5) | *BA00.10-P-1002-04A | |
| 5 | Pull out circulation pump (1) at bracket (6) and remove | ||
| 6 | Install in the reverse order |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x 1 | Nm | 9 | 13 |
