Remove/Install Low-Temperature Circuit Expansion Reservoir - AR09.41-P-0001MRH
Engine 264 in model 213, 238, 257
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove cap (1) | ||

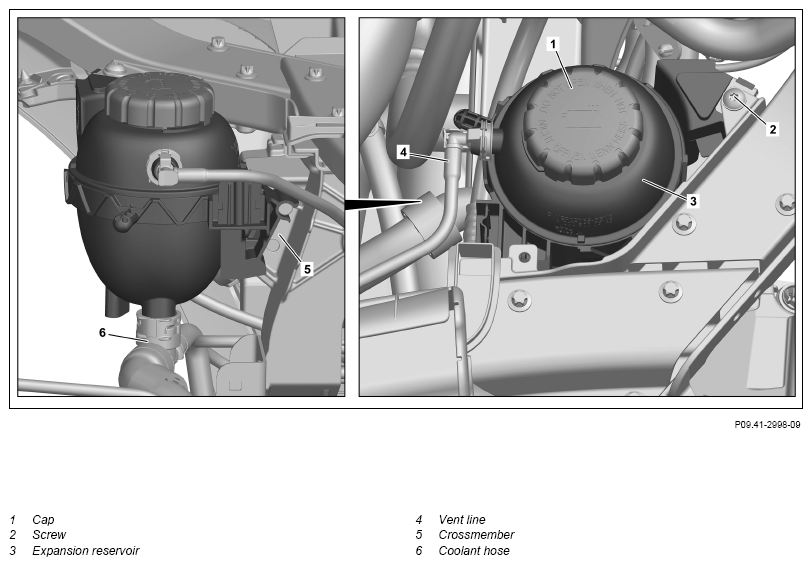

| 2 | Suction coolant out of expansion reservoir (3) | Fig 2 | |
| 3 | Remove vent line (4) from expansion reservoir (3) | AR09.41-P-1311-01AL | |
| 4 | Remove screw/bolt (2) | *BA20.20-P-1002-02B | |
| 5 | Unclip and raise expansion reservoir (3) from crossmember (5) | ||
| 6 | Remove coolant hose (6) from expansion reservoir (3) and close off with protective cover | AR09.41-P-1311-01AL | |
| Fig 3 | |||
| 7 | Take out expansion reservoir (3) | ||
| 8 | Install in the reverse order | ||
| 9 | Check low-temperature circuit cooling system for leaktightness | AR09.41-P-1011MRH |
ENGINE RADIATOR, COOLANT HOSES AND LINES
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA20.20-P-1002-02B | Screw, low-temperature circuit expansion reservoir to crossmember | Nm | 8 |
