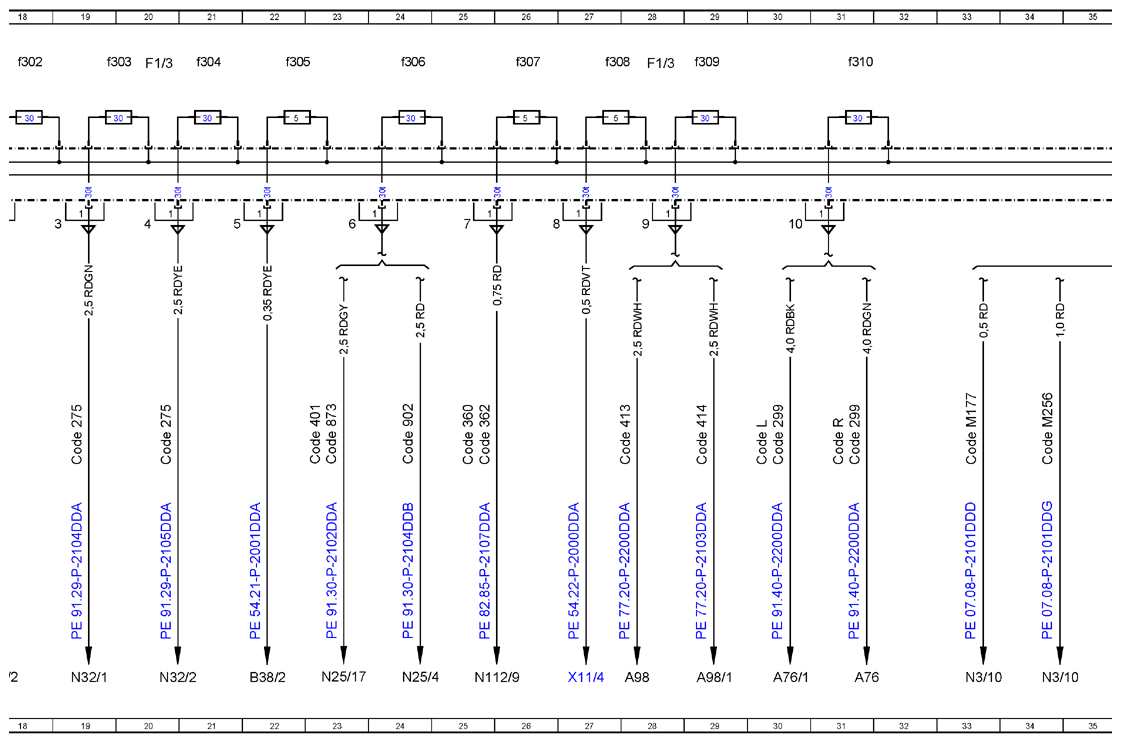

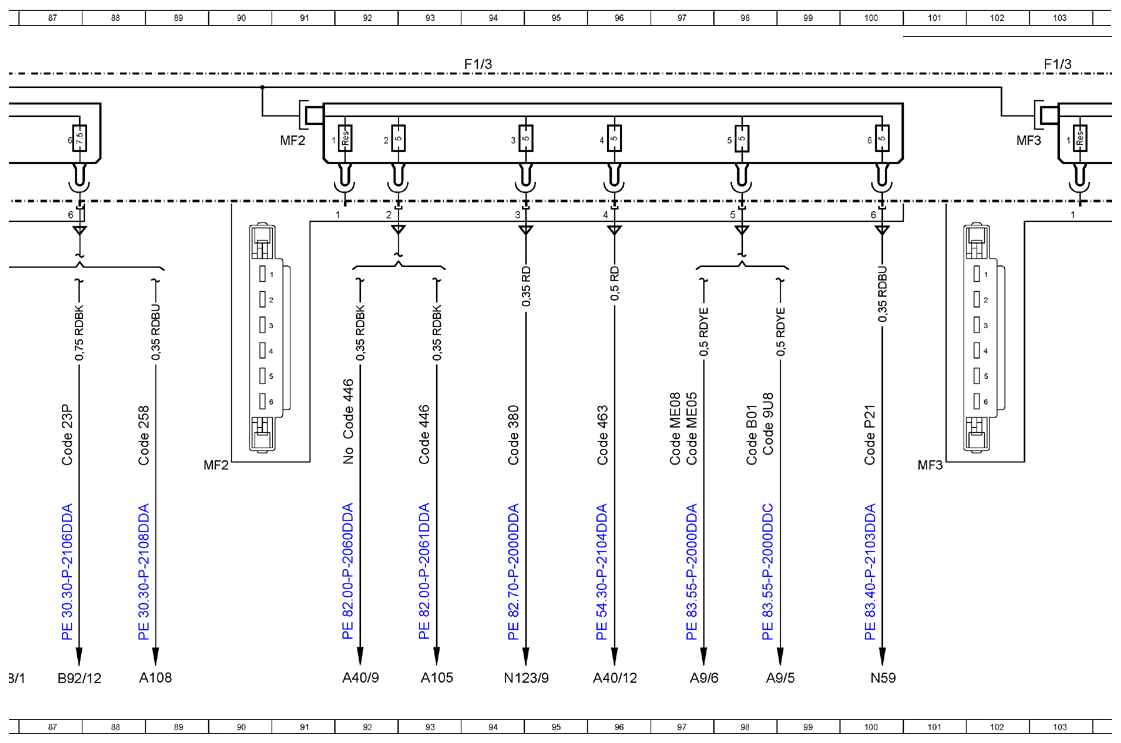

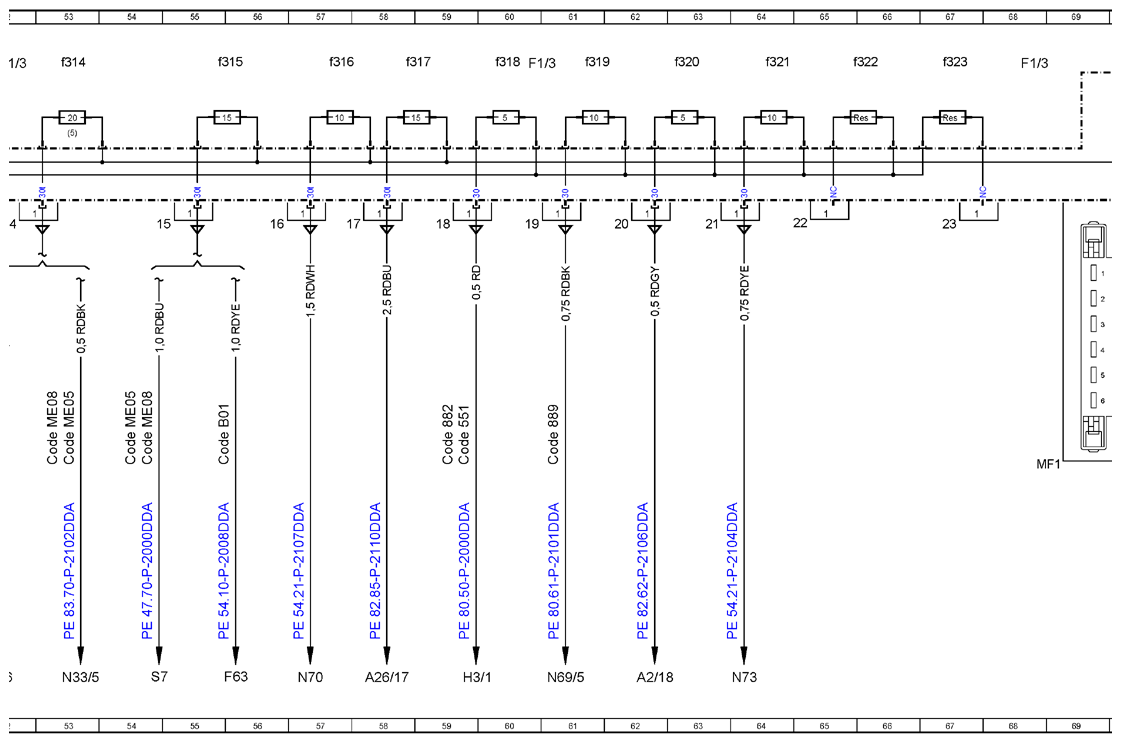

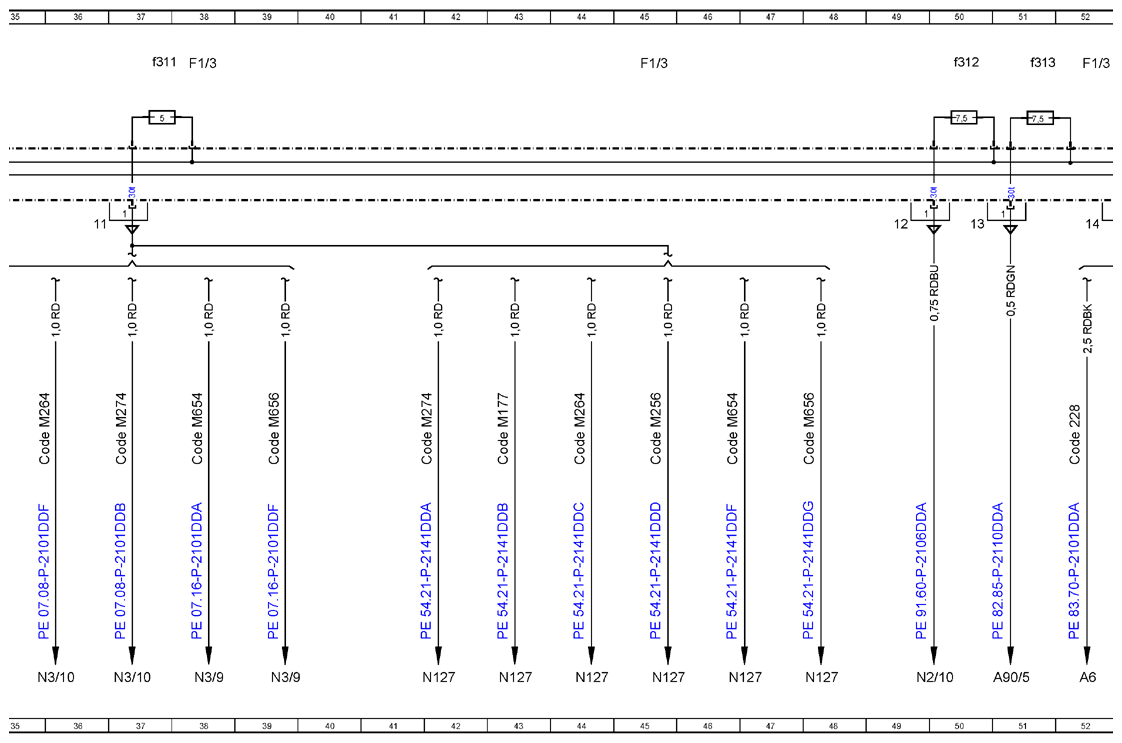

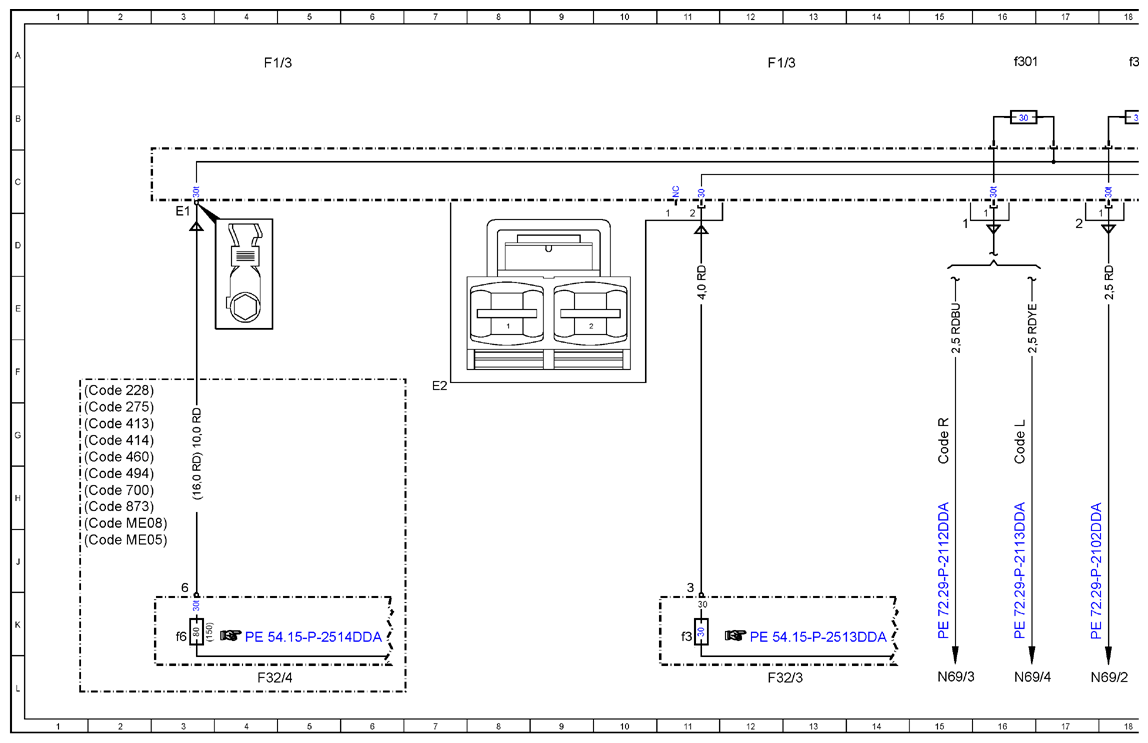

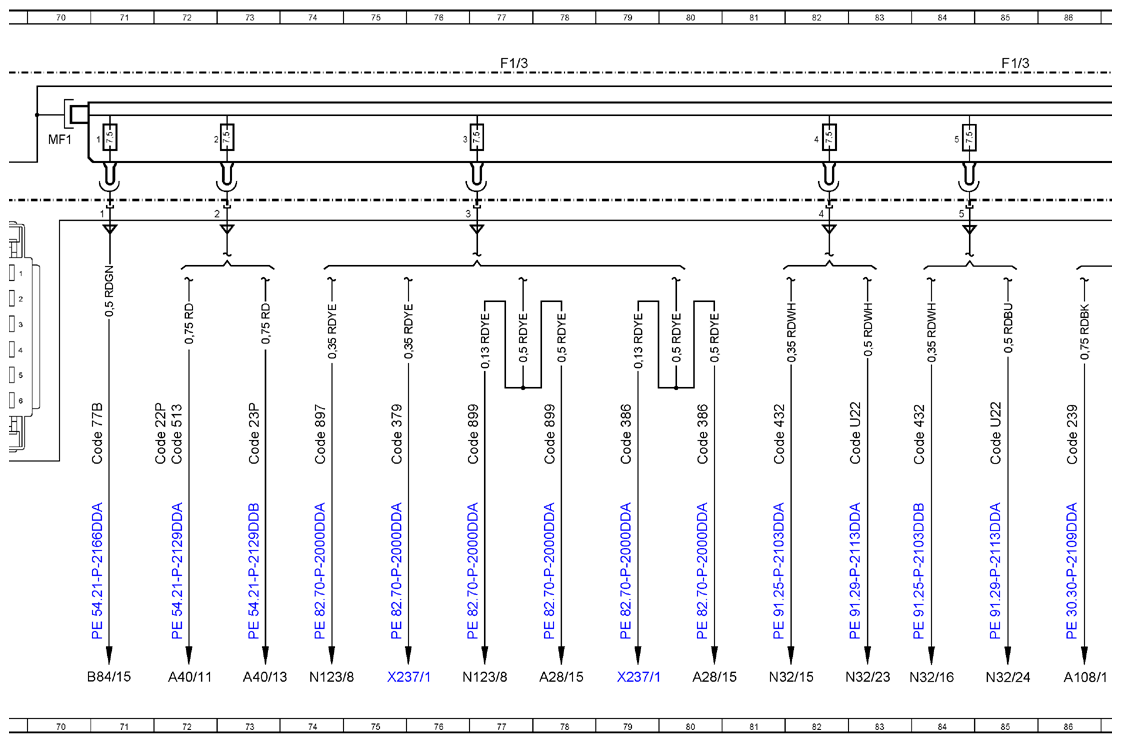

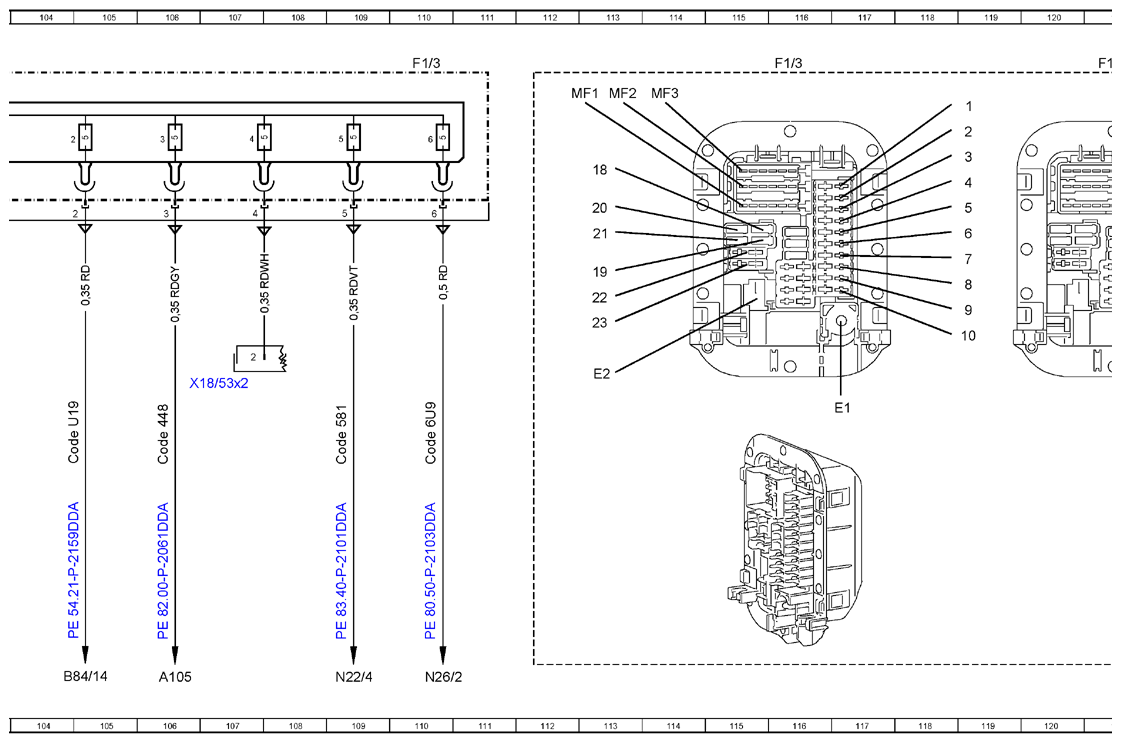

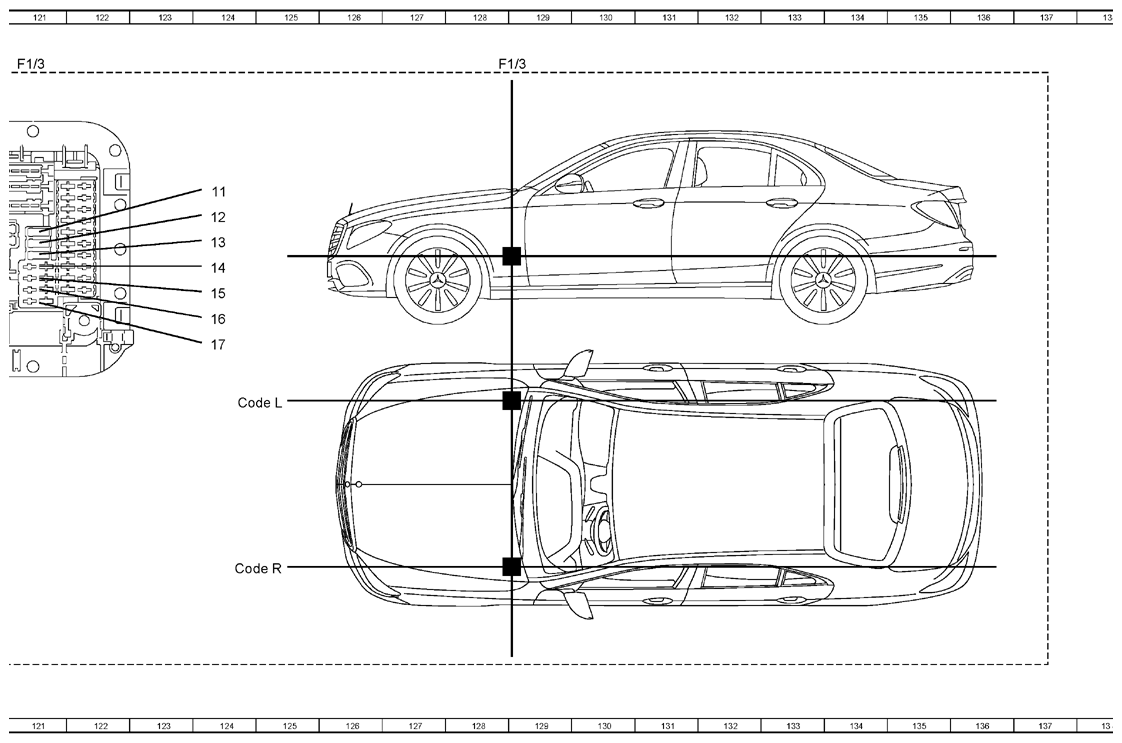

Wiring Diagram Of Passenger-Side A-Pillar Fuse Box - PE54.15-P-2519-97DDA
Model 213 as of model year 2021 Fuse box F1/3
| Code: | Designation: | Position: |
|---|---|---|

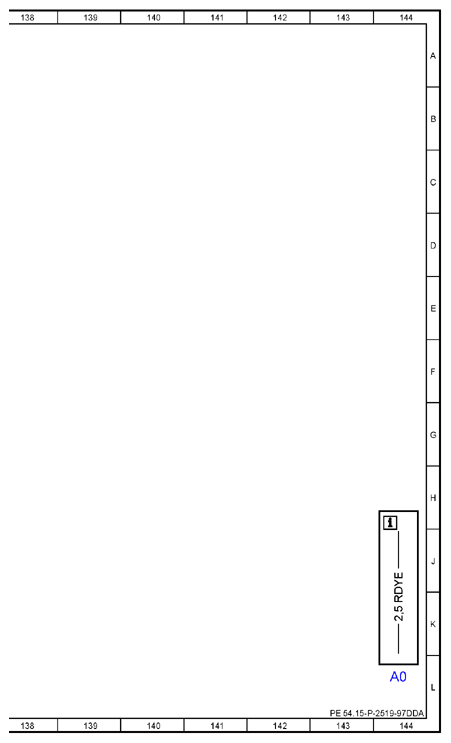

| A0 | Use of wiring diagrams | 144L |
| A105 | Touchpad | 93L |
| A105 | Touchpad | 106L |
| A108 | Active Brake Assist controller unit | 89L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 86L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 62L |
| A26/17 | Head unit | 58L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 78L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 80L |
| A40/11 | Mono multifunction camera | 72L |
| A40/12 | Head-up display | 96L |
| A40/13 | Stereo multifunction camera | 73L |
| A40/9 | Audio/COMMAND control panel | 92L |
| A6 | Stationary heater unit | 52L |
| A76 | Left front reversible emergency tensioning retractor | 31L |
| A76/1 | Right front reversible emergency tensioning retractor | 30L |
| A9/5 | Electric refrigerant compressor | 98L |
| A9/6 | Electric refrigerant compressor | 97L |
| A90/5 | Multimedia connection unit | 51L |
| A98 | Panoramic sliding sunroof control module | 28L |
| A98/1 | Sliding roof control module | 29L |
| B38/2 | Rain/light sensor with additional functions | 22L |
| B84/14 | Augmented reality camera | 105L |
| B84/15 | Hand motion sensor | 71L |
| B92/12 | Short and long-range radar sensor | 87L |
| Code 228 | Stationary heater | IF |
| Code 228 | Stationary heater | 52G |
| Code 22P | Track package | 72G |
| Code 239 | Active Distance Assist DISTRONIC | 86G |
| Code 23P | Driver assistance package | 73G |
| Code 23P | Driver assistance package | 87G |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 89G |
| Code 275 | Memory package | 1G |
| Code 275 | Memory package | 20G |
| Code 275 | Memory package | 19G |
| Code 299 | PRE-SAFE® system | 31G |
| Code 299 | PRE-SAFE® system | 30G |
| Code 360 | HERMES UMTS | 25G |
| Code 362 | HERMES LTE | 25G |
| Code 379 | Telephone module with Bluetooth® (SAP profile) | 75G |
| Code 380 | Car telephony package | 94G |
| Code 386 | Comfort telephony | 80G |
| Code 386 | Comfort telephony | 79G |
| Code 401 | Seat climate control for driver and front passenger | 23G |
| Code 413 | Panoramic sliding sunroof | 1G |
| Code 413 | Panoramic sliding sunroof | 28G |
| Code 414 | Sliding roof | 1G |
| Code 414 | Sliding roof | 29G |
| Code 432 | Left and right front dynamic multicontour seat | 81G |
| Code 432 | Left and right front dynamic multicontour seat | 84G |
| Code 446 | Touchpad only | 92G |
| Code 446 | Touchpad only | 93G |
| Code 448 | Touchpad | 106G |
| Code 460 | Canada version | 1G |
| Code 463 | Head-up display | 96G |
| Code 494 | USA version | 1H |
| Code 513 | Traffic sign recognition | 72G |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 59G |
| Code 581 | THERMOTRONIC automatic air conditioning | 109G |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 110G |
| Code 700 | Technical Local Content China | 1H |
| Code 77B | Contact I ess gesture control at front | 71G |
| Code 873 | Seat heater for driver and front passenger | 1H |
| Code 873 | Seat heater for driver and front passenger | 23G |
| Code 882 | Interior protection and tow-away protection | 59G |
| Code 889 | KEYLESS-GO | 61G |
| Code 897 | Wireless mobile phone charging | 74G |
| Code 899 | Wireless phone charging at front and antenna | 78G |
| Code 899 | Wireless phone charging at front and antenna | 77G |
| Code 902 | Seat heater Plus for driver and front passenger | 24G |
| Code 9U8 | Control code - Technical development, major assembly | 98G |
| Code B01 | 48V technology | 56G |
| Code B01 | 48V technology | 98G |
| Code L | LEFT-HAND DRIVE | 16G |
| Code L | LEFT-HAND DRIVE | 30G |
| Code L | LEFT-HAND DRIVE | 125G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 33G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 43G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 34G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 45G |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 36G |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 44G |
| Code M274 | SPARK-IGNITION ENGINE M274 | 37G |
| Code M274 | SPARK-IGNITION ENGINE M274 | 42G |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 38G |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 46G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 48G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 39G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 1J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 53G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 97G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 54G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 1H |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 53G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 97G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 54G |
| Code P21 | AIR-BALANCE package | 100G |
| Code R | RIGHT-HAND DRIVE | 15G |
| Code R | RIGHT-HAND DRIVE | 31G |
| Code R | RIGHT-HAND DRIVE | 125 J |
| Code U19 | Augmented Reality | 105G |
| Code U22 | Lumbar support adjustment | 83G |
| Code U22 | Lumbar support adjustment | 85G |
| F1/3 | Passenger-side A-pillar fuse box | 4A |
| F1/3 | Passenger-side A-pillar fuse box | 12A |
| F1/3 | Passenger-side A-pillar fuse box | 20A |
| F1/3 | Passenger-side A-pillar fuse box | 38A |
| F1/3 | Passenger-side A-pillar fuse box | 28A |
| F1/3 | Passenger-side A-pillar fuse box | 45A |
| F1/3 | Passenger-side A-pillar fuse box | 52A |
| F1/3 | Passenger-side A-pillar fuse box | 60A |
| F1/3 | Passenger-side A-pillar fuse box | 68A |
| F1/3 | Passenger-side A-pillar fuse box | 77A |
| F1/3 | Passenger-side A-pillar fuse box | 85A |
| F1/3 | Passenger-side A-pillar fuse box | 94A |
| F1/3 | Passenger-side A-pillar fuse box | 103A |
| F1/3 | Passenger-side A-pillar fuse box | 116A |
| F1/3 | Passenger-side A-pillar fuse box | 121A |
| F1/3 | Passenger-side A-pillar fuse box | 128A |
| F1/3 | Passenger-side A-pillar fuse box | 110A |
| F1/3MF1 | Multiple fuse 1 | 70B |
| F1/3MF2 | Multiple fuse 2 | 91B |
| F1/3MF3 | Multiple fuse 3 | 103B |
| F1/3f301 | Fuse 301 | 16A |
| F1/3f302 | Fuse 302 | 18A |
| F1/3f303 | Fuse 303 | 20A |
| F1/3f304 | Fuse 304 | 21A |
| F1/3f305 | Fuse 305 | 22A |
| F1/3f306 | Fuse 306 | 24A |
| F1/3f307 | Fuse 307 | 26A |
| F1/3f308 | Fuse 308 | 27A |
| F1/3f309 | Fuse 309 | 29A |
| F1/3f310 | Fuse 310 | 31A |
| F1/3f311 | Fuse 311 | 37A |
| F1/3f312 | Fuse 312 | 50A |
| F1/3f313 | Fuse 313 | 51A |
| F1/3f314 | Fuse 314 | 53A |
| F1/3f315 | Fuse 315 | 56A |
| F1/3f316 | Fuse 316 | 57A |
| F1/3f317 | Fuse 317 | 59A |
| F1/3f318 | Fuse 318 | 60A |
| F1/3f319 | Fuse 319 | 61A |
| F1/3f320 | Fuse 320 | 63A |
| F1/3f321 | Fuse 321 | 64A |
| F1/3f322 | Fuse 322 | 66A |
| F1/3f323 | Electrical fuse 323 | 67A |
| F32/3 | Engine compartment prefuse box | 12L |
| F32/3f3 | Fuse 3 | 11K |
| F32/4 | Vehicle interior prefuse box | 4L |
| F32/4f6 | Fuse 6 | 3K |
| F63 | Pyrofuse | 56L |
| H3/1 | Alarm siren | 59L |
| N112/9 | HERMES control unit | 25L |
| N123/8 | Front mobile phone cradle control unit | 74L |
| N123/8 | Front mobile phone cradle control unit | 77L |
| N123/9 | Telephone control unit | 94L |
| N127 | Drivetrain control unit | 44L |
| N127 | Drivetrain control unit | 45L |
| N127 | Drivetrain control unit | 42L |
| N127 | Drivetrain control unit | 43L |
| N127 | Drivetrain control unit | 46L |
| N127 | Drivetrain control unit | 48L |
| N2/10 | Supplemental restraint system control unit | 49L |
| N22/4 | Rear air conditioning operating unit | 109L |
| N25/17 | Front seat heater/seat ventilation control unit | 23L |
| N25/4 | Front passenger seat heater control unit | 24L |
| N26/2 | Theft detection system control unit | 110L |
| N3/10 | ME-SFI [ME] control unit | 37L |
| N3/10 | ME-SFI [ME] control unit | 34L |
| N3/10 | ME-SFI [ME] control unit | 36L |
| N3/10 | ME-SFI [ME] control unit | 33L |
| N3/9 | CDI control unit | 38L |
| N3/9 | CDI control unit | 39L |
| N32/1 | Driver seat control unit | 19L |
| N32/15 | Left front multicontour seat control unit | 81L |
| N32/16 | Right front multicontour seat control unit | 84L |
| N32/2 | Front passenger seat control unit | 20L |
| N32/23 | Driver's seat lumbar support electropneumatic controller unit | 83L |
| N32/24 | Front passenger seat lumbar support electropneumatic controller unit | 85L |
| N33/5 | High-voltage PTC heater | 53L |
| N59 | Perfume atomizer generator | 100L |
| N69/2 | Right front door control unit | 18L |
| N69/3 | Left rear door control unit | 15L |
| N69/4 | Right rear door control unit | 16L |
| N69/5 | KEYLESS-GO control unit | 61L |
| N70 | Overhead control panel control unit | 57L |
| N73 | Electronic ignition switch control unit | 64L |
| S7 | High-voltage disconnect device | 54L |
| X11/4 | Diagnostic connector | 27L |
| X18/53x2 | Driver cockpit/interior wiring harness electrical connector | 107F |
| X237/1 | Mobile phone contact plate | 79L |
| X237/1 | Mobile phone contact plate | 75L |
