Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97DDA
Model 213 as of model year 2021 Control unit N10/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 144L |
| A50/6 | Dedicated Short-Range Communications control unit | 95L |
| B14 | Outside temperature sensor | 48L |
| B14 | Outside temperature sensor | 50L |
| B38/2 | Rain/light sensor with additional functions | 86L |
| B95 | Battery sensor | 87L |
| Code 301 | Smoker's package | 100G |
| Code 421 | 9G-TRONIC | 25G |
| Code 421 | 9G-TRONIC | 101G |
| Code 425 | 6-speed manual transmission | 27G |
| Code 464 | Digital instrument cluster full display | 28G |
| Code 498 | Japan version | 94G |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 60G |
| Code 830 | Additional parts for China vehicles | 94G |
| Code 835 | Additional parts for South Korea vehicles | 95G |
| Code 844 | Folding bench seat in load compartment | 99G |
| Code 875 | Heated windshield washer system | 43G |
| Code 877 | Ambiance illumination | 18G |
| Code 877 | Ambiance illumination | 19G |
| Code 877 | Ambiance illumination | 27G |
| Code 877 | Ambiance illumination | 26G |
| Code 877 | Ambiance illumination | 28G |
| Code 877 | Ambiance illumination | 17G |
| Code 887 | Valet parking | 32G |
| Code 891 | Premium ambient lighting | 26G |
| Code 891 | Premium ambient lighting | 27G |
| Code 891 | Premium ambient lighting | 28G |
| Code 938 | Hands-free system | 97G |
| Code B01 | 48V technology | 89G |
| Code FS | STATION WAGON | 98G |
| Code FV | LONG SEDAN | 111G |
| Code FV | LONG SEDAN | 110G |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 10E |
| Code L | LEFT-HAND DRIVE | 125 J |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 22G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 45G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 46G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 82G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 63G |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 83G |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 83G |
| Code M274 | SPARK-IGNITION ENGINE M274 | 81G |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 84G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 85G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 109G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 75G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 75G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 77G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 109G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 75G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 76G |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 77G |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code R | RIGHT-HAND DRIVE | 10F |
| Code R | RIGHT-HAND DRIVE | 125G |
| Code U10 | Front passenger seat with weight detection | 93G |
| Code U25 | Illuminated door sills | 78G |
| Code U25 | Illuminated door sills | 79G |
| Code U25 | Illuminated door sills | 110G |
| Code U25 | Illuminated door sills | 111G |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 88G |
| E13/1 | Glove box lamp | 25L |
| E17/15 | Right front footwell lamp | 18L |
| E17/15 | Right front footwell lamp | 17L |
| E17/16 | Left front footwell lamp | 17L |
| E17/16 | Left front footwell lamp | 19L |
| E17/47 | Left front illuminated door sill molding | 78L |
| E17/48 | Right front illuminated door sill molding | 79L |
| E17/51 | Left rear illuminated door sill molding | 110L |
| E17/52 | Right rear illuminated door sill molding | 111L |
| E20/2 | Front center console cup holder illumination | 101L |
| E36/1 | Center console armrest stowage compartment switch and controls illumnination | 103L |
| E43/14 | Left front center console ambiance illumination | 26L |
| E43/16 | Right front center console ambiance illumination | 27L |
| E43/27 | Inner lower digital instrument cluster full display ambient lighting | 28L |
| E43/28 | Outer lower digital instrument cluster full display ambient lighting | 28L |
| F96 | Load state detection fuse | 75L |
| F96 | Load state detection fuse | 109L |
| G1 | On-board electrical system battery | 88L |
| H2 | Left fanfare horn | 59L |
| H2/1 | Right fanfare horn | 41L |
| K114 | ECO start/stop function additional battery relay | 77L |
| K120 | Theft detection system horn relay | 60L |
| K40/6 | Driver-side fuse and relay module | 5L |
| K40/6 | Driver-side fuse and relay module | 10L |
| K40/8 | Engine fuse and relay module | 64L |
| K40/8 | Engine fuse and relay module | 63L |
| K57/4 | Battery disconnect switch relay | 76L |
| K57/4 | Battery disconnect switch relay | 90L |
| M5/1 | Windshield washer system pump | 42L |
| M5/1 | Windshield washer system pump | 42L |
| M6/1 | Wiper motor | 50L |

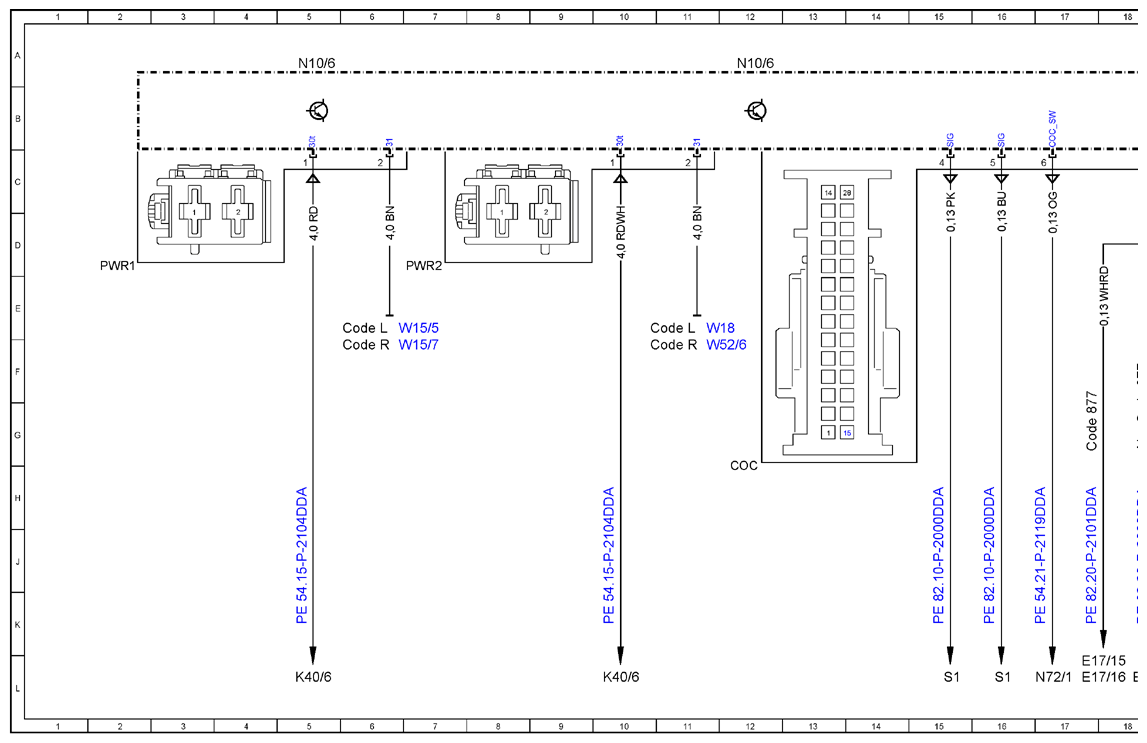

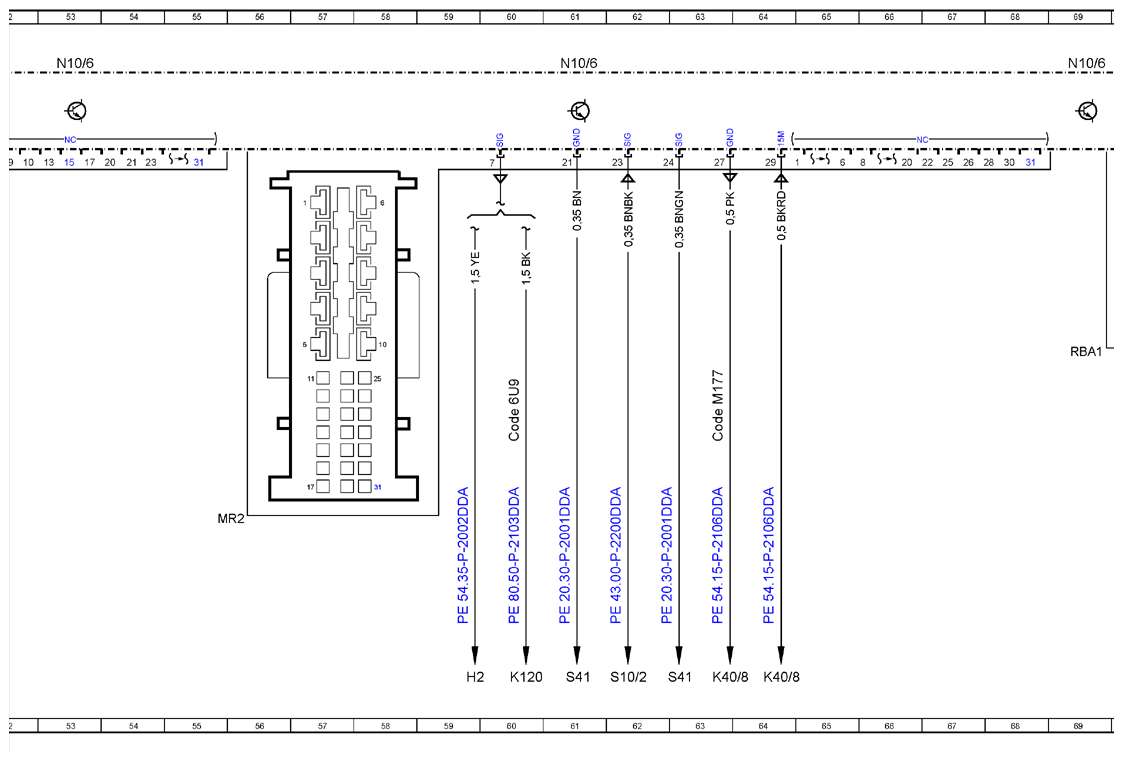

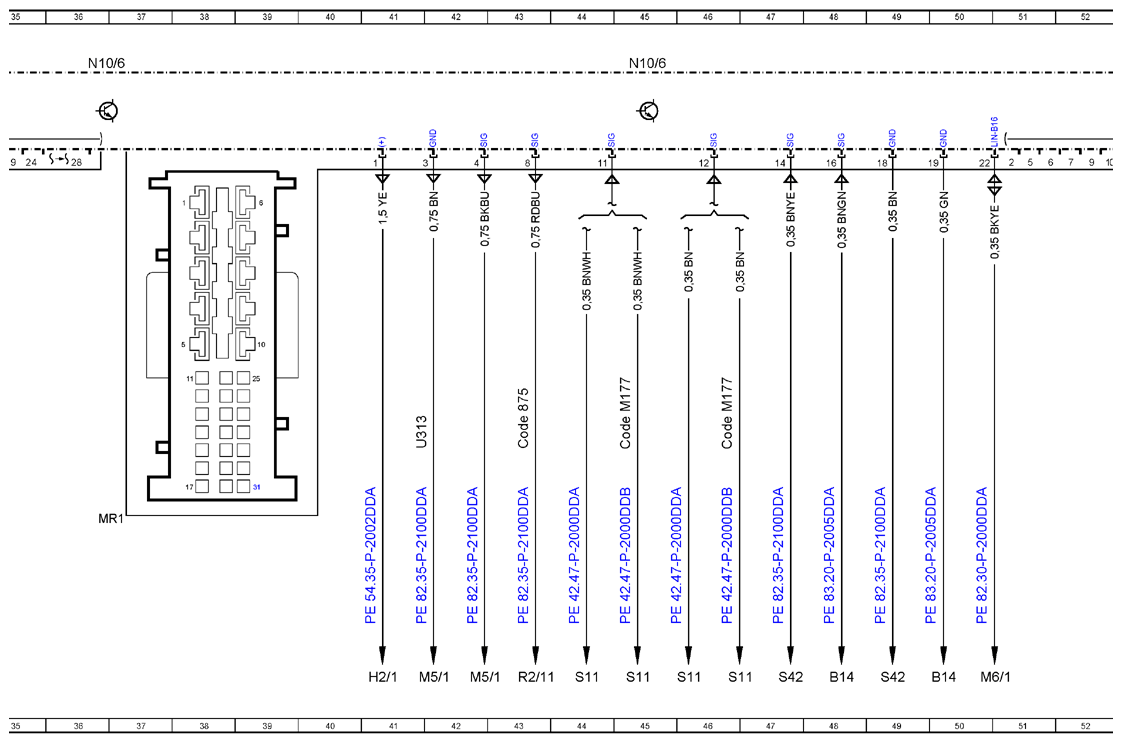

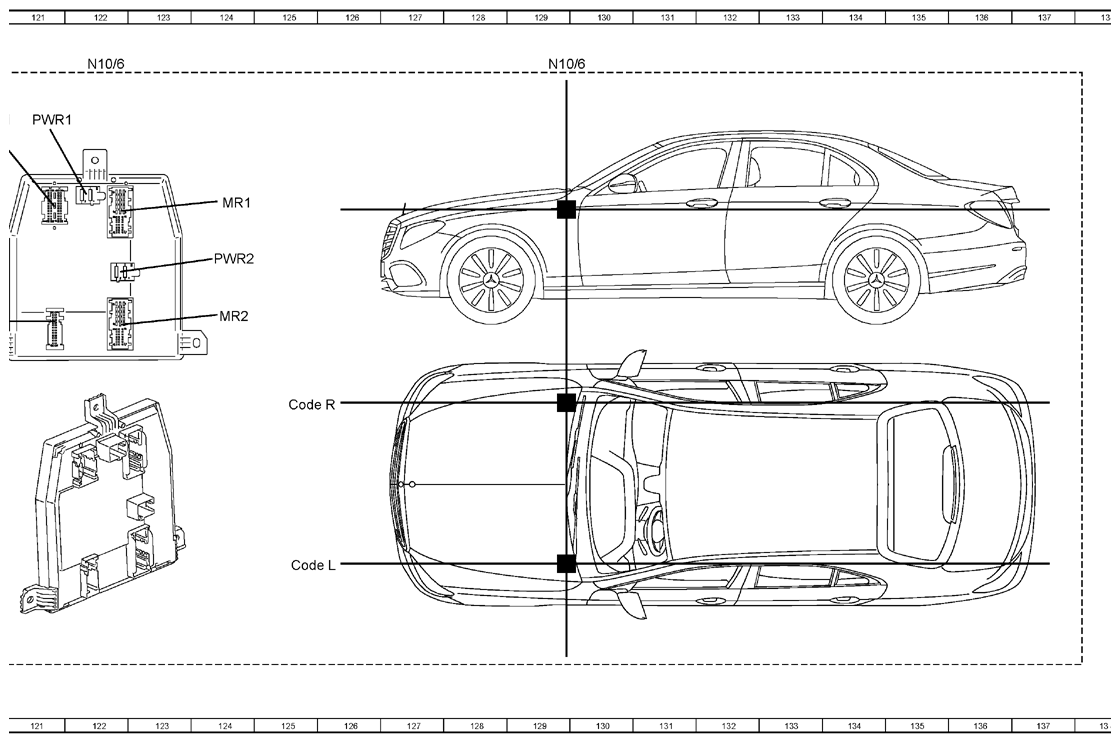

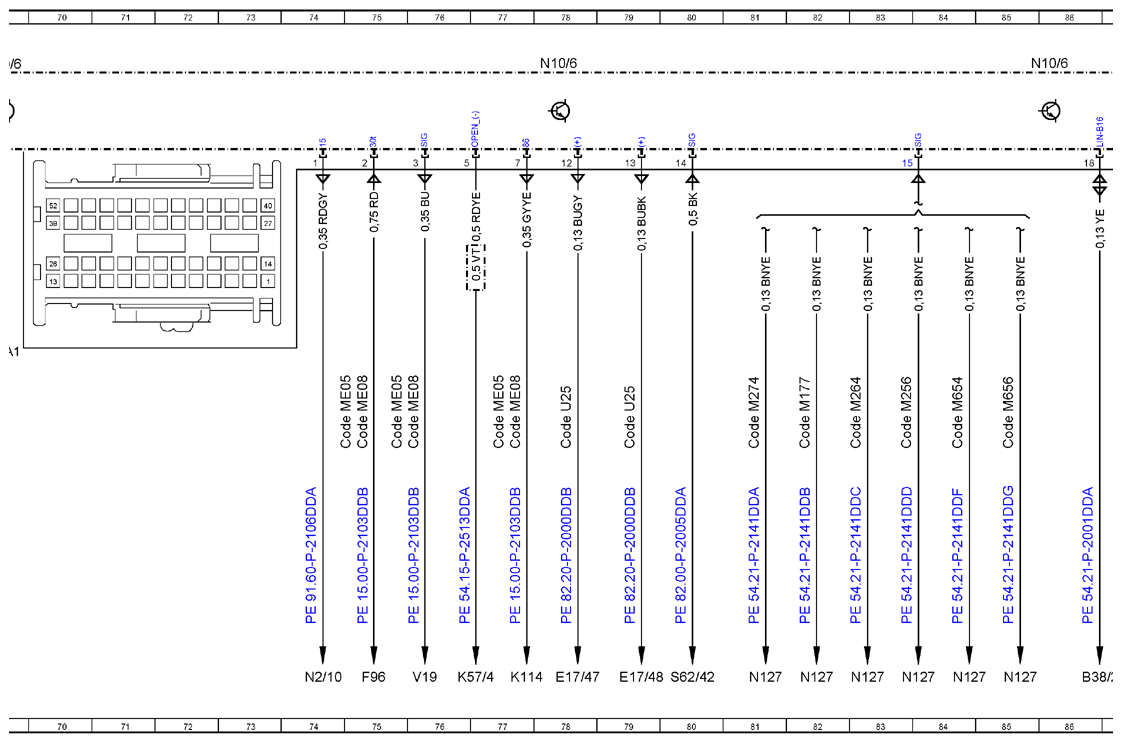

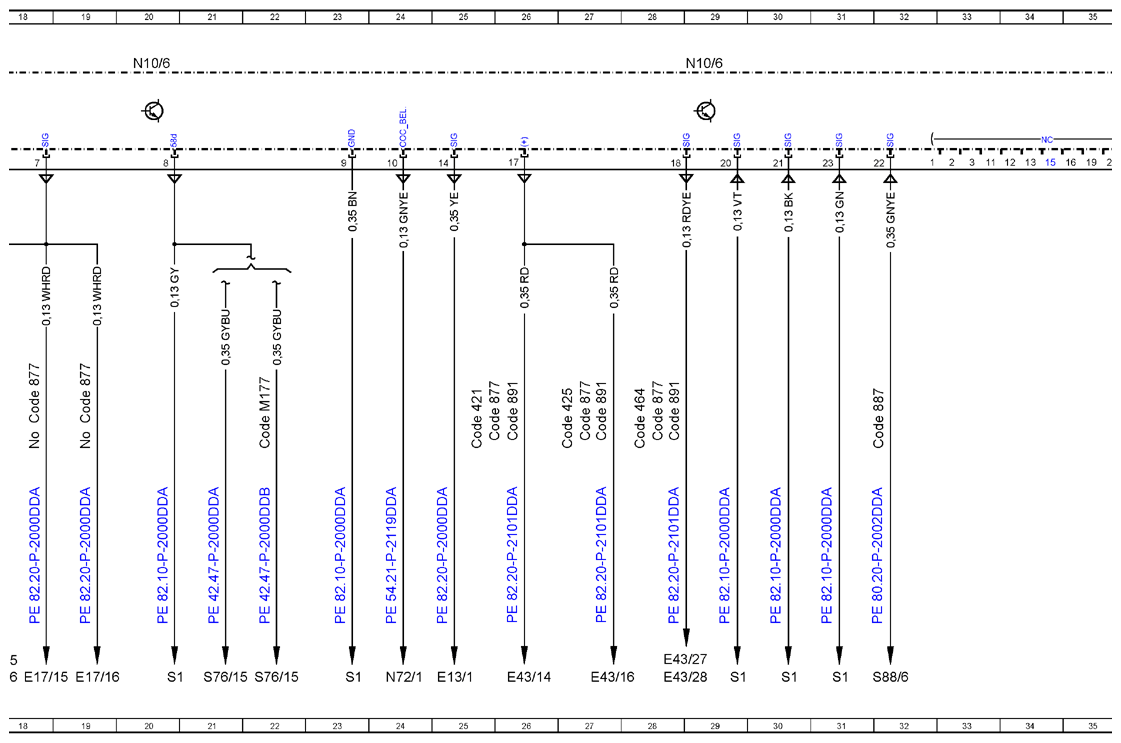

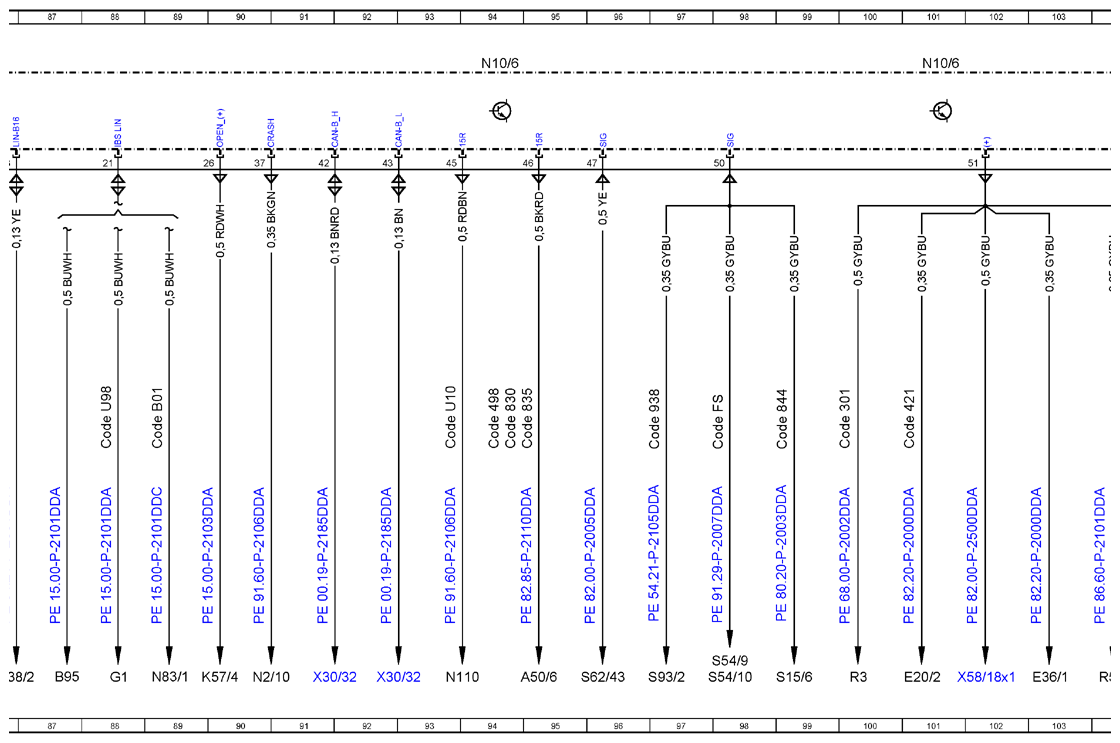

| N10/6 | Front SAM control unit | 29A |
| N10/6 | Front SAM control unit | 5A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 45A |
| N10/6 | Front SAM control unit | 53A |
| N10/6 | Front SAM control unit | 61A |
| N10/6 | Front SAM control unit | 69A |
| N10/6 | Front SAM control unit | 109A |
| N10/6 | Front SAM control unit | 116A |
| N10/6 | Front SAM control unit | 122A |
| N10/6 | Front SAM control unit | 129A |
| N10/6 | Front SAM control unit | 78A |
| N10/6 | Front SAM control unit | 86A |
| N10/6 | Front SAM control unit | 94A |
| N10/6 | Front SAM control unit | 101A |

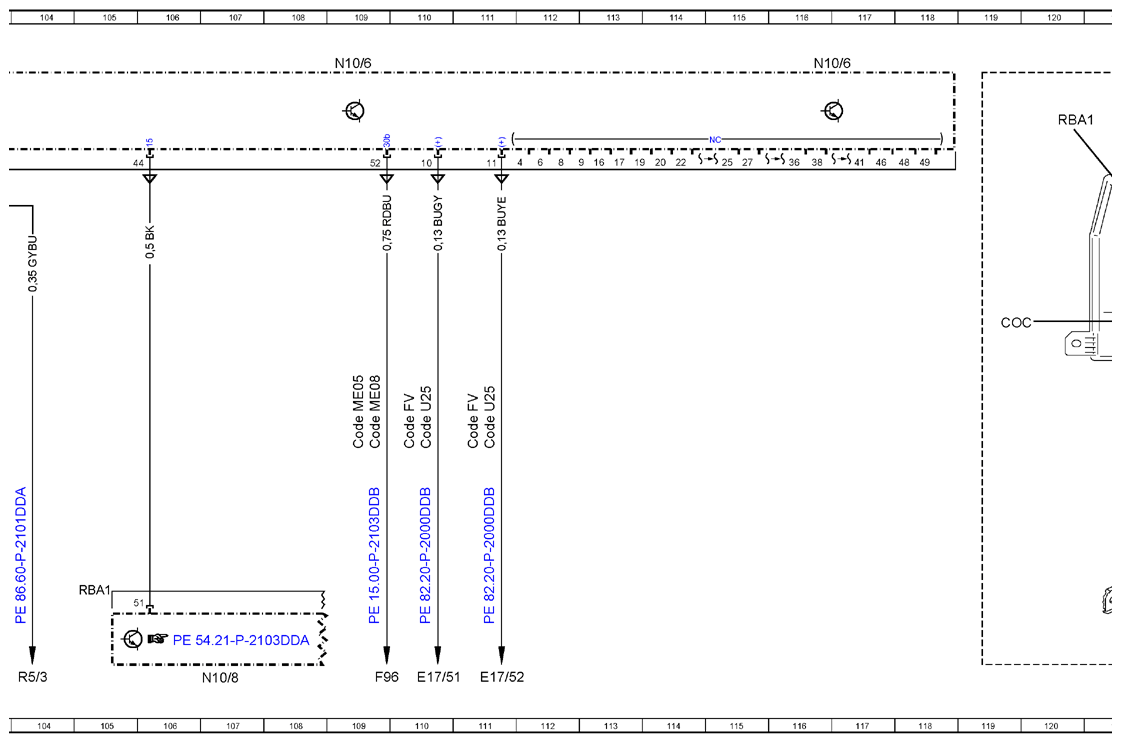

| N10/8 | Rear SAM control unit | 107L |
| N110 | Weight Sensing System (WSS) control unit | 93L |
| N127 | Drivetrain control unit | 85L |
| N127 | Drivetrain control unit | 84L |
| N127 | Drivetrain control unit | 83L |
| N127 | Drivetrain control unit | 83L |
| N127 | Drivetrain control unit | 81L |
| N127 | Drivetrain control unit | 82L |
| N2/10 | Supplemental restraint system control unit | 74L |
| N2/10 | Supplemental restraint system control unit | 90L |
| N72/1 | Upper control panel control unit | 17L |
| N72/1 | Upper control panel control unit | 24L |
| N83/1 | DC/DC converter control unit | 89L |
| R2/11 | Spray nozzle hose heater | 43L |
| R3 | Front cigarette lighter with ashtray illumination | 100L |
| R5/3 | Rear cup holder | 104L |
| S1 | Exterior lights switch | 16L |
| S1 | Exterior lights switch | 15L |
| S1 | Exterior lights switch | 20L |
| S1 | Exterior lights switch | 23L |
| S1 | Exterior lights switch | 30L |
| S1 | Exterior lights switch | 29L |
| S1 | Exterior lights switch | 31L |
| S10/2 | Right front brake wear sensor | 62L |
| S11 | Brake fluid level switch | 46L |
| S11 | Brake fluid level switch | 44L |
| S11 | Brake fluid level switch | 45L |
| S11 | Brake fluid level switch | 46L |
| S15/6 | 3rd seat row liftgate unlocking switch | 99L |
| S41 | Coolant level switch | 61L |
| S41 | Coolant level switch | 63L |
| S42 | Windshield washer fluid level indicator switch | 47L |
| S42 | Windshield washer fluid level indicator switch | 49L |
| S54/10 | Right luggage compartment rear backrest release button | 98L |
| S54/9 | Left luggage compartment rear backrest release button | 98L |
| S62/42 | Right engine hood contact switch | 80L |
| S62/43 | Left engine hood contact switch | 96L |
| S76/15 | Electric parking brake switch | 21L |
| S76/15 | Electric parking brake switch | 22L |
| S88/6 | Separate trunklid lock switch | 32L |
| S93/2 | Two-way radio switch | 97L |
| U313 | Valid for washer fluid pump (mono) | 42G |
| V19 | ECO start/stop function diode | 76L |
| W15/5 | Left front footwell ground point | 6E |
| W15/7 | Right front footwell ground point | 6F |
| W18 | Left front seat crossmember ground point | 11E |
| W52/6 | Right center longitudinal member ground point | 11F |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 92L |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 91L |
| X58/18x1 | Rear center console power outlet | 102L |
