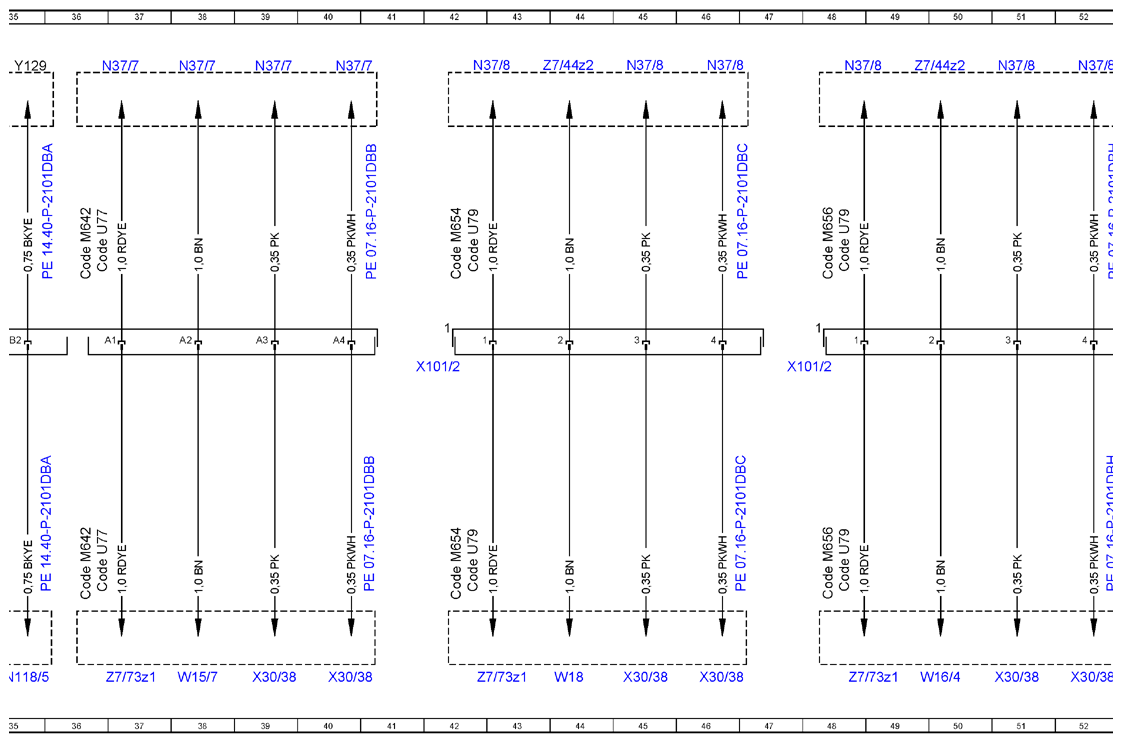

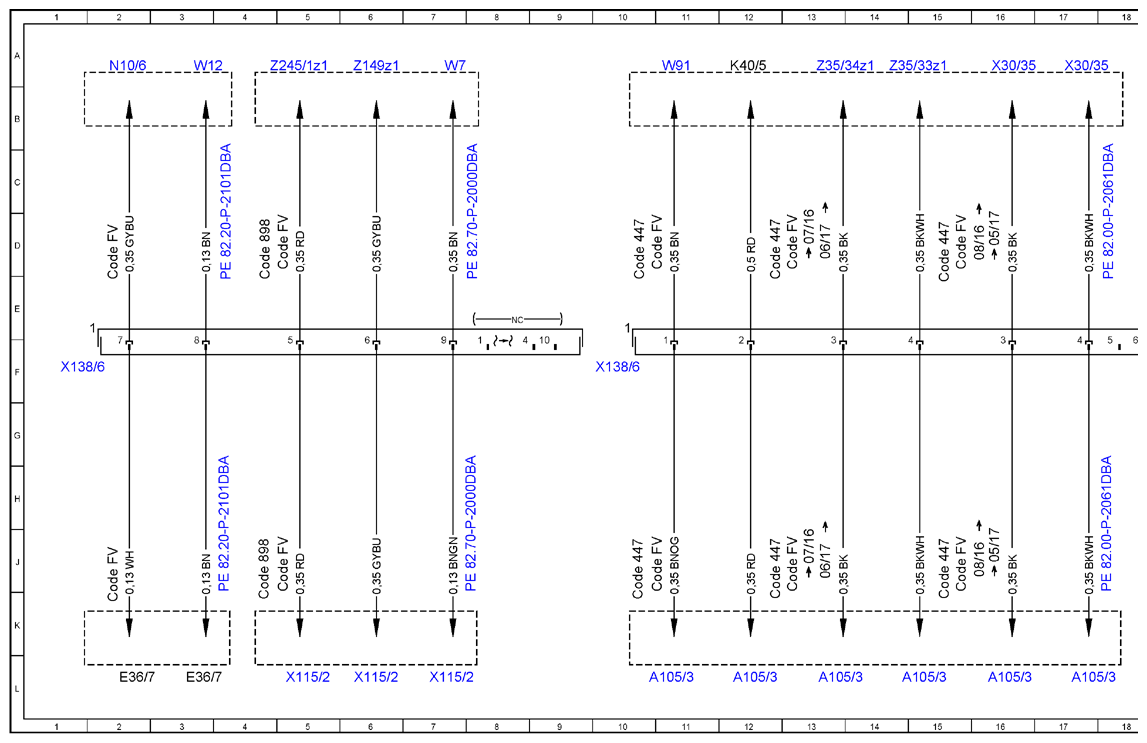

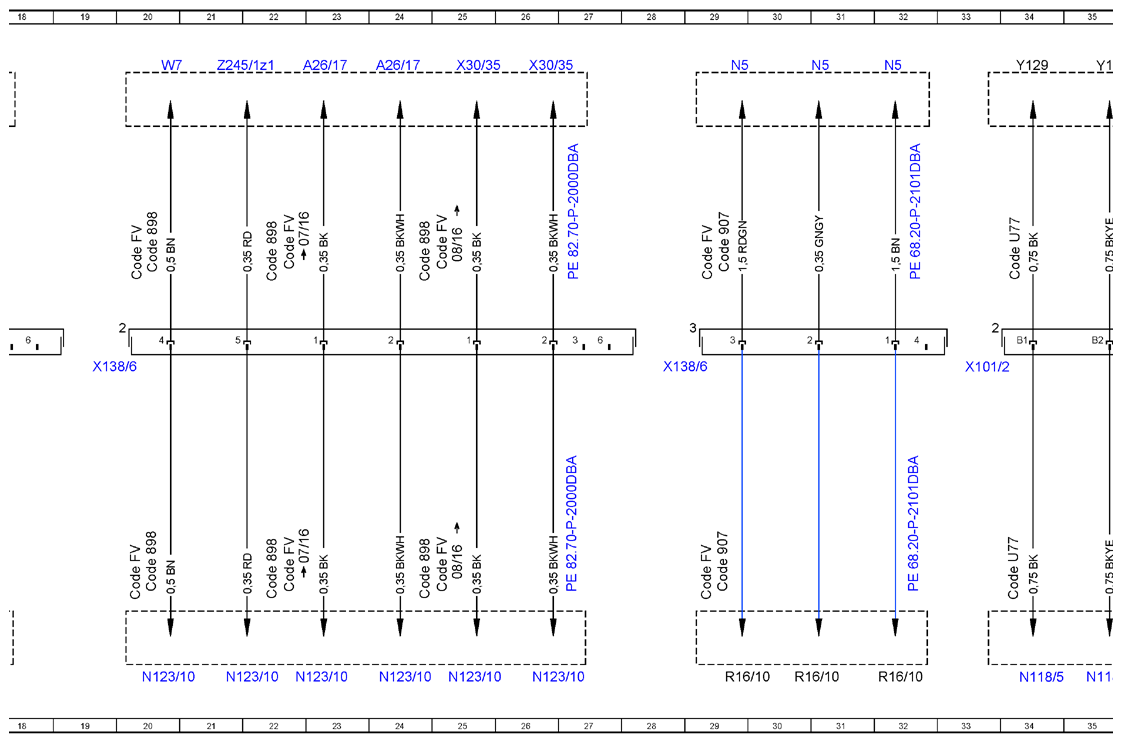

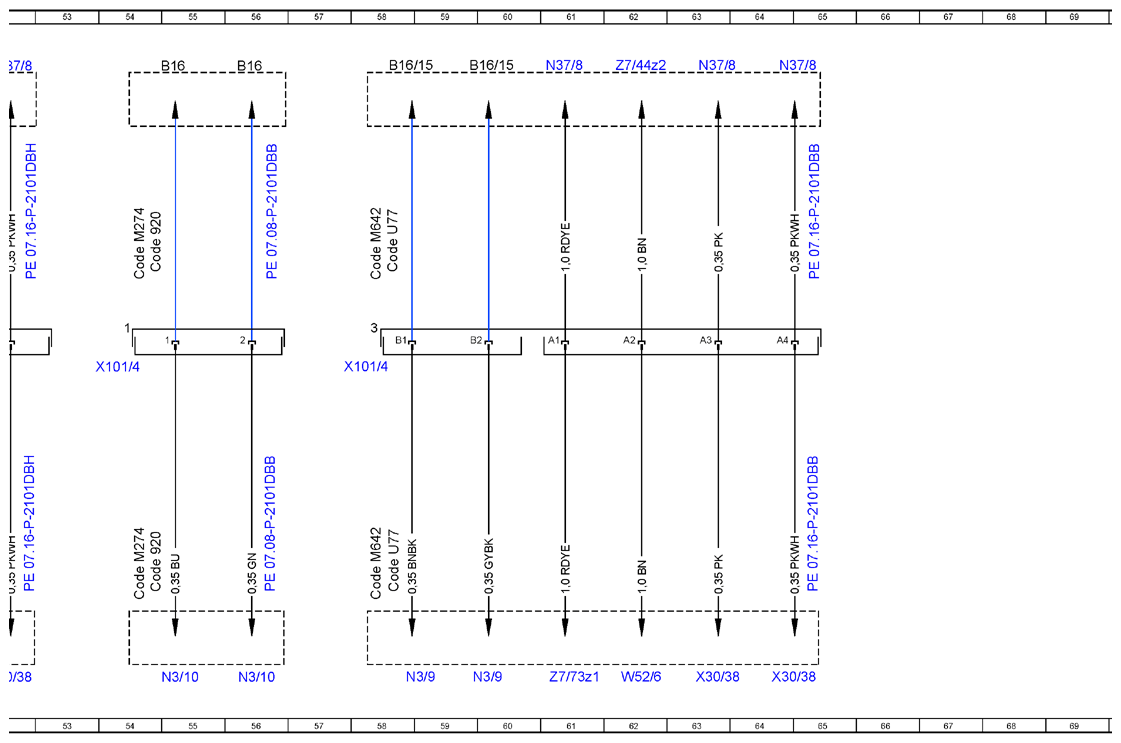

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97DBG
Model 213 up to model year 2021 X138/6(1), X138/6(2), X138/6(3), X101/2(1), X101/2(2), X101/4(1), X101/4(3)
| Code: | Designation: | Position: |
|---|---|---|

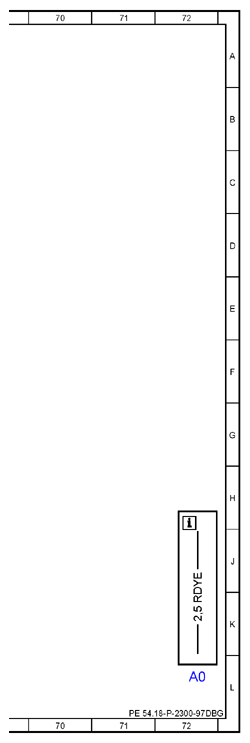

| A0 | Use of wiring diagrams | 72L |
| A105/3 | Touchscreen | 15L |
| A105/3 | Touchscreen | 12L |
| A105/3 | Touchscreen | 11L |
| A105/3 | Touchscreen | 13L |
| A105/3 | Touchscreen | 17L |
| A105/3 | Touchscreen | 16L |
| A26/17 | Head unit | 24A |
| A26/17 | Head unit | 23A |
| B16 | Temperature sensor upstream of NOx storage catalytic converter | 55A |
| B16 | Temperature sensor upstream of NOx storage catalytic converter | 56A |
| B16/15 | Temperature sensor upstream of SCR catalytic converter | 60A |
| B16/15 | Temperature sensor upstream of SCR catalytic converter | 58A |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 10K |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 10E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 15K |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 12E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 15E |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 12K |
| Code 898 | Wireless charging in rear passenger compartment | 4K |
| Code 898 | Wireless charging in rear passenger compartment | 4E |
| Code 898 | Wireless charging in rear passenger compartment | 20J |
| Code 898 | Wireless charging in rear passenger compartment | 20D |
| Code 898 | Wireless charging in rear passenger compartment | 24K |
| Code 898 | Wireless charging in rear passenger compartment | 22K |
| Code 898 | Wireless charging in rear passenger compartment | 22E |
| Code 898 | Wireless charging in rear passenger compartment | 24E |
| Code 907 | Rear armrest heater | 29J |
| Code 907 | Rear armrest heater | 29D |
| Code 920 | Gasoline direct injection with stratified charge | 54D |
| Code 920 | Gasoline direct injection with stratified charge | 54J |
| Code FV | LONG SEDAN | 2E |
| Code FV | LONG SEDAN | 2K |
| Code FV | LONG SEDAN | 5D |
| Code FV | LONG SEDAN | 5J |
| Code FV | LONG SEDAN | 11D |
| Code FV | LONG SEDAN | 11J |
| Code FV | LONG SEDAN | 13D |
| Code FV | LONG SEDAN | 13J |
| Code FV | LONG SEDAN | 15D |
| Code FV | LONG SEDAN | 15J |
| Code FV | LONG SEDAN | 22D |
| Code FV | LONG SEDAN | 22J |
| Code FV | LONG SEDAN | 25J |
| Code FV | LONG SEDAN | 25D |
| Code FV | LONG SEDAN | 20E |
| Code FV | LONG SEDAN | 20K |
| Code FV | LONG SEDAN | 29E |
| Code FV | LONG SEDAN | 29K |
| Code M274 | SPARK-IGNITION ENGINE M274 | 54K |
| Code M274 | SPARK-IGNITION ENGINE M274 | 54E |
| Code M642 | DIESEL ENGINE 0M642 | 36E |
| Code M642 | DIESEL ENGINE 0M642 | 36K |
| Code M642 | DIESEL ENGINE 0M642 | 58E |
| Code M642 | DIESEL ENGINE 0M642 | 58K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 42E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 42K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 48K |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 48E |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 34E |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 34K |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 36D |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 36J |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 58D |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 58J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 42J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 42D |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 48J |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment 3 | 48D |
| E36/7 | Rear armrest folding compartment illumination | 3L |
| E36/7 | Rear armrest folding compartment illumination | 2L |
| K40/5 | Rear fuse and relay module | 12A |
| N10/6 | Front SAM control unit | 2A |
| N118/5 | AdBlue® control unit | 35L |
| N118/5 | AdBlue® control unit | 34L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 21L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 20L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 24L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 23L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 25L |
| N123/10 | Rear passenger compartment mobile phone cradle control unit | 26L |
| N3/10 | ME-SFI [ME] control unit | 55L |
| N3/10 | ME-SFI [ME] control unit | 56L |
| N3/9 | CDI control unit | 60L |
| N3/9 | CDI contro unit | 58L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 38A |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 37A |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 40A |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 39A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 45A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 42A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 46A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 64A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 61A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 63A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 48A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 51A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 52A |
| N5 | Armrest heater control unit | 32A |
| N5 | Armrest heater control unit | 29A |
| N5 | Armrest heater control unit | 31A |
| R16/10 | Rear center console armrest heating element | 32L |
| R16/10 | Rear center console armrest heating element | 29L |
| R16/10 | Rear center console armrest heating element | 30L |
| W12 | Left center console ground point | 3A |
| W15/7 | Right front footwell ground point | 38L |
| W16/4 | Right major assembly compartment ground point | 50L |
| W18 | Left front seat crossmember ground point | 44L |
| W52/6 | Right center longitudinal member ground point | 62L |
| W7 | Right wheel house trunk ground point | 7A |
| W7 | Right wheel house trunk ground point | 20A |
| W91 | Electromagnetic compatibility ground point (touchpad) | 11A |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 33F |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 42F |
| X101/2 | Right front frame floor assembly/underfloor electrical connector | 48F |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector 1 | 54F |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector 1 | 58F |
| X115/2 | Rear passenger compartment USB connector | 7L |
| X115/2 | Rear passenger compartment USB connector | 5L |
| X115/2 | Rear passenger compartment USB connector | 6L |
| X138/6 | Rear center console electrical connector | 10F |
| X138/6 | Rear center console electrical connector | 1F |
| X138/6 | Rear center console electrical connector | 19F |
| X138/6 | Rear center console electrical connector | 29F |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 16A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 17A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 26A |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 25A |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 40L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 39L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 45L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 46L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 64L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 63L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 52L |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor electrical connector | 51L |
| Y129 | AdBlue® metering valve | 35A |
| Y129 | AdBlue® metering valve | 34A |
| Z149z1 | Connector sleeve, cigarette lighter with ashtray illumination, rear | 6A |
| Z245/1z1 | Universal serial bus connector sleeve, power supply | 5A |
| Z245/1z1 | Universal serial bus connector sleeve, power supply | 21A |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 14A |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 13A |
| Z7/44z2 | Ground connection connector sleeve | 44A |
| Z7/44z2 | Ground connection connector sleeve | 62A |
| Z7/44z2 | Ground connection connector sleeve | 49A |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 37L |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 43L |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 61L |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 48L |
