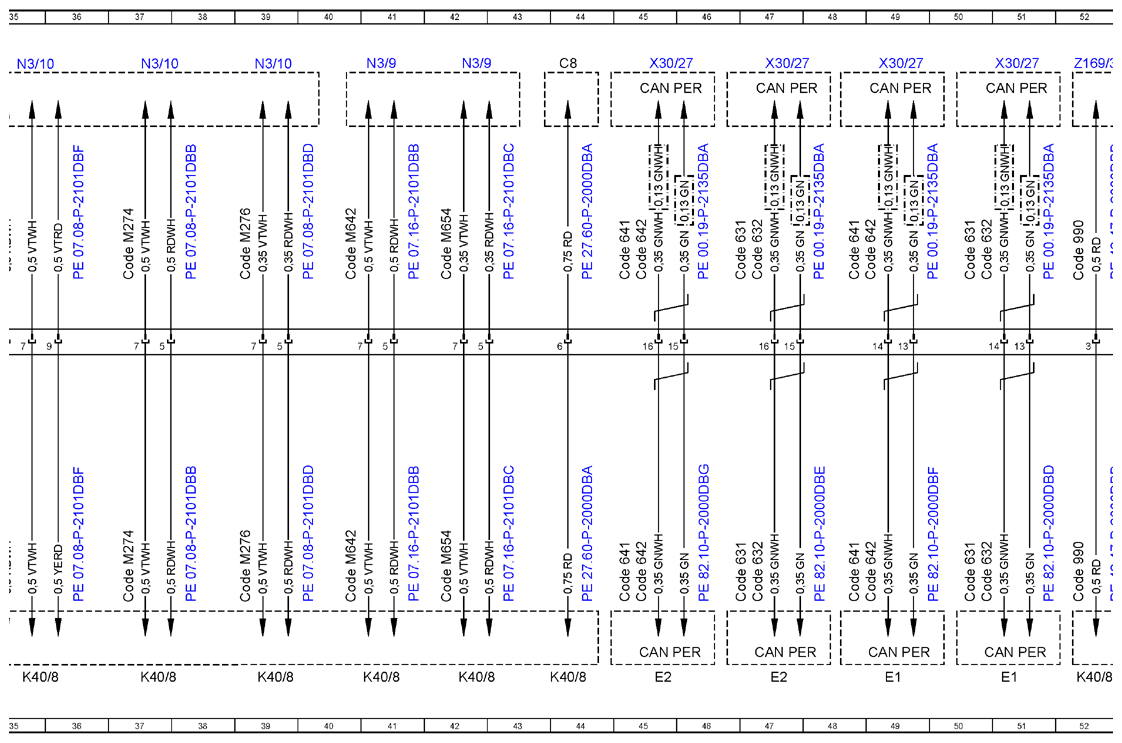

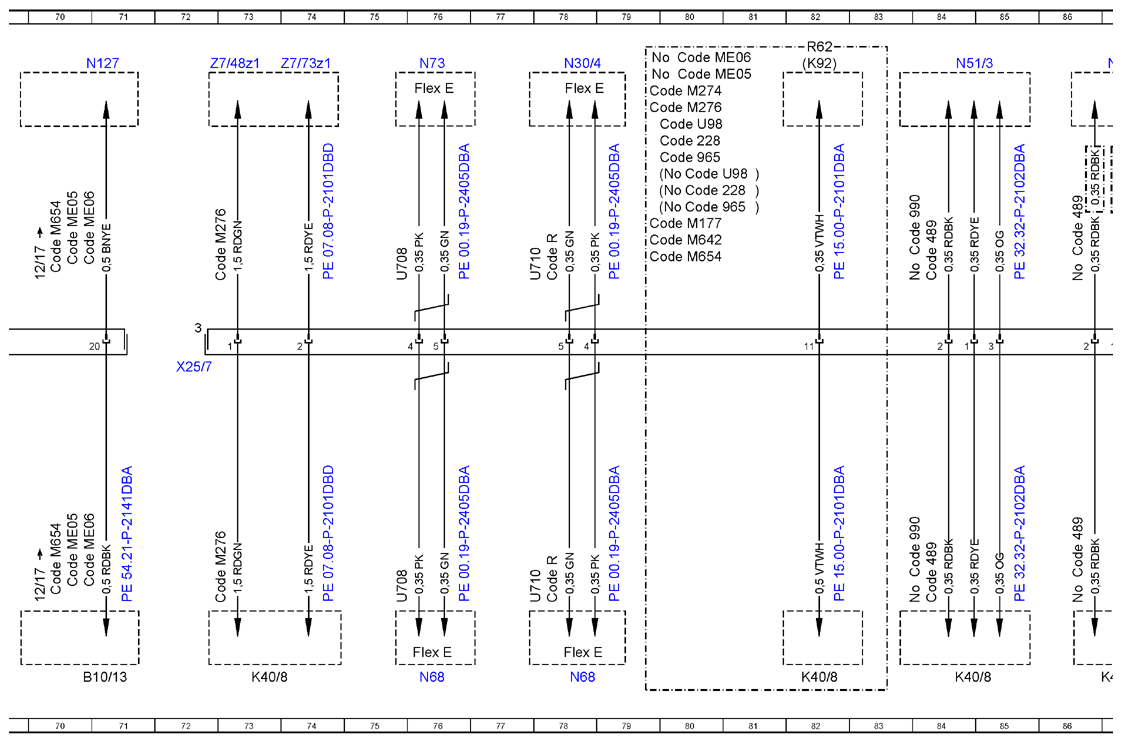

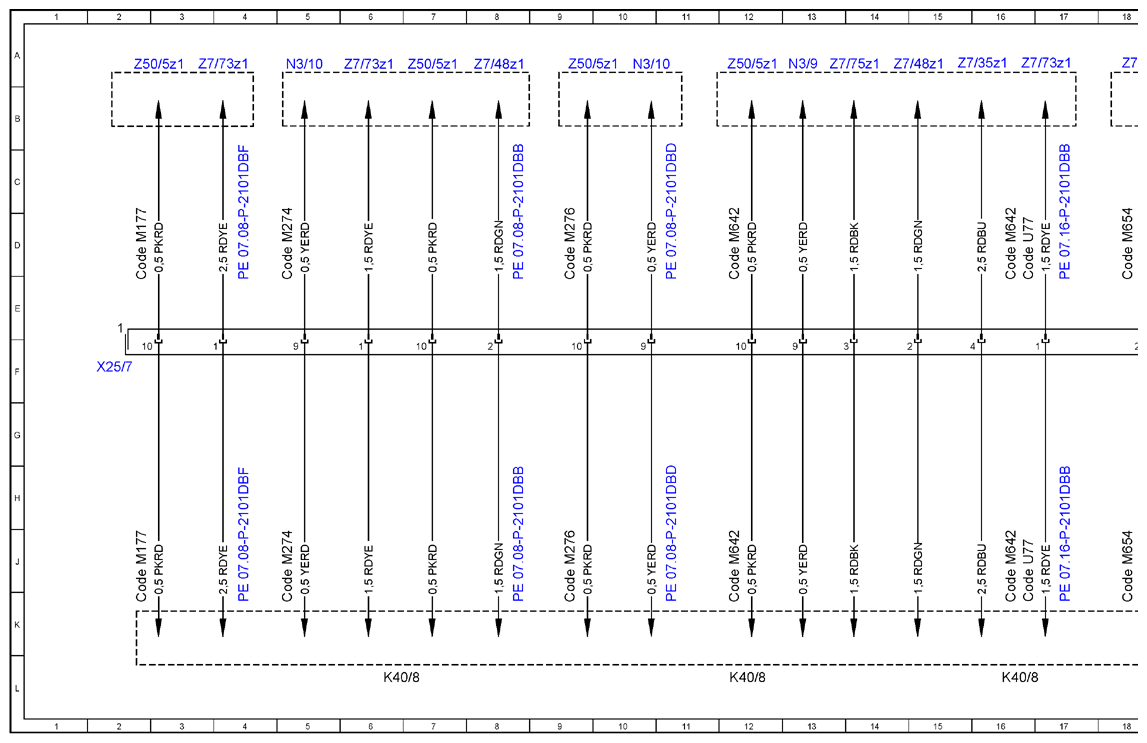

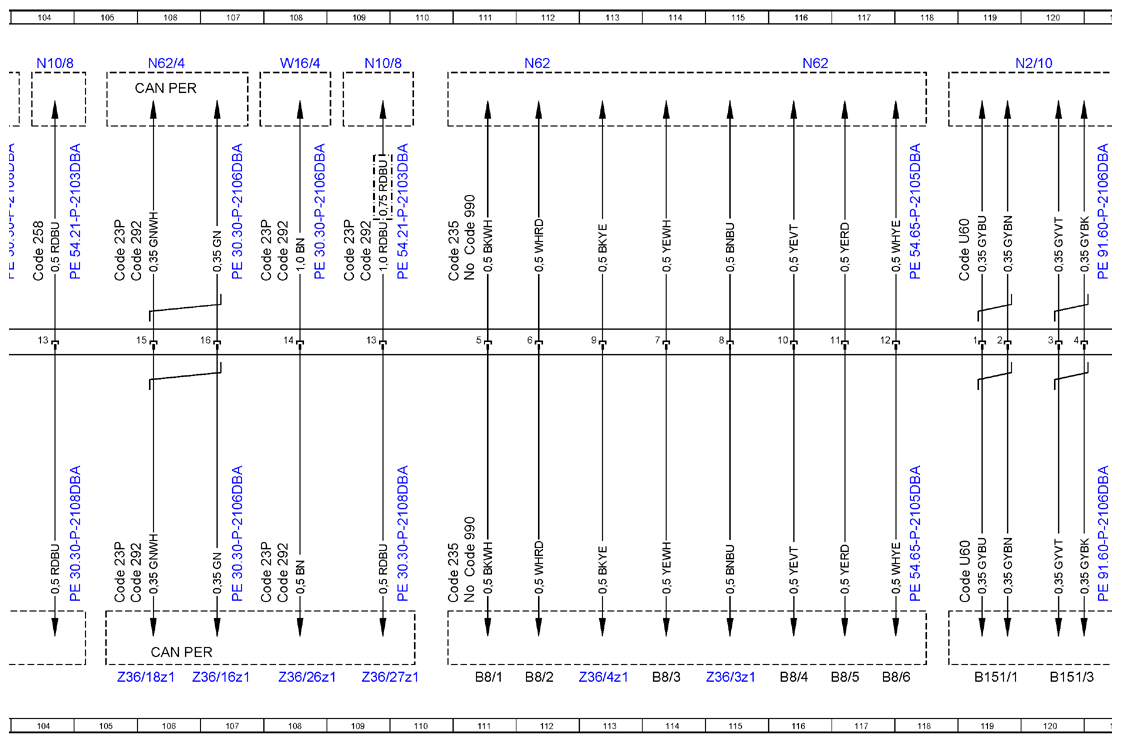

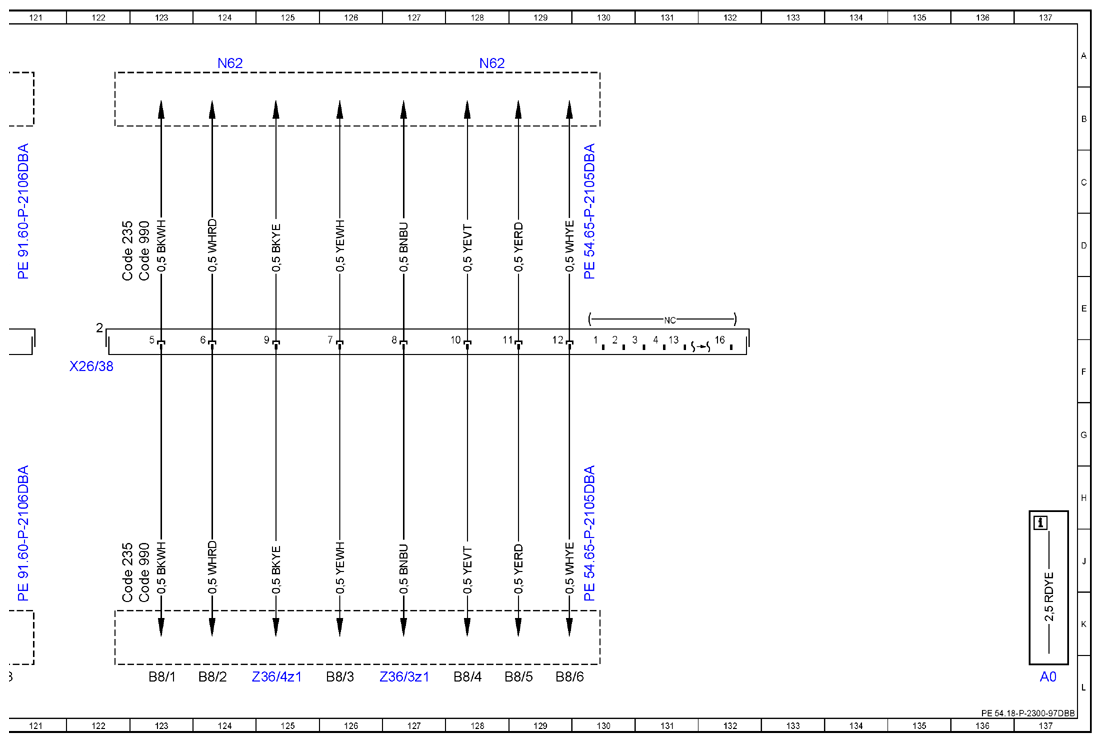

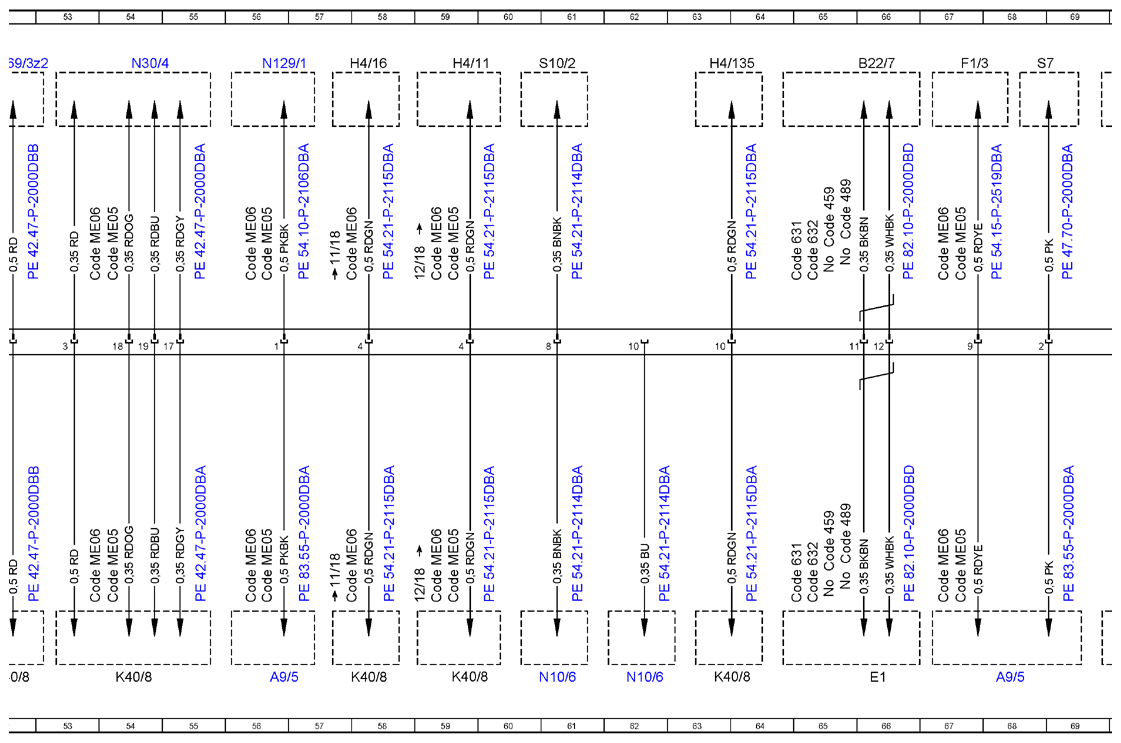

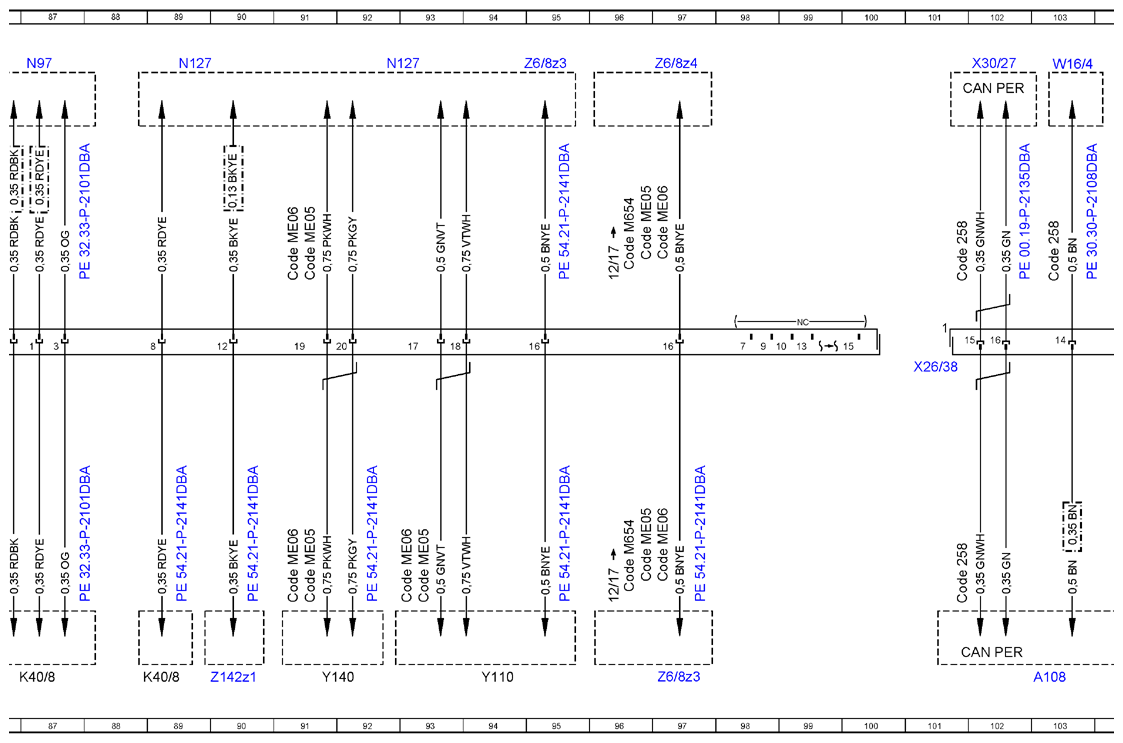

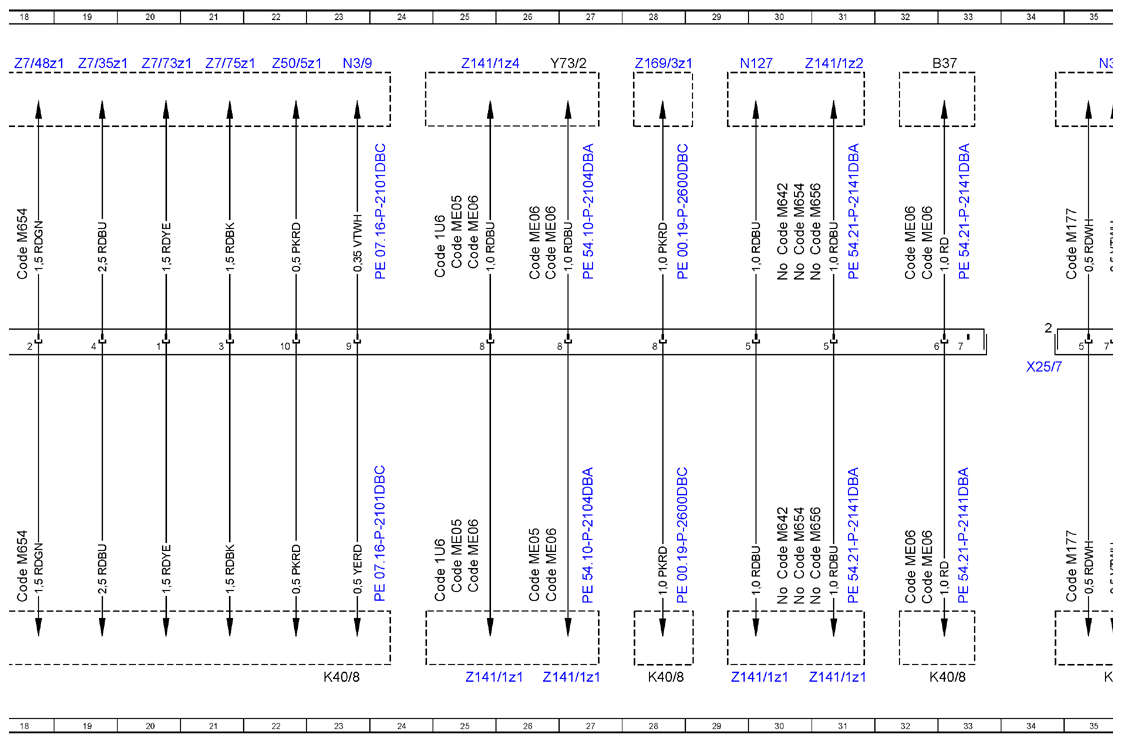

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97DBB
Model 213 up to model year 2021 X25/7(1), X25/7(2), X25/7(3), X26/38(1), X26/38(2)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 137L |
| A108 | Active Brake Assist controller unit | 103L |
| A9/5 | Electric refrigerant compressor | 56L |
| A9/5 | Electric refrigerant compressor | 68L |
| B10/13 | Low-temperature circuit temperature sensor | 71L |
| B151/1 | Left front bumper pedestrian protection sensor | 119L |
| B151/3 | Right front bumper pedestrian protection sensor | 120L |
| B22/7 | Left rear level sensor | 66A |
| B37 | Accelerator pedal sensor | 33A |
| B8/1 | Outer left front parking system distance sensor | 123L |
| B8/1 | Outer left front parking system distance sensor | 111L |
| B8/2 | Center left front parking system distance sensor | 112L |
| B8/2 | Center left front parking system distance sensor | 124L |
| B8/3 | Inner left front parking system distance sensor | 114L |
| B8/3 | Inner left front parking system distance sensor | 126L |
| B8/4 | Inner right front parking system distance sensor | 116L |
| B8/4 | Inner right front parking system distance sensor | 128L |
| B8/5 | Center right front parking system distance sensor | 117L |
| B8/5 | Center right front parking system distance sensor | 129L |
| B8/6 | Outer right front parking system distance sensor | 117L |
| B8/6 | Outer right front parking system distance sensor | 129L |
| C8 | Park pawl capacitor | 44A |
| CAN PER | Peripherals CAN | 45L |
| CAN PER | Peripherals CAN | 51L |
| CAN PER | Peripherals CAN | 47L |
| CAN PER | Peripherals CAN | 49L |
| CAN PER | Peripherals CAN | 102L |
| CAN PER | Peripherals CAN | 106L |
| CAN PER | Peripherals CAN | 45B |
| CAN PER | Peripherals CAN | 51B |
| CAN PER | Peripherals CAN | 47B |
| CAN PER | Peripherals CAN | 49B |
| CAN PER | Peripherals CAN | 102B |
| CAN PER | Peripherals CAN | 106B |
| Code 1U6 | Refrigerant R744 | 25K |
| Code 1U6 | Refrigerant R744 | 25E |
| Code 228 | Stationary heater | 79B |
| Code 228 | Stationary heater | 80C |
| Code 235 | Parking Pilot | 111K |
| Code 235 | Parking Pilot | 123K |
| Code 235 | Parking Pilot | 111E |
| Code 235 | Parking Pilot | 123E |
| Code 23P | Driver assistance package | 105K |
| Code 23P | Driver assistance package | 108K |
| Code 23P | Driver assistance package | 109E |
| Code 23P | Driver assistance package | 105E |
| Code 23P | Driver assistance package | 108E |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 102K |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 103E |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 102E |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 104E |
| Code 292 | PRE-SAFE PULSE | 106K |
| Code 292 | PRE-SAFE PULSE | 108K |
| Code 292 | PRE-SAFE PULSE | 109E |
| Code 292 | PRE-SAFE PULSE | 108E |
| Code 292 | PRE-SAFE PULSE | 106E |
| Code 459 | Steel suspension with adjustable damping | 65J |
| Code 459 | Steel suspension with adjustable damping | 65D |
| Code 489 | AIR BODY CONTROL | 84K |
| Code 489 | AIR BODY CONTROL | 86J |
| Code 489 | AIR BODY CONTROL | 84E |
| Code 489 | AIR BODY CONTROL | 86D |
| Code 489 | AIR BODY CONTROL | 65J |
| Code 489 | AIR BODY CONTROL | 65D |
| Code 631 | Static LED headlamp, left-hand traffic | 47K |
| Code 631 | Static LED headlamp, left-hand traffic | 50K |
| Code 631 | Static LED headlamp, left-hand traffic | 65K |
| Code 631 | Static LED headlamp, left-hand traffic | 50E |
| Code 631 | Static LED headlamp, left-hand traffic | 47E |
| Code 631 | Static LED headlamp, left-hand traffic | 65E |
| Code 632 | Static LED headlamp, right-hand traffic | 47K |
| Code 632 | Static LED headlamp, right-hand traffic | 51K |
| Code 632 | Static LED headlamp, right-hand traffic | 65K |
| Code 632 | Static LED headlamp, right-hand traffic | 51E |
| Code 632 | Static LED headlamp, right-hand traffic | 47E |
| Code 632 | Static LED headlamp, right-hand traffic | 65E |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 45K |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 48K |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 45E |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 48E |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 45K |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 49K |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 45E |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 49E |
| Code 965 | Taxi/rental car - Pre-installation | 79C |
| Code 965 | Taxi/rental car - Pre-installation | 80C |
| Code 990 | AMG vehicles | 52K |
| Code 990 | AMG vehicles | 52E |
| Code 990 | AMG vehicles | 84D |
| Code 990 | AMG vehicles | 84J |
| Code 990 | AMG vehicles | 111D |
| Code 990 | AMG vehicles | 111J |
| Code 990 | AMG vehicles | 123E |
| Code 990 | AMG vehicles | 123K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 2E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 2K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 35E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 35K |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 79D |
| Code M274 | SPARK-IGNITION ENGINE M274 | 5E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 5K |
| Code M274 | SPARK-IGNITION ENGINE M274 | 37E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 37K |
| Code M274 | SPARK-IGNITION ENGINE M274 | 79B |
| Code M276 | SPARK-IGNITION ENGINE M276 | 9E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 9K |
| Code M276 | SPARK-IGNITION ENGINE M276 | 39E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 39K |
| Code M276 | SPARK-IGNITION ENGINE M276 | 73E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 73K |
| Code M276 | SPARK-IGNITION ENGINE M276 | 79B |
| Code M642 | DIESEL ENGINE 0M642 | 12E |
| Code M642 | DIESEL ENGINE 0M642 | 16E |
| Code M642 | DIESEL ENGINE 0M642 | 12K |
| Code M642 | DIESEL ENGINE 0M642 | 16K |
| Code M642 | DIESEL ENGINE 0M642 | 30D |
| Code M642 | DIESEL ENGINE 0M642 | 30J |
| Code M642 | DIESEL ENGINE 0M642 | 40E |
| Code M642 | DIESEL ENGINE 0M642 | 40K |
| Code M642 | DIESEL ENGINE 0M642 | 79D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 18E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 18K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 30D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 30J |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 42E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 42K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 70D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 70K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 79D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 96D |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE 0M654 | 96J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 31D |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 31J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 56K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 56E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 70J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 70D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 96J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 96D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 93K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 91K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 91E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 80A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 67K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 67E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 59E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 59K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 54K |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 54E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 25J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 25D |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 26K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 25J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 32K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 25D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 26E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 32E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 54K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 58K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 67K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 93K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 91K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 54E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 58E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 67E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 91E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 80A |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 71J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 71D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 97J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 97D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 59K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 59E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 56E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 56K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 32E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 32K |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 26E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 26K |
| Code R | RIGHT-HAND DRIVE | 78K |
| Code R | RIGHT-HAND DRIVE | 78E |
| Code U60 | Pedestrian protection | 119K |
| Code U60 | Pedestrian protection | 119E |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 16K |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 16E |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 79B |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 80C |
| E1 | Left front lamp unit | 49L |
| E1 | Left front lamp unit | 51L |
| E1 | Left front lamp unit | 66L |
| E2 | Right front lamp unit | 45L |
| E2 | Right front lamp unit | 47L |
| F1/3 | Passenger-side A-pillar fuse box | 67A |
| Flex E | Chassis FlexRay | 76L |
| Flex E | Chassis FlexRay | 78L |
| Flex E | Chassis FlexRay | 76B |
| Flex E | Chassis FlexRay | 78B |
| H4/11 | Front sound generator | 59A |
| H4/135 | Rear end sound generator | 63A |
| H4/16 | Sound generator | 58A |
| K40/8 | Engine fuse and relay module | 35L |
| K40/8 | Engine fuse and relay module | 6L |
| K40/8 | Engine fuse and relay module | 12L |
| K40/8 | Engine fuse and relay module | 16L |
| K40/8 | Engine fuse and relay module | 23L |
| K40/8 | Engine fuse and relay module | 28L |
| K40/8 | Engine fuse and relay module | 33L |
| K40/8 | Engine fuse and relay module | 41L |
| K40/8 | Engine fuse and relay module | 37L |
| K40/8 | Engine fuse and relay module | 39L |
| K40/8 | Engine fuse and relay module | 42L |
| K40/8 | Engine fuse and relay module | 44L |
| K40/8 | Engine fuse and relay module | 52L |
| K40/8 | Engine fuse and relay module | 54L |
| K40/8 | Engine fuse and relay module | 58L |
| K40/8 | Engine fuse and relay module | 73L |
| K40/8 | Engine fuse and relay module | 82L |
| K40/8 | Engine fuse and relay module | 84L |
| K40/8 | Engine fuse and relay module | 87L |
| K40/8 | Engine fuse and relay module | 89L |
| K40/8 | Engine fuse and relay module | 59L |
| K40/8 | Engine fuse and relay module | 63L |
| K92 | Starter front-end relay | 82A |
| N10/6 | Front SAM control unit | 61L |
| N10/6 | Front SAM control unit | 62L |
| N10/8 | Rear SAM control unit | 104A |
| N10/8 | Rear SAM control unit | 109A |
| N127 | Drivetrain control unit | 30A |
| N127 | Drivetrain control unit | 89A |
| N127 | Drivetrain control unit | 92A |
| N127 | Drivetrain control unit | 71A |
| N129/1 | Power electronics control unit | 56A |
| N2/10 | Supplemental restraint system control unit | 120A |
| N3/10 | ME-SFI [ME] control unit | 35A |
| N3/10 | ME-SFI [ME] control unit | 5A |
| N3/10 | ME-SFI [ME] control unit | 10A |
| N3/10 | ME-SFI [ME] control unit | 37A |
| N3/10 | ME-SFI [ME] control unit | 39A |
| N3/9 | CDI control unit | 13A |
| N3/9 | CDI control unit | 23A |
| N3/9 | CDI control unit | 41A |
| N3/9 | CDI control unit | 42A |
| N30/4 | Electronic Stability Program control unit | 54A |
| N30/4 | Electronic Stability Program control unit | 78A |
| N51/3 | AIR BODY CONTROL control unit | 84A |
| N62 | Parking system control unit | 112A |
| N62 | Parking system control unit | 116A |
| N62 | Parking system control unit | 124A |
| N62 | Parking system control unit | 128A |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 106A |
| N68 | Electrical power steering control unit | 76L |
| N68 | Electrical power steering control unit | 78L |
| N73 | Electronic ignition switch control unit | 76A |
| N97 | Rear axle electronic level control unit | 87A |
| R62 | Voltage dip limiter | 82A |
| S10/2 | Right front brake wear sensor | 61A |
| S7 | High-voltage disconnect device | 68A |
| U708 | Valid for FlexRay star | 75K |
| U708 | Valid for FlexRay star | 75E |
| U710 | Valid for FlexRay line topology | 78K |
| U710 | Valid for FlexRay line topology | 78E |
| W16/4 | Right major assembly compartment ground point | 103A |
| W16/4 | Right major assembly compartment ground point | 108A |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 2F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 34F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 72F |
| X26/38 | Front bumper electrical connector | 101F |
| X26/38 | Front bumper electrical connector | 122F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 45A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 47A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 51A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 49A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 102A |
| Y110 | High-voltage battery cooling system expansion valve | 94L |
| Y140 | High-voltage battery cooling system switchover valve | 91L |
| Y73/2 | Low-temperature circuit switchover valve 2 | 27A |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 25L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 31L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 26L |
| Z141/1z1 | Circuit 87 C1 connector sleeve | 29L |
| Z141/1z2 | Circuit 87 C1 connector sleeve | 31A |
| Z141/1z4 | Circuit 87 C1 connector sleeve | 25A |
| Z142z1 | Powertrain control unit LIN connector sleeve | 90L |
| Z169/3z1 | Tml. 15 connector sleeve | 28A |
| Z169/3z2 | Tml. 15 connector sleeve | 52A |
| Z36/16z1 | Front sensor CAN (low) connector sleeve | 107L |
| Z36/18z1 | Front sensor CAN (high) connector sleeve | 105L |
| Z36/26z1 | Front ground line connector sleeve | 108L |
| Z36/27z1 | Front power supply connector sleeve | 109L |
| Z36/3z1 | Front parking system sensors ground line connector sleeve | 115L |
| Z36/3z1 | Front parking system sensors ground line connector sleeve | 127L |
| Z36/4z1 | Front parking system sensors positive line connector sleeve | 113L |
| Z36/4z1 | Front parking system sensors positive line connector sleeve | 125L |
| Z50/5z1 | Tml. 15 connector sleeve | 2A |
| Z50/5z1 | Tml. 15 connector sleeve | 9A |
| Z50/5z1 | Tml. 15 connector sleeve | 7A |
| Z50/5z1 | Tml. 15 connector sleeve | 12A |
| Z50/5z1 | Tml. 15 connector sleeve | 22A |
| Z6/8z3 | Sensor ground connection connector sleeve | 95A |
| Z6/8z3 | Sensor ground connection connector sleeve | 97L |
| Z6/8z4 | Sensor ground connection connector sleeve | 97A |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 15A |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 19A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 14A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 8A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 18A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 73A |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 3A |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 6A |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 16A |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 20A |
| Z7/73z1 | Circuit 87 M4 connector sleeve | 74A |
| Z7/75z1 | Circuit 87/3 connector sleeve | 13A |
| Z7/75z1 | Circuit 87/3 connector sleeve | 21A |
