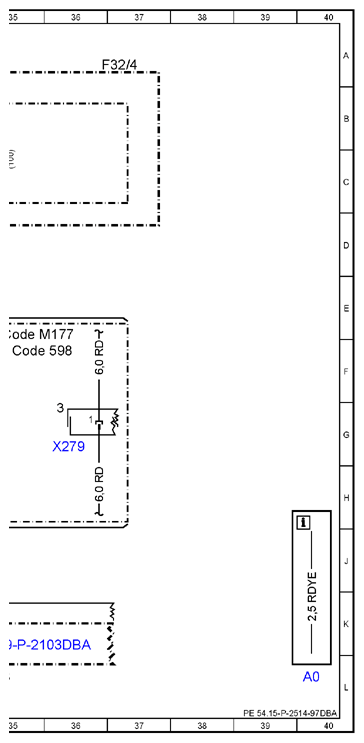

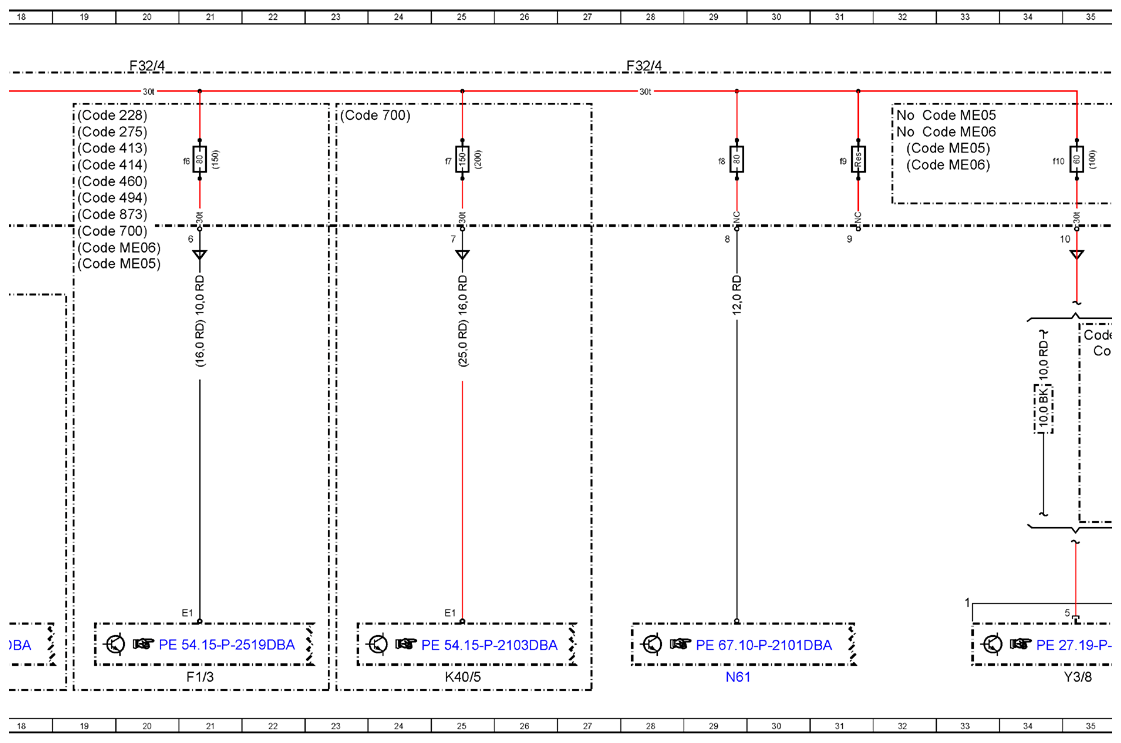

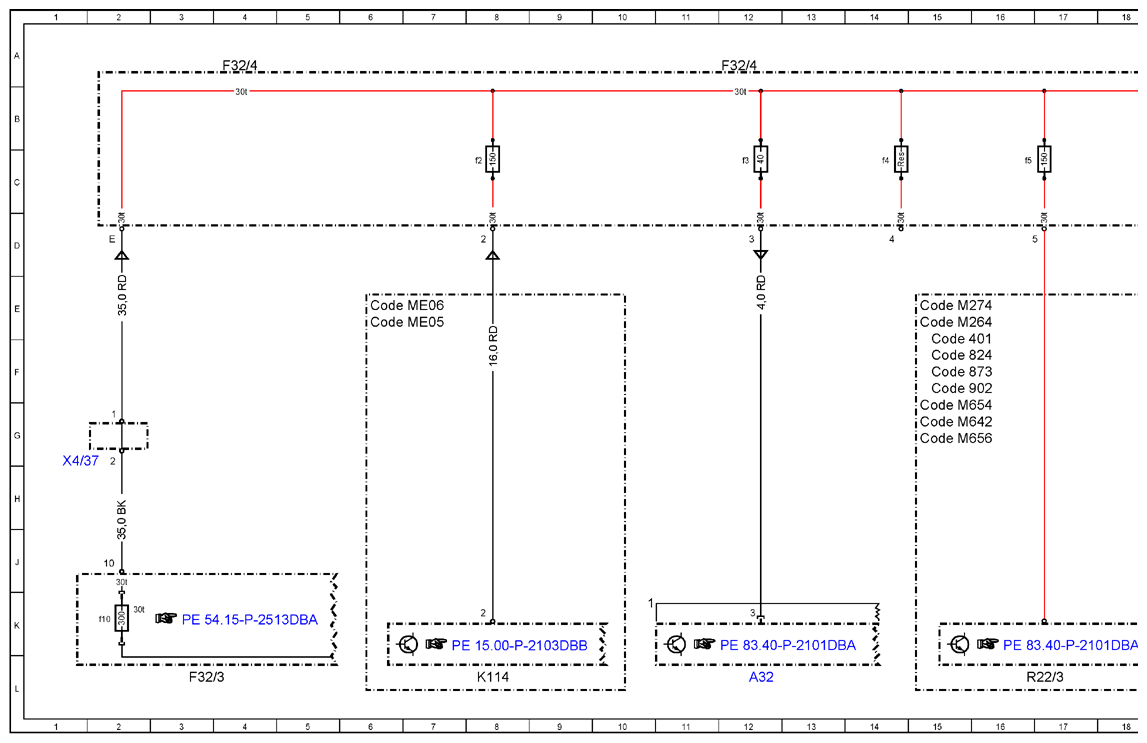

Wiring Diagram, Interior Prefuse Box (F32/4) - PE54.15-P-2514-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A32 | AC housing | 12L |
| Code 228 | Stationary heater | 19B |
| Code 275 | Memory package | 19B |
| Code 401 | Seat climate control for driver and front passenger | 15F |
| Code 413 | Panoramic sliding sunroof | 19C |
| Code 414 | Sliding roof | 19C |
| Code 460 | Canada version | 19C |
| Code 494 | USA vers ion | 19C |
| Code 598 | Gasoline particulate filter (0PF) with sensor system | 35F |
| Code 700 | Technical Local Content China | 19D |
| Code 700 | Technical Local Content China | 23B |
| Code 824 | Additional parts for countries with cold temp. | 15F |
| Code 873 | Seat heater for driver and front passenger | 19D |
| Code 873 | Seat heater for driver and front passenger | 15F |
| Code 902 | Seat heater Plus for driver and front passenger | 15F |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 35E |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 15E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 15E |
| Code M642 | DIESEL ENGINE M642 | 15G |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 15G |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 15G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 32C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 32B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 6E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 19D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 6E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 19D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 32C |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 32B |
| F1/3 | Passenger-side A-pillar fuse box | 21L |
| F32/3 | Engine compartment prefuse box | 3L |
| F32/3f10 | Fuse 10 | 2K |
| F32/3f6 | Fuse 6 | 21C |
| F32/3f7 | Fuse 7 | 25C |
| F32/4 | Vehicle interior prefuse box | 4A |
| F32/4 | Vehicle interior prefuse box | 12A |
| F32/4 | Vehicle interior prefuse box | 20A |
| F32/4 | Vehicle interior prefuse box | 28A |
| F32/4 | Vehicle interior prefuse box | 37A |
| F32/4f10 | Fuse 10 | 34C |
| F32/4f2 | Fuse 2 | 8C |
| F32/4f3 | Fuse 3 | 12C |
| F32/4f4 | Fuse 4 | 14C |
| F32/4f5 | Fuse 5 | 16C |
| F32/4f8 | Fuse 8 | 29C |
| F32/4f9 | Fuse 9 | 31C |
| K114 | ECO start/stop function additional battery relay | 8L |
| K40/5 | Rear fuse and relay module | 25L |
| N61 | Windshield heater control unit | 29L |
| R22/3 | PTC heater booster | 17L |
| X279 | All-wheel drive control unit electrical connector | 36G |
| X4/37 | Terminal block (circuit 30) | 1G |
| Y3/8 | Fully integrated transmission control controller unit | 35L |
