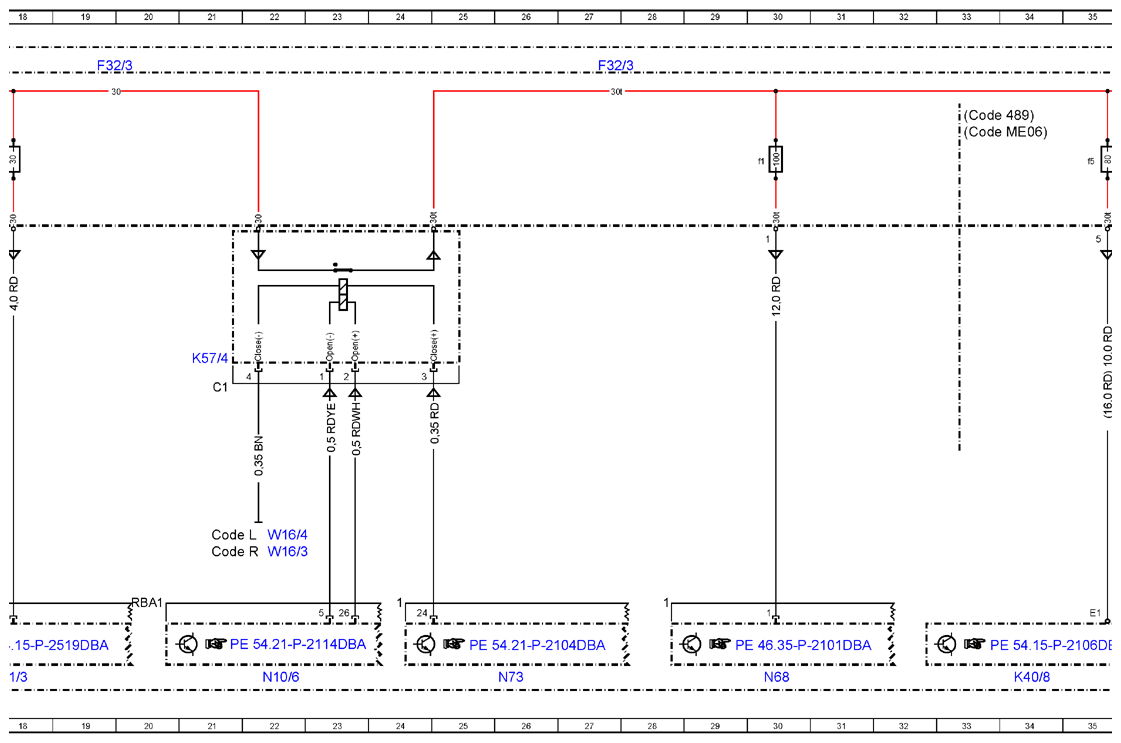

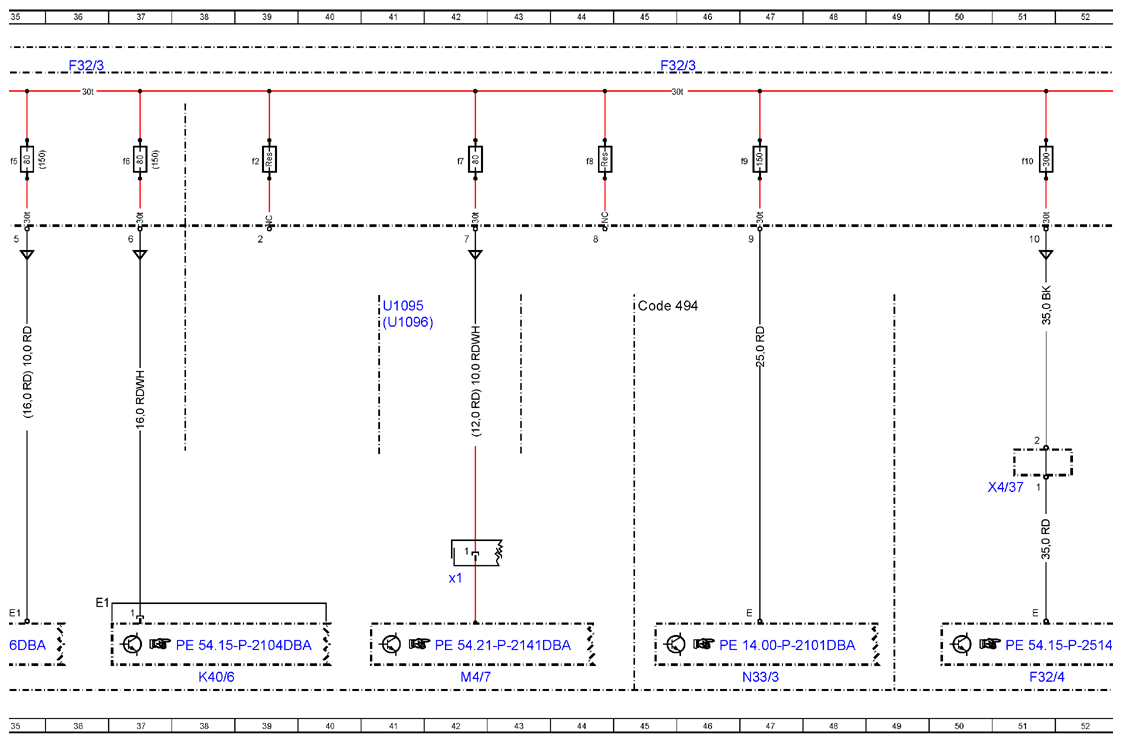

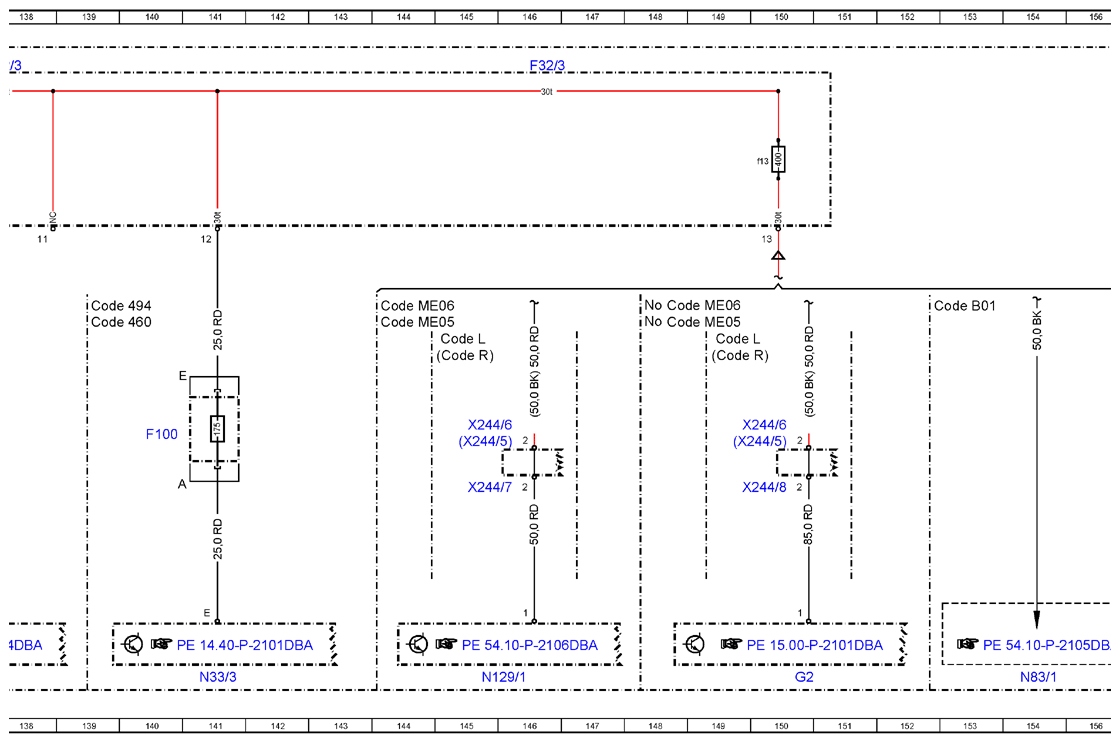

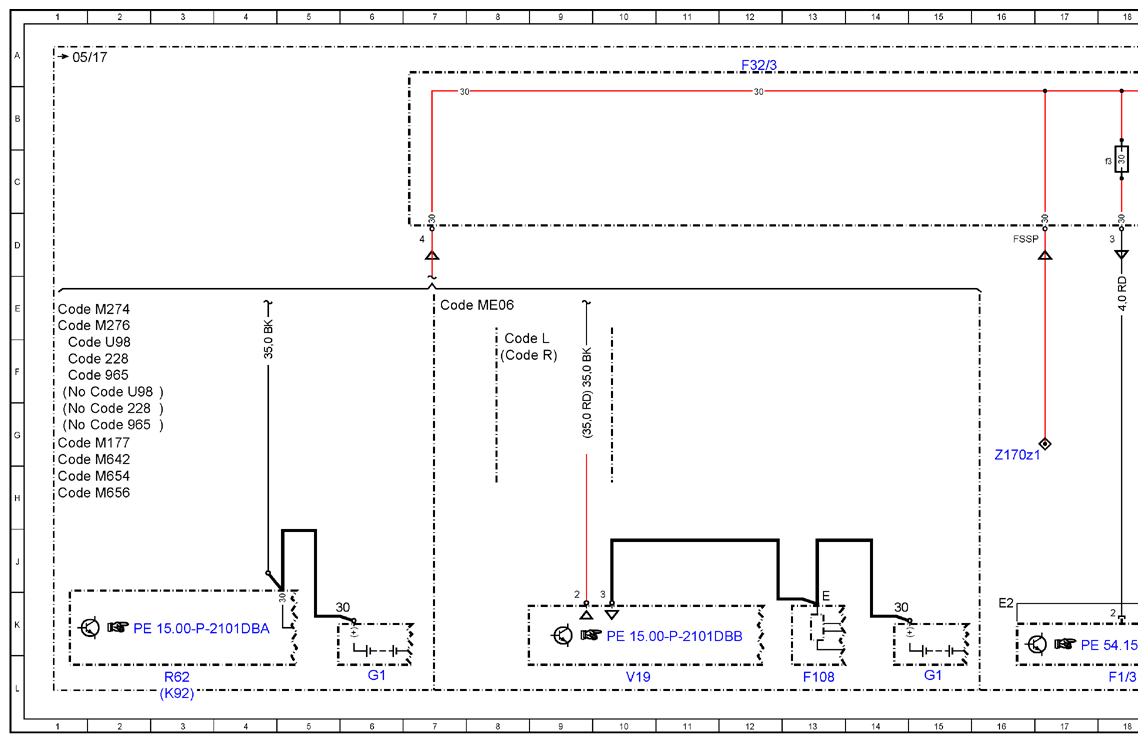

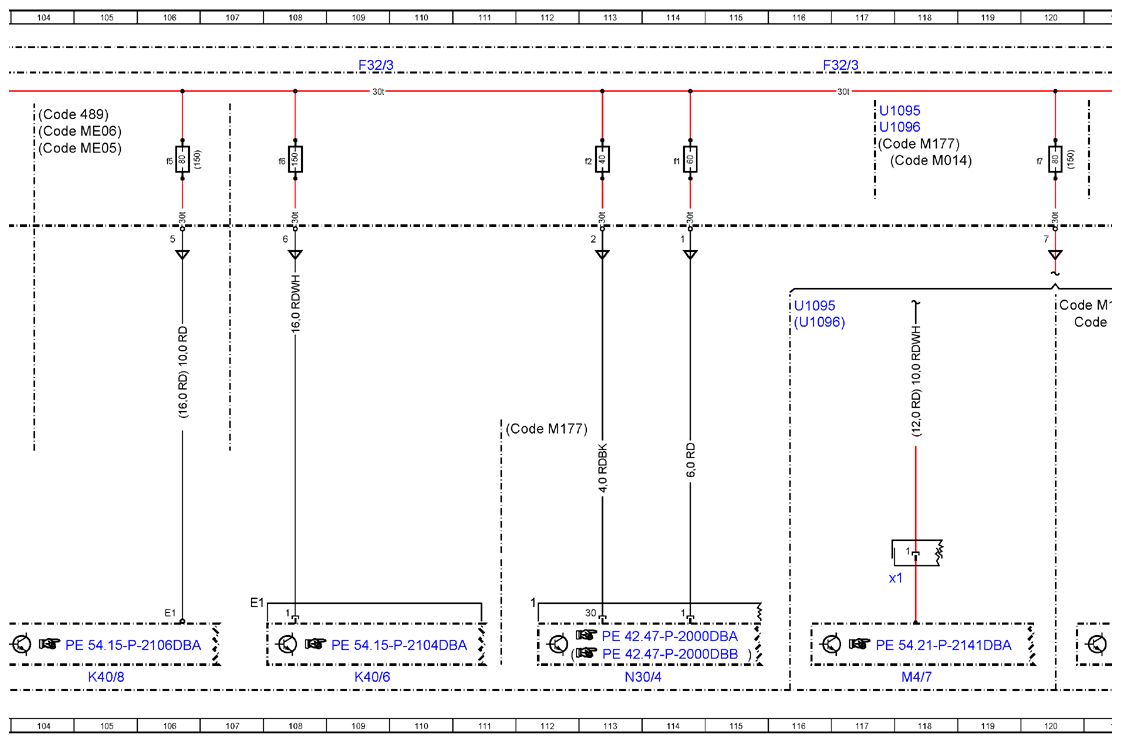

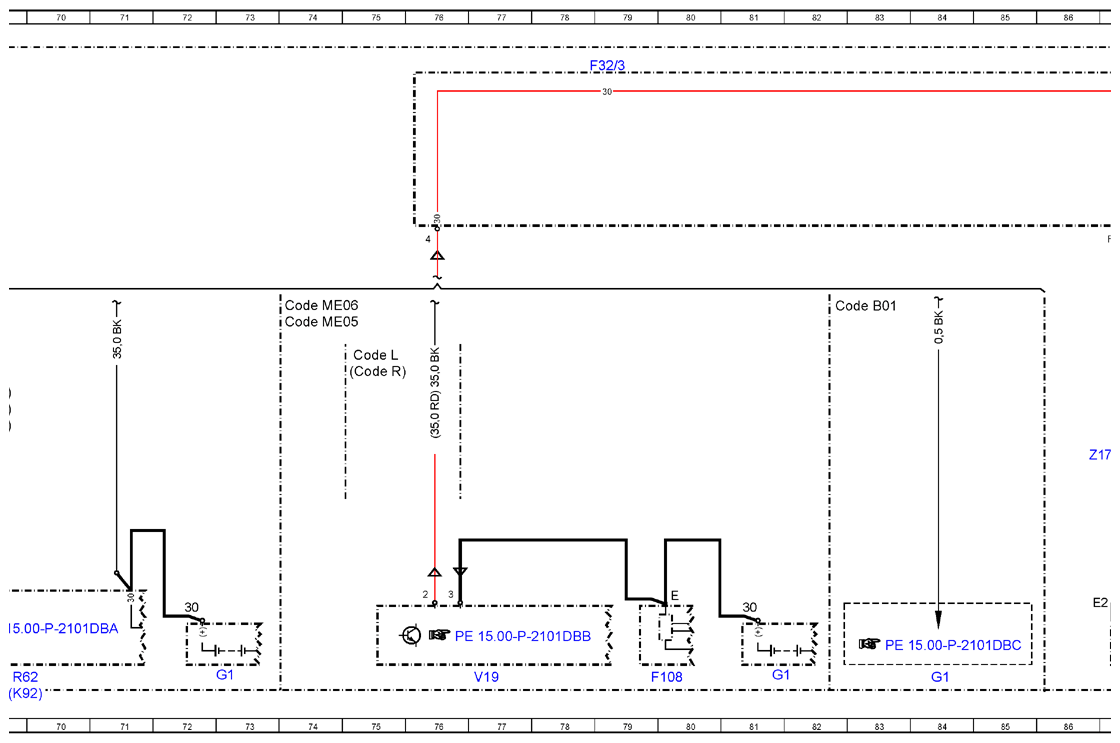

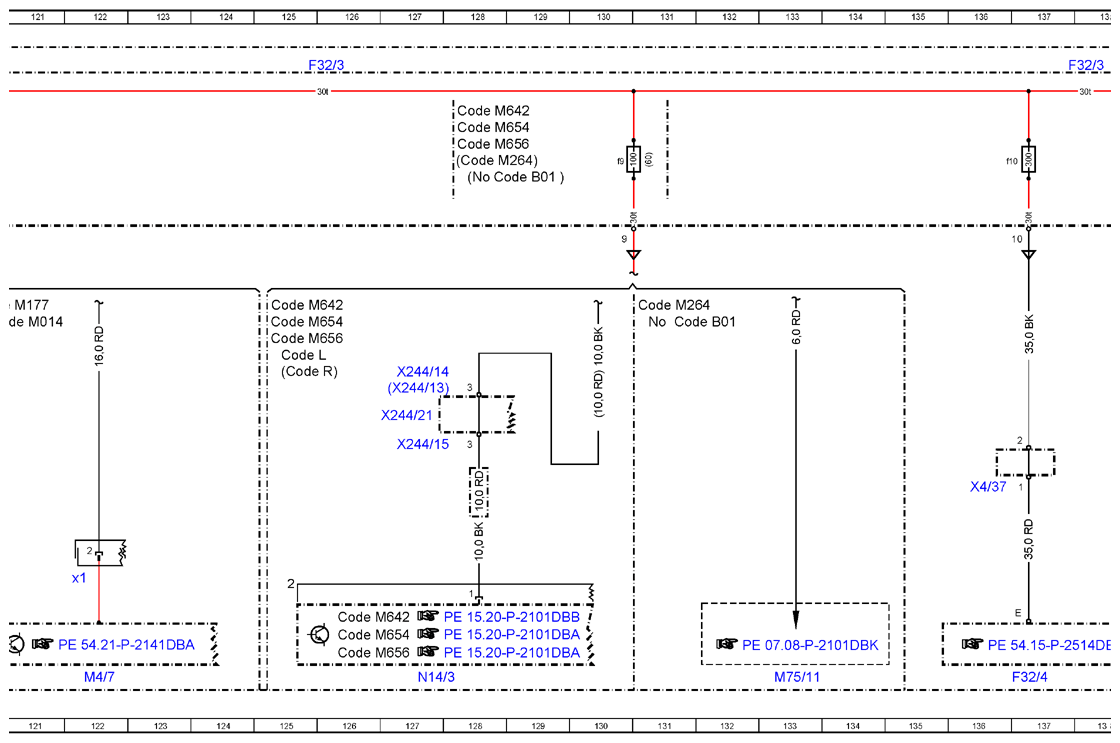

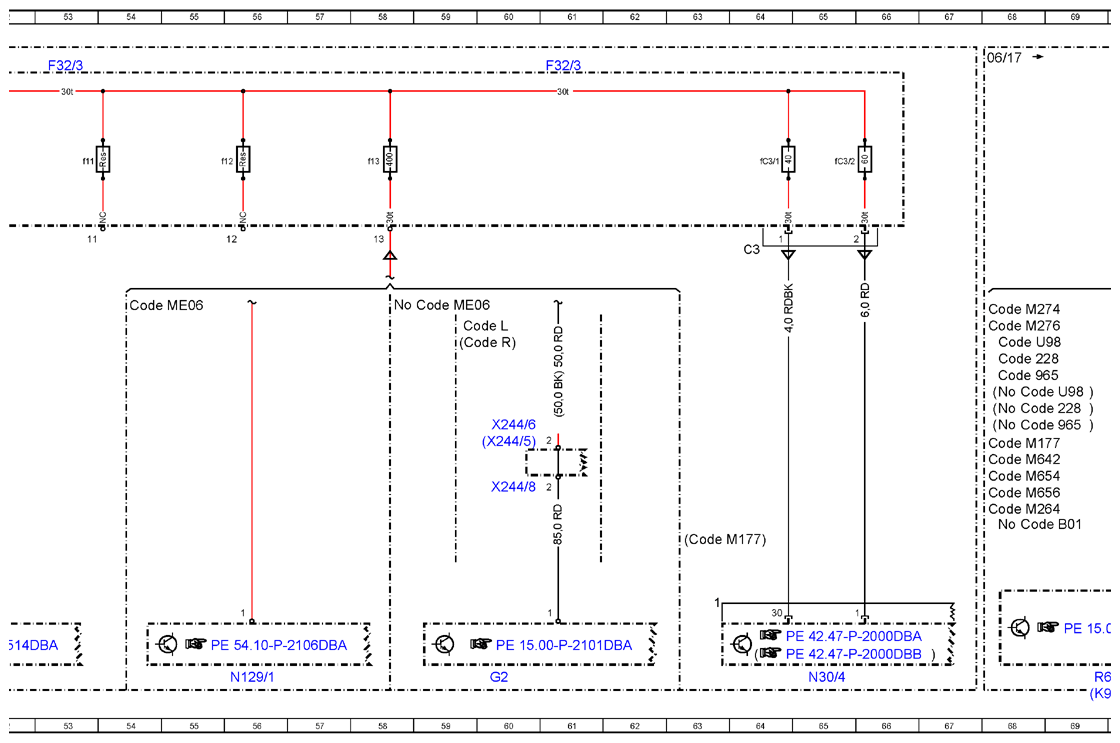

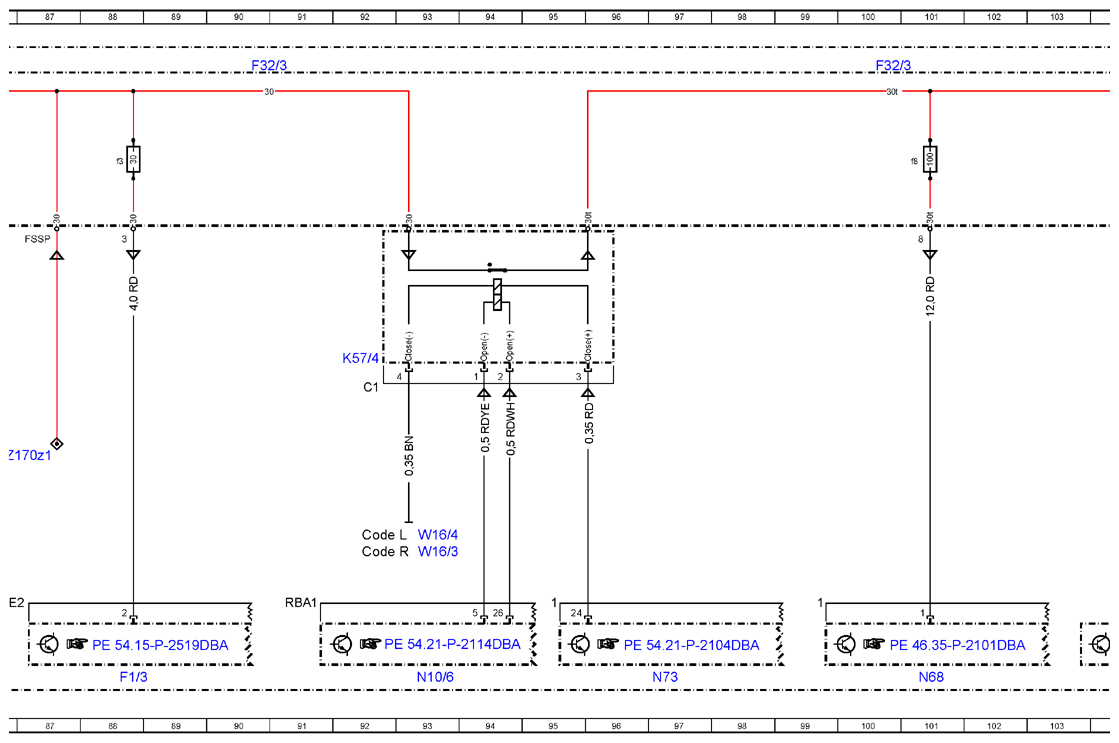

Wiring Diagram, Engine Compartment Prefuse Box (F32/3) - PE54.15-P-2513-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 159L |
| Code 228 | Stationary heater | 2G |
| Code 228 | Stationary heater | 68G |
| Code 228 | Stationary heater | 1F |
| Code 228 | Stationary heater | 68F |
| Code 460 | Canada version | 139E |
| Code 489 | AIR BODY CONTROL | 33B |
| Code 489 | AIR BODY CONTROL | 104B |
| Code 494 | USA version | 45E |
| Code 494 | USA version | 139E |
| Code 965 | Taxi/rental car - Pre-installation | 68F |
| Code 965 | Taxi/rental car - Pre-installation | 1F |
| Code 965 | Taxi/rental car - Pre-installation | 2G |
| Code 965 | Taxi/rental car - Pre-installation | 68G |
| Code B01 | 48V technology | 68H |
| Code B01 | 48V technology | 82E |
| Code B01 | 48V technology | 128C |
| Code B01 | 48V technology | 131E |
| Code B01 | 48V technology | 152E |
| Code L | LEFT-HAND DRIVE | 21J |
| Code L | LEFT-HAND DRIVE | 8F |
| Code L | LEFT-HAND DRIVE | 59E |
| Code L | LEFT-HAND DRIVE | 75F |
| Code L | LEFT-HAND DRIVE | 92J |
| Code L | LEFT-HAND DRIVE | 125F |
| Code L | LEFT-HAND DRIVE | 145F |
| Code L | LEFT-HAND DRIVE | 149F |
| Code M014 | Uprated engine | 120E |
| Code M014 | Uprated engine | 117C |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 1G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 63J |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 68G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 111G |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 120E |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 117B |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 68H |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 128C |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 131E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 1E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 68E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 1E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 68E |
| Code M642 | DIESEL ENGINE M642 | 1G |
| Code M642 | DIESEL ENGINE M642 | 68G |
| Code M642 | DIESEL ENGINE M642 | 126K |
| Code M642 | DIESEL ENGINE M642 | 125E |
| Code M642 | DIESEL ENGINE M642 | 128B |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 1H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 68H |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 126K |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 125E |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE M654 | 128B |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 1H |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 68H |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 126L |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 128B |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 125F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 74E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 104C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 148E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 144E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 7E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 54E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 59E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 74E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 33B |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 104B |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 148E |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 144E |
| Code R | RIGHT-HAND DRIVE | 75F |
| Code R | RIGHT-HAND DRIVE | 21J |
| Code R | RIGHT-HAND DRIVE | 8F |
| Code R | RIGHT-HAND DRIVE | 59F |
| Code R | RIGHT-HAND DRIVE | 125F |
| Code R | RIGHT-HAND DRIVE | 92J |
| Code R | RIGHT-HAND DRIVE | 145F |
| Code R | RIGHT-HAND DRIVE | 149F |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 2F |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 68F |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 1F |
| Code U98 | LITHIUM-ION STARTER BATTERY (LISB) | 68F |
| F1/3 | Passenger-side A-pillar fuse box | 18L |
| F1/3 | Passenger-side A-pillar fuse box | 88L |
| F100 | Electrical fuse, engine compartment | 140G |
| F108 | Battery clamp fuse | 13L |
| F108 | Battery clamp fuse | 80L |
| F32/3 | Engine compartment prefuse box | 12A |
| F32/3 | Engine compartment prefuse box | 19A |
| F32/3 | Engine compartment prefuse box | 27A |
| F32/3 | Engine compartment prefuse box | 36A |
| F32/3 | Engine compartment prefuse box | 45A |
| F32/3 | Engine compartment prefuse box | 53A |
| F32/3 | Engine compartment prefuse box | 61A |
| F32/3 | Engine compartment prefuse box | 79A |
| F32/3 | Engine compartment prefuse box | 90A |
| F32/3 | Engine compartment prefuse box | 100A |
| F32/3 | Engine compartment prefuse box | 109A |
| F32/3 | Engine compartment prefuse box | 116A |
| F32/3 | Engine compartment prefuse box | 125A |
| F32/3 | Engine compartment prefuse box | 138A |
| F32/3 | Engine compartment prefuse box | 146A |
| F32/3f1 | Fuse 1 | 30C |
| F32/3f1 | Fuse 1 | 114C |
| F32/3f10 | Fuse 10 | 51C |
| F32/3f10 | Fuse 10 | 136C |
| F32/3f 11 | Fuse 11 | 53C |
| F32/3f12 | Fuse 12 | 55C |
| F32/3f13 | Fuse 13 | 58C |
| F32/3f13 | Fuse 13 | 150C |
| F32/3f2 | Fuse 2 | 39C |
| F32/3f2 | Fuse 2 | 113C |
| F32/3f3 | Fuse 3 | 18C |
| F32/3f3 | Fuse 3 | 88C |
| F32/3f5 | Fuse 5 | 35C |
| F32/3f5 | Fuse 5 | 106C |
| F32/3f6 | Fuse 6 | 37C |
| F32/3f6 | Fuse 6 | 108C |
| F32/3f7 | Fuse 7 | 42C |
| F32/3f7 | Fuse 7 | 120C |
| F32/3f8 | Fuse 8 | 44C |
| F32/3f8 | Fuse 8 | 101C |
| F32/3f9 | Fuse 9 | 47C |
| F32/3f9 | Fuse 9 | 130C |
| F32/3fC3/1 | Electrical fuse C3/1 | |
| F32/3fC3/2 | Electrical fuse C3/2 | |
| F32/4 | Vehicle interior prefuse box | 51L |
| F32/4 | Vehicle interior prefuse box | 137L |
| G1 | On-board electrical system battery | 6L |
| G1 | On-board electrical system battery | 15L |
| G1 | On-board electrical system battery | 73L |
| G1 | On-board electrical system battery | 81L |
| G1 | On-board electrical system battery | 84L |
| G2 | Alternator | 60L |
| G2 | Alternator | 150L |
| K40/6 | Driver-side fuse and relay module | 38L |
| K40/6 | Driver-side fuse and relay module | 109L |
| K40/8 | Engine fuse and relay module | 34L |
| K40/8 | Engine fuse and relay module | 105L |
| K57/4 | Battery disconnect switch relay | 21F |
| K57/4 | Battery disconnect switch relay | 92F |
| K92 | Starter front-end relay | 3L |
| K92 | Starter front-end relay | 69L |
| M4/7 | Fan motor | 42L |
| M4/7 | Fan motor | 122L |
| M4/7 | Fan motor | 118L |
| M4/7x1 | Fan motor electrical connector | 42J |
| M4/7x1 | Fan motor electrical connector | 117J |
| M4/7x1 | Fan motor electrical connector | 122J |
| M75/11 | Electric coolant pump | 133L |
| N10/6 | Front SAM control unit | 22L |
| N10/6 | Front SAM control unit | 93L |
| N129/1 | Power electronics control unit | 56L |
| N129/1 | Power electronics control unit | 145L |
| N14/3 | Glow output stage | 127L |
| N30/4 | Electronic Stability Program control unit | 65L |
| N30/4 | Electronic Stability Program control unit | 113L |
| N33/3 | Catalytic converter heater control unit | 47L |
| N33/3 | Catalytic converter heater control unit | 141L |
| N68 | Electrical power steering control unit | 30L |
| N68 | Electrical power steering control unit | 101L |
| N73 | Electronic ignition switch control unit | 26L |
| N73 | Electronic ignition switch control unit | 97L |
| N83/1 | DC/DC converter control unit | 154L |
| R62 | Voltage dip limiter | 3L |
| R62 | Voltage dip limiter | 69L |
| U1095 | Valid for fan motor 600W | 41E |
| U1095 | Valid for fan motor 600W | 116E |
| U1095 | Valid for fan motor 600W | 117B |
| U1096 | Valid for fan motor 850W | 41E |
| U1096 | Valid for fan motor 850W | 116E |
| U1096 | Valid for fan motor 850W | 117B |
| V19 | ECO start/stop function diode | 10L |
| V19 | ECO start/stop function diode | 77L |
| W16/3 | Left major assembly compartment ground point | 22J |
| W16/3 | Left major assembly compartment ground point | 93J |
| W16/4 | Right major assembly compartment ground point | 22J |
| W16/4 | Right major assembly compartment ground point | 93J |
| X244/13 | Left vehicle-end busbar stud 3 | 127F |
| X244/14 | Right vehicle-end busbar stud 3 | 127F |
| X244/15 | Left engine-end busbar stud 3 | 127G |
| X244/21 | Partition wall busbar | 127G |
| X244/5 | Left vehicle-end busbar stud 2 | 60G |
| X244/5 | Left vehicle-end busbar stud 2 | 145G |
| X244/5 | Left vehicle-end busbar stud 2 | 150G |
| X244/6 | Right vehicle-end busbar stud 2 | 60G |
| X244/6 | Right vehicle-end busbar stud 2 | 145G |
| X244/6 | Right vehicle-end busbar stud 2 | 150G |
| X244/7 | Left engine-end busbar stud 2 | 145H |
| X244/8 | Right engine-end busbar stud 2 | 60H |
| X244/8 | Right engine-end busbar stud 2 | 150H |
| X4/37 | Terminal block (circuit 30) | 51H |
| X4/37 | Terminal block (circuit 30) | 136H |
| Z170z1 | Jump start connection | 16G |
| Z170z1 | Jump start connection | 87G |
