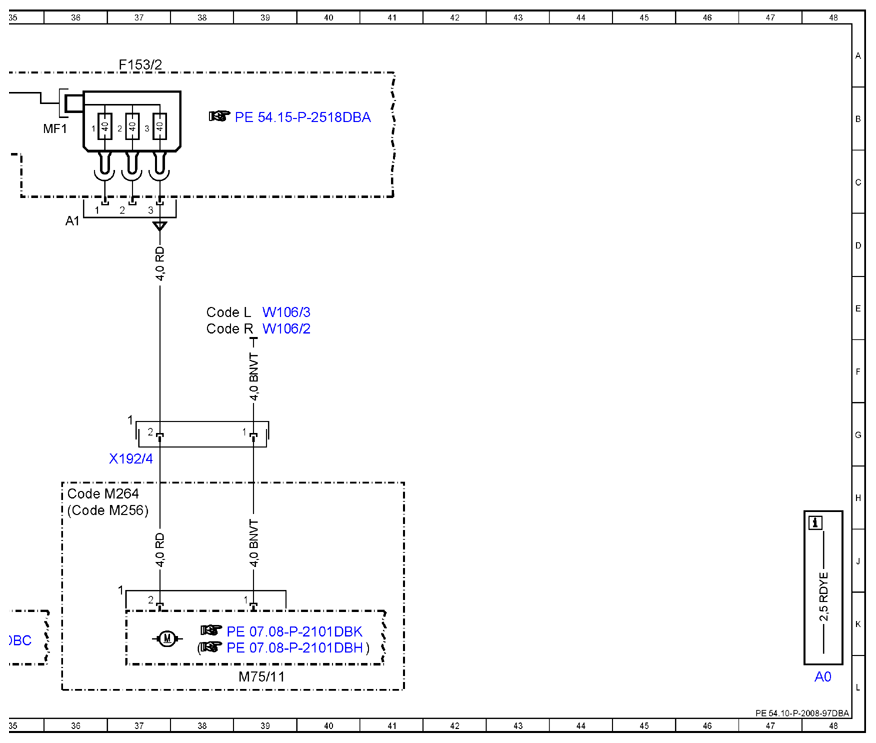

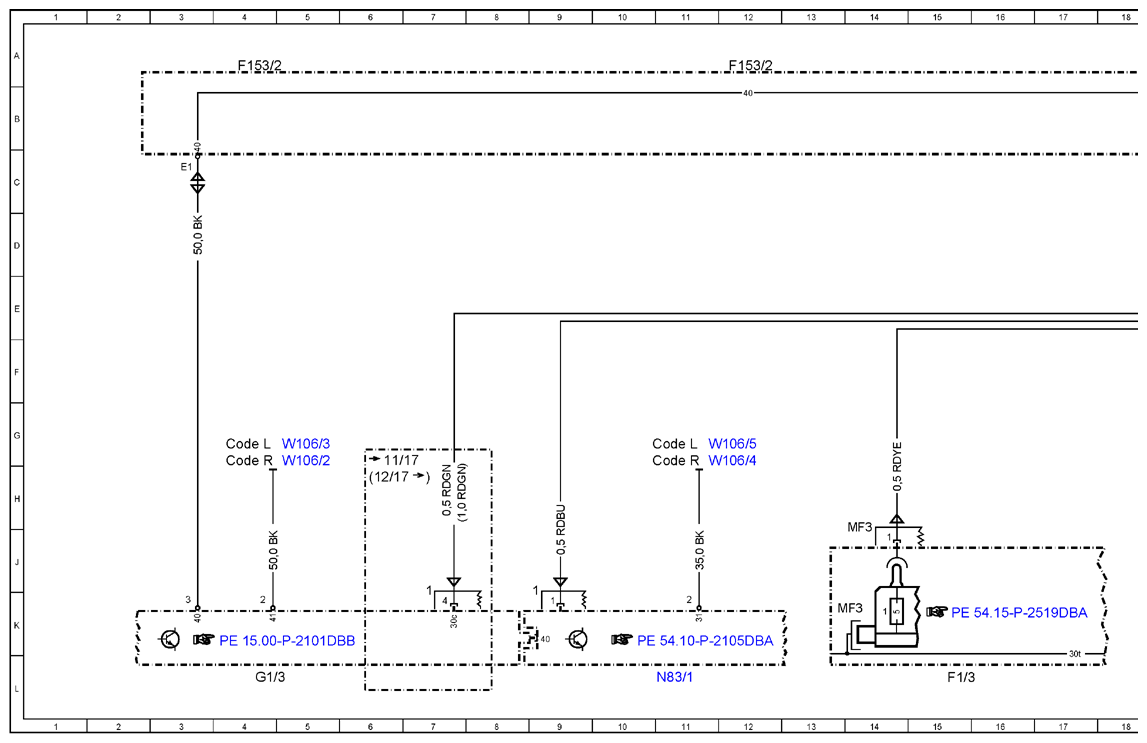

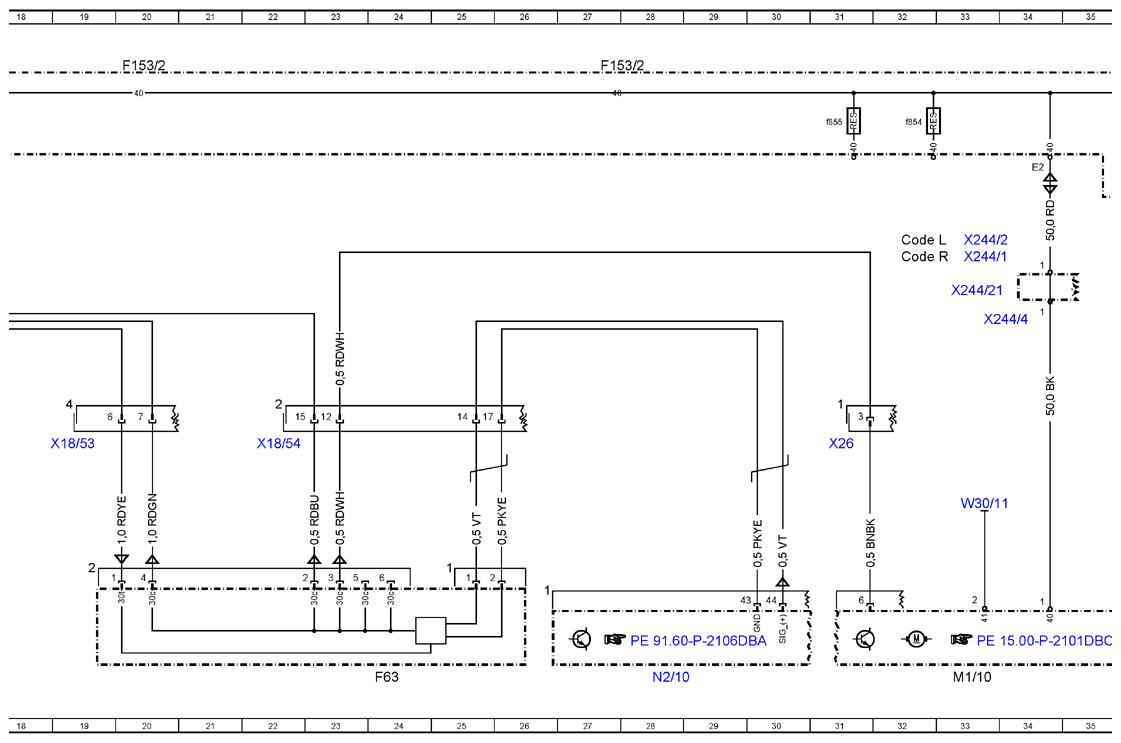

Wiring Diagram Of 48V On-Board Electrical System - PE54.10-P-2008-97DBA
Model 213 up to model year 2021 with code B01 (48V technology)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code L | LEFT-HAND DRIVE | 32D |
| Code L | LEFT-HAND DRIVE | 4G |
| Code L | LEFT-HAND DRIVE | 10G |
| Code L | LEFT-HAND DRIVE | 38E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 36H |
| Code M264 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M264 | 36H |
| Code R | RIGHT-HAND DRIVE | 4G |
| Code R | RIGHT-HAND DRIVE | 10G |
| Code R | RIGHT-HAND DRIVE | 32D |
| Code R | RIGHT-HAND DRIVE | 38E |
| F1/3 | Passenger-side A-pillar fuse box | 15L |
| F1/3MF3 | Multiple fuse 3 | 14K |
| F153/2 | Engine compartment 48V fuse box | 4A |
| F153/2 | Engine compartment 48V fuse box | 12A |
| F153/2 | Engine compartment 48V fuse box | 20A |
| F153/2 | Engine compartment 48V fuse box | 37A |
| F153/2 | Engine compartment 48V fuse box | 27A |
| F153/2MF1 | 48 V on-board electrical system electric multicircuit fuse | 36B |
| F153/2f854 | Electrical fuse 854 | 32B |
| F153/2f855 | Electrical fuse 855 | 31B |
| F63 | Pyrofuse | 24L |
| G1/3 | 48 V on-board electrical system battery | 4L |
| M1/10 | Starter-alternator | 33L |
| M75/11 | Electric coolant pump | 39L |
| N2/10 | Supplemental restraint system control unit | 28L |
| N83/1 | DC/DC converter control unit | 11L |
| W106/2 | 48 V on-board electrical system battery ground point, left | 5G |
| W106/2 | 48 V on-board electrical system battery ground point, left | 39E |
| W106/3 | 48 V on-board electrical system battery ground point, right | 5G |
| W106/3 | 48 V on-board electrical system battery ground point, right | 39E |
| W106/4 | Left engine compartment circuit 41 ground point | 11G |
| W106/5 | Right engine compartment circuit 41 ground point | 11G |
| W30/11 | Underbody tml. 41 ground point | 33H |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 19G |
| X18/54 | Passenger-side cockpit/frame floor assembly electrical connector | 22G |
| X192/4 | Electric coolant pump electrical connector | 37G |
| X244/1 | Left vehicle-end busbar stud 1 | 33D |
| X244/2 | Right vehicle-end busbar stud 1 | 33D |
| X244/21 | Partition wall busbar | 33E |
| X244/4 | Right engine-end busbar stud 1 | 34E |
| X26 | Engine wiring harness/engine compartment electrical connector | 31G |
