Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97DDC

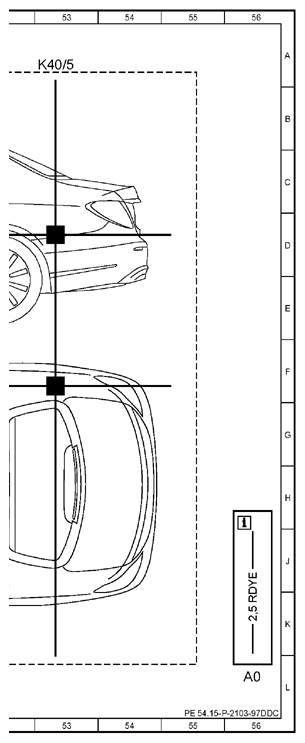

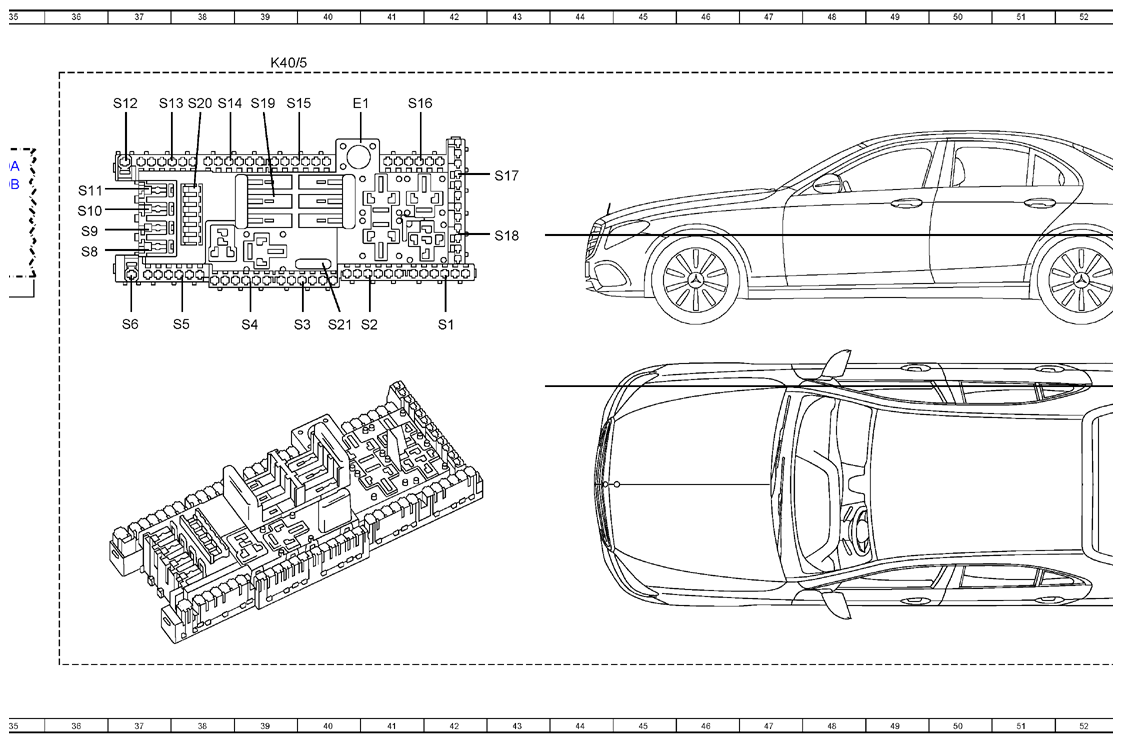

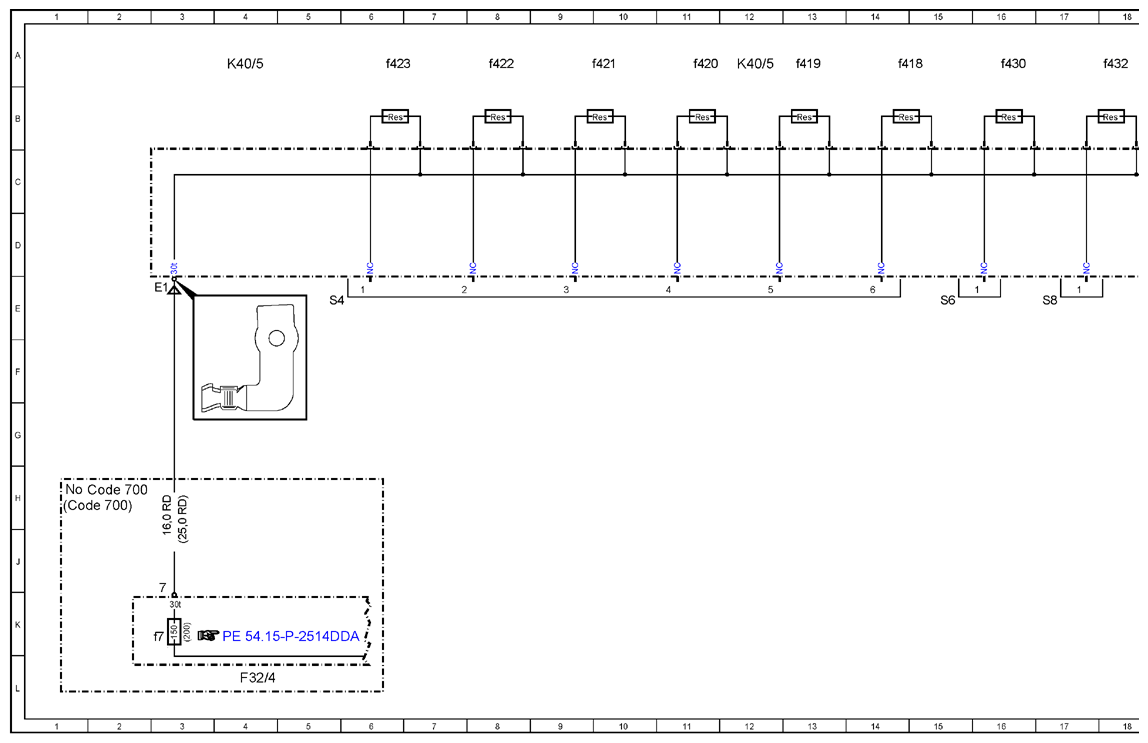

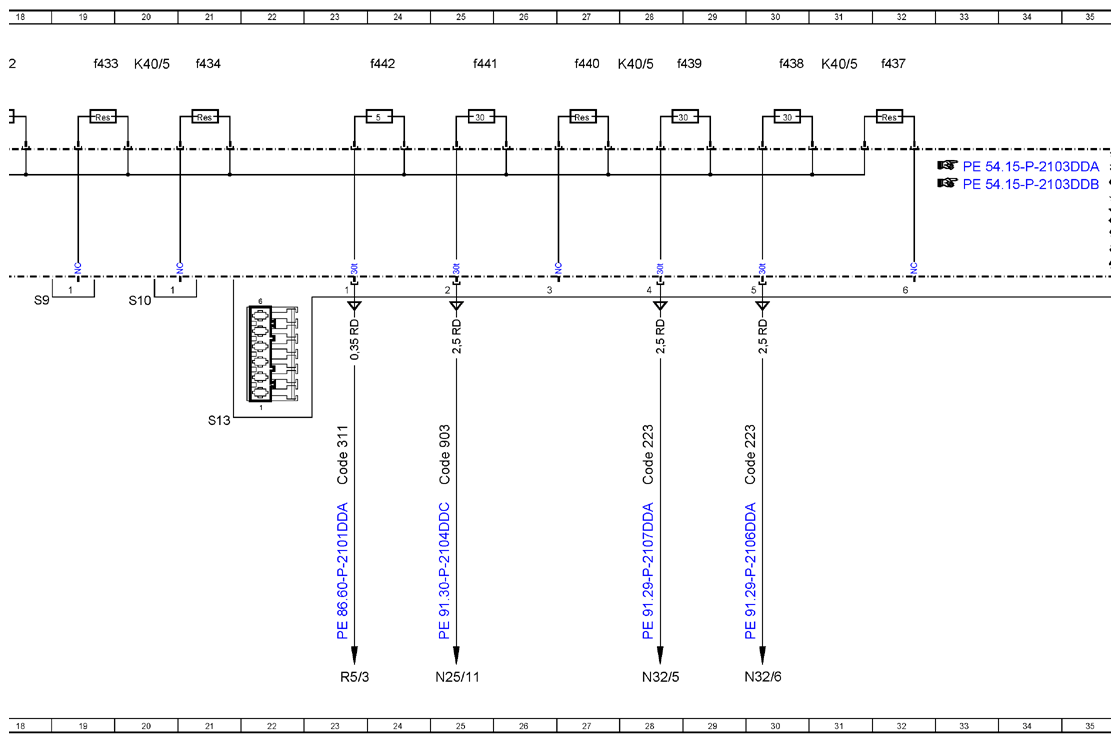

Model 213 as of model year 2021 Fuse and relay box K40/5, connector S4, S6, S8-S10, S13
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| Code 223 | Electrically adjustable rear bench seat | 28H |
| Code 223 | Electrically adjustable rear bench seat | 30H |
| Code 311 | Temperature-controlled cup holder | 23H |
| Code 700 | Technical Local Content China | 1H |
| Code 700 | Technical Local Content China | 1H |
| Code 903 | Seat heater Plus for outer rear seats | 25H |
| F32/4 | Vehicle interior prefuse box | 4L |
| F32/4f7 | Fuse 7 | 3K |
| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 31A |
| K40/5 | Rear fuse and relay module | 39A |
| K40/5 | Rear fuse and relay module | 53A |
| K40/5f418 | Fuse 418 | 14A |
| K40/5f419 | Fuse 419 | 13A |
| K40/5f420 | Fuse 420 | 11A |
| K40/5f421 | Fuse 421 | 10A |
| K40/5f422 | Fuse 422 | 8A |
| K40/5f423 | Fuse 423 | 6A |
| K40/5f430 | Fuse 430 | 16A |
| K40/5f432 | Fuse 432 | 18A |
| K40/5f433 | Fuse 433 | 19A |
| K40/5f434 | Fuse 434 | 21A |
| K40/5f437 | Fuse 437 | 32A |
| K40/5f438 | Fuse 438 | 30A |
| K40/5f439 | Fuse 439 | 28A |
| K40/5f440 | Fuse 440 | 27A |
| K40/5f441 | Fuse 441 | 25A |
| K40/5f442 | Fuse 442 | 24A |
| N25/11 | Left rear seat heater control unit | 25L |
| N32/5 | Right rear seat control unit | 28L |
| N32/6 | Left rear seat control unit | 30L |
| R5/3 | Rear cup holder | 23L |
