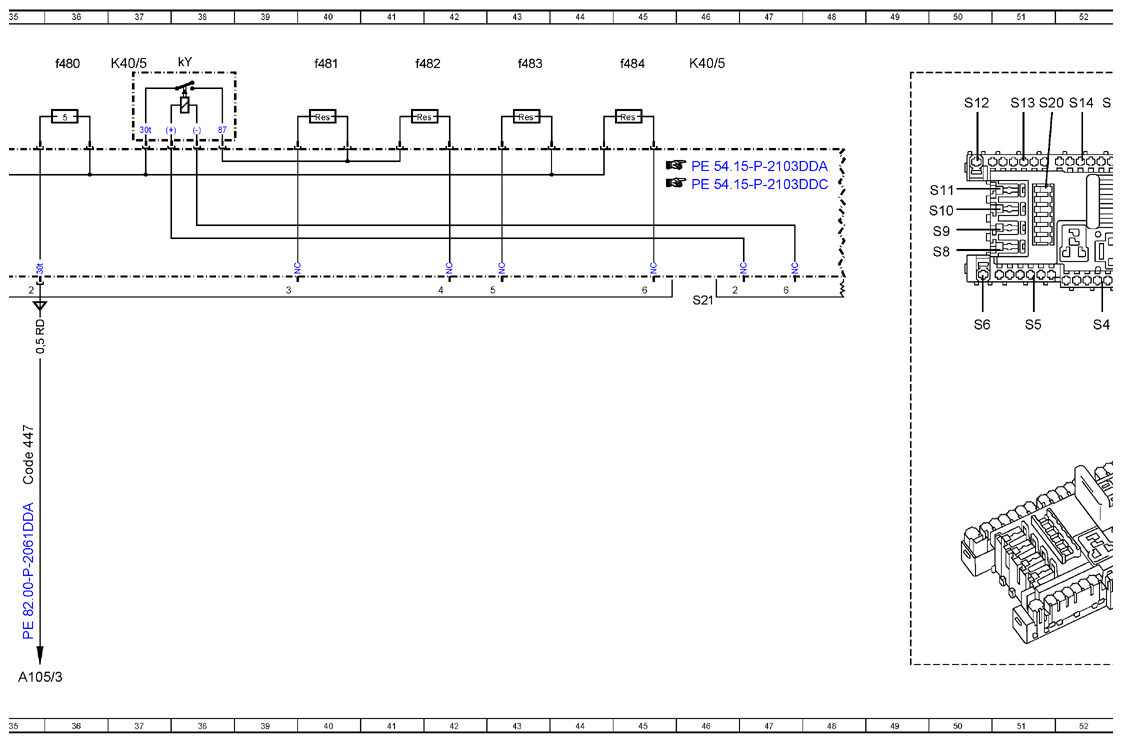

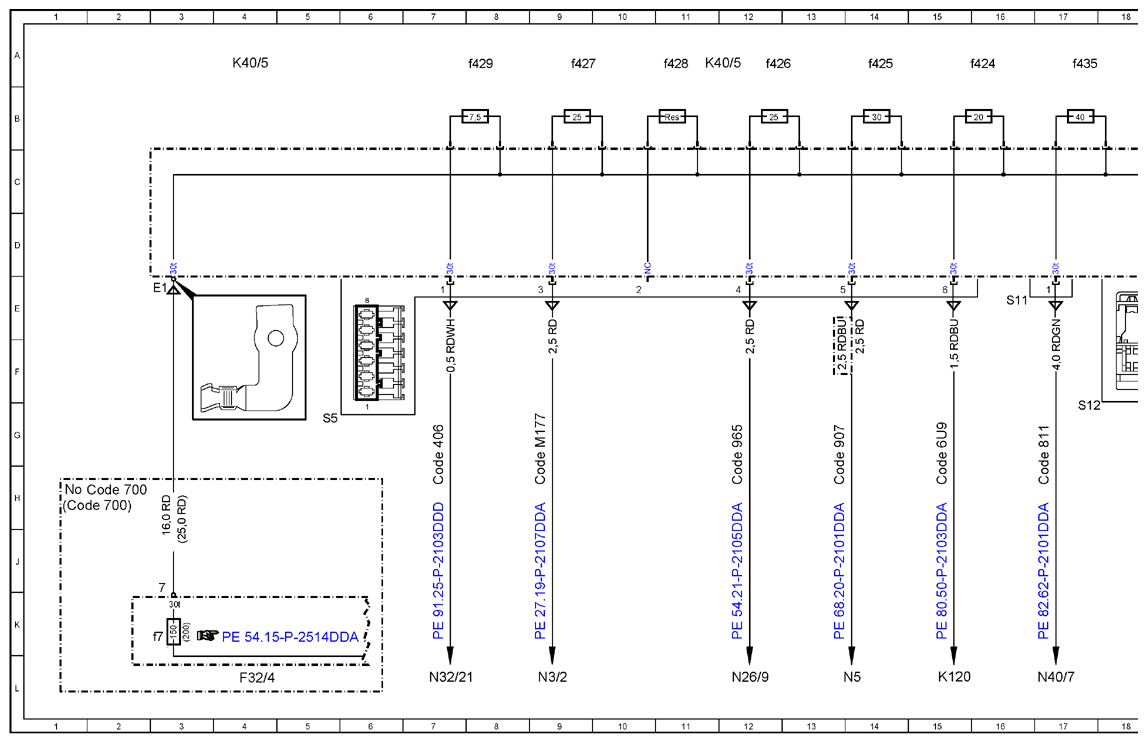

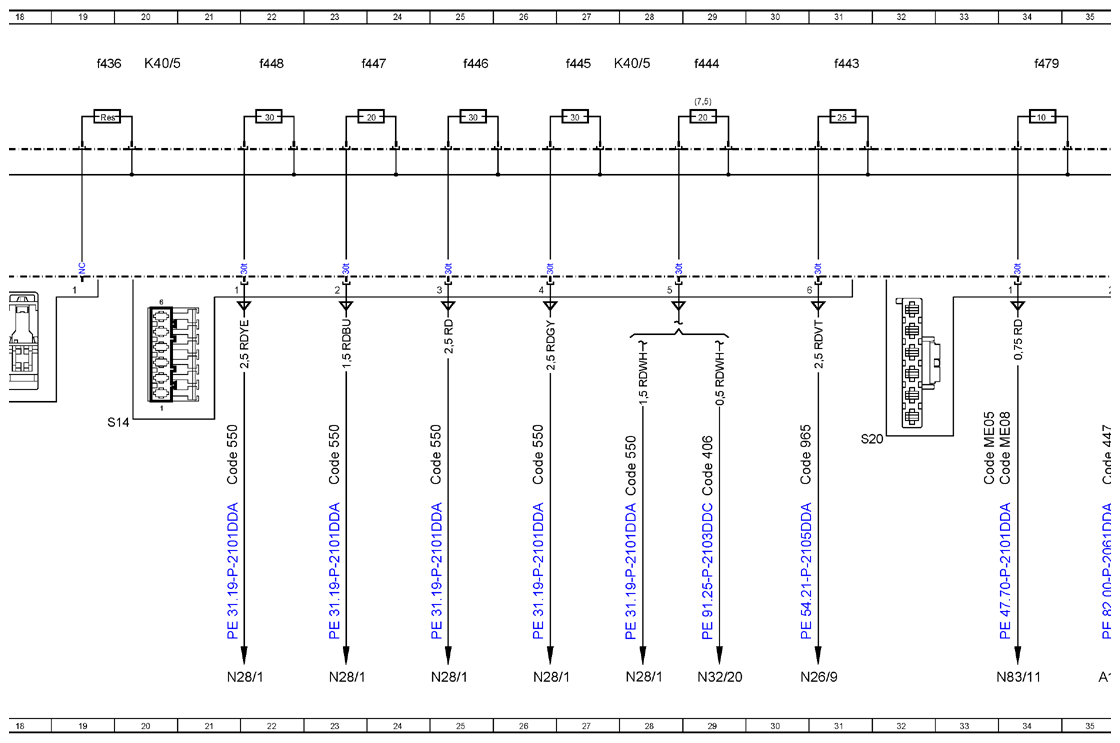

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97DDB
Model 213 as of model year 2021 Fuse and relay box K40/5, connector S5, S11, S12, S14, S20, S21
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| A105/3 | Touchscreen | 35L |
| Code 406 | Multicontour seats in rear | 7H |
| Code 406 | Multicontour seats in rear | 29H |
| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 35H |
| Code 550 | Trailer hitch | 23H |
| Code 550 | Trailer hitch | 25H |
| Code 550 | Trailer hitch | 21H |
| Code 550 | Trailer hitch | 26H |
| Code 550 | Trailer hitch | 28H |
| Code 6U9 | Positioning and tracking system subharness pre-installation | 15H |
| Code 700 | Technical Local Content China | 1H |
| Code 700 | Technical Local Content China | 1H |
| Code 811 | Advanced sound system | 17H |
| Code 907 | Rear armrest heater | 14H |
| Code 965 | Taxi/rental car - Pre-installation | 12H |
| Code 965 | Taxi/rental car - Pre-installation | 31H |
| Code M177 | V8 SPARK-IGNITION ENGINE M177 - AMG | 9H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 33H |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 34H |
| F32/4 | Vehicle interior prefuse box | 4L |
| F32/4f7 | Fuse 7 | 3K |
| K120 | Theft detection system horn relay | 15L |

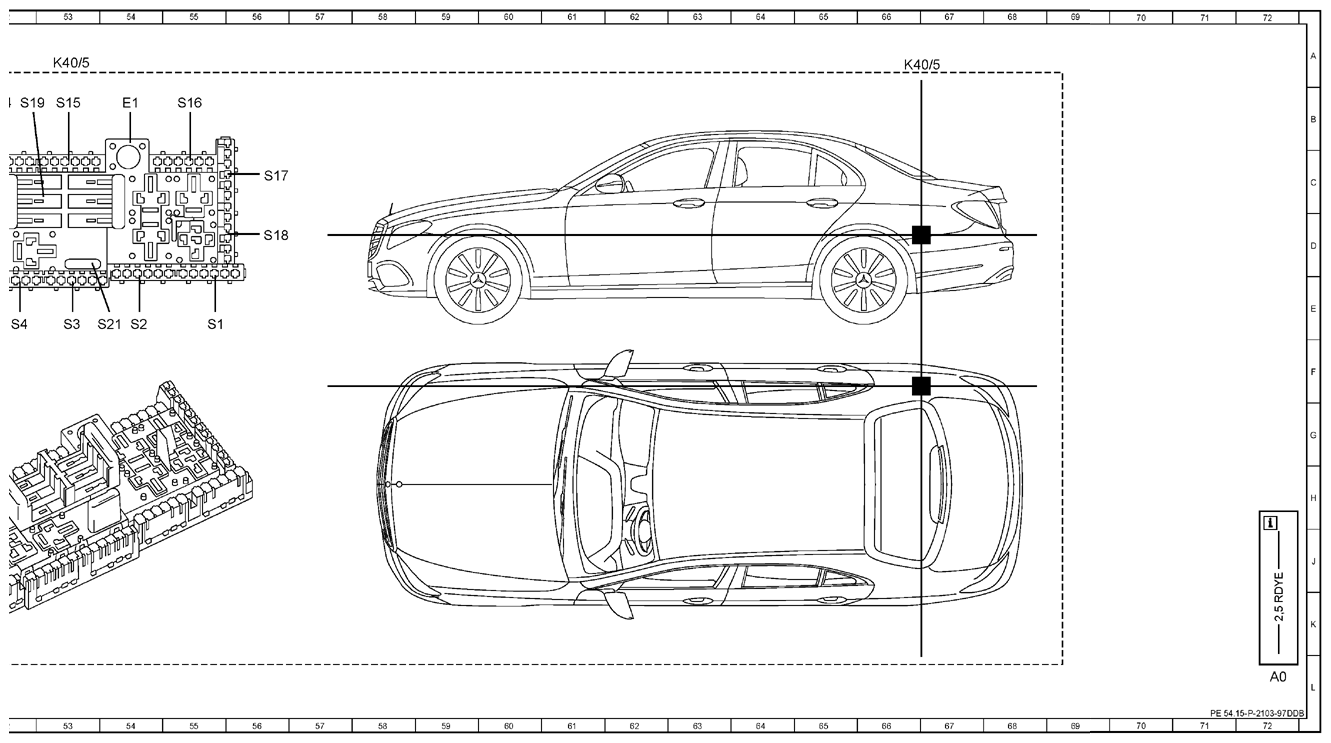

| K40/5 | Rear fuse and relay module | 4A |
| K40/5 | Rear fuse and relay module | 11A |
| K40/5 | Rear fuse and relay module | 20A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 37A |
| K40/5 | Rear fuse and relay module | 46A |
| K40/5 | Rear fuse and relay module | 53A |
| K40/5 | Rear fuse and relay module | 66A |
| K40/5f424 | Fuse 424 | 16A |
| K40/5f425 | Fuse 425 | 14A |
| K40/5f426 | Fuse 426 | 12A |
| K40/5f427 | Fuse 427 | 9A |
| K40/5f428 | Fuse 428 | 11A |
| K40/5f429 | Fuse 429 | 8A |
| K40/5f435 | Fuse 435 | 17A |
| K40/5f436 | Fuse 436 | 19A |
| K40/5f443 | Fuse 443 | 31A |
| K40/5f444 | Fuse 444 | 29A |
| K40/5f445 | Fuse 445 | 27A |
| K40/5f446 | Fuse 446 | 25A |
| K40/5f447 | Fuse 447 | 23A |
| K40/5f448 | Fuse 448 | 22A |
| K40/5f479 | Fuse 479 | 34A |
| K40/5f480 | Fuse 480 | 36A |
| K40/5f481 | Fuse 481 | 40A |
| K40/5f482 | Fuse 482 | 41A |
| K40/5f483 | Fuse 483 | 43A |
| K40/5f484 | Fuse 484 | 45A |
| K40/5kY | Backup relay | 38A |
| N26/9 | Special-purpose vehicle multifunction control unit | 12L |
| N26/9 | Special-purpose vehicle multifunction control unit | 31L |
| N28/1 | Trailer recognition control unit | 23L |
| N28/1 | Trailer recognition control unit | 25L |
| N28/1 | Trailer recognition control unit | 21L |
| N28/1 | Trailer recognition control unit | 26L |
| N28/1 | Trailer recognition control unit | 28L |
| N3/2 | Electric differential lock control unit | 9L |
| N32/20 | Left rear multicontour seat control unit | 29L |
| N32/21 | Right rear multicontour seat control unit | 7L |
| N40/7 | Advanced sound system amplifier control unit | 17L |
| N5 | Armrest heater control unit | 14L |
| N83/11 | Alternating current charger for high-voltage battery | 34L |
