Wiring Diagram Of Head Unit - PE82.85-P-2110-97DDA
Model 213 as of model year 2021 Control unit A26/17

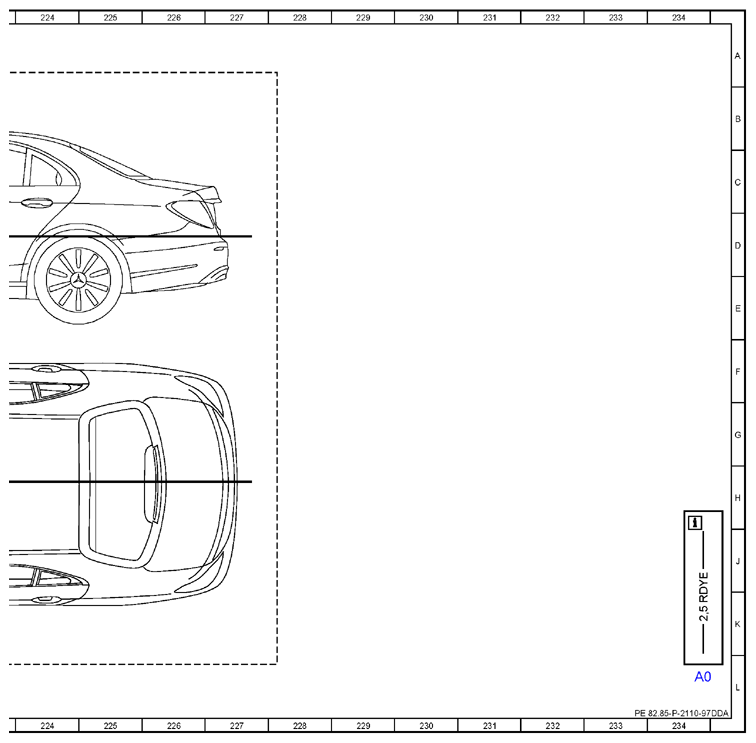

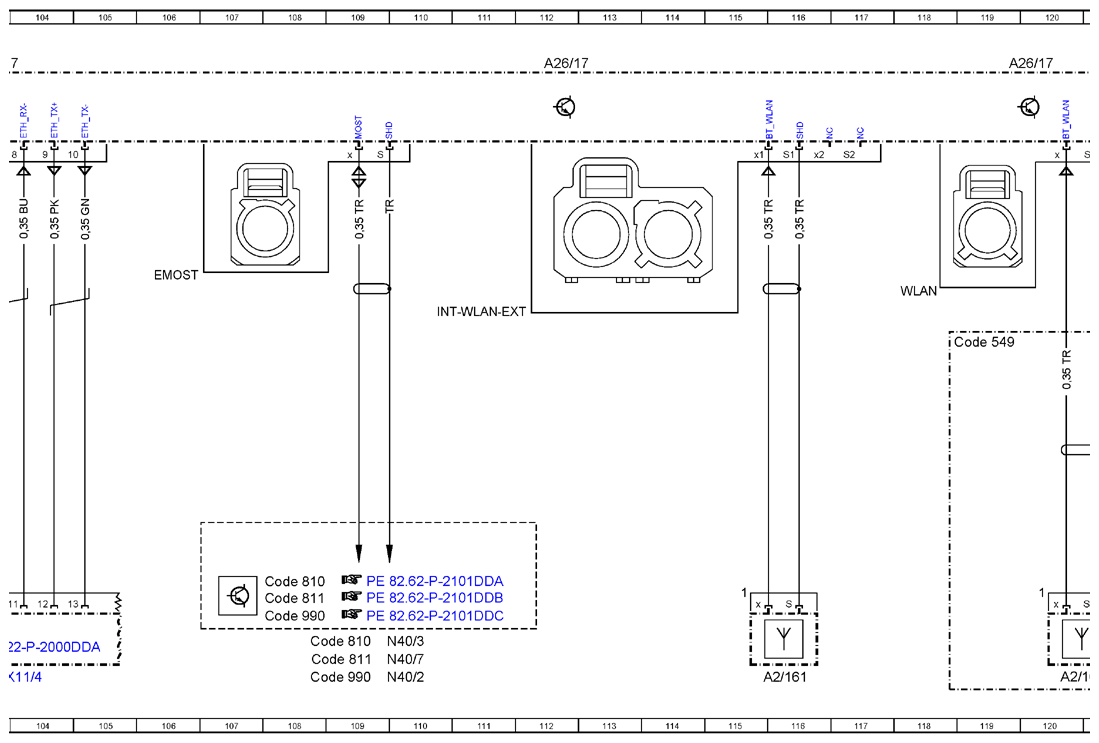

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 234L |
| A105 | Touchpad | 23L |
| A2/105 | SDARS antenna | 204L |
| A2/108 | FM 2 and DAB band III antenna amplifier | 177L |
| A2/161 | Driver's side Bluetooth®/WiFi antenna | 116L |
| A2/162 | Center BIuetooth®/WiFi antenna | 120L |
| A2/163 | Front passenger side Bluetooth®/WiFi antenna | 125L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 178L |

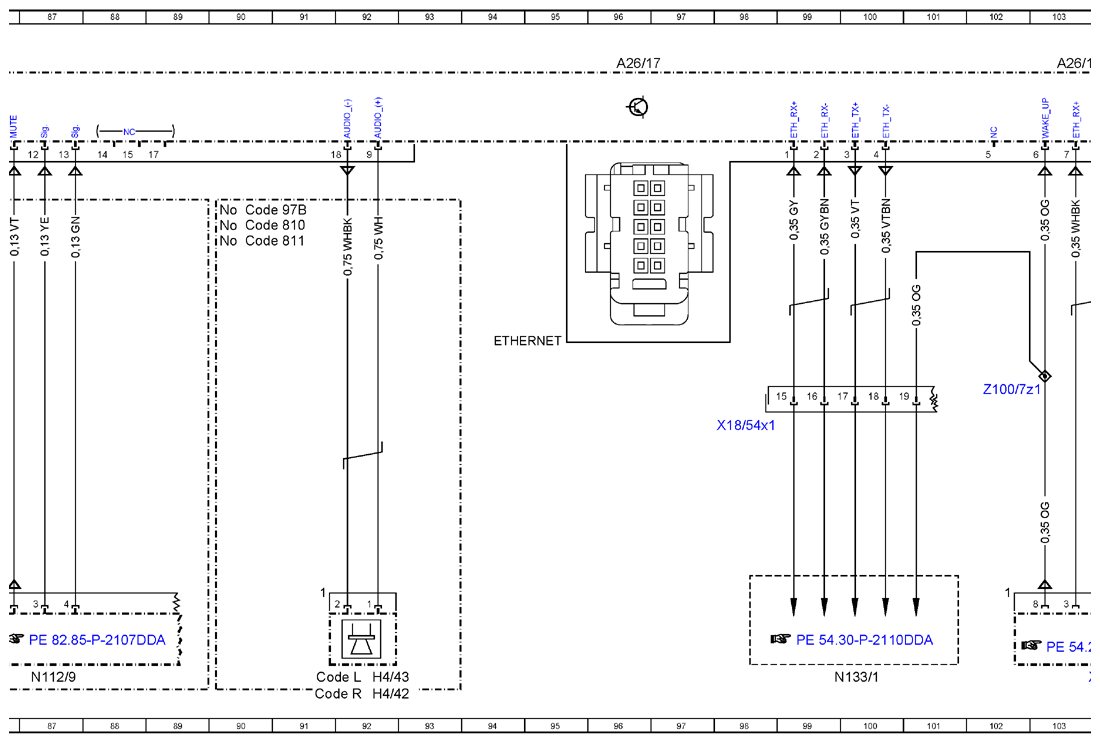

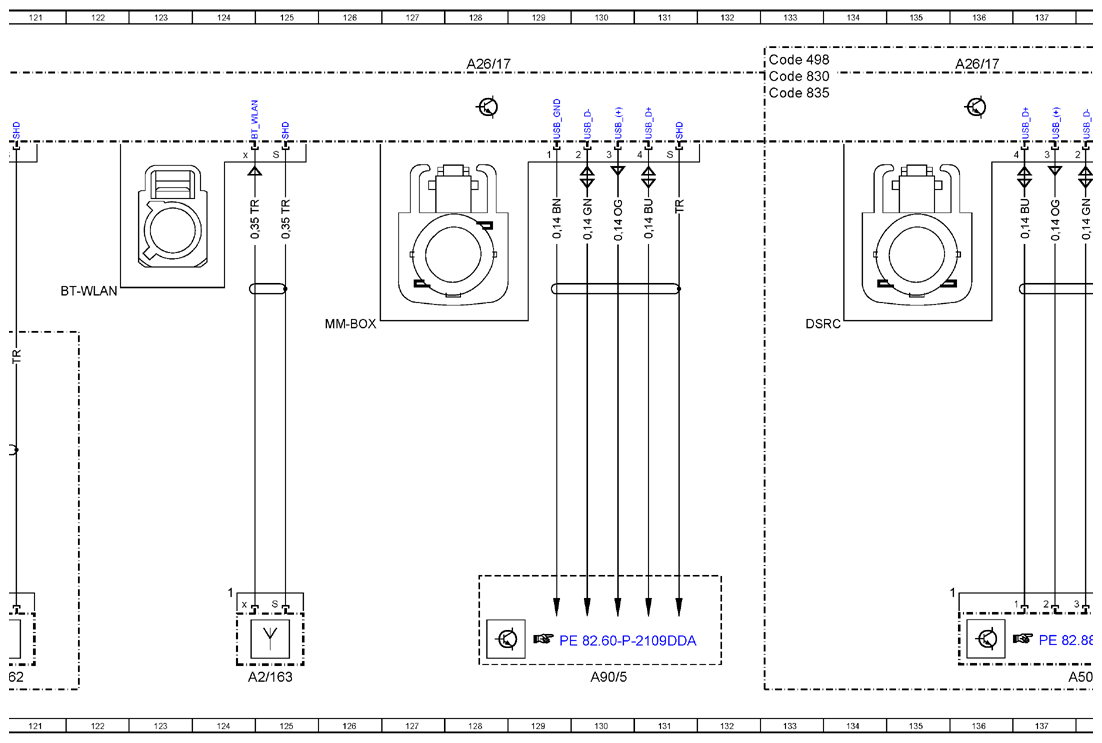

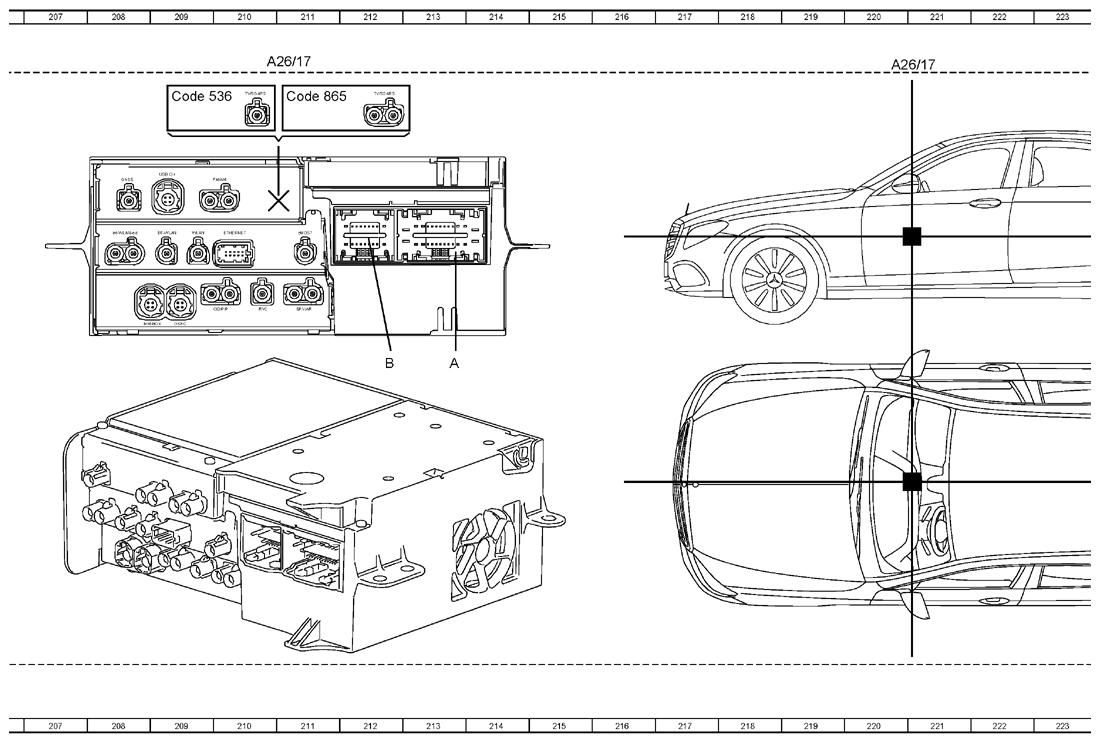

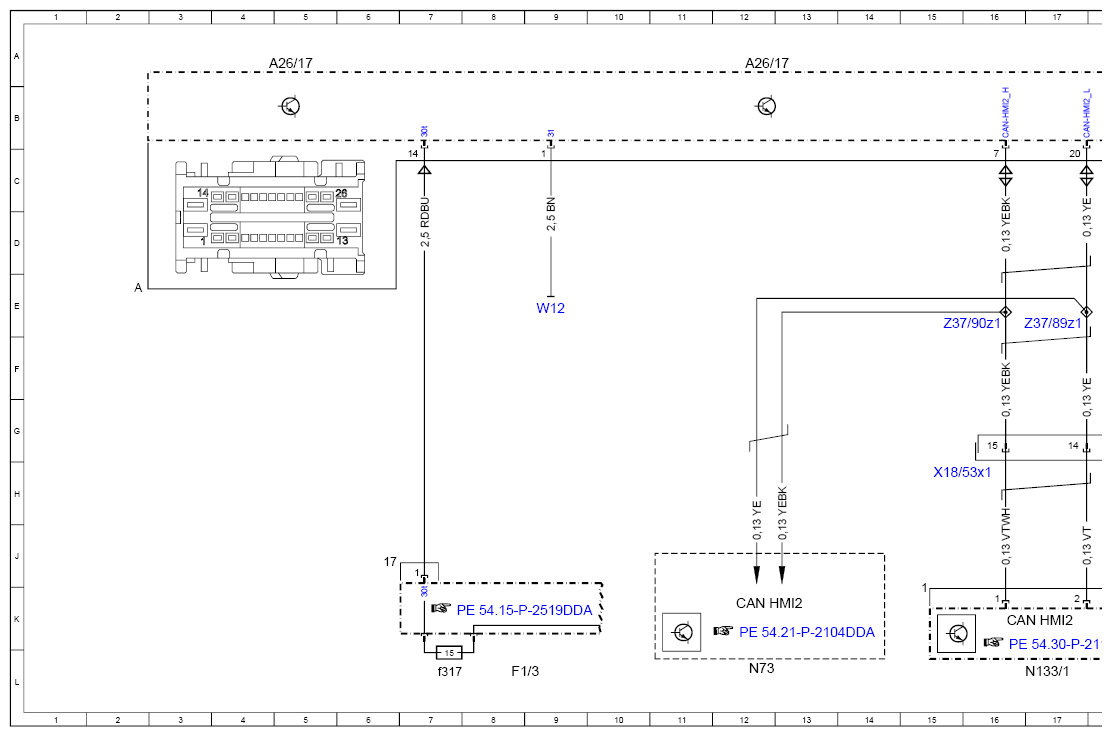

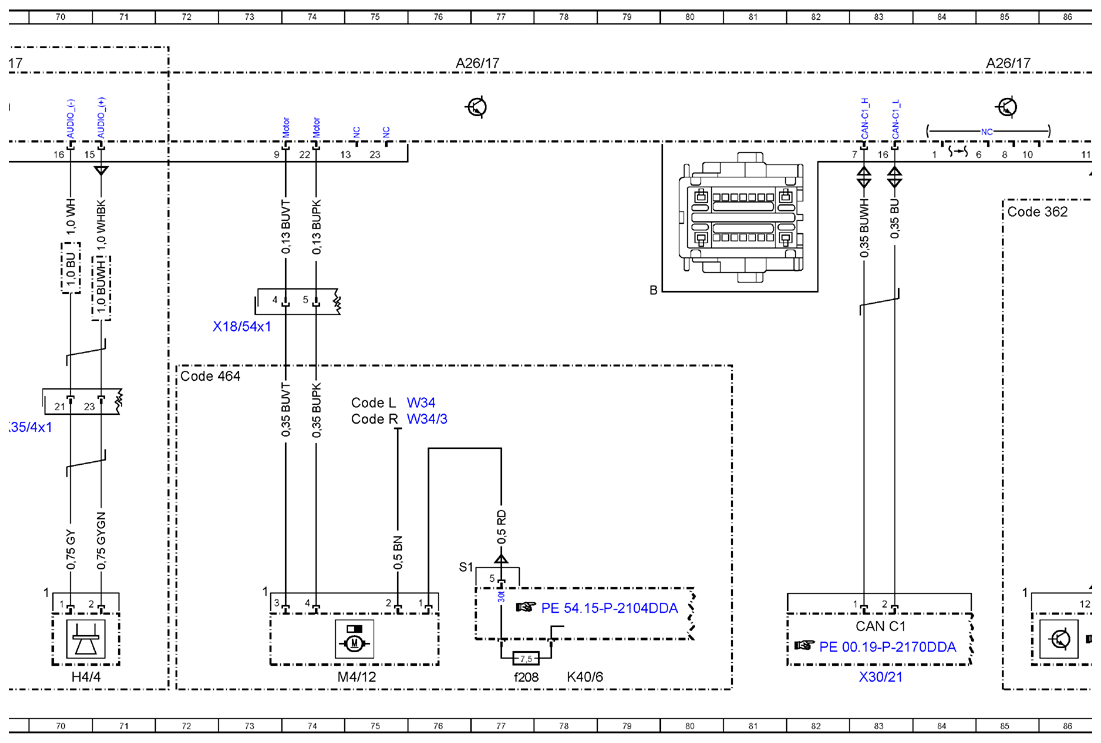

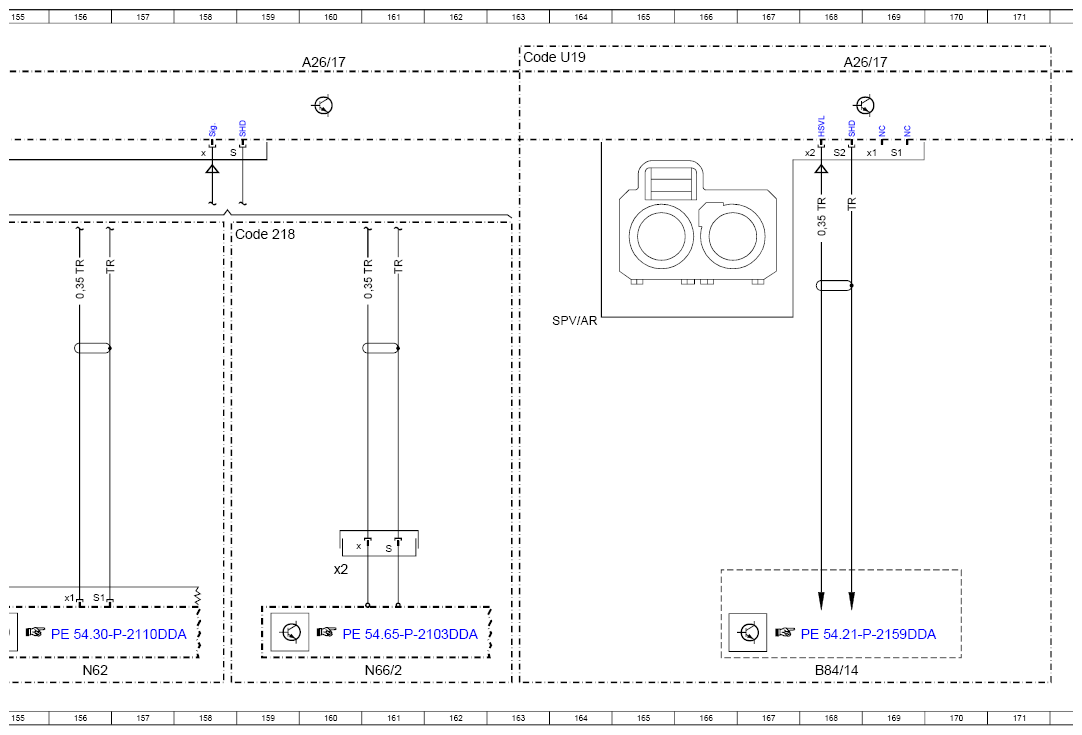

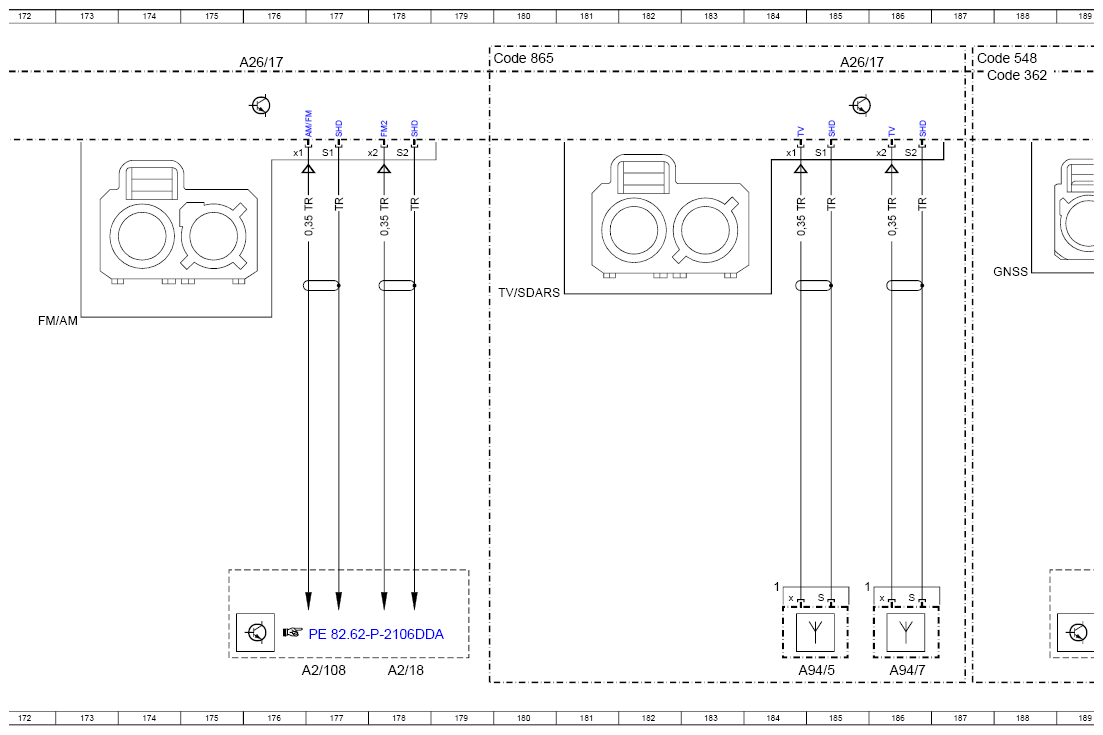

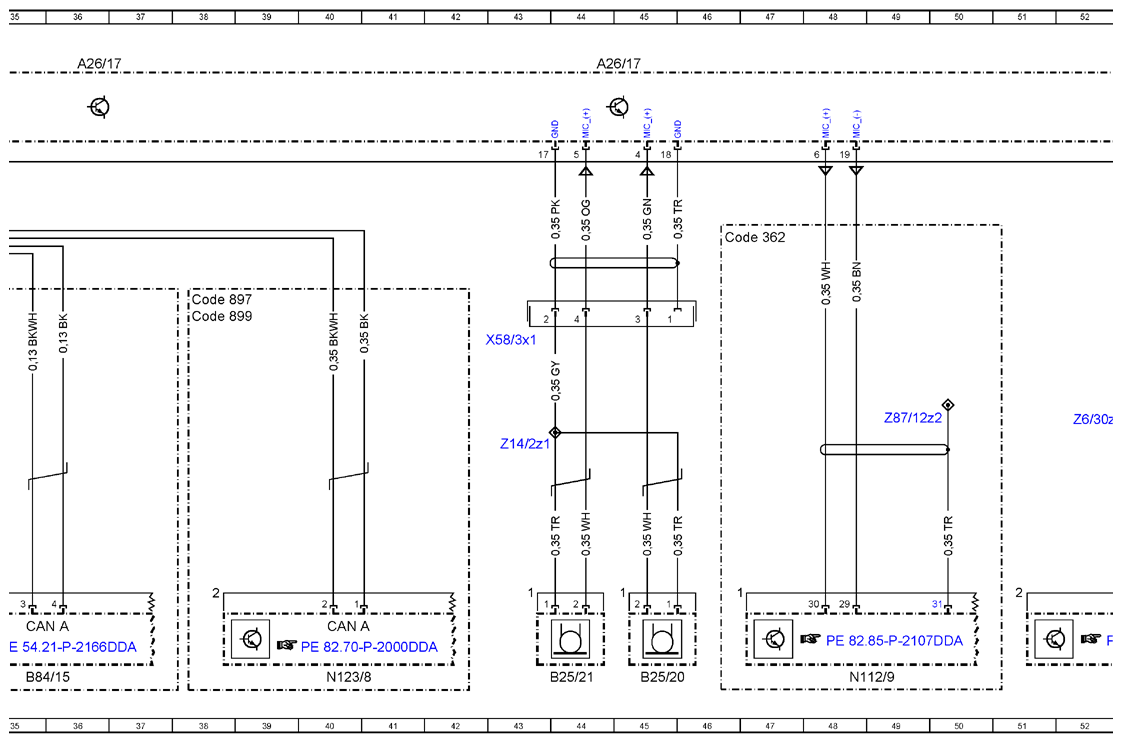

| A26/17 | Head unit | 5A |
| A26/17 | Head unit | 12A |
| A26/17 | Head unit | 20A |
| A26/17 | Head unit | 28A |
| A26/17 | Head unit | 36A |
| A26/17 | Head unit | 44A |
| A26/17 | Head unit | 54A |
| A26/17 | Head unit | 60A |
| A26/17 | Head unit | 69A |
| A26/17 | Head unit | 76A |
| A26/17 | Head unit | 96A |
| A26/17 | Head unit | 85A |
| A26/17 | Head unit | 103A |
| A26/17 | Head unit | 112A |
| A26/17 | Head unit | 136A |
| A26/17 | Head unit | 119A |
| A26/17 | Head unit | 128A |
| A26/17 | Head unit | 145A |
| A26/17 | Head unit | 152A |
| A26/17 | Head unit | 160A |
| A26/17 | Head unit | 168A |
| A26/17 | Head unit | 176A |
| A26/17 | Head unit | 185A |
| A26/17 | Head unit | 192A |
| A26/17 | Head unit | 202A |
| A26/17 | Head unit | 220A |
| A26/17 | Head unit | 211A |
| A40/16 | Head unit/instrument cluster display cluster | 26L |

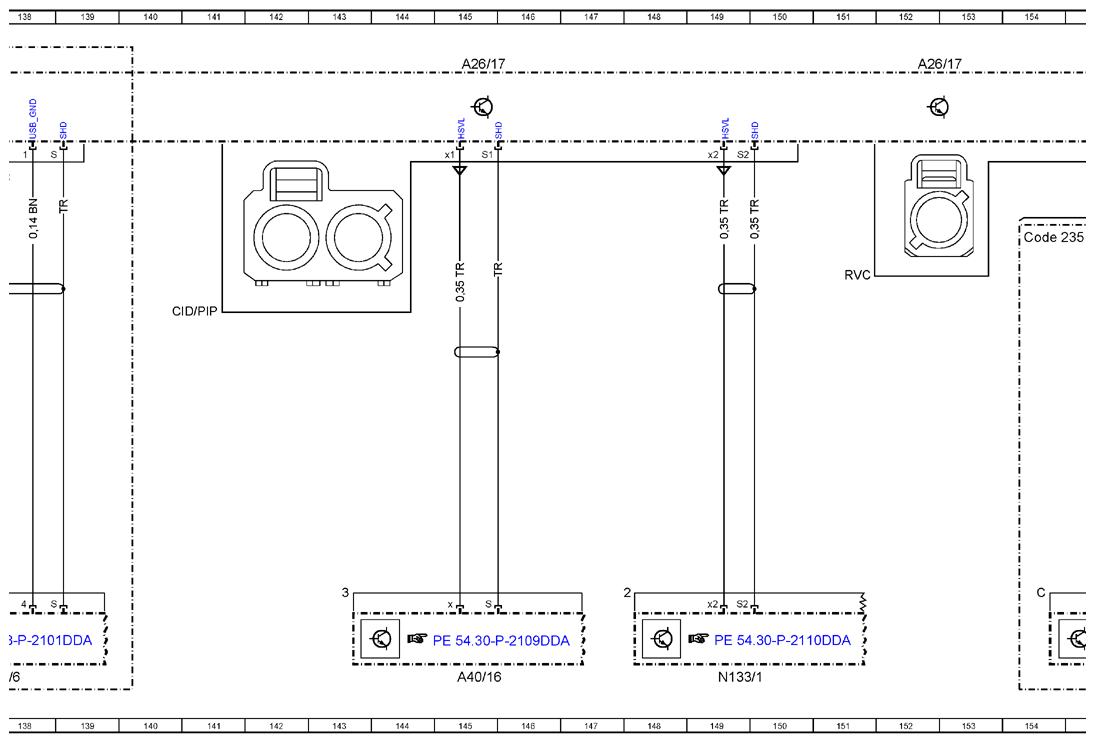

| A40/16 | Head unit/instrument cluster display cluster | 145L |
| A50/6 | Dedicated Short-Range Communications control unit | 138L |

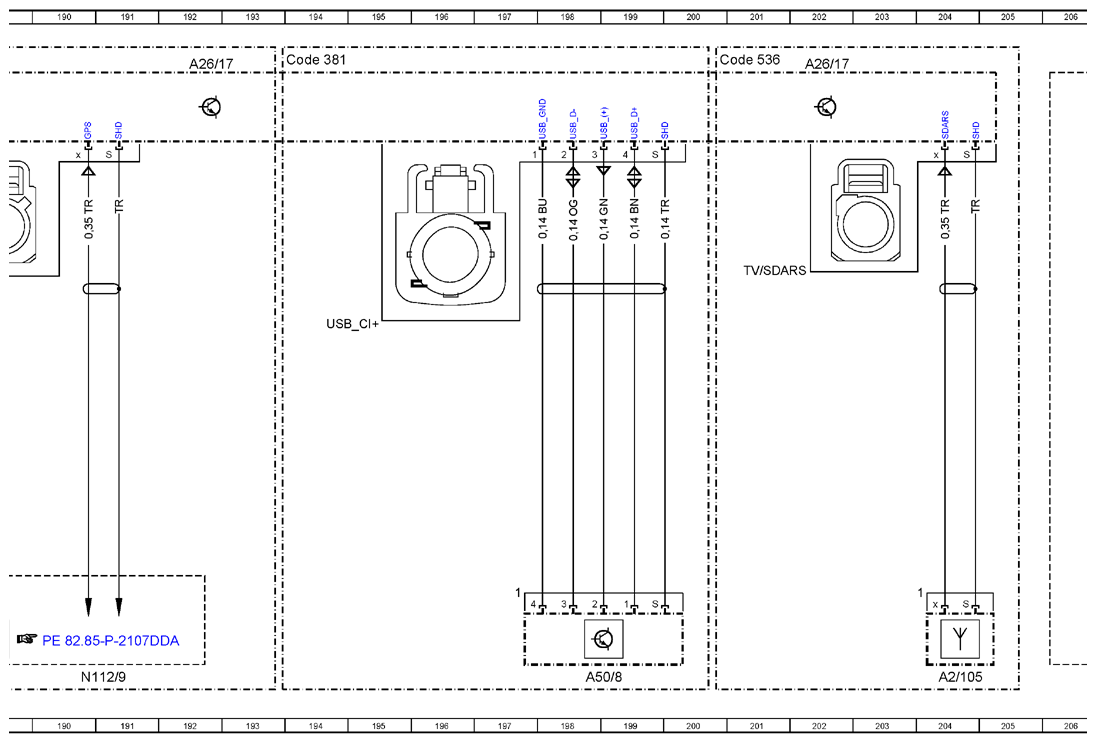

| A50/8 | TV card reader | 198L |
| A90/5 | Multimedia connection unit | 53L |
| A90/5 | Multimedia connection unit | 130L |
| A94/5 | TV 1 and DAB band III antenna | 185L |
| A94/7 | TV 3 antenna amplifier | 186L |
| B25/20 | Driver hands-free system microphone | 45L |
| B25/21 | Front passenger hands-free system microphone | 44L |
| B84/14 | Augmented reality camera | 168L |
| B84/15 | Hand motion sensor | 35L |
| CAN A | Telematics CAN | 23K |
| CAN A | Telematics CAN | 26K |
| CAN A | Telematics CAN | 31K |
| CAN A | Telematics CAN | 35K |
| CAN A | Telematics CAN | 40K |
| CAN C1 | Drive train CAN | 83K |
| CAN HMI2 | User interface CAN 2 | 12K |
| CAN HMI2 | User interface CAN 2 | 17K |
| Code 218 | Backup camera | 158D |
| Code 235 | Active Park Assist | 154D |
| Code 362 | HERMES LTE | 46D |
| Code 362 | HERMES LTE | 85D |
| Code 362 | HERMES LTE | 187A |
| Code 380 | Car telephony package | 29E |
| Code 381 | CI+BOX card reader for DVB-T2-Standard | 194A |
| Code 464 | Digital instrument cluster full display | 72F |
| Code 498 | Japan version | 133A |
| Code 536 | SIRIUS satellite radio | 200A |
| Code 548 | Connect 20 MID (NTG6) | 187A |
| Code 549 | Connect 20 HIGH (NTG6) | 118F |
| Code 77B | Contactless gesture control at front | 33E |
| Code 810 | Sound system | 109K |
| Code 810 | Sound system | 108J |
| Code 810 | Sound system | 56A |
| Code 810 | Sound system | 90D |
| Code 811 | Advanced sound system | 109L |
| Code 811 | Advanced sound system | 108K |
| Code 811 | Advanced sound system | 56B |
| Code 811 | Advanced sound system | 90D |
| Code 830 | Additional parts for China vehicles | 133A |
| Code 835 | Additional parts for South Korea vehicles | 133B |
| Code 865 | TV tuner | 179A |
| Code 897 | Wireless mobile phone charging | 38E |
| Code 899 | Wireless phone charging at front and antenna | 38E |
| Code 97B | Engine noise reduction via speaker | 56A |
| Code 97B | Engine noise reduction via speaker | 90D |
| Code 990 | AMG vehicles | 108K |
| Code 990 | AMG vehicles | 109L |
| Code L | LEFT-HAND DRIVE | 56F |
| Code L | LEFT-HAND DRIVE | 61F |
| Code L | LEFT-HAND DRIVE | 57L |
| Code L | LEFT-HAND DRIVE | 59L |
| Code L | LEFT-HAND DRIVE | 64L |
| Code L | LEFT-HAND DRIVE | 62L |
| Code L | LEFT-HAND DRIVE | 91L |
| Code L | LEFT-HAND DRIVE | 75G |
| Code R | RIGHT-HAND DRIVE | 59L |
| Code R | RIGHT-HAND DRIVE | 57L |
| Code R | RIGHT-HAND DRIVE | 62L |
| Code R | RIGHT-HAND DRIVE | 64L |
| Code R | RIGHT-HAND DRIVE | 91L |
| Code R | RIGHT-HAND DRIVE | 61F |
| Code R | RIGHT-HAND DRIVE | 56F |
| Code R | RIGHT-HAND DRIVE | 75G |
| Code U19 | Augmented Reality | 163A |
| F1/3 | Passenger-side A-pillar fuse box | 8L |
| F1/3f317 | Fuse 317 | 7L |

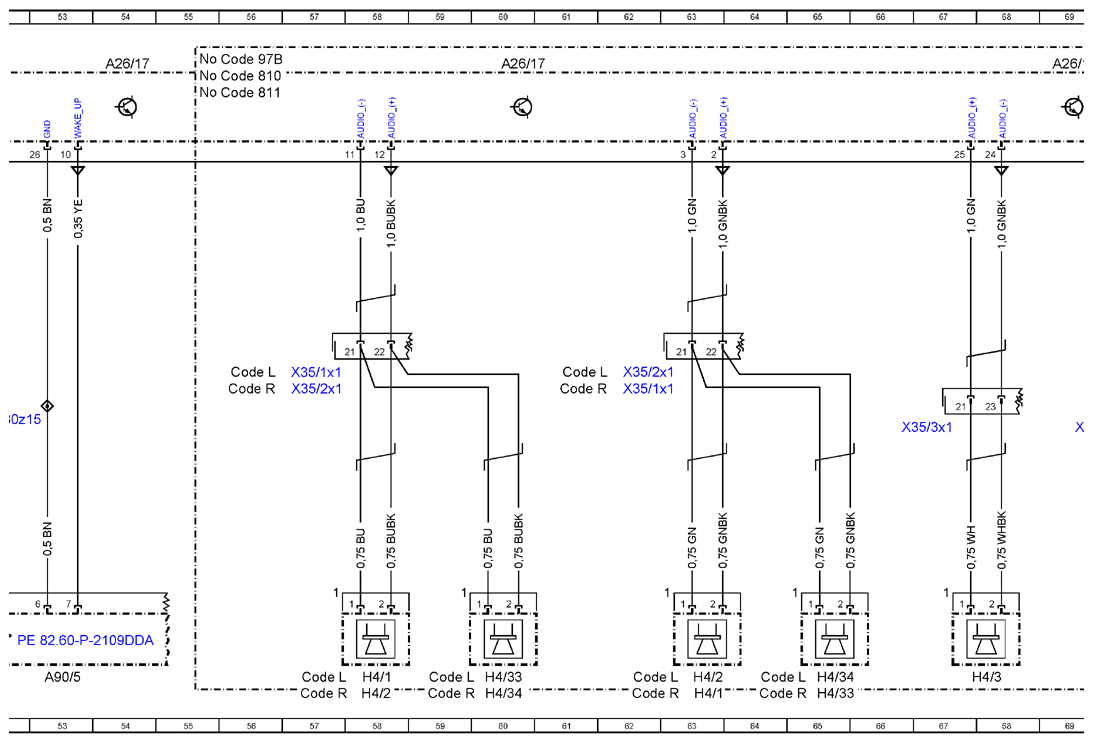

| H4/1 | Left front door midrange speaker | 58L |
| H4/1 | Left front door midrange speaker | 63L |
| H4/2 | Right front door midrange speaker | 58L |
| H4/2 | Right front door midrange speaker | 63L |
| H4/3 | Left rear door midrange speaker | 68L |
| H4/33 | Left front door tweeter | 60L |
| H4/33 | Left front door tweeter | 65L |
| H4/34 | Right front door tweeter | 60L |
| H4/34 | Right front door tweeter | 65L |
| H4/4 | Right rear door midrange speaker | 70L |
| H4/42 | Left front footwell woofer | 92L |
| H4/43 | Right front footwell woofer | 92L |
| K40/6 | Driver-side fuse and relay module | 78L |
| K40/6f208 | Fuse 208 | 77L |
| M4/12 | Digital instrument cluster full display fan motor | 75L |
| N112/9 | HERMES control unit | 48L |
| N112/9 | HERMES control unit | 87L |
| N112/9 | HERMES control unit | 190L |
| N123/8 | Front mobile phone cradle control unit | 40L |
| N123/9 | Telephone control unit | 31L |
| N133/1 | Instrument cluster control unit | 17L |
| N133/1 | Instrument cluster control unit | 100L |
| N133/1 | Instrument cluster control unit | 149L |
| N40/2 | Sound system midline amplifier control unit | 110L |
| N40/3 | Sound system amplifier control unit | 110K |
| N40/7 | Advanced sound system amplifier control unit | 110L |
| N62 | Parking system control unit | 156L |
| N66/2 | Backup camera control unit | 161L |
| N66/2x2 | Reversing camera control unit electrical connector 2 | 160J |
| N73 | Electronic ignition switch control unit | 12L |
| W12 | Left center console ground point | 9E |
| W34 | Left footwell ground point | 75G |
| W34/3 | Right footwell ground point | 75G |
| X11/4 | Diagnostic connector | 104L |
| X138/1x1 | Front center console electrical connector | 22G |
| X18/53x1 | Driver cockpit/interior wiring harness electrical connector | 16H |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 26G |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 98G |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 73E |
| X18/54x2 | Front passenger cockpit/interior wiring harness electrical connector | 30G |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 83L |
| X35/1x1 | Driver door electrical connector | 57F |
| X35/1x1 | Driver door electrical connector | 62F |
| X35/2x1 | Front passenger door electrical connector | 62F |
| X35/2x1 | Front passenger door electrical connector | 57F |
| X35/3x1 | Left rear door electrical connector | 67G |
| X35/4x1 | Right rear door electrical connector | 69G |
| X58/3x1 | Microphone electrical connector | 43F |
| Z100/7z1 | Wake-up signal connector sleeve | 102F |
| Z14/2z1 | Microphone connector sleeve (-) | 43G |

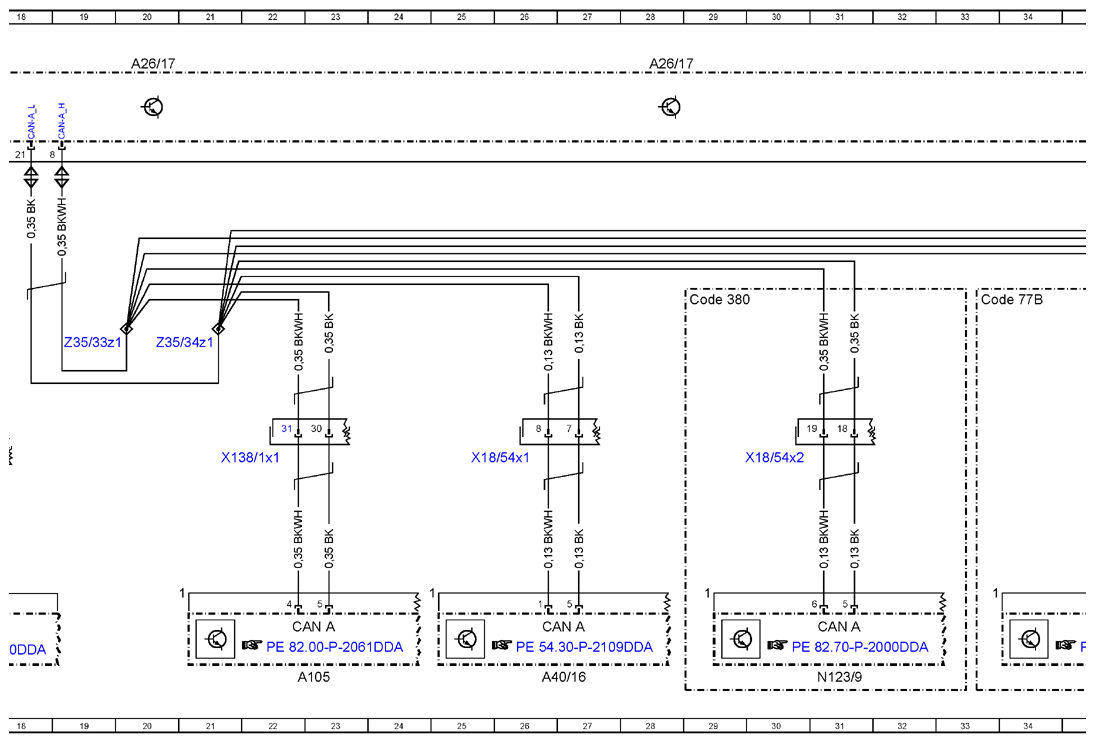

| Z35/33z1 | Head unit CAN (high) connector sleeve | 19F |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 21F |
| Z37/89z1 | User interface CAN (CAN-HMI) low end sleeve | 17E |
| Z37/90z1 | User interface CAN (CAN-HMI) high end sleeve | 16E |
| Z6/30z15 | Circuit 31 connector sleeve | 52G |
| Z87/12z2 | Microphone shielding connector sleeve, emergency call | 49G |
