Sound Amplifier Control Unit Wiring Diagram - PE82.62-P-2101-97DDC
Model 213 as of model year 2021 with code 853 ("Midline" sound system) Control unit N40/2
| Code: | Designation: | Position: |
|---|---|---|

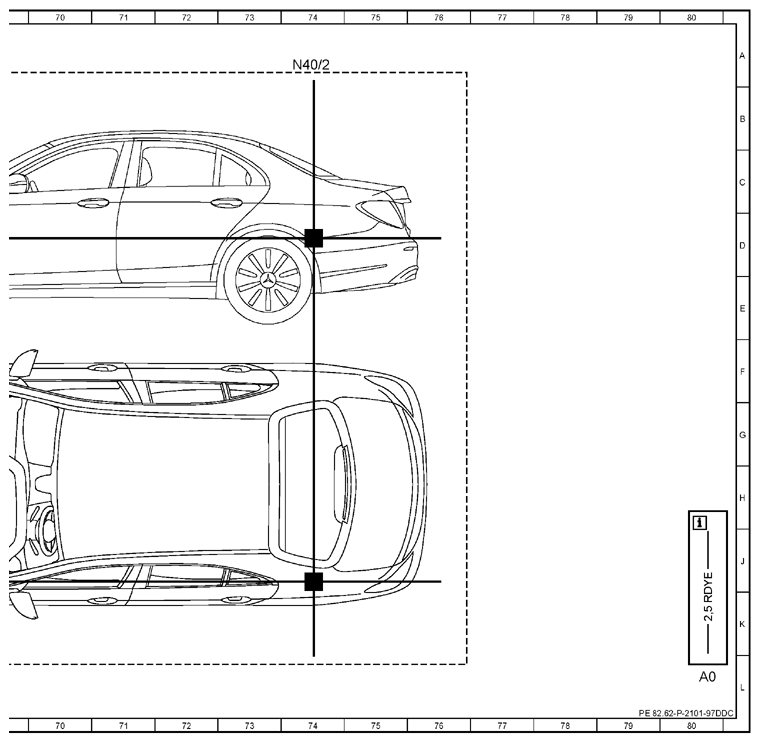

| A0 | Use of wiring diagrams | 80L |

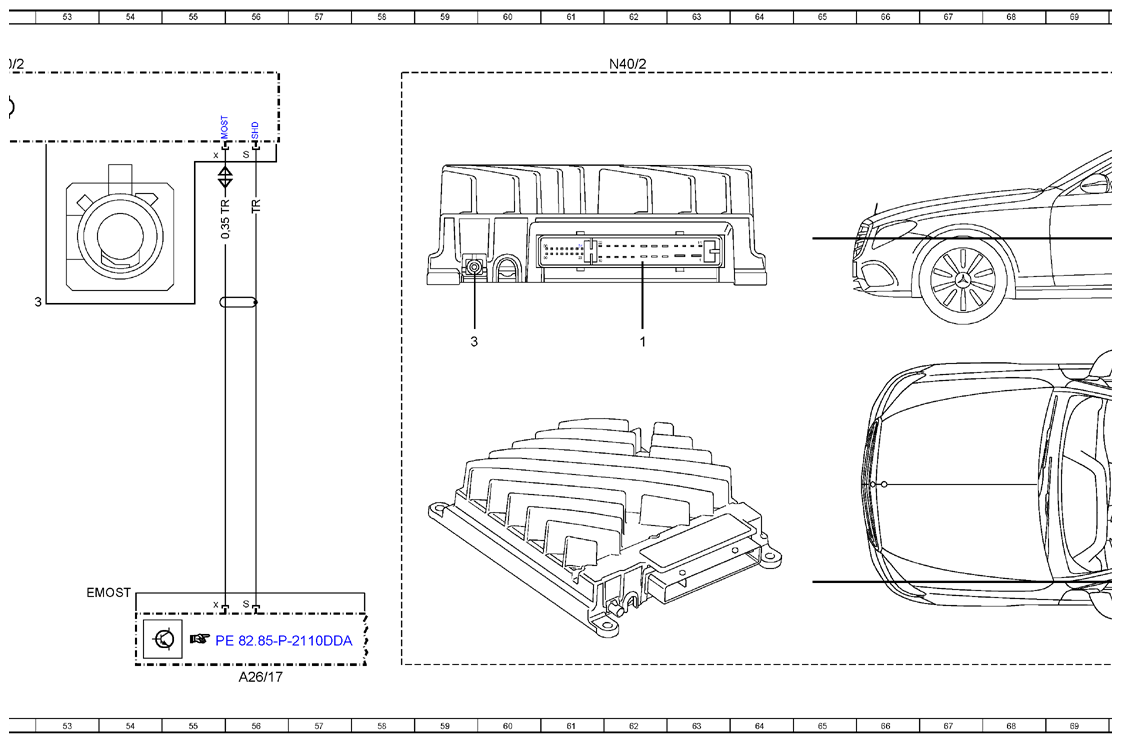

| A26/17 | Head unit | 56L |
| CAN C1 | Drive train CAN | 9K |
| Code 362 | HERMES LTE | 11D |
| Code 362 | HERMES LTE | 30F |
| Code FS | STATION WAGON | 44D |
| Code FV | LONG SEDAN | 48D |
| Code FW | SEDAN | 48D |
| Code L | LEFT-HAND DRIVE | 16F |
| Code L | LEFT-HAND DRIVE | 20F |
| Code L | LEFT-HAND DRIVE | 25D |
| Code R | RIGHT-HAND DRIVE | 16G |
| Code R | RIGHT-HAND DRIVE | 20G |
| Code R | RIGHT-HAND DRIVE | 25D |

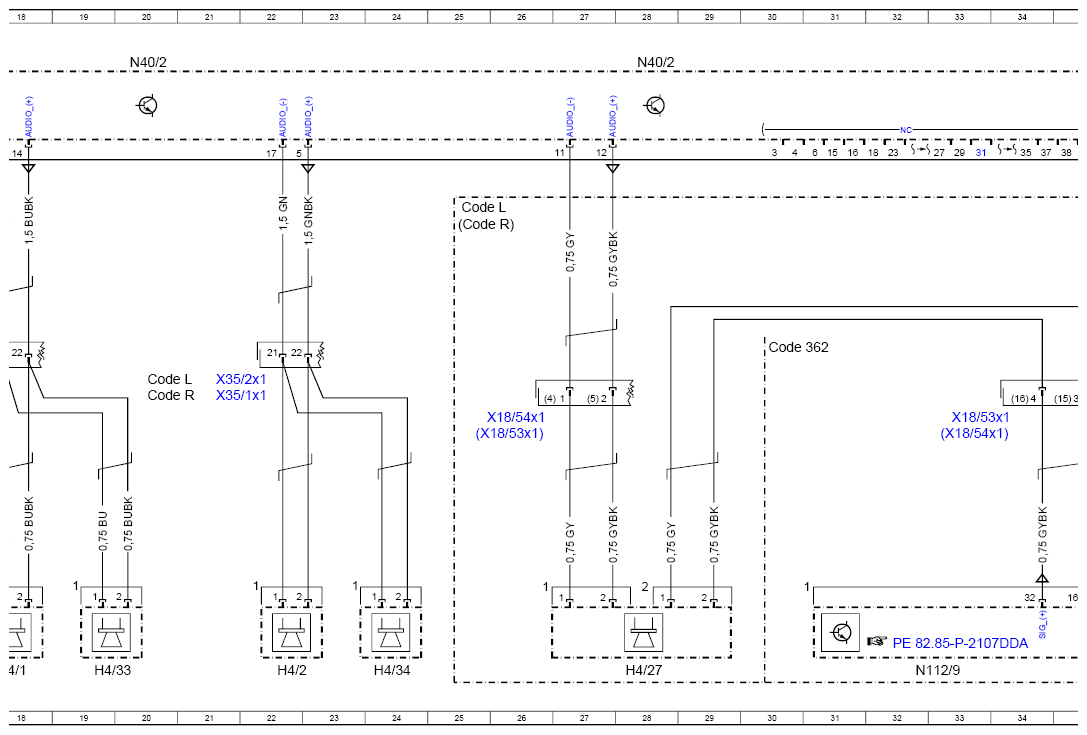

| H4/1 | Left front door midrange speaker | 18L |
| H4/2 | Right front door midrange speaker | 22L |
| H4/27 | Center instrument panel speaker | 28L |

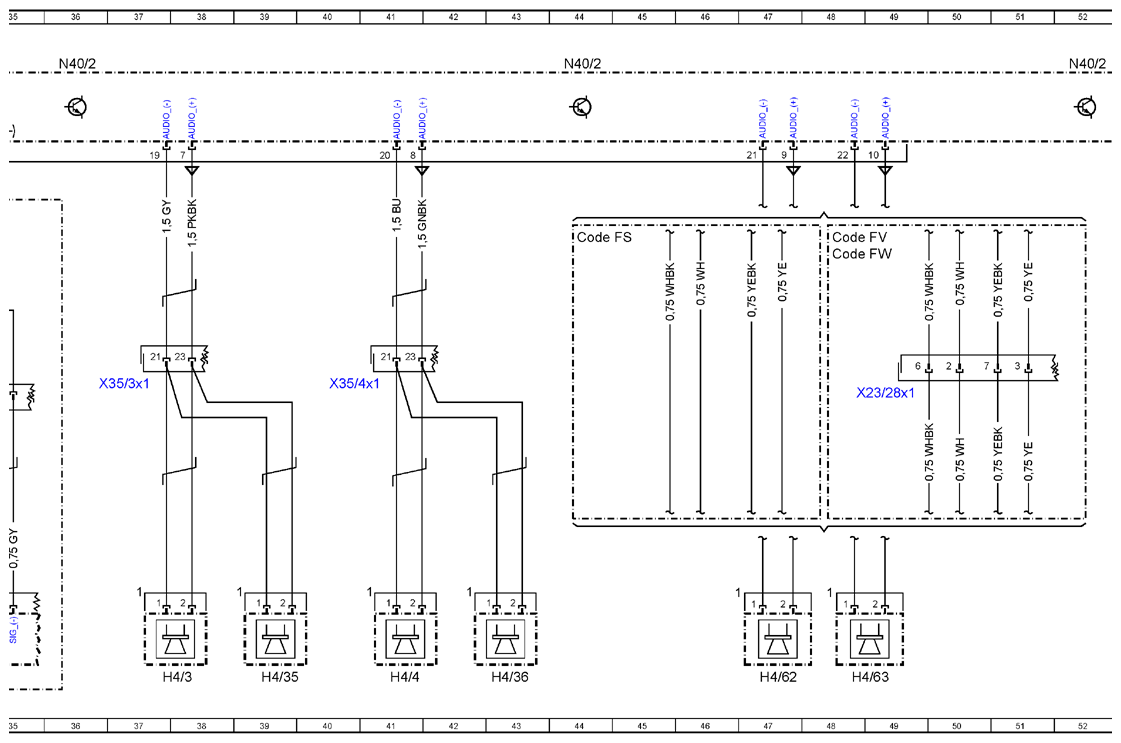

| H4/3 | Left rear door midrange speaker | 37L |
| H4/33 | Left front door tweeter | 19L |
| H4/34 | Right front door tweeter | 24L |
| H4/35 | Left rear door tweeter | 39L |
| H4/36 | Right rear door tweeter | 43L |
| H4/4 | Right rear door midrange speaker | 41L |
| H4/62 | Left rear surround sound system midrange speaker | 47L |
| H4/63 | Right rear surround sound system midrange speaker | 48L |

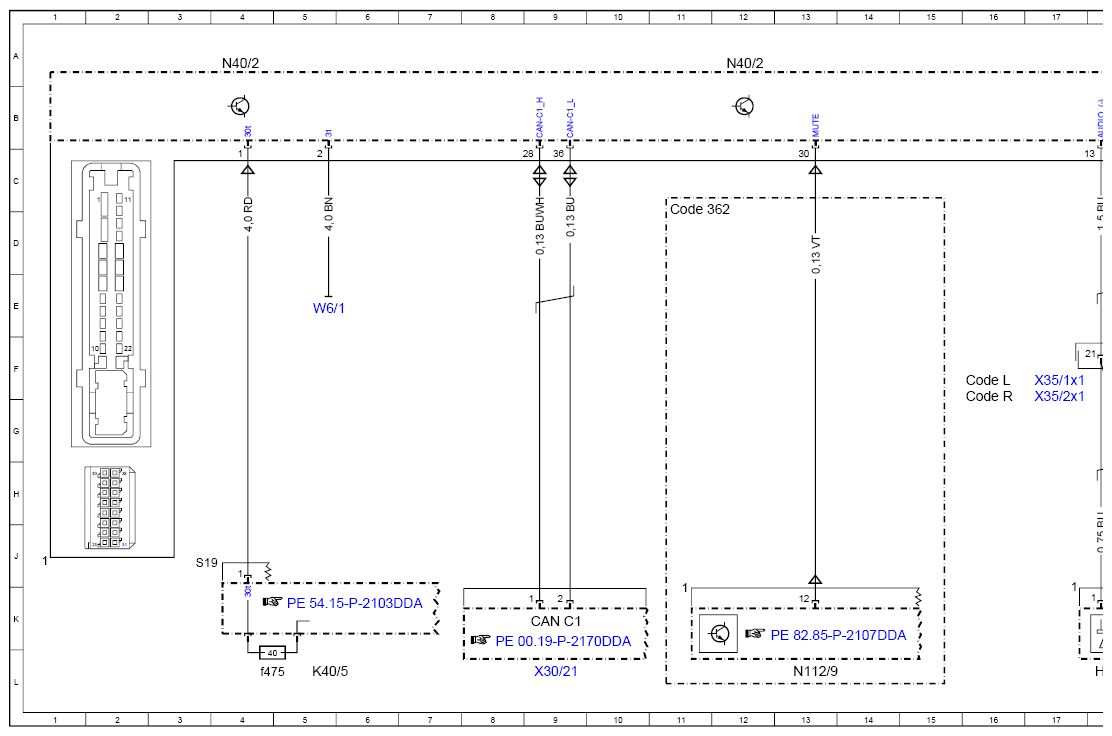

| K40/5 | Rear fuse and relay module | 5L |
| K40/5f475 | Fuse 475 | 4L |
| N112/9 | HERMES control unit | 13L |
| N112/9 | HERMES control unit | 32L |
| N40/2 | Sound system midline amplifier control unit | 4A |
| N40/2 | Sound system midline amplifier control unit | 12A |
| N40/2 | Sound system midline amplifier control unit | 20A |
| N40/2 | Sound system midline amplifier control unit | 28A |
| N40/2 | Sound system midline amplifier control unit | 36A |
| N40/2 | Sound system midline amplifier control unit | 44A |
| N40/2 | Sound system midline amplifier control unit | 52A |
| N40/2 | Sound system midline amplifier control unit | 62A |
| N40/2 | Sound system midline amplifier control unit | 74A |
| W6/1 | Left taillamp trunk ground point | 5E |
| X18/53x1 | Driver cockpit/interior wiring harness electrical connector | 26G |
| X18/53x1 | Driver cockpit/interior wiring harness electrical connector | 33G |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 26G |
| X18/54x1 | Front passenger cockpit/interior wiring harness electrical connector | 33G |
| X23/28x1 | Rear shelf surround sound system electrical connector | 49F |
| X30/21 | Drive train CAN (CAN CD potential distributor electrical connector | 9L |
| X35/1x1 | Driver door electrical connector | 17F |
| X35/1x1 | Driver door electrical connector | 22G |
| X35/2x1 | Front passenger door electrical connector | 22F |
| X35/2x1 | Front passenger door electrical connector | 17G |
| X35/3x1 | Left rear door electrical connector | 37F |
| X35/4x1 | Right rear door electrical connector | 40F |
