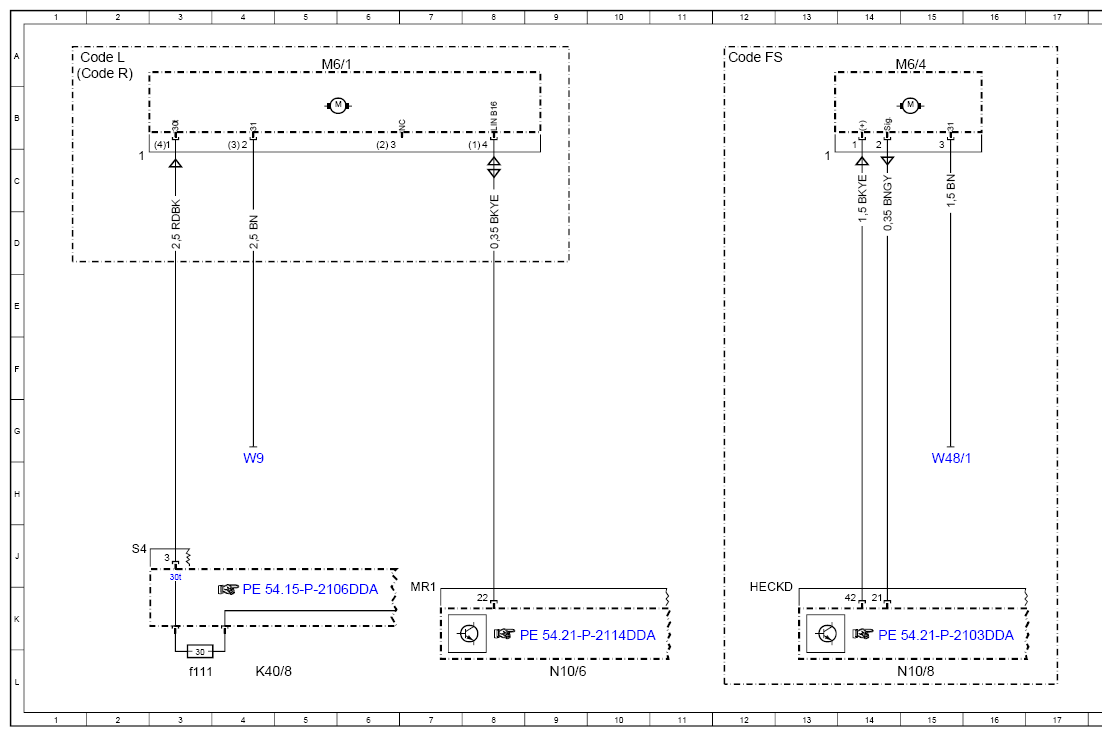

Wiring Diagram Of Windshield Wiper - PE82.30-P-2000-97DDA
Model 213 as of model year 2021 Wiper motors M6/1, M6/4
| Code: | Designation: | Position: |
|---|---|---|

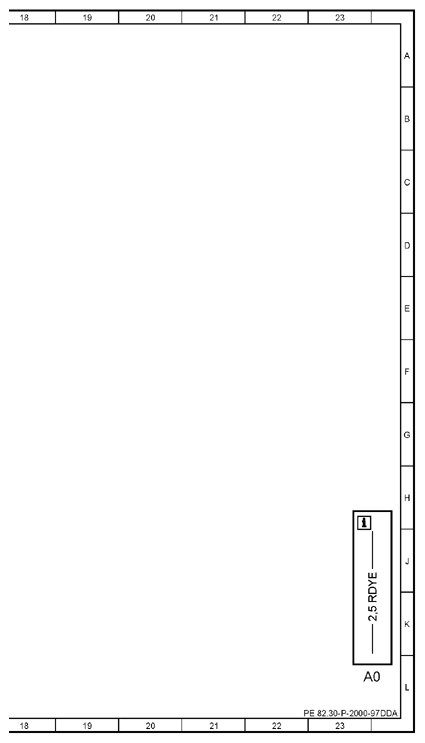

| AO | Use of wiring diagrams | 23L |
| Code FS | STATION WAGON | 12A |
| Code L | LEFT-HAND DRIVE | 1A |
| Code R | RIGHT-HAND DRIVE | 1A |
| K40/8 | Engine fuse and relay module | 4L |
| K40/8f111 | Fuse 111 | 3L |
| M6/1 | Wiper motor | 5A |
| M6/4 | Tailgate wiper motor | 15A |
| N10/6 | Front SAM control unit | 9L |
| N10/8 | Rear SAM control unit | 15L |
| W48/1 | Right rear roof frame ground point | 15H |
| W9 | Left front ground point (at lamp unit) | 4H |
