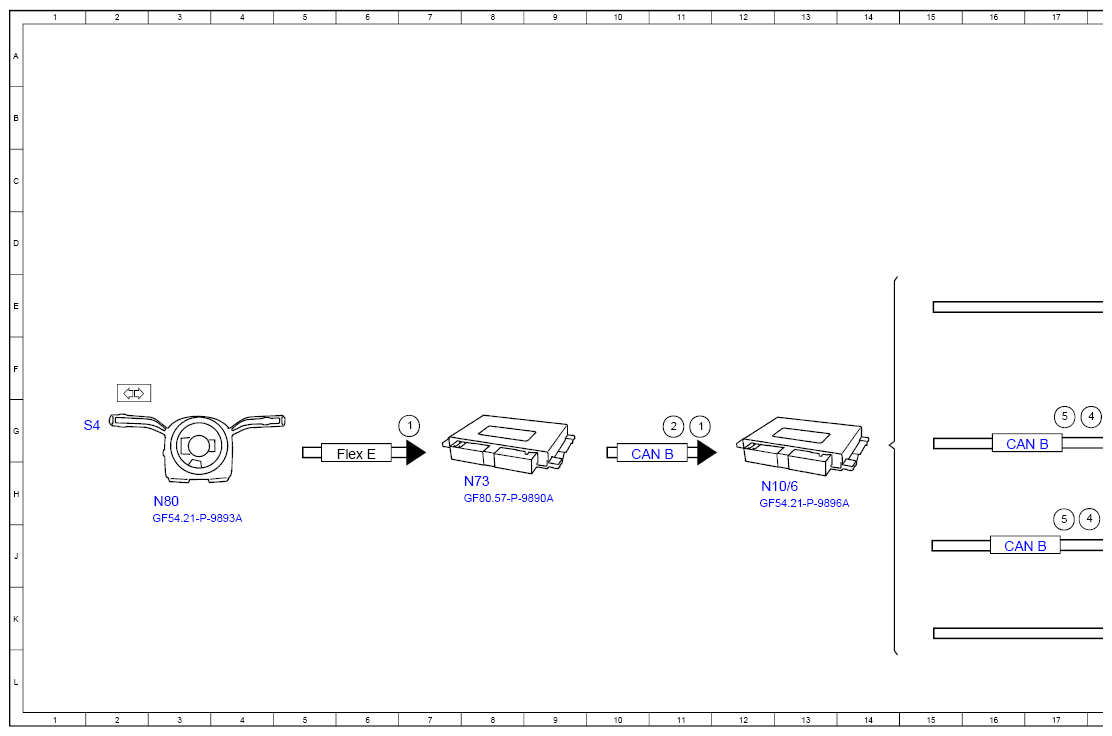

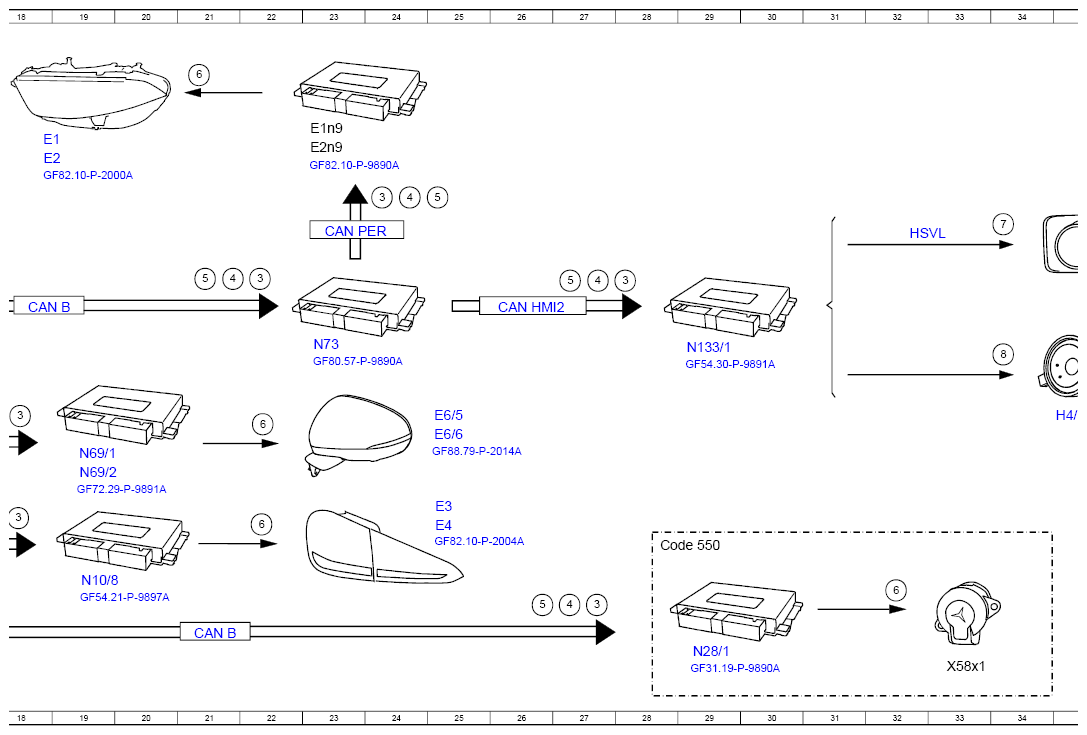

Function Schematic, Turn Signaling - PE82.10-P-2509-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Combination switch, status | 7G |
| 1 | Combination switch, status | 11G |
| 2 | Terminal 15, status | 11G |
| 3 | Flashing light on the left, request | 27K |
| 3 | Flashing light on the left, request | 22E |
| 3 | Flashing light on the left, request | 24C |
| 3 | Flashing light on the left, request | 8G |
| 3 | Flashing light on the left, request | 8K |
| 3 | Flashing light on the left, request | 28E |
| 4 | Flashing light on the right, request | 17J |
| 4 | Flashing light on the right, request | 18G |
| 4 | Flashing light on the right, request | 27K |
| 4 | Flashing light on the right, request | 22E |
| 4 | Flashing light on the right, request | 24D |
| 4 | Flashing light on the right, request | 27E |
| 5 | Flashing cycle, signal | 17J |
| 5 | Flashing cycle, signal | 17H |
| 5 | Flashing cycle, signal | 26K |
| 5 | Flashing cycle, signal | 21E |
| 5 | Flashing cycle, signal | 25C |
| 5 | Flashing cycle, signal | 27E |
| 6 | Flashing light, activation | 22J |
| 6 | Flashing light, activation | 32K |
| 6 | Flashing light, activation | 21A |
| 6 | Flashing light, activation | 22G |
| 7 | Image data, signal | 34D |
| 8 | Loudspeaker, control | 34F |
| A40/16 | Display group head unit / instrument cluster | 36E |
| CAN B | Interior CAN | 10G |
| CAN B | Interior CAN | 16J |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 21K |
| CAN HMI2 | User interface-CAN 2 | 26E |
| CAN PER | Peripheral CAN | 23D |
| Code 550 | Towing hitch | 28J |
| E1 | Front left light unit | 18B |
| E1n9 | Left headlight control unit | 23B |
| E2 | Front right light unit | 18C |
| E2n9 | Right headlight control unit | 23C |
| E3 | Rear left light unit | 25H |
| E4 | Rear right light unit | 25J |
| E6/5 | Left side mirror indicator light | 25G |
| E6/6 | Right outer Turn signal light | 25G |
| Flex E | Chassis FlexRay | 6G |
| H4/61 | Loudspeaker instrument cluster | 35G |
| HSVL | High-Speed-Video-Link | 32D |
| N10/6 | Front SAM control unit | 12H |
| N10/8 | Rear SAM control unit | 19J |
| N133/1 | Instrument cluster control unit | 29F |
| N28/1 | Trailer detection control unit | 29L |
| N69/1 | Left front door control unit | 19G |
| N69/2 | Right front door control unit | 19H |
| N73 | Electronic ignition lock control unit | 8H |
| N73 | Electronic ignition lock control unit | 23F |
| N80 | Jacketed pipe module control unit | 3H |
| S4 | Combination switch | 1G |
| X58x1 | Trailer socket | 33L |
