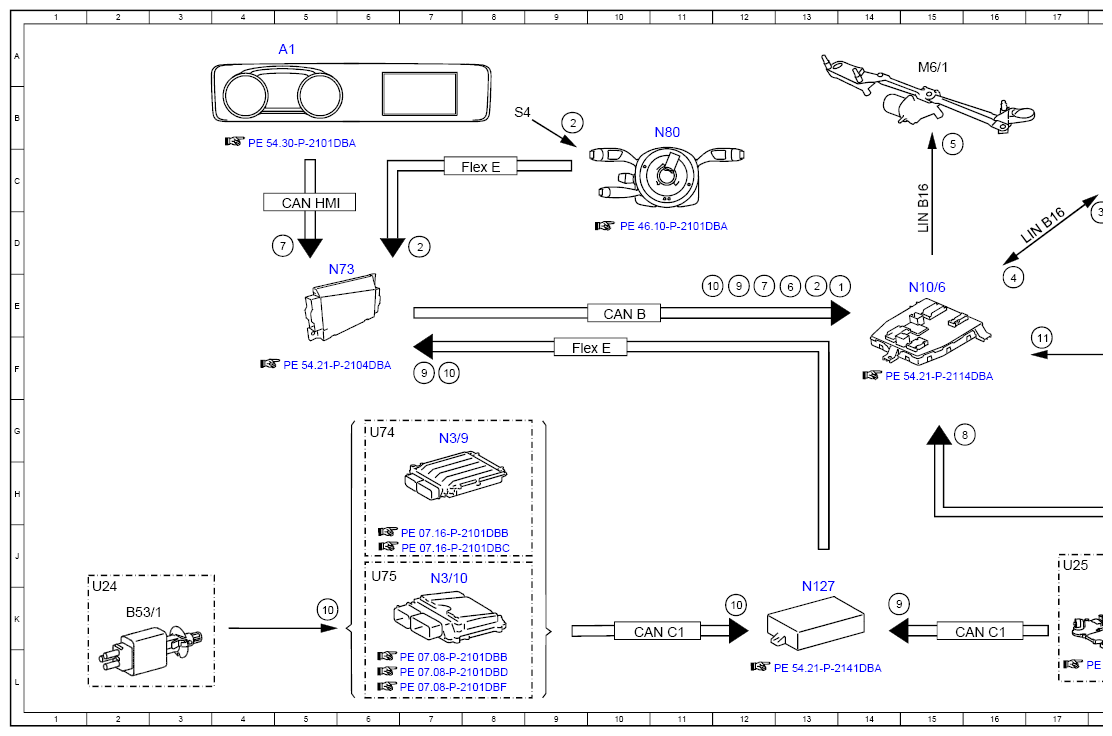

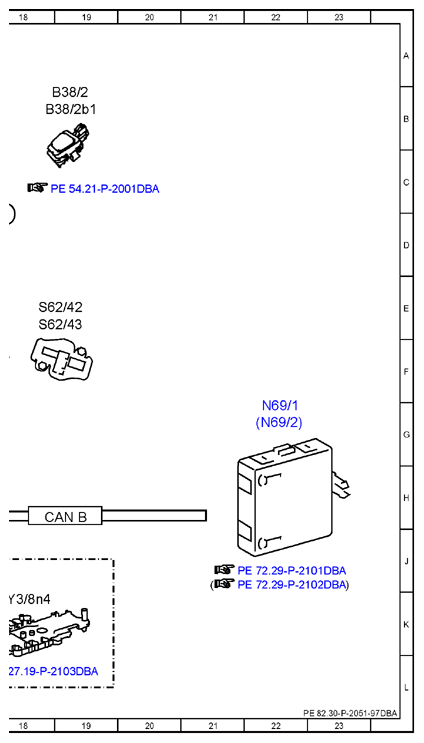

Electrical Function Schematic For Windshield Wiper - PE82.30-P-2051-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 14E |
| 10 | Clutch pedal sensor, signal | 7F |
| 10 | Clutch pedal sensor, signal | 12E |
| 10 | Clutch pedal sensor, signal | 5K |
| 10 | Clutch pedal sensor, signal | 12K |
| 11 | Engine hood contact switch, status | 17F |
| 2 | Combination switch, status | 7D |
| 2 | Combination switch, status | 9B |
| 2 | Combination switch, status | 13E |
| 3 | Wipe sensitivity, signal | 18C |
| 4 | Wipe request, signal | 16D |
| 5 | Wiper motor, actuation | 15B |
| 6 | Circuit 50, status | 13D |
| 7 | Vehicle speed, signal | 5D |
| 7 | Vehicle speed, signal | 13D |
| 8 | Main locking position microswitch, status | 15G |
| 9 | Gear range, status | 14K |
| 9 | Gear range, status | 12D |
| 9 | Gear range, status | 7F |
| A1 | Instrument cluster | 5A |
| B38/2 | Rain/light sensor with additional functions | 19B |
| B38/2b1 | Rain sensor | 19B |
| B53/1 | Clutch pedal sensor | 2K |
| CAN B | Interior CAN | 10E |
| CAN B | Interior CAN | 19H |
| CAN C1 | Drive train CAN | 16K |
| CAN C1 | Drive train CAN | 10K |
| CAN MM] | User interface CAN | 5C |
| Flex E | Chassis FlexRay | 8C |
| Flex E | Chassis FlexRay | 9F |
| LIN B16 | Rain and Iight sensor LIN | 15C |
| LIN B16 | Rain and Iight sensor LIN | 17D |
| M6/1 | Wiper motor | 15A |
| N10/6 | Front SAM control unit | 15E |
| N127 | Drivetrain control unit | 13K |
| N3/10 | ME-SFI [ME] control unit | 7J |
| N3/9 | CDI control unit | 7G |
| N69/1 | Left front door control unit | 22G |
| N69/2 | Right front door control unit | 22G |
| N73 | Electronic ignition switch control unit | 5D |
| N80 | Steering column module control unit | 11B |
| S4 | Combination switch | 8B |
| S62/42 | Right engine hood contact switch | 18E |
| S62/43 | Left engine hood contact switch | 18E |
| U24 | Valid for manual transmission | 2K |
| U25 | Valid for automatic transmission | 17J |
| U74 | Valid for diesel engines | 6G |
| U75 | Valid for gasoline engines | 6J |
| Y3/8n4 | Fully integrated transmission control, control unit | 18K |
