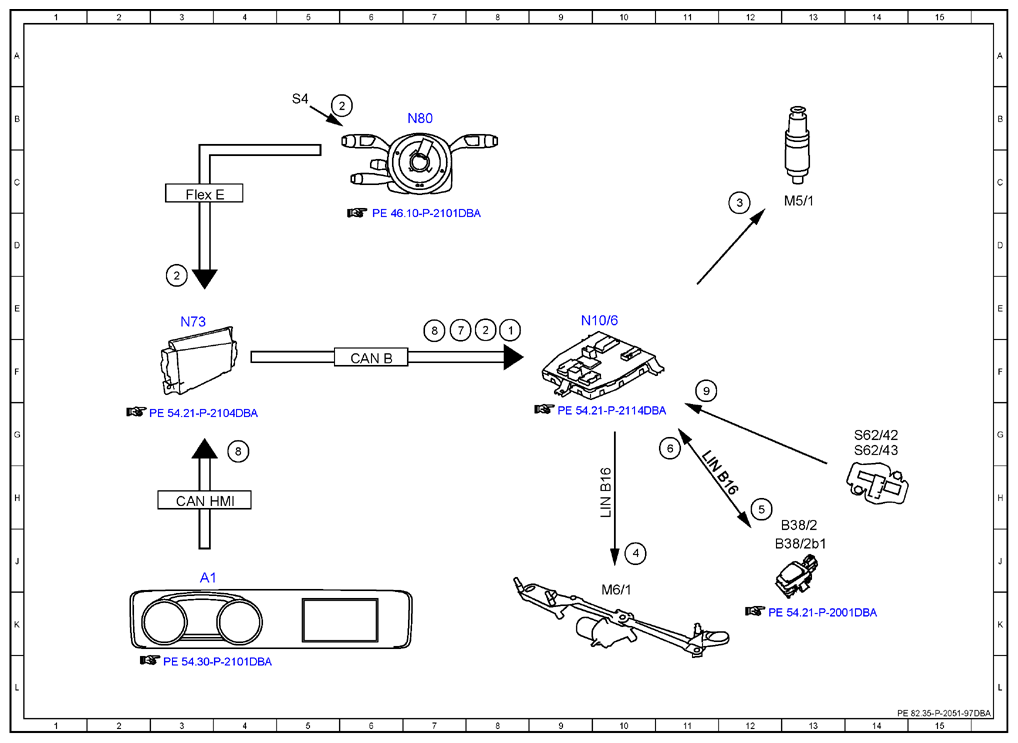

Electrical Function Schematic For Windshield Washer - PE82.35-P-2051-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8F |
| 2 | Combination switch, status | 3E |
| 2 | Combination switch, status | 6B |
| 2 | Combination switch, status | 8F |
| 3 | Windshield washer system pump, actuation | 12C |
| 4 | Wiper motor, actuation | 10J |
| 5 | Re-wipe, status | 12H |
| 6 | Wipe request, signal | 11G |
| 7 | Circuit 50, status | 7F |
| 8 | Vehicle speed, signal | 4G |
| 8 | Vehicle speed, signal | 7E |
| 9 | Engine hood contact switch, status | 11F |
| A1 | Instrument cluster | 3J |
| B38/2 | Rain/light sensor with additional functions | 13J |
| B38/2b1 | Rain sensor | 13J |
| CAN B | Interior CAN | 6F |
| CAN HMI | User interface CAN | 3H |
| Flex E | Chassis FlexRay | 3C |
| LIN B16 | Rain and Iight sensor LIN | 10H |
| LIN B16 | Rain and Iight sensor LIN | 11H |
| M5/1 | Windshield washer system pump | 13C |
| M6/1 | Wiper motor | 10K |
| N10/6 | Front SAM control unit | 9E |
| N73 | Electronic ignition switch control unit | 3E |
| N80 | Steering column module control unit | 7B |
| S4 | Combination switch | 5B |
| S62/42 | Right engine hood contact switch | 14G |
| S62/43 | Left engine hood contact switch | 14G |
