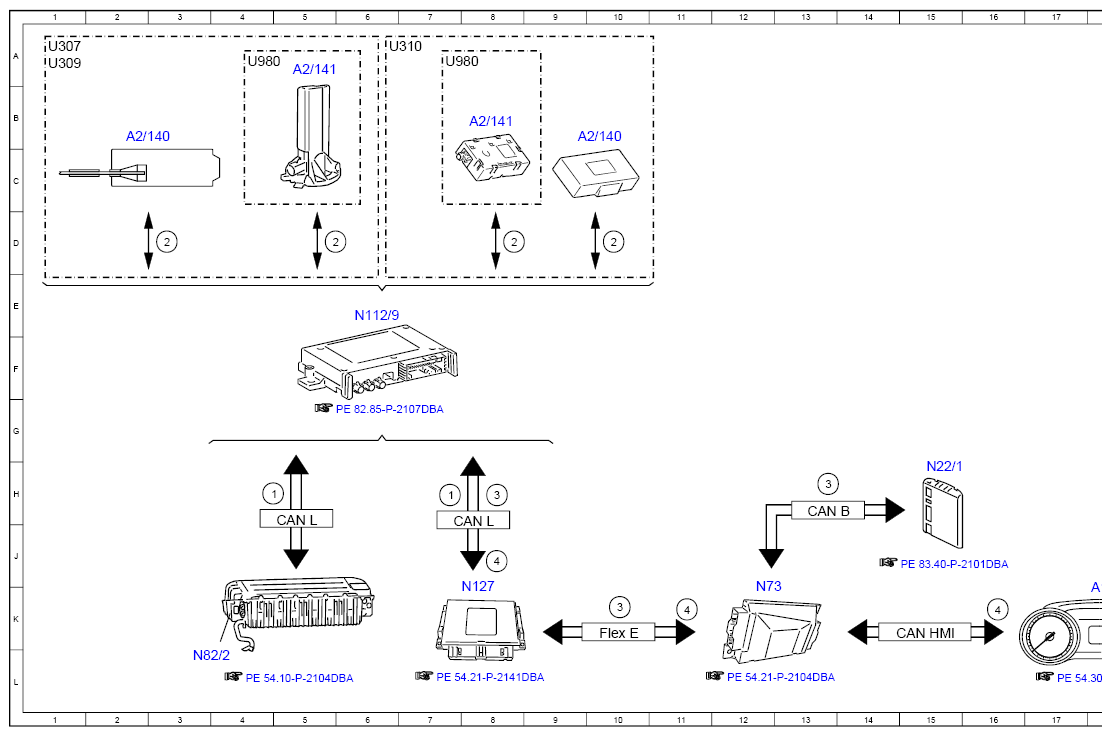

Electrical Function Schematic For Hybrid Vehicle Telematics Services Function - PE82.60-P-2065-97DBA
Model 213 up to model year 2021
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 213 up to model year 2021
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Charging voltage and charging current, signal | 4H |
| 1 | Charging voltage and charging current, signal | 7H |
| 2 | Telephone, signal | 3D |
| 2 | Telephone, signal | 8D |
| 2 | Telephone, signal | 10D |
| 2 | Telephone, signal | 5D |
| 3 | Pre-air conditioning, status | 8H |
| 3 | Pre-air conditioning, status | 10K |
| 3 | Pre-air conditioning, status | 14H |
| 4 | Audio/COMAND display, actuation | 11K |
| 4 | Audio/COMAND display, actuation | 8J |
| 4 | Audio/COMAND display, actuation | 16K |
| A1 | Instrument cluster | 18K |
| A2/140 | Emergency call system antenna 1 | 2B |
| A2/140 | Emergency call system antenna 1 | 10B |
| A2/141 | Emergency call system antenna 2 | 5A |
| A2/141 | Emergency call system antenna 2 | 8B |
| CAN B | Interior CAN | 13H |
| CAN MM] | User interface CAN | 15K |
| CAN L | Hybrid CAN | 5H |
| CAN L | Hybrid CAN | 8J |
| Flex E | Chassis FlexRay | 10K |
| N112/9 | HERMES control unit | 6E |
| N127 | Drivetrain control unit | 8K |
| N22/1 | Climate control, control unit | 15H |
| N73 | Electronic ignition switch control unit | 12K |
| N82/2 | Battery management system control unit | 3L |
| U307 | Valid for model 213.0 | 1A |
| U309 | Valid for model 213.1 | 1A |
| U310 | Valid for model 213.2 | 6A |
| U980 | Not valid for HERMES UMTS | 4A |
| U980 | Not valid for HERMES UMTS | 7A |
