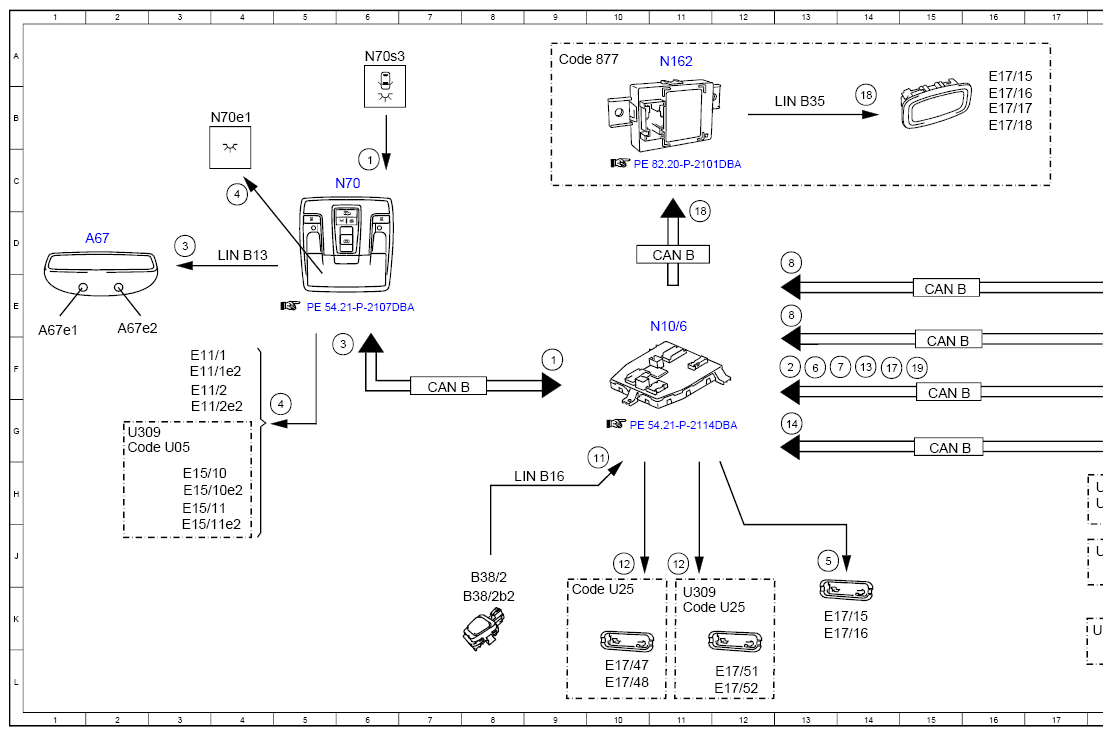

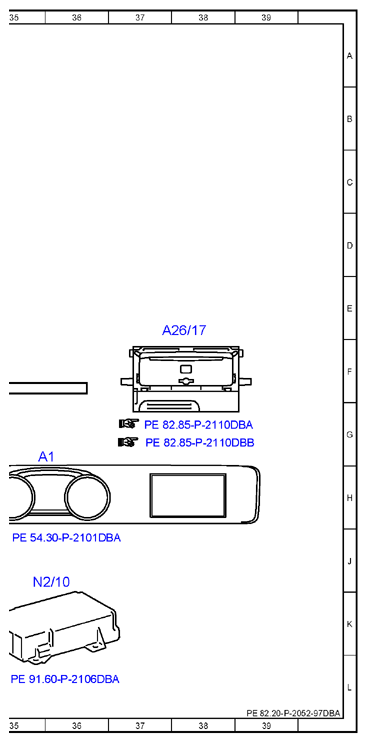

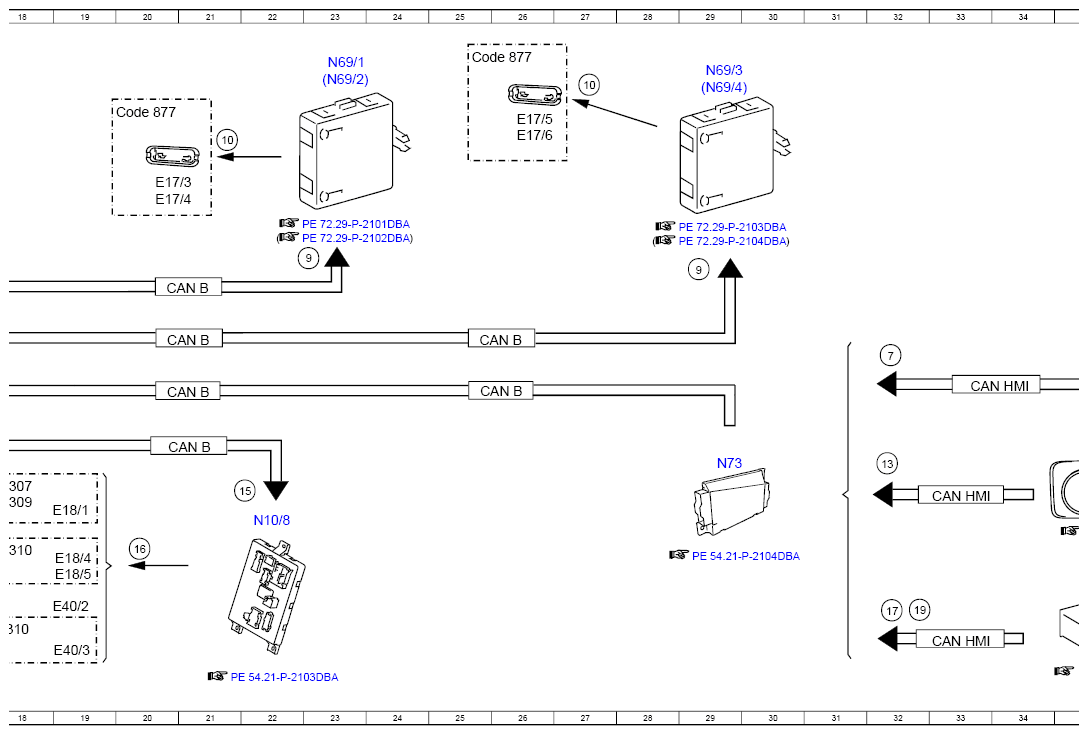

Automatic Interior Lights Control Electrical Function Schematic - PE82.20-P-2052-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Automatic function switch, status | 9F |
| 1 | Automatic function switch, status | 6C |
| 10 | Exit and warning lamp, actuation | 21B |
| 10 | Exit and warning lamp, actuation | 27B |
| 11 | Dusk setting, signal | 10G |
| 12 | Illuminated door sill molding actuation | 10J |
| 12 | Illuminated door sill molding actuation | 11J |
| 13 | Vehicle speed, signal | 14F |
| 13 | Vehicle speed, signal | 32H |
| 14 | Trunk lid/liftgate lock main catch switch, status | 13G |
| 15 | Ambient lamp, request | 22H |
| 16 | Ambient lamp, actuation | 20J |
| 17 | Crash, signal | 14F |
| 17 | Crash, signal | 32K |
| 18 | Ambience illumination, request | 11D |
| 18 | Ambience illumination, request | 14B |
| 19 | Seat belt buckle switch, status | 15F |
| 19 | Seat belt buckle switch, status | 32K |
| 2 | Central locking, status | 13F |
| 3 | Interior lamp, request | 6F |
| 3 | Interior lamp, request | 3D |
| 4 | Interior lamp, actuation | 5G |
| 4 | Interior lamp, actuation | 4C |
| 5 | Footwe11 lamp, actuation | 13J |
| 6 | Circuit 15, status | 13F |
| 7 | OFF delay time, status | 14F |
| 7 | OFF delay time, status | 32F |
| 8 | Door rotary tumbler switch, status | 13D |
| 8 | Door rotary tumbler switch, status | 13E |
| 9 | Exit and warning lamp, request | 23D |
| 9 | Exit and warning lamp, request | 29E |
| A1 | Instrument cluster | 35G |
| A26/17 | Head unit | 38E |
| A67 | Inside rear view mirror | 1D |
| A67e1 | Left reading lamp | 1E |
| A67e2 | Right reading lamp | 2E |
| B38/2 | Rain/light sensor with additional functions | 8J |
| B38/2b2 | Light sensor | 8K |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 26F |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 21E |
| CAN B | Interior CAN | 15F |
| CAN B | Interior CAN | 26F |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 21G |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 15E |
| CAN B | Interior CAN | 15G |
| CAN HMI | User interface CAN | 33H |
| CAN HMI | User interface CAN | 33K |
| CAN HMI | User interface CAN | 33F |
| Code 877 | Ambiance illumination | 20B |
| Code 877 | Ambiance illumination | 25A |
| Code 877 | Ambiance illumination | 9A |
| Code U05 | Make-up mirror in rear passenger compartment | 2G |
| Code U25 | Illuminated door sills | 9K |
| Code U25 | Illuminated door sills | 11K |
| E11/1 | Left rear dome lamp | 3F |
| E11/1e2 | Left rear interior lamp | 3F |
| E11/2 | Right rear dome lamp | 3F |
| E11/2e2 | Right rear interior lamp | 3G |
| E15/10 | Left rear vanity mirror unit | 3H |
| E15/10e2 | Left rear vanity mirror dome lamp | 3H |
| E15/11 | Right rear vanity mirror unit | 3H |
| E15/11e2 | Right rear vanity mirror dome lamp | 3J |
| E17/15 | Right front footwell lamp | 13K |
| E17/15 | Right front footwell lamp | 16A |
| E17/16 | Left front footwell lamp | 13K |
| E17/16 | Left front footwell lamp | 16B |
| E17/17 | Left rear footwell lamp | 16B |
| E17/18 | Right rear footwell lamp | 16B |
| E17/3 | Left front door exit and warning lamp | 20C |
| E17/4 | Right front door exit and warning lamp | 20C |
| E17/47 | Left front illuminated door sill molding | 10L |
| E17/48 | Right front i Illuminated door sill molding | 10L |
| E17/5 | Left rear door exit and warning lamp | 26B |
| E17/51 | Left rear illuminated door sill molding | 12L |
| E17/52 | Right rear illuminated door sill molding | 12L |
| E17/6 | Right rear door exit and warning lamp | 26B |
| E18/1 | Luggage compartment lamp | 19H |
| E18/4 | Right luggage compartment lamp | 19J |
| E18/5 | Left luggage compartment lamp | 19J |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 19K |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 19L |
| LIN B13 | Roof LIN | 4D |
| LIN B16 | Rain and light sensor LIN | 9H |
| LIN B35 | Vehicle interior ambiance illumination LIN | 13B |
| N10/6 | Front SAM control unit | 11E |
| N10/8 | Rear SAM control unit | 22J |
| N162 | Ambiance illumination control unit | 11A |
| N2/10 | Supplemental restraint system control unit | 35J |
| N69/1 | Left front door control unit | 23A |
| N69/2 | Right front door control unit | 23A |
| N69/3 | Left rear door control unit | 29A |
| N69/4 | Right rear door control unit | 29B |
| N70 | Overhead control panel control unit | 5C |
| N70e1 | Front dome lamp | 4B |
| N70s3 | Interior lamp automatic function button | 6A |
| N73 | Electronic ignition switch control unit | 29H |
| U307 | Valid for model 213.0 | 18H |
| U309 | Valid for model 213.1 | 2G |
| U309 | Valid for model 213.1 | 11K |
| U309 | Valid for model 213.1 | 18H |
| U310 | Valid for model 213.2 | 18K |
| U310 | Valid for model 213.2 | 18J |
