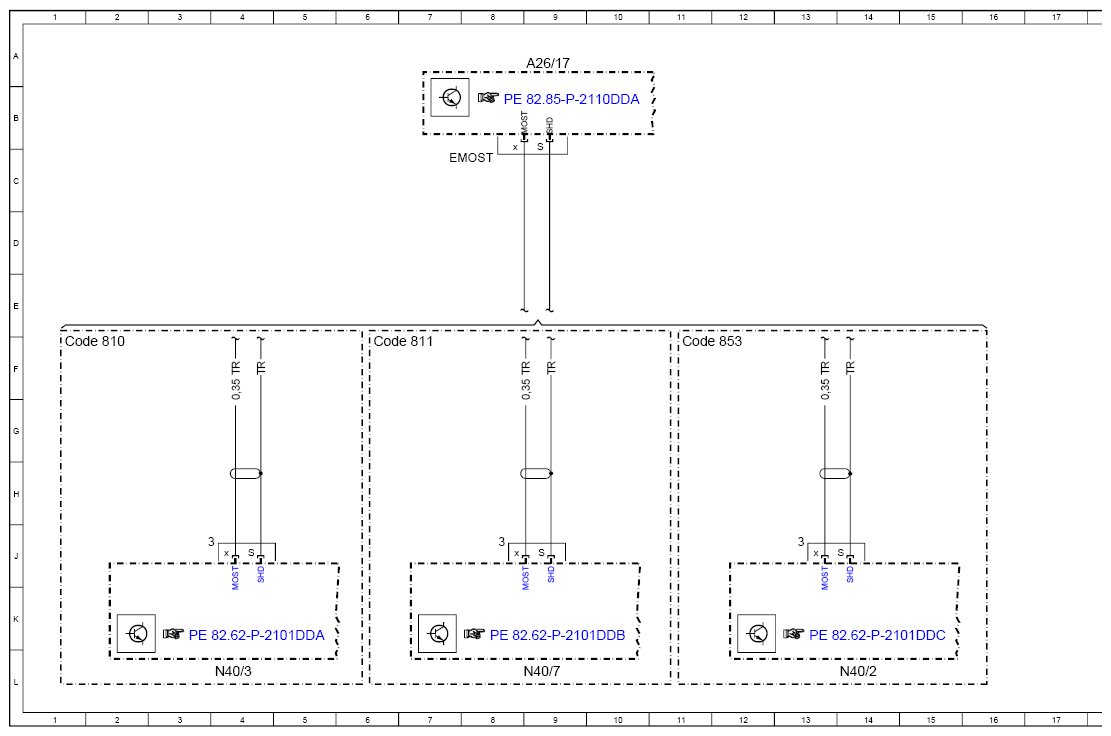

Wiring Diagram Of Most Bus - PE82.00-P-2710-97DDA
Model 213 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|

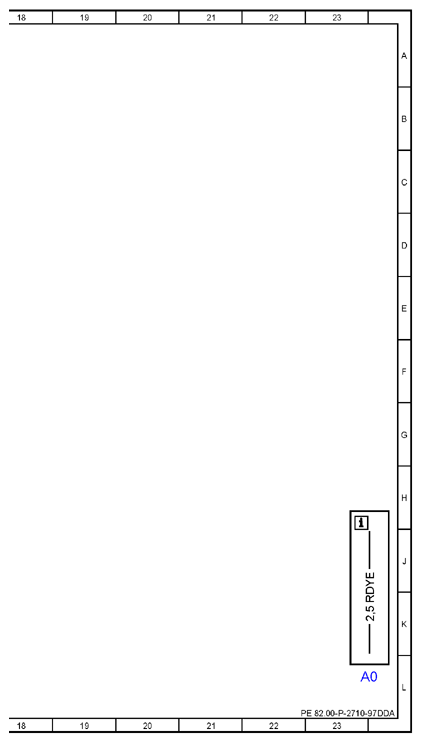

| A0 | Use of wiring diagrams | 23L |
| A26/17 | Head unit | 9A |
| Code 810 | Sound system | 1F |
| Code 811 | Advanced sound system | 6F |
| Code 853 | "Midline" sound system | 11F |
| N40/2 | Sound system midline amplifier control unit | 14L |
| N40/3 | Sound system amplifier control unit | 4L |
| N40/7 | Advanced sound system amplifier control unit | 9L |
