Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DDH

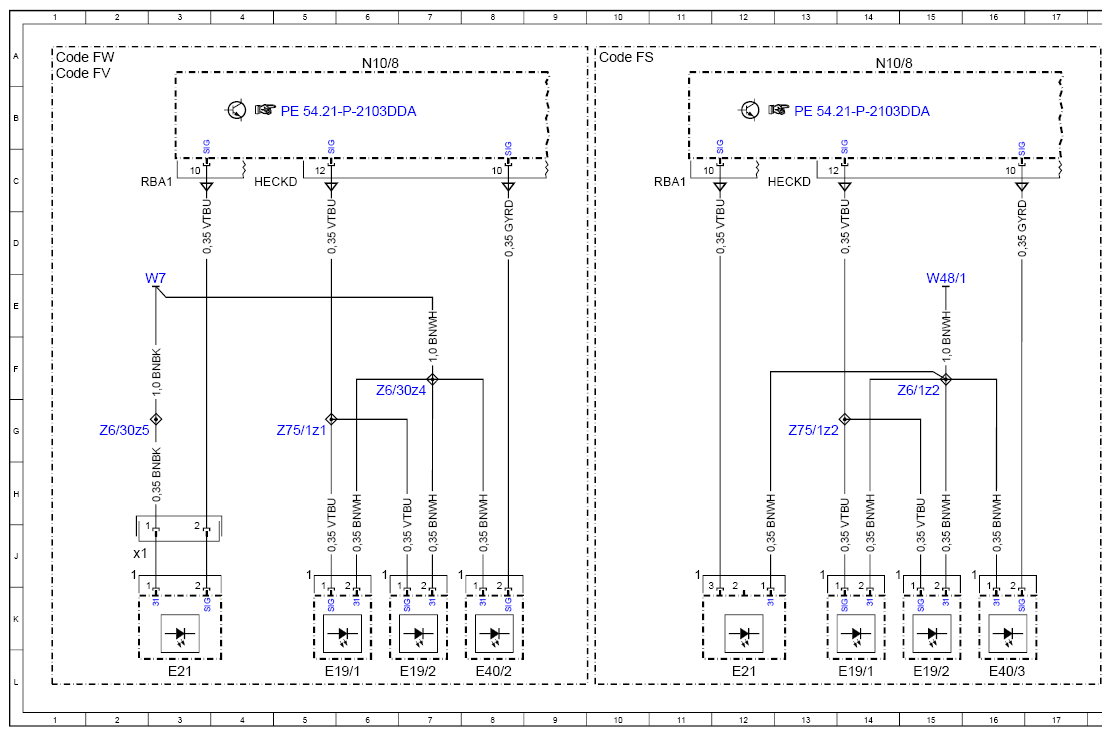

Model 213 as of model year 2021 License plate lamp E19/1, E19/2, center brake lamp E21, surround lamp E40/2, E40/3
| Code: | Designation: | Position: |
|---|---|---|

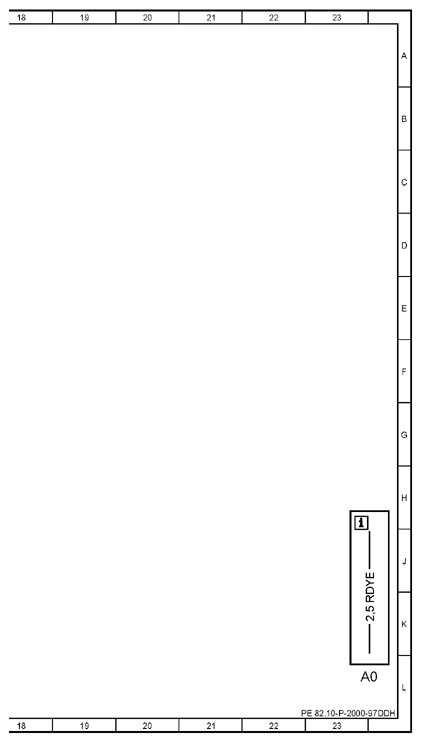

| A0 | Use of wiring diagrams | 23L |
| Code FS | STATION WAGON | 10A |
| Code FV | LONG SEDAN | 1A |
| Code FW | SEDAN | 1A |
| E19/1 | Left license plate lamp | 5L |
| E19/1 | Left license plate lamp | 14L |
| E19/2 | Right license plate lamp | 7L |
| E19/2 | Right license plate lamp | 15L |
| E21 | Center stop lamp | 3L |
| E21 | Center stop lamp | 12L |
| E21x1 | Center brake lamp electrical connector | 2J |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 8L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 16L |
| N10/8 | Rear SAM control unit | 6A |
| N10/8 | Rear SAM control unit | 14A |
| W48/1 | Right rear roof frame ground point | 15E |
| W7 | Right wheel house trunk ground point | 3E |
| Z6/1z2 | Circuit 31 connector sleeve | 15F |
| Z6/30z4 | Circuit 31 connector sleeve | 7F |
| Z6/30z5 | Circuit 31 connector sleeve | 2G |
| Z75/1z1 | License plate lamp connector sleeve | 5G |
| Z75/1z2 | License plate lamp connector sleeve | 13G |
