Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97DBB

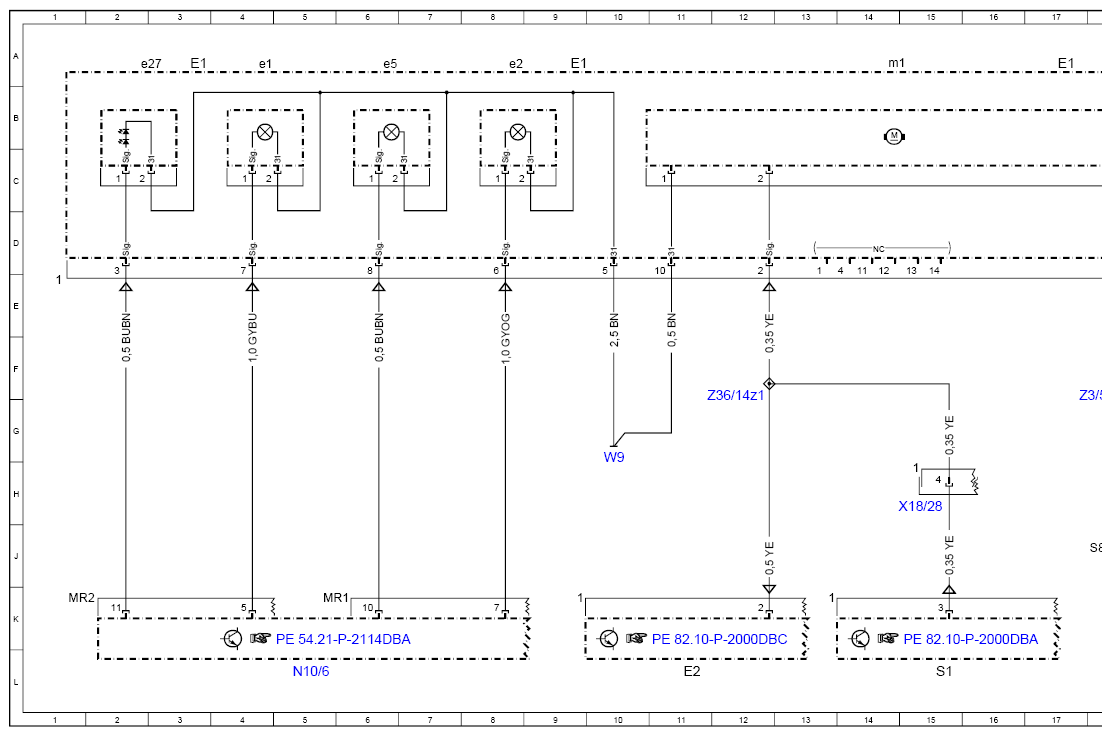

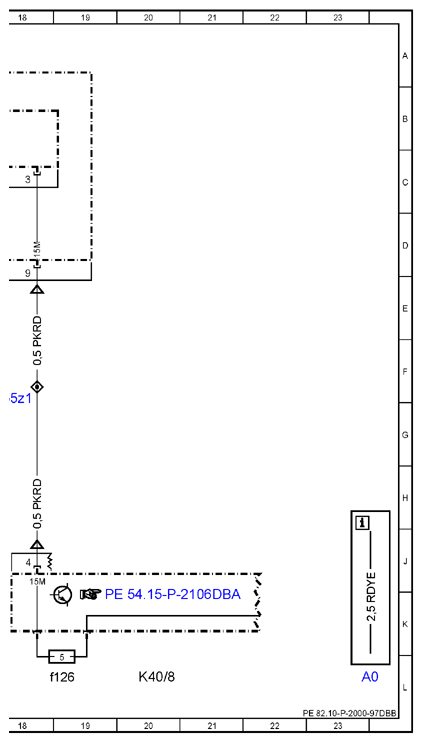

Model 213 up to model year 2021 Lamp unit E1, halogen version
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| E1 | Left front lamp unit | 3A |
| E1 | Left front lamp unit | 9A |
| E1 | Left front lamp unit | 17A |
| E1e1 | Left high beam | 4A |
| E1e2 | Left low beam | 8A |
| E1e27 | Left position light and daytime running light | 2A |
| E1e5 | Left front turn signal lamp | 6A |
| E1m1 | Left headlamp range adjustment actuator motor | 14A |
| E2 | Right front lamp unit | 11L |
| K40/8 | Engine fuse and relay module | 20L |
| K40/8f126 | Fuse 126 | 19L |
| N10/6 | Front SAM control unit | 5L |
| S1 | Exterior lights switch | 15L |
| W9 | Left front ground point (at lamp unit) | 10H |
| X18/28 | Left cockpit/engine compartment electrical connector | 15H |
| Z3/55z1 | Tml. 15 connector sleeve | 18G |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 12G |
