Wiring Diagram For Touch up - PE82.00-P-2061-97DDA

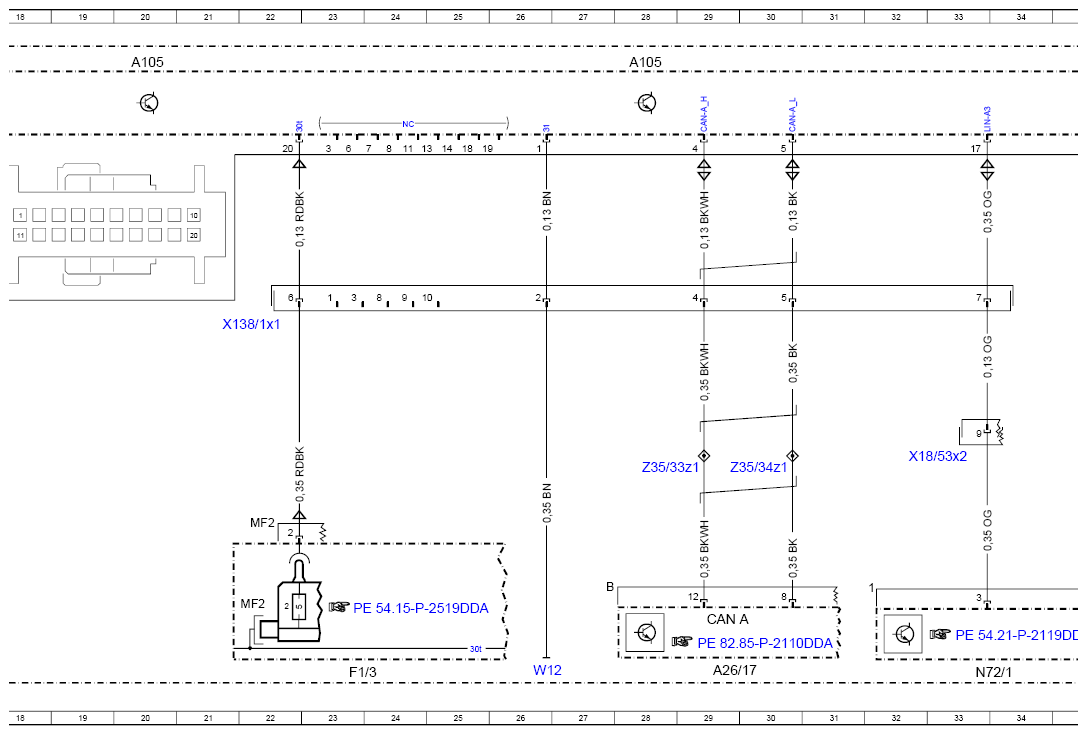

Model 213 as of model year 2021 with code 446 (Touchpad only) with code 448 (Touchpad) TouchpadA105 Model 213 as of model year 2021 with code 447 (Touchscreen in rear) Touchscreen A105/3
| Code: | Designation: | Position: |
|---|---|---|

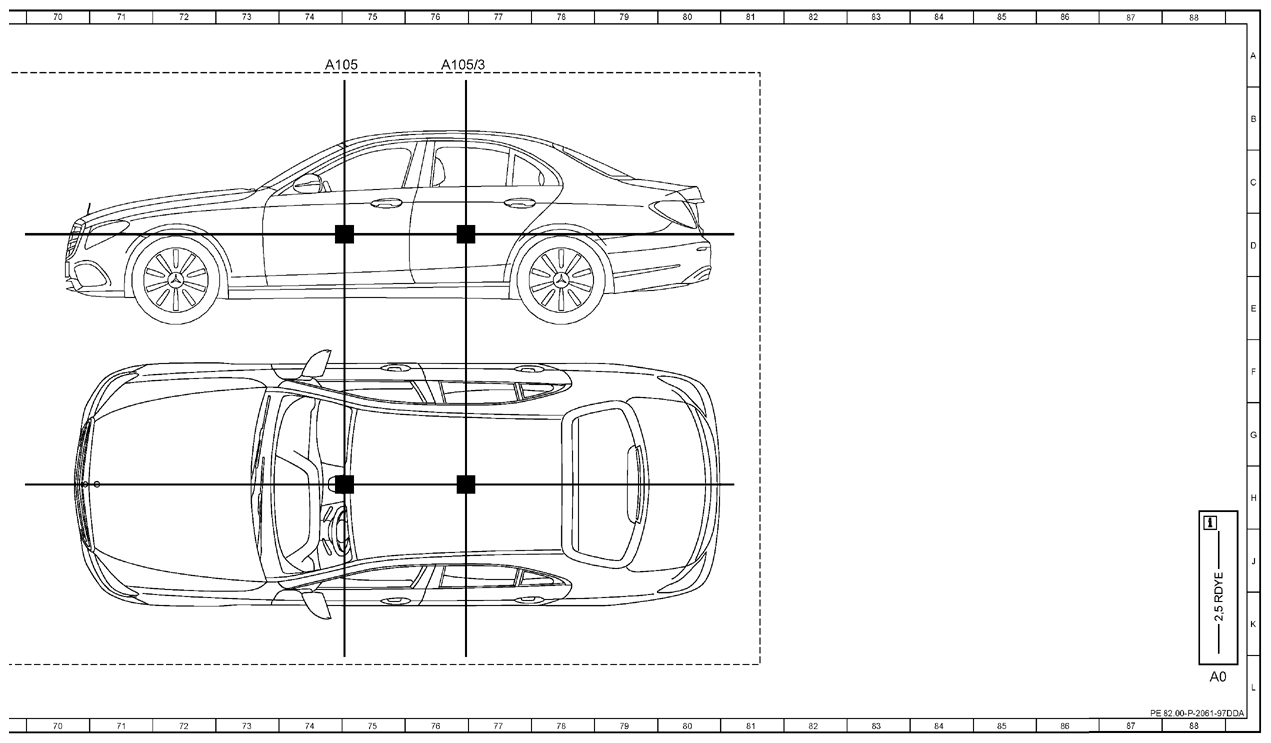

| A0 | Use of wiring diagrams | 88L |

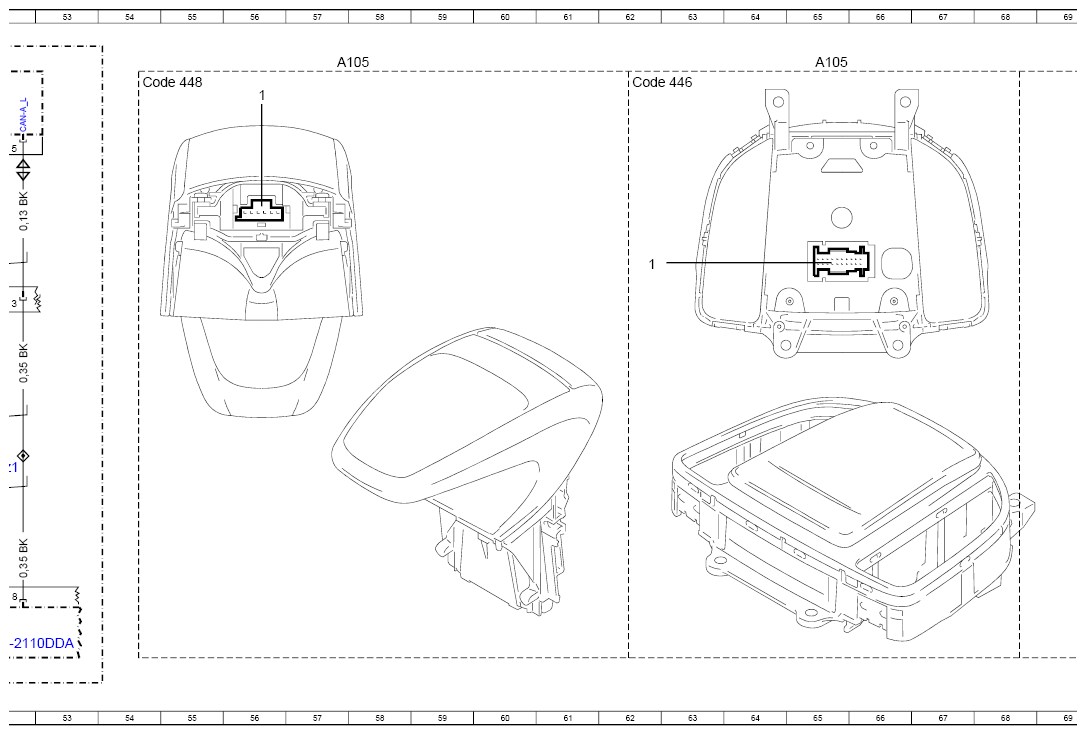

| A105 | Touch up | 4A |
| A105 | Touch up | 12A |
| A105 | Touch up | 28A |
| A105 | Touch up | 20A |
| A105 | Touch up | 36A |
| A105 | Touch up | 57A |
| A105 | Touch up | 65A |
| A105 | Touch up | 74A |
| A105/3 | Touchscreen | 48A |
| A105/3 | Touchscreen | 76A |
| A26/17 | Head unit | 14L |
| A26/17 | Head unit | 29L |
| A26/17 | Head unit | 51L |
| CAN A | Telematics CAN | 14K |
| CAN A | Telematics CAN | 29K |
| CAN A | Telematics CAN | 51K |
| Code 446 | Touch up only | 16A |
| Code 446 | Touch up only | 62B |

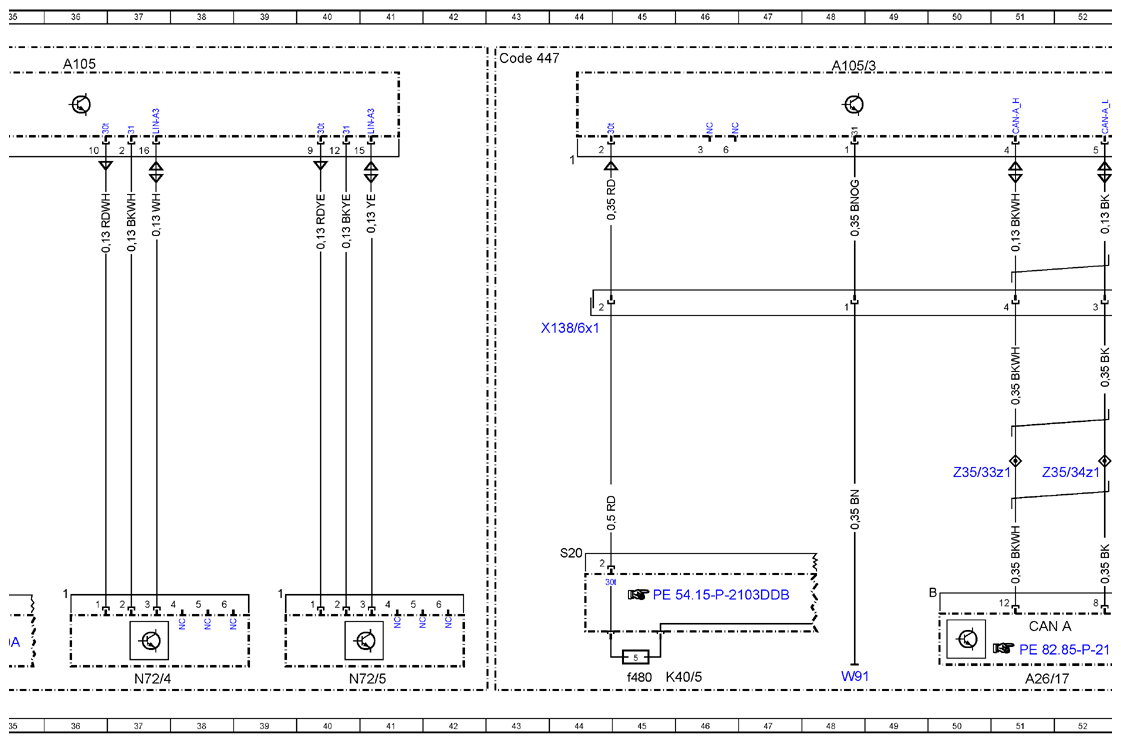

| Code 447 | Touchscreen in rear passenger compartment (rear touchscreen) | 43A |

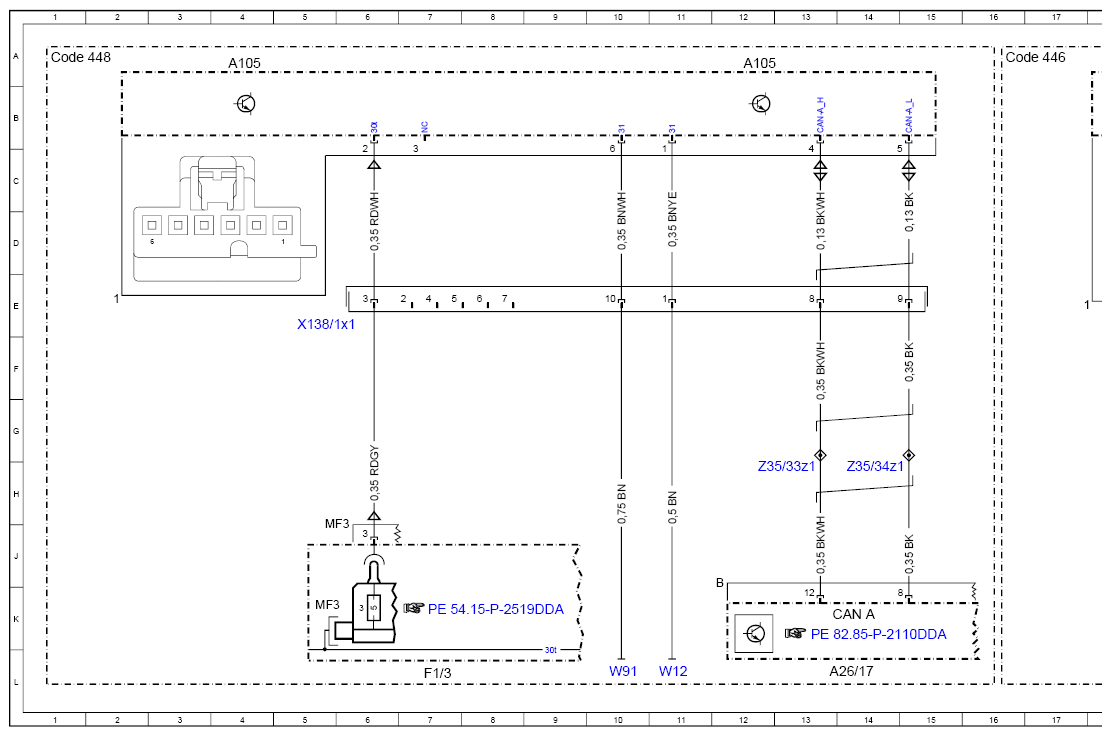

| Code 448 | Touch up | 1A |
| Code 448 | Touch up | 54B |
| F1/3 | Passenger-side A-pillar fuse box | 7L |
| F1/3 | Passenger-side A-pillar fuse box | 23L |
| F1/3MF2 | Multiple fuse 2 | 22K |
| F1/3MF3 | Multiple fuse 3 | 5K |
| K40/5 | Rear fuse and relay module | 45L |
| K40/5f480 | Fuse 480 | 45L |
| N72/1 | Upper control panel control unit | 33L |
| N72/4 | Left lower control panel | 37L |
| N72/5 | Right lower control panel | 40L |
| W12 | Left center console ground point | 11L |
| W12 | Left center console ground point | 26L |
| W91 | Electromagnetic compatibility ground point (touchpad) | 10L |
| W91 | Electromagnetic compatibility ground point (touchpad) | 48L |
| X138/1x1 | Front center console electrical connector | 5E |
| X138/1x1 | Front center console electrical connector | 22E |
| X138/6x1 | Rear center console electrical connector | 44E |
| X18/53x2 | Driver cockpit/interior wiring harness electrical connector | 33H |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 13H |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 28H |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 50H |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 14H |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 30H |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 52H |
