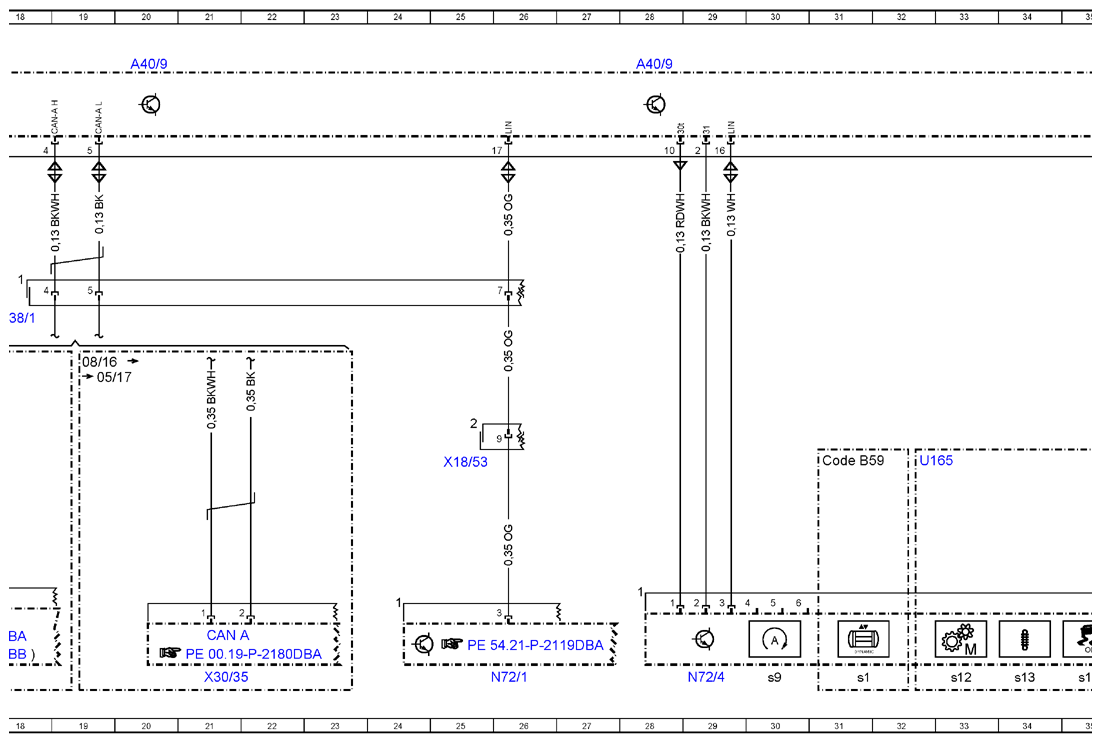

Wiring Diagram For Front Central Operating Unit - PE82.00-P-2060-97DBA
Model 213 up to model year 2021 except code 446 (Touchpad only) Operating unit A40/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| A105 | Touch up | 5G |
| A105s1 | "Back" button | 4G |
| A105s2 | Background audio button | 5G |
| A105s3 | Home and Favorites button | 5G |
| A26/17 | Head unit | 16L |
| A40/9 | Audio/COMMAND control panel | 5A |
| A40/9 | Audio/COMMAND control panel | 12A |
| A40/9 | Audio/COMMAND control panel | 20A |
| A40/9 | Audio/COMMAND control panel | 28A |
| A40/9 | Audio/COMMAND control panel | 36A |
| A40/9 | Audio/COMMAND control panel | 44A |
| A40/9s11 | Audio/COMMAND controller | 5B |
| A40/9s16 | Home and Favorites button | 6B |
| A40/9s2 | "Back" button | 3B |
| CAN A | Telematics CAN | 21K |
| CAN A | Telematics CAN | 17K |
| Code 235 | Parking Pi lot | 43G |
| Code 437 | Comfort head restraints in rear passenger compartment | 41G |
| Code 437 | Comfort head restraints in rear passenger compartment | 57G |
| Code 489 | AIR BODY CONTROL | 36G |
| Code 520 | Audio 20 USB | 14J |
| Code 522 | Audio 20 radio | 14J |
| Code 531 | COMMAND APS | 14H |
| Code 540 | Electric roller sun blind for rear window | 52G |
| Code B59 | DYNAMIC SELECT | 31G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 39H |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 39G |
| Code P44 | Parking package | 38G |
| Code P44 | Parking package | 53G |
| Code U78 | AMG Sport exhaust system | 48G |
| F1/3 | Passenger-side A-pillar fuse box | 11L |
| F1/3MF2 | Multiple fuse 2 | 9K |
| N72/1 | Upper control panel control unit | 26L |
| N72/4 | Left lower control panel | 29L |
| N72/4 | Left lower control panel | 43L |
| N72/4 | Left lower control panel | 36L |
| N72/4s1 | DYNAMIC SELECT switch | 31L |
| N72/4s12 | Manual shift mode button | 33L |
| N72/4s13 | Comfort/Sport button | 34L |
| N72/4s14 | AMG ESP® Sport OFF button | 35L |
| N72/4s15 | PARKTRONIC button | 44L |
| N72/4s18 | Rear head restraints button | 42L |
| N72/4s2 | Vehicle level button | 37L |
| N72/4s5 | Parking system button | 39L |
| N72/4s6 | Operating mode select button | 40L |
| N72/4s9 | ECO start/stop function button | 30L |
| N72/5 | Right lower control panel | 46L |
| N72/5 | Right lower control panel | 51L |
| N72/5 | Right lower control panel | 57L |
| N72/5s1 | Volume control button | 47L |
| N72/5s10 | Parking system button | 54L |
| N72/5s11 | Sport exhaust system button | 49L |
| N72/5s18 | Rear head restraints button | 58L |
| N72/5s2 | "ON" button | 55L |
| N72/5s3 | ECO start/stop function button | 50L |
| N72/5s9 | Rear window roller sun blind button | 52L |
| U1547 | Valid for all except code U78 | 55G |
| U165 | Valid for AMG | 32G |
| W12 | Left center console ground point | 14L |
| X138/1 | Front center console electrical connector | 9E |
| X138/1 | Front center console electrical connector | 18E |
| X18/53 | Driver-side cockpit/frame floor assembly electrical connector | 25H |
| X30/35 | Telematics CAN (CAN A) potential distributor electrical connector | 21L |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 16H |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 17H |
