Wiring Diagram For Engine Hood Contact Switch - PE82.00-P-2005-97DBA

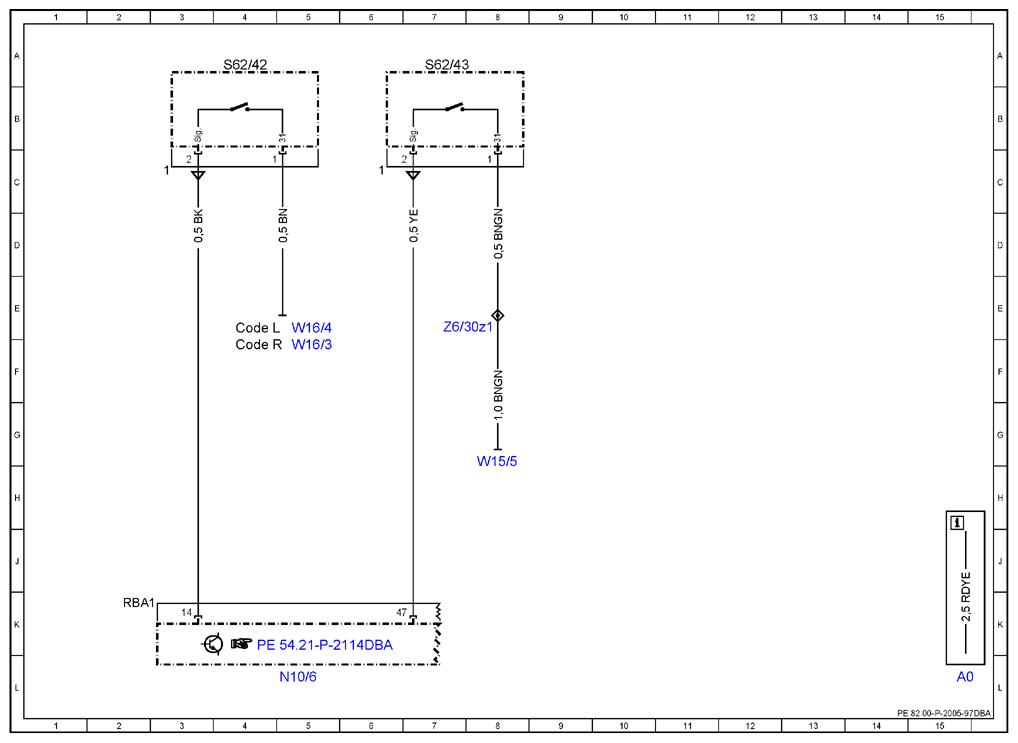

Model 213 up to model year 2021 Right engine hood contact switch S62/42, left engine hood contact switch S62/43
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code L | LEFT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 4F |
| N10/6 | Front SAM control unit | 5L |
| S62/42 | Right engine hood contact switch | 4A |
| S62/43 | Left engine hood contact switch | 7A |
| W15/5 | Left front footwell ground point | 8H |
| W16/3 | Left major assembly compartment ground point | 5F |
| W16/4 | Right major assembly compartment ground point | 5E |
| Z6/30z1 | Circuit 31 connector sleeve | 8E |
