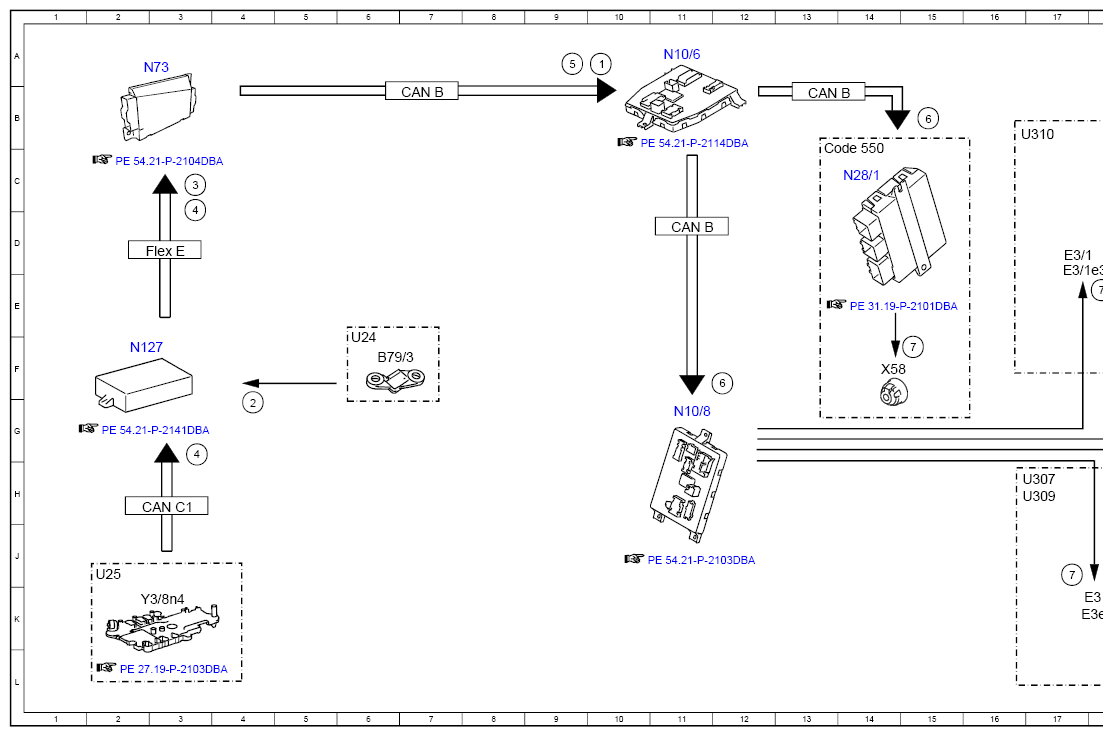

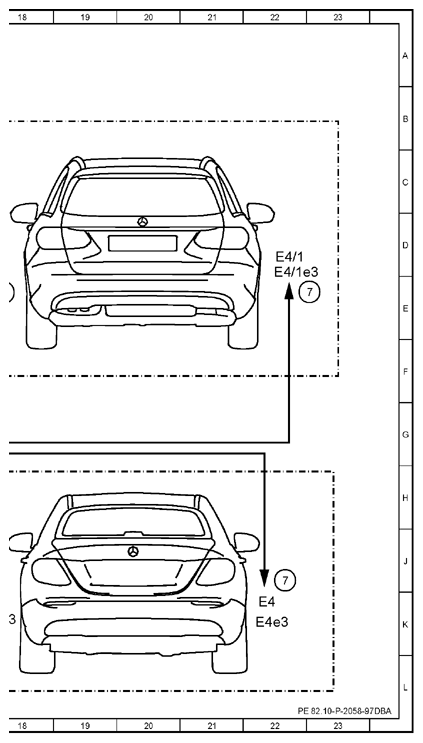

Electrical Function Schematic For Backup Light Actuation - PE82.10-P-2058-97DBA
Model 213 up to model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 10A |
| 2 | Manual transmission main shifter shaft position sensor, signal | 4G |
| 3 | Reverse gear engaged, signal | 3C |
| 4 | Gear range, status | 3G |
| 4 | Gear range, status | 3D |
| 5 | Reverse gear, status | 9A |
| 6 | Backup lamp, request | 12F |
| 6 | Backup lamp, request | 15B |
| 7 | Backup lamp, actuation | 17J |
| 7 | Backup lamp, actuation | 22J |
| 7 | Backup lamp, actuation | 15F |
| 7 | Backup lamp, actuation | 23E |
| 7 | Backup lamp, actuation | 18E |
| B79/3 | Manual transmission main shifter shaft position sensor | 6F |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 7B |
| CAN B | Interior CAN | 13B |
| CAN C1 | Drive train CAN | 3H |
| Code 550 | Trailer hitch | 13C |
| E3 | Left rear lamp unit | 17K |
| E3/1 | Inner left rear lamp unit | 17D |
| E3/1e3 | Left backup lamp | 17E |
| E3e3 | Left backup lamp | 17K |
| E4 | Right rear lamp unit | 22K |
| E4/1 | Inner right rear lamp unit | 22D |
| E4/1e3 | Right backup lamp | 22E |
| E4e3 | Right backup lamp | 22K |
| Flex E | Chassis FlexRay | 3D |
| N10/6 | Front SAM control unit | 11A |
| N10/8 | Rear SAM control unit | 11G |
| N127 | Drivetrain control unit | 2F |
| N28/1 | Trailer recognition control unit | 14C |
| N73 | Electronic ignition switch control unit | 3A |
| U24 | Valid for manual transmission | 6F |
| U25 | Valid for automatic transmission | 2J |
| U307 | Valid for model 213.0 | 16H |
| U309 | Valid for model 213.1 | 16H |
| U310 | Valid for model 213.2 | 16B |
| X58 | Trailer socket | 14F |
| Y3/8n4 | Fully integrated transmission control, control unit | 3K |
