Fabricate Drilling Template For CD Drive Holder - AZ82.64-P-0002-04LWR

Model 213.0##/2## 2#

Model 238.3## 2#

Model 257.### 2#

Model 290.### 2#

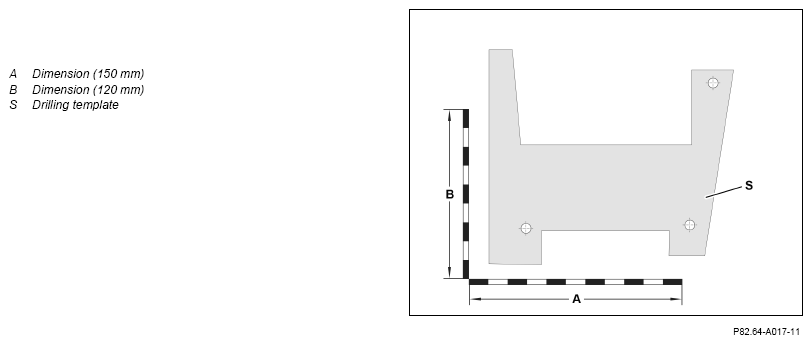

Drilling template(S)

Courtesy of MERCEDES-BENZ USA

1. Print out the drilling template drawing(S).
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed-out drilling template(S) to original size using determined scaling factor.
5. Cut out drilling template(S).

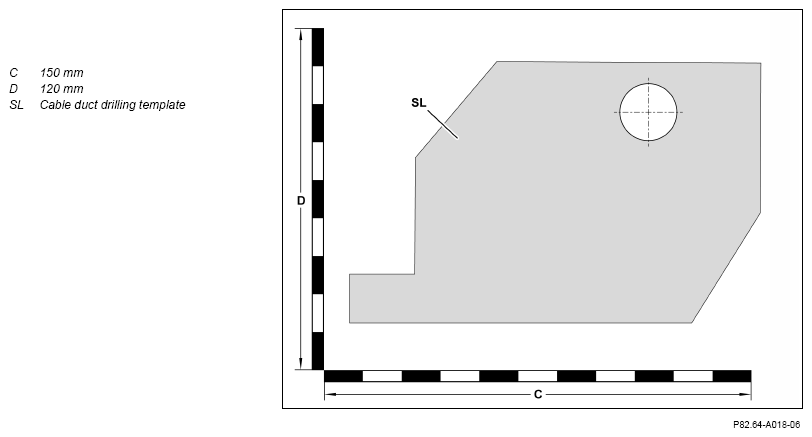

   Cable duct drilling template (SL)

   Courtesy of MERCEDES-BENZ USA

6. Print out the cable duct drilling template drawing (SL).
7. Determine dimensions (C, D) of printout.
8. Determine scaling factor.

   Divide specified dimension (C) by measured dimension (C).

   Divide specified dimension (D) by measured dimension (D).

9. Copy printed-out cable duct drilling template (SL) to original size using determined scaling factor.
10. Cut out the cable duct drilling template (SL).
