Remove/Install Vehicle Information And Communication System (VICS) Control Unit - AR82.60-P-0003LWE
Model 213
with code 498 (Japanese version)

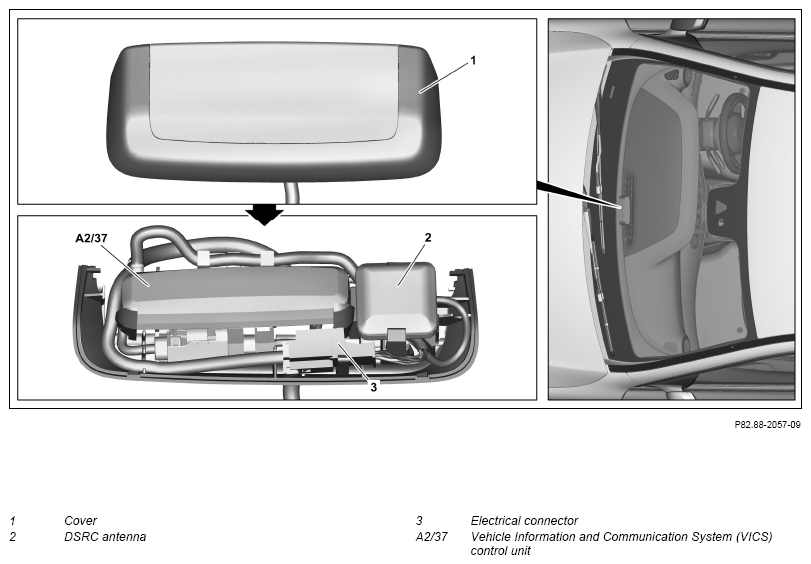

Fig 1: Vehicle Information And Communication System (VICS) Control Unit Components Location - Model 213 With Code 498
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Unclip cover (1) | ||
| 2 | Unclip DSRC antenna (2) and place to one side with line connected | ||
| 3 | Disconnect electrical connector (3) | ||
| 4 | Unclip and remove vehicle Information and Communication System (VICS) control unit (A2/37) | ||
| 5 | Install in the reverse order |
