Remove/Install Rear Taillamp Unit - AR82.10-P-4731LWS
Model 205.2
Model 213.2
Model 253.1/9
Model 293

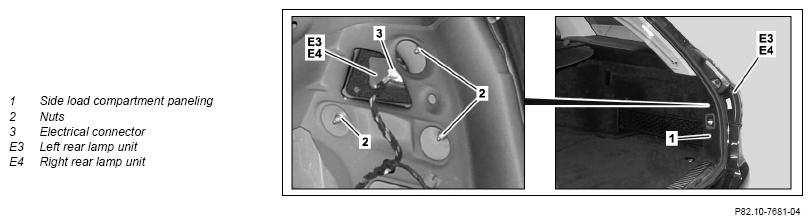

Shown on model 205.2 except code ME06 (Hybrid drive 60 KW variant (Including Plug-in))
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Loosen side load compartment trim (1) in the rear area until the nuts (2) are accessible. | Model 205.2 except code ME06 (Hybrid drive 60 kW variant (incl. plugin)) | AR68.30-P-1180LWS |
| 1.2 | Remove side load compartment trim (1). | Model 213.2, 293 Model 293 |
AR68.30-P-1180LWG |
| Model 213.2 | AR68.30-P-1185LWE | ||
| 1.3 | Remove service flap from side load compartment trim (1). | Model 205.2 with code ME06 (Hybrid drive 60 kW variant (incl. plugin)) Model 253.1/9 |
|
| 2 | Disconnect electrical connector (3). | ||
| 3 | Remove nuts (2). | ||
| 4 | Remove left rear lamp unit (E3) or right rear lamp unit (E4). | ||
| 5 | Install in the reverse order. |
