Remove/Install Multimedia Connection Unit In Rear Stowage Compartment - AR82.60-P-1033LW

Model 213, 238

as of model year 2021

Shown on model 238.3 with code 801 (Year Model 20/1)

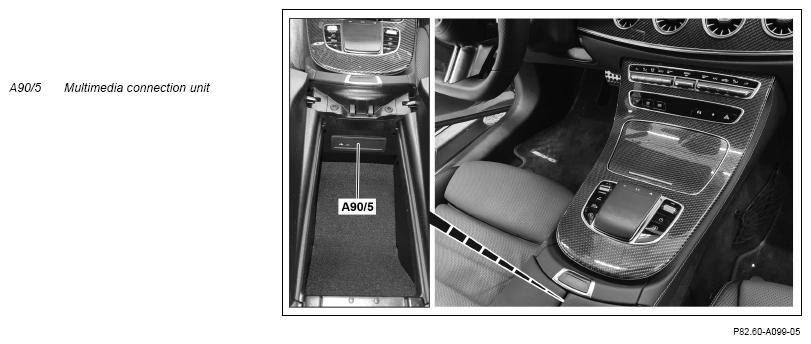

Fig 1: Multimedia Connection Unit In Rear Stowage Compartment Components Location - Model 213 As Of Model Year 2021 (Shown On Model 238.3)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Open armrest of center console.
3	Insert removal fixtures (1) into multimedia connection unit (A90/5).	Removal assembly	Fig 2
4	Pull multimedia connection unit (A90/5) using removal fixtures (1) out of center console until electrical connectors are accessible.	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. Removal assembly	Fig 2
5	Release and disconnect electrical connectors.	The number of electrical connectors varies according to vehicle equipment.
6	Operate locks (arrows) and pull out removal fixtures (1).	Removal assembly	Fig 2
	Install
7	Connect electrical connectors.	The number of electrical connectors varies according to vehicle equipment.
8	Push multimedia connection unit (A90/5) into center console	The multimedia connection unit (A90/5) must audibly lock on both sides
9	Close armrest of center console.

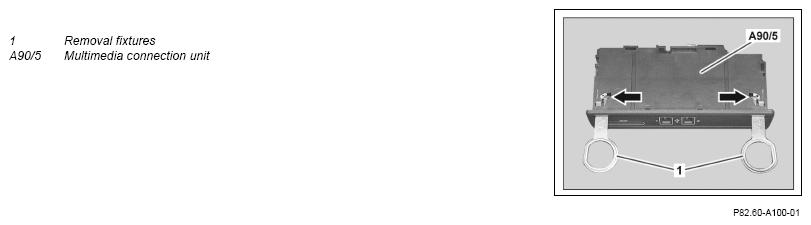

Fig 2: Identifying Removal Assembly (000 589 88 63 00)

Courtesy of MERCEDES-BENZ USA
