Remove/Install Dedicated Short-Range Communications/DSRC Control Unit - AR82.88-P-0005LWE
Model 213
with code 498 (Japanese version)

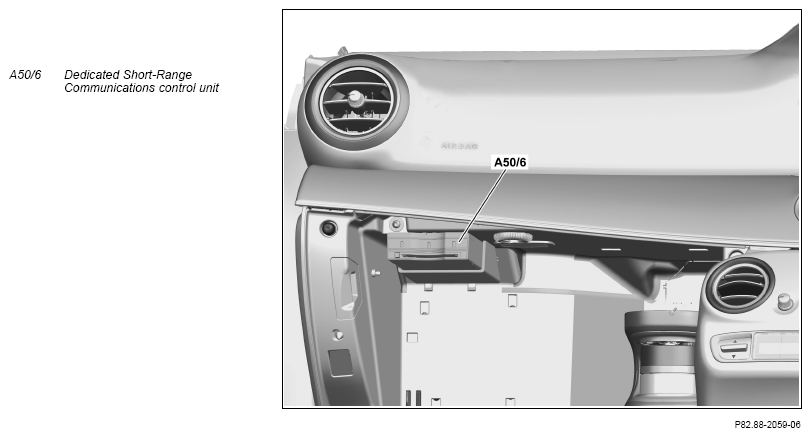

Fig 1: Dedicated Short-Range Communications/DSRC Control Unit Components Location - Model 213 With Code 498
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of Dedicated Short-Range Communications control unit (A50/6) | When replacing the Dedicated Short-Range Communications control unit (A50/6). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Open glove compartment | ||
| 4 | Unclip the Dedicated Short-Range Communications control unit (A50/6) with bracket | ||
| 5 | Disconnect electrical connectors from Dedicated Short-Range Communications control unit (A50/6) and remove Dedicated Short-Range Communications control unit (A50/6) with bracket | ||
| 6 | Unclip the Dedicated Short-Range Communications control unit (A50/6) from bracket | When replacing the Dedicated Short-Range Communications control unit (A50/6). | |
| 7 | Install in the reverse order |
