Remove/Install Comand Display - AR82.85-P-7429LWE

Model 213, 238

MODIFICATION NOTES

04.11.2016

Operation step augmented

Operation step 3

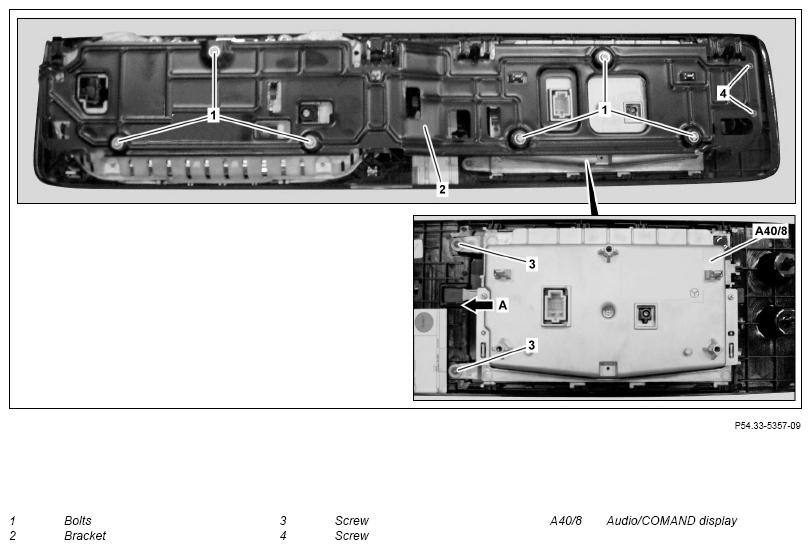

Fig 1: Comand Display Components Location - Model 213 (Shown On Model 213)

Courtesy of MERCEDES-BENZ USA

Shown on model 213 except code 464 (Digital instrument cluster full display)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform commissioning of Audio/COMAND display (A40/8)	When replacing Audio/COMAND display (A408).
		Model 213	AD00.00-P-2000-04B
		Model 238	AD00.00-P-2000-06LWO
2	Remove display module	Model 213, 238 with code 464 (Full display digital instrument cluster) Audio/COMAND display (A40/8) is part of the display module and cannot be removed or replaced separately.	AR54.30-P-6023LWE
3	Remove screws (1) and screws (4) and remove bracket (2)	Model 213, 238 except code 464 (Full display digital instrument cluster)
4	Remove bolts (3)	Model 213, 238 except code 464 (Full display digital instrument cluster)
5	Disengage Audio/COMAND display (A40/8) in direction of arrow (arrow A)	Model 213, 238 except code 464 (Full display digital instrument cluster) : Audio/COMAND display (A40/8) must audibly engage.
6	Remove Audio/COMAND display (A40/8)	Model 213, 238 except code 464 (Full display digital instrument cluster)
7	Install in the reverse order
