Remove/Install Button Groups On Multifunction Steering Wheel - AR82.90-P-0014FRA
Model 213, 257
with Code L2B (Luxury steering wheel leather)
except Code L5C (Supersport steering wheel - deep embossed leather)
| Notes on avoiding damage to electronic components through electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove the driver airbag on the steering wheel. | Model 213 with code L2B (luxury steering wheel leather) except code L5C (supersport steering wheel - leather embossed) | AR91.60-P-0660LW |
| Model 257 with code L2B (luxury steering wheel leather) except code L5C (supersport steering wheel - deep embossed leather) | AR91.60-P-0660FR | ||

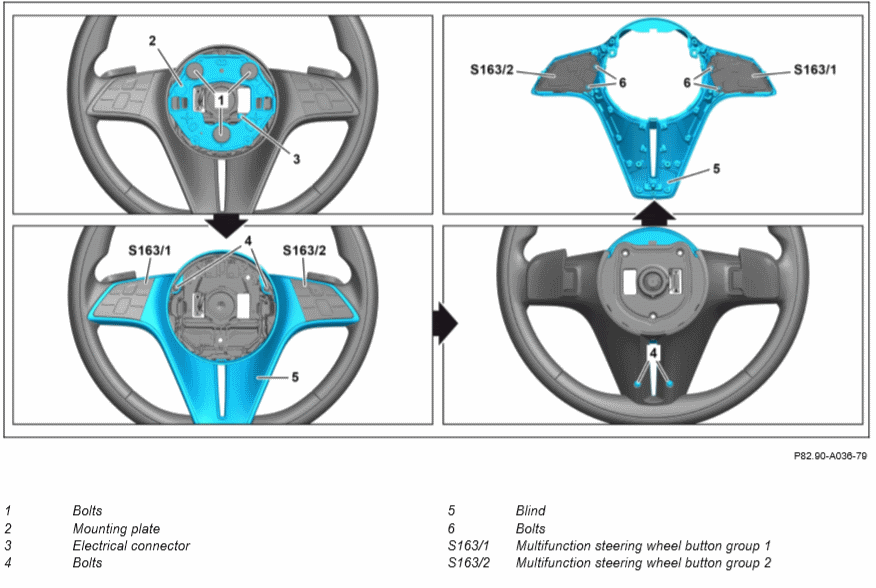

| 2 | Unscrew bolts (1). | Ensure that the washers of bolts (1) are correctly seated. Otherwise the horn will not work. |
*BA46.10-P-1002-02J |
| 3 | Remove the fastening plate (2) and unlock and disconnect the electrical plug connection (3). | ||
| 4 | Unscrew the bolts (4) and unclip the cover (5) with button group 1 multifunction steering wheel (S163 / 1) and button group 2 multifunction steering wheel (S163 / 2). | Fig 2 | |
| 5 | Unlock and disconnect electrical plug connection on group 1 multifunction steering wheel buttons (S 163/1) and group 2 multifunction steering wheel buttons (S163 / 2). | ||
| 6 | Unscrew screws (6) and remove button group 1 multifunction steering wheel (S163 / 1) or button group 2 multifunction steering wheel (S163 / 2). | ||
| 7 | Installation in reverse order. | ||
| 8 | Carry out commissioning of the steering wheel electronics (N135). | When replacing button group 1 multifunction steering wheel (S163 / 1) and button group 2 multifunction steering wheel (S163 / 2). | |
| Model 213 | AD00.00-P-2000-04B | ||
| Model 257 | AD00.00-P-2000-06FR |
STEERING WHEEL
| Number | Designation | Model 213 | Model 257 | |
|---|---|---|---|---|
| BA46.10-P-1002-02J | Bolt mounting plate / contact plate on steering wheel | Nm | 7 | 6 |
