Windshield Wipers, Windshield Washer System - Operational Inspection - AP82.35-P-8252D
Model 213, 238, 257, 290

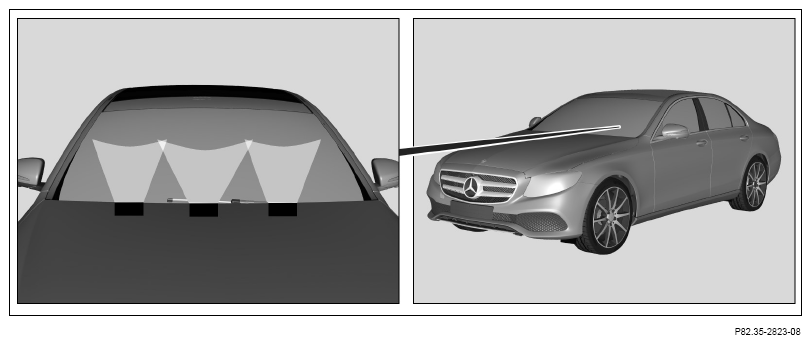

Shown on model 213.0, spray pattern on windshield

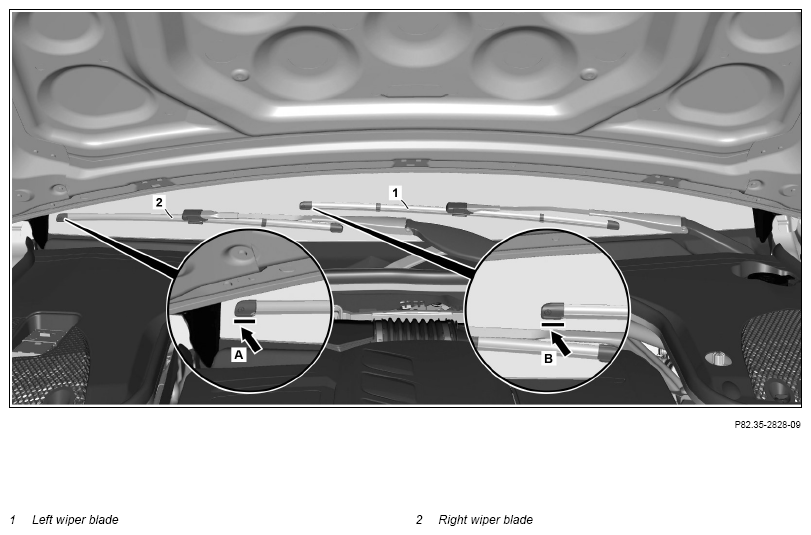

Shown on model 213.0
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Preparatory activity | |||
| 1 | Close hood. | ||
| 2 | Close liftgate, doors and side windows. | ||
| 3 | Switch electronic ignition lock control unit to position "2" (circuit 15). | ||
| Check/correct | |||
| 4 | Check spray nozzles of windshield washer system for proper operation and setting. | If the spray jet does not hit inside the marked area, ↓ correct the setting. If a spray nozzle is clogged, ↓ Clean spray nozzle and/or blow out with compressed air from inside to outside or replace spray nozzle. |
|
| 5 | Check park position of left wiper blade (1) and right wiper blade (2) on windshield. | If the park position deviates, ↓ Check and adjust wiper arms. |
|
| 6 | Spray water onto windshield using windshield washer system. | ||
| 7 | Switch on windshield wipers at highest setting. | ||
| 8 | Check adjustment of wiper arms on windshield. | The left wiper blade (1) and right wiper blade (2) must not collide with the A-pillar or cowl. Damage can otherwise occur. If problems occur, ↓ rectify problems. |
|
| Finishing activity | |||
| 9 | Switch electronic ignition lock control unit to position "0". | ||
| 10 | Check/correct fluid level of windshield washer system. | Only for service with Plus package. | AP82.35-P-8210C |
