Digital TV Tuner, Component Description - GF82.60-P-3118FG
Model 213 up to model year 2021 with code 531 (COMMAND APS) with code 865 (digital TV)
Shown on model 213.0 except code 498
(Japan version)

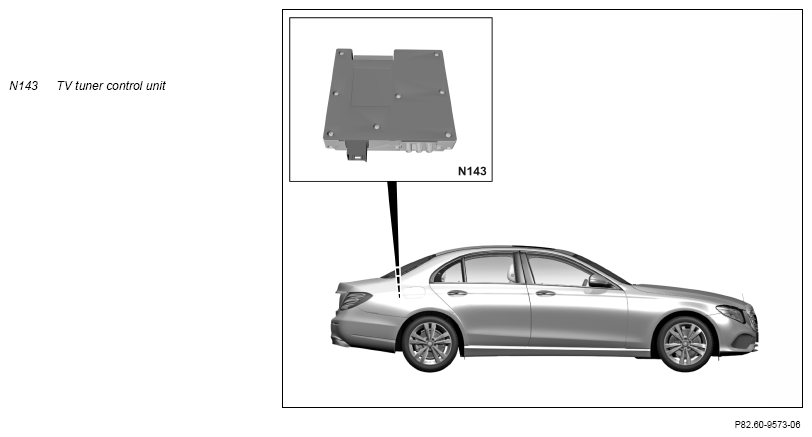

Location
The TV tuner control unit is located on a major assembly bracket in the trunk behind the right sidewall cover.
Tasks
- Receive signals
- Processing signals
- Transmitting signals
Receive signals
- Media Oriented System Transport (MOST)
- Direct lines
Media Oriented System Transport (MOST)
The TV tuner control unit is a MOST participant and communicates over this with the head unit (A26/17).
Direct lines
The TV tuner control unit receives the following signals via direct lines:
- Power supply over circuit 31 and circuit 30T
- Electronic wake-up for MOST
- TV 1 and DAB band III antenna amplifier (A94/5), for TV-1 signals
- TV 2 and DAB band III antenna amplifier (A94/6), for TV-2 signals
- TV 3 antenna amplifier (A94/7), for TV-3 signals
Processing signals
- With code 865 (TV tuner), the TV tuner control unit decodes and demodulates the TV signals and separates them into video and audio signals.
Transmitting signals
- MOST
- Direct lines
MOST
The TV tuner control unit is a MOST participant and communicates over this with the head unit. The audio signals are transmitted to the head unit, to the sound system amplifier control unit (N40/3) (with code 810 (Sound system)) or to the advanced sound system amplifier control unit (N40/7) (with code 811 (Advanced sound system)).
Direct lines
The TV tuner control unit sends the following signals via direct line:
- Supply voltage to TV 1 and DAB band III antenna amplifier
- Supply voltage to TV 2 and DAB band III antenna amplifier
- Supply voltage to TV 3 antenna amplifier
- Video signals via a high-speed video link (HSVL) line to the head unit (with code 865 (TV tuner))
Body
On vehicles except code 498 (Japan version), the TV tuner control unit is equipped with a Common Interface Plus (CI+) slot in which a CI+module is inserted. The CI+ slot is equipped with a cover.
| Wiring diagram for TV tuner | PE82.60-P-2220-97DBA |
