Separate TAILLAMP Reinforcement - Ar63.20-P-2011-01LWT

Model 213.2

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

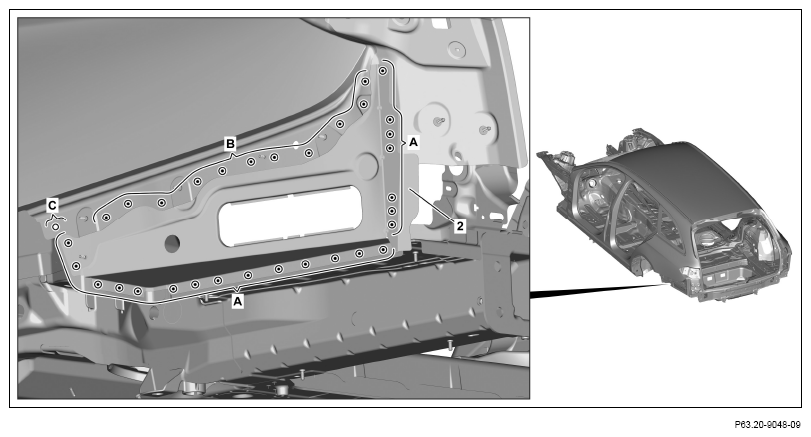

Fig 1: Taillamp Reinforcement Component Location (Model 213.2)

Courtesy of MERCEDES-BENZ USA

1. Expose spot welds on closing panel (2) and cut out (areas A and B).

   Cut out spot welds from inside (area B).

   Joint spot welds on panels that are one behind the other must be cut out through 2 panel thicknesses.

2. Expose spot weld on closing panel (2) and drill with Ø 6.5 mm bit (area C).

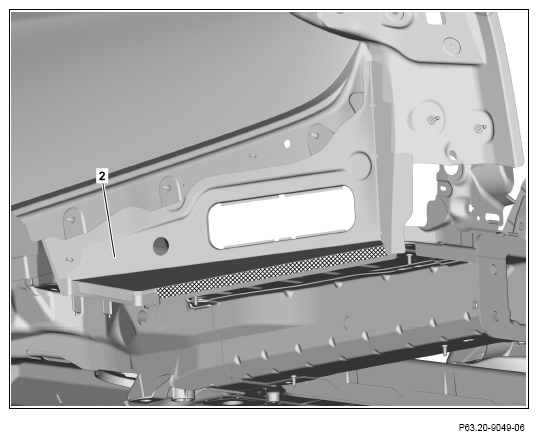

3. Heat closing panel (2) in cross-hatched area.

   Cross-hatched area is bonded.

4. Remove closing panel (2).

   Courtesy of MERCEDES-BENZ USA

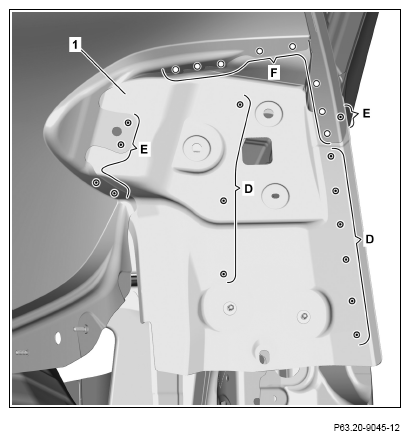

5. Expose spot welds on rear lamp reinforcement (1) and cut out (areas D and E).

   Cut out spot welds from inside (areas E).

6. Expose spot welds on rear lamp reinforcement (1) and drill with Ø 6.5 mm bit (area F).

   Courtesy of MERCEDES-BENZ USA

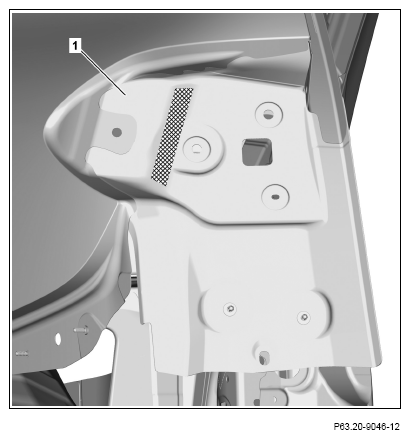

7. Heat rear lamp reinforcement (1) in crosshatched area.

   Cross-hatched area is bonded.

8. Remove rear lamp reinforcement (1).

   Courtesy of MERCEDES-BENZ USA

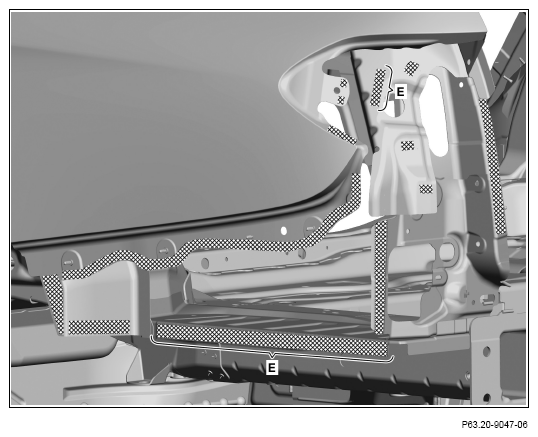

9. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove grinding dust and drill chips.
11. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas E).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA
