Remove/Install Trim At C-Pillar - AR68.30-P-4490LWS

Model 205.2

Model 213.2

Shown on right side of vehicle, model 205.2

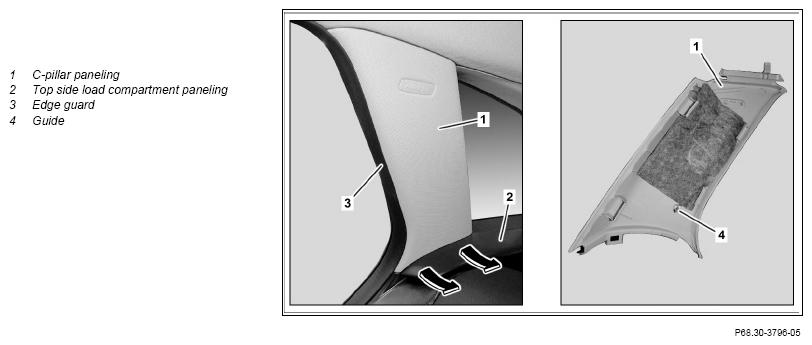

Fig 1: C-Pillar Trim Component Location - Model 213.2 (Shown On Model 205.2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove top side left and right load compartment paneling (2)	Model 205.2
			AR68.30-P-1180LWS
1.2	Remove left and right side load compartment panel	Model 213.2
			AR68.30-P-1185LWE
2	Remove left or right side paneling in rear	Model 213.2	AR68.30-P-4780LWT
3	Loosen edge guard (3) in area of left and right C-pillar paneling (1)
4	Unclip left and right C-pillar paneling (1) and remove in direction of arrow	Ensure that guide (4) is seated correctly in cutouts in C-pillar.
5	Install in the reverse order
