Armrest Heating Control Unit, Basic Function - GF68.20-P-9890A

Model all (CAR) with code 906 (Front armrest heater)

Model all (CAR) with code 907 (Rear armrest heater)

Overview

This document contains information on:

• General
• Location
• Function requirement

General

The armrest heating control unit regulates the functions of the armrest heating in the center console. Additionally, depending on the model, the requests for operating the heating function are transmitted by the rear SAM control unit via the LIN unit and sent accordingly to the heating elements of the armrest in the front center console. The temperature and function are constantly monitored through evaluation of the signals of the temperature sensors on the front center console armrest heating elements.

Location

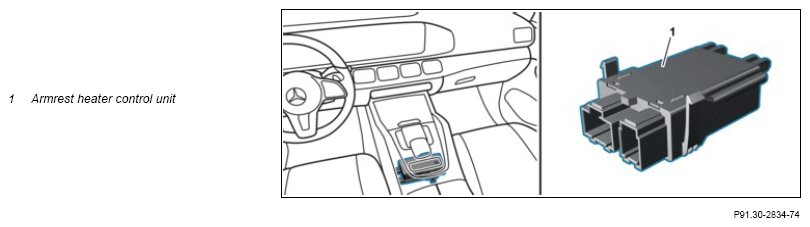

The armrest heating control unit (1) is located in the center console. This can, however, vary depending on the model. Separate installation locations are listed in the below table.

Courtesy of MERCEDES-BENZ USA

Function requirement

• Circuit 15R ON
• Heat heater coded
