Remove Longitudinal Member Outer Shell On Entrance - Ar63.30-P-1102-01LWE

Model 213

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

1. 1. Model 213.0/1

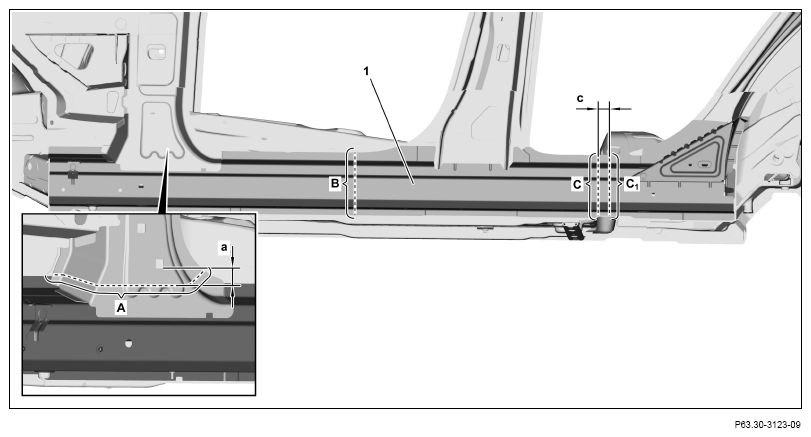

      Mark separating points on longitudinal member outer shell (1) and cut according to damage (area A), (areas A and B), (areas A and C), (areas B and C) or (area C).

      Do not make the cuts too deep.

      Otherwise the components below can be damaged and weakened.

      Mark separating point along Y-marking (areas B and C).

      Dimensions:

      a 27 mm

   2. Model 213.2

      Mark separating points on longitudinal member outer shell (1) and cut according to damage (area A), (areas A and B), (areas A and C), (areas B and C) or (area C₁ ).

      Do not make the cuts too deep.

      Otherwise the components below can be damaged and weakened.

      Mark separating point along Y-marking (area BA).

      a 27 mm

      c = 40 mm

      Dimension (c) is measured from Y-marking in area (C).

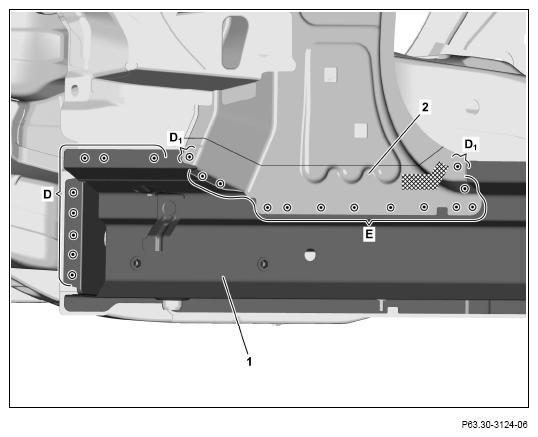

2. Expose spot welds on longitudinal member outer shell (1) and cut out (areas D, D, and E).

   Cut out through two panel thicknesses (areas D).

3. Heat section (2) in crosshatched area.

   Crosshatched area is bonded.

4. Remove section (2).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

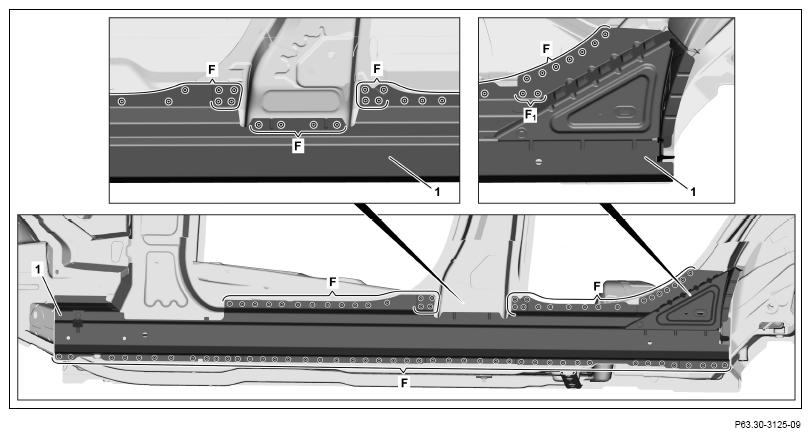

5. Expose spot welds on longitudinal member outer shell (1) and cut out (areas F and Fi).

   Cut out through two panel thicknesses (area F₁ ).

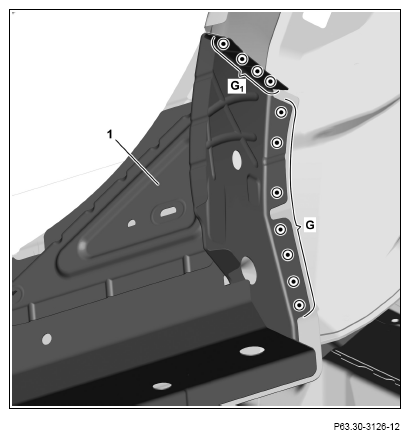

6. Expose spot welds on longitudinal member outer shell (1) and cut out (areas G and G₁ ).

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

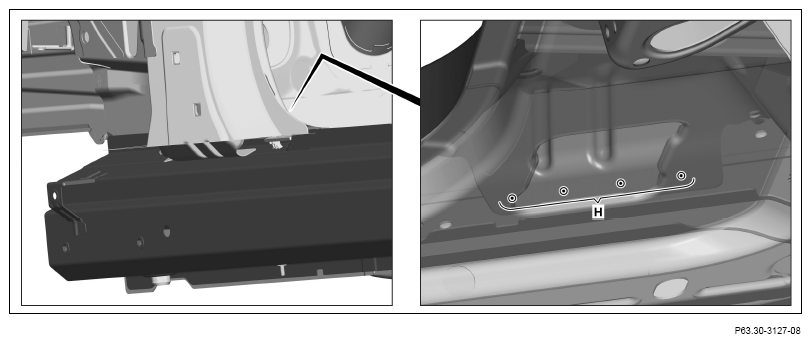

7. Expose spot weld and cut out (area H).

   Cut out spot welds from inside through opening in A-pillar (area H).

   Courtesy of MERCEDES-BENZ USA

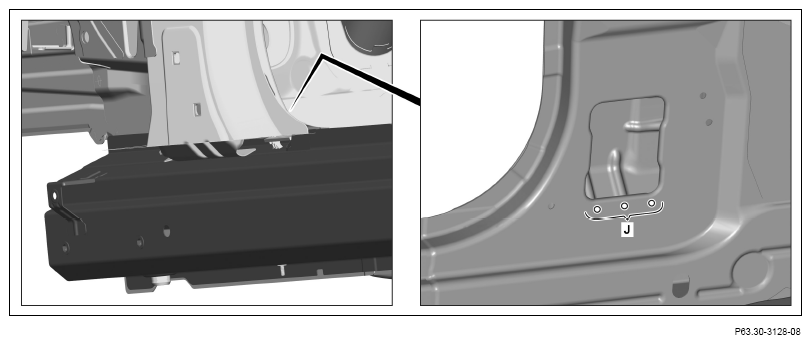

8. Expose spot welds on longitudinal member outer shell and drill with Ø 6.5 mm bit (area J).

   Courtesy of MERCEDES-BENZ USA

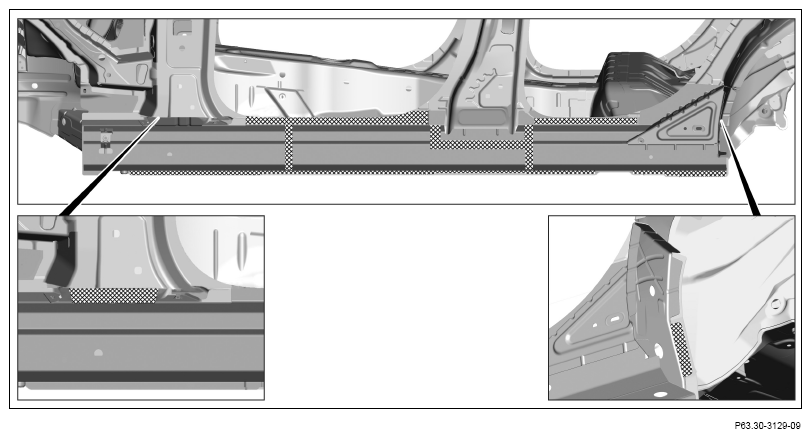

9. Heat longitudinal member outer shell in crosshatched areas.

   Cross-hatched areas are bonded with adhesive.

10. Remove longitudinal member outer shell.

    Courtesy of MERCEDES-BENZ USA

11. Sand down mating surfaces to bare metal in cross-hatched areas.

    Sand down spot weld flanges to bare metal on both sides.

12. Remove grinding dust and drill chips.

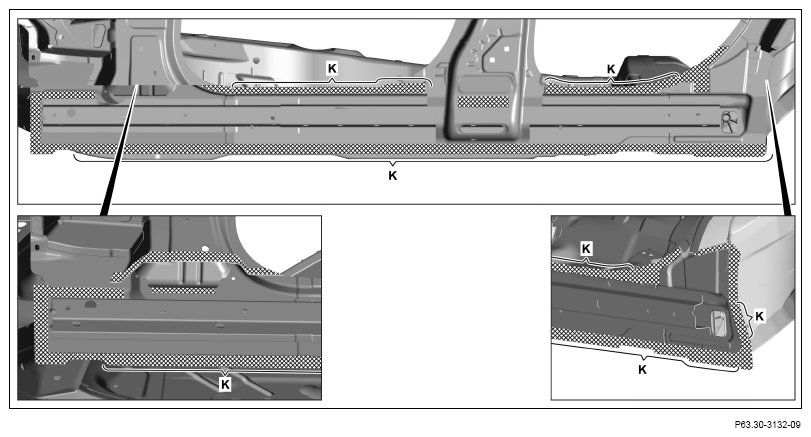

13. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas K).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.

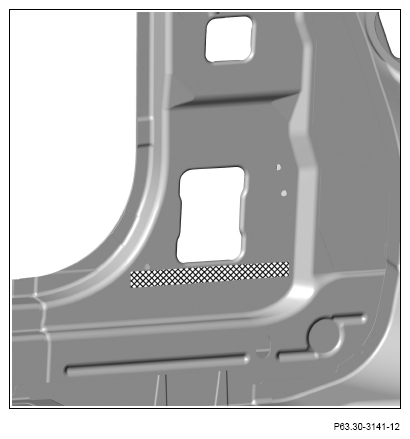

14. Grind mating surfaces down to bare metal in crosshatched area from inside.

    Do not coat bonding surface with zinc dust paint.

    Otherwise adhesion problems may occur.

    Observe preliminary treatment of bonding surface.
