Remove/Install Trunk Lid/Liftgate Control Button - AR72.20-P-3603LWT
Model 205.2
with Code 890 (EASY-PACK-tailgate)
Model 213.2
with Code 890 (EASY-PACK-tailgate)
Model 253
with Code 890 (EASY-PACK-tailgate)
Model 293
with Code 890 (EASY-PACK-tailgate)

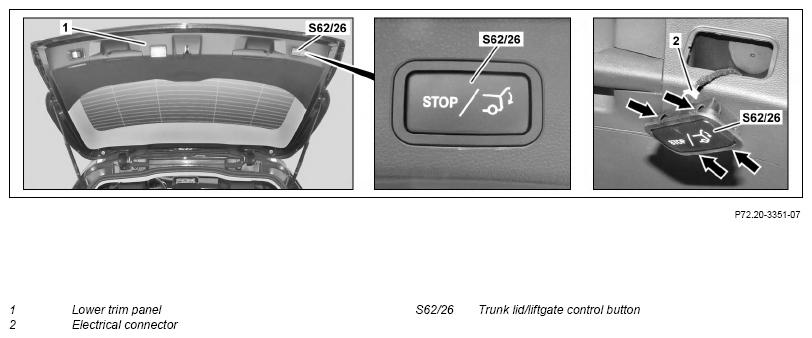

Fig 1: Trunk Lid/Liftgate Control Button Components Location - Model 213.2 With Code 890 (Show On Model 205.2)
Show on model 205.2 except Code 893 (KEYLESS-GO start function)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | Model 205.2 with Code 890 (EASY-PACK-tailgate) with Code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Model 213.2 with Code 890 (EASY-PACK-tailgate) with Code P17 (KEYLESS-GO package) |
|||
| Model 253 with Code 871 (HANDS-FREE ACCESS) with Code 889 (KEYLESS-GO) with Code 890 (EASY-PACK-tailgate) |
|||
| Model 293 with Code 871 (HANDS-FREE ACCESS) with Code 889 (KEYLESS-GO) with Code 890 (EASY-PACK-tailgate) |
|||
| Remove/install | |||
| 1 | Unclip trunk lid/liftgate control button (S62/26) in area of catch hooks (arrows) with suitable tool | ||
| Otherwise the bottom paneling (1) or trunk lid/liftgate control button (S62/26) can be damaged. | |||
| 2 | Disconnect electrical connector (2) and remove trunk lid/liftgate control button (S62/26) | ||
| 3 | Install in the reverse order |
