Remove/Install Front Door Control Unit - AR72.29-P-1000LW

Model 205, 213

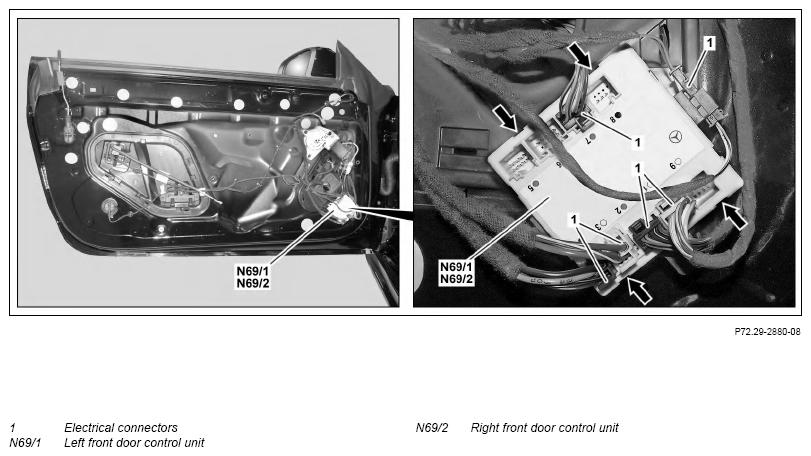

Fig 1: Front Door Control Unit Components Location - Model 213 (Shown On Model 205.3)

Courtesy of MERCEDES-BENZ USA

Shown on model 205.3

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Perform initial startup of left Front door control unit (N69/1) or right Front door control unit (N69/2) with diagnostic system	When replacing left Front door control unit (N69/1) or right Front door control unit (N69/2).
			AD00.00-P-2000-04B
2	Remove door trim		AR72.10-P-1000LW
3	Separate electrical connections (1)	The number of electrical connectors (1) can vary, depending on the equipment.
4	Release left Front door control unit (N69/1) or right Front door control unit (N69/2) and remove (arrows)
5	Install in the reverse order
